MA70R-BLPVFQ (1986)
Toyota Supra
Production
Jan 1986
-
Aug 1988
Engine
7MGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

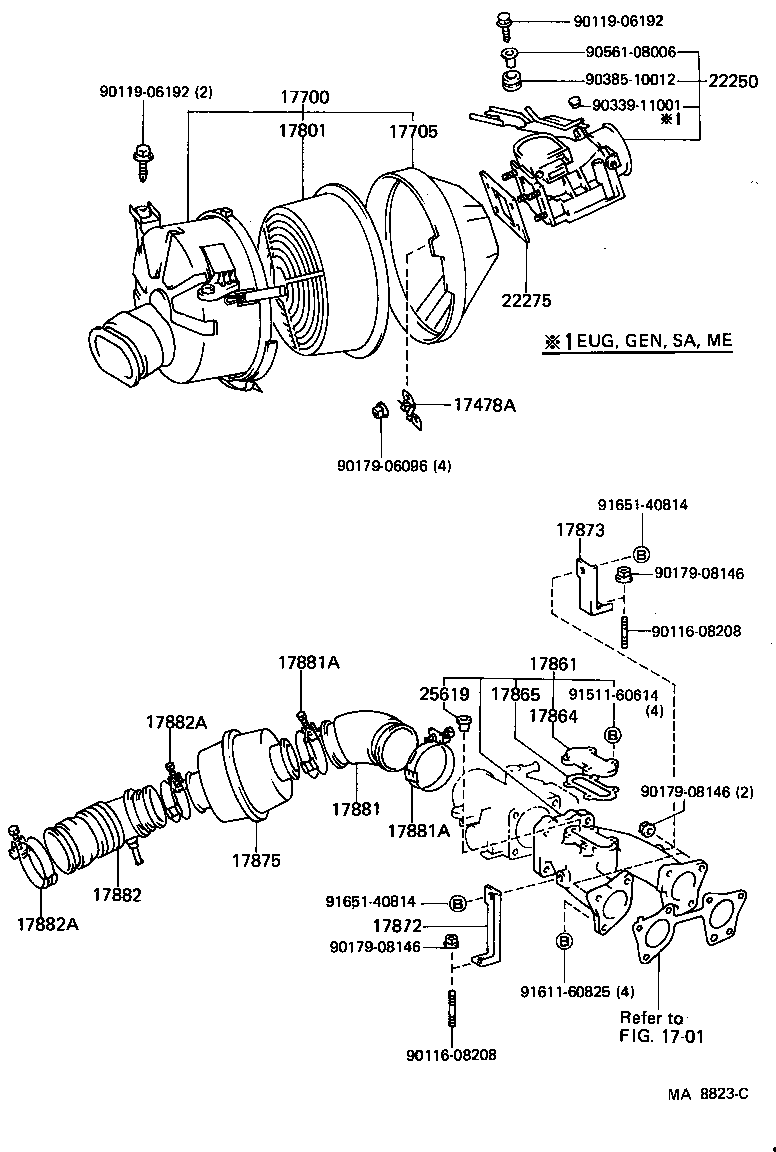

(8601- )7MGE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17478A - PLATE, LOCK | ||||
| 17478-43010 |
7MGE..MA70 |
2 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-42220 |
7MGE..MA70 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-42110 |
7MGE..MA70 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-70020 |
7MG#..MA70 |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17860-42020 |
7MGE..MA70 |
1 | ||
| 17864 - COVER, INTAKE AIR CONNECTOR | ||||
| 17864-42010 |
7MGE..MA70 |
1 | ||
| 17865 - GASKET, INTAKE AIR CONNECTOR COVER | ||||
| 17865-42010 |
7MGE..MA70 |
1 | ||
| 17872 - BRACKET, INTAKE AIR CONNECTOR | ||||
| 17872-42040 |
7MGE..MA70 |
1 | ||
| 17873 - BRACKET, INTAKE AIR CONNECTOR, NO.2 | ||||
| 17873-42020 |
7MGE..MA70 |
1 | ||
| 17875 - PIPE, INTAKE AIR CONNECTOR | ||||
| 17875-42020 |
7MGE..MA70 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-42030 |
7MGE..MA70 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10800 |
7MGE..MA70 ENGINE SIDE |
1 | ||
| 96111-10830 |
7MGE..MA70 PIPE SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10800 |
7MGE..MA70 ENGINE SIDE |
1 | ||
| 96111-10830 |
7MGE..MA70 PIPE SIDE |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-42020 |
7MGE..MA70 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10900 |
7MGE..MA70 AIR FLOW METER SIDE |
1 | ||
| 96111-10830 |
7MGE..MA70 PIPE SIDE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10900 |
7MGE..MA70 AIR FLOW METER SIDE |
1 | ||
| 96111-10830 |
7MGE..MA70 PIPE SIDE |
1 | ||
| 22250 - METER ASSY, INTAKE AIR FLOW | ||||
| 22250-42030 |
7MGE..MA70..ARL;7MGE..MA70..SDZ |
1 | ||
| 22275 - GASKET, AIR FLOW METER | ||||
| 22275-43010 |
7MGE..MA70 |
1 | ||
| 25619 - TUBE, EGR INLET | ||||
| 25619-43010 |
7MGE..MA70 |
1 | ||
| Common parts | ||||
| 90116-08208 | ||||
| 90119-06192 | ||||
| 90179-06096 | ||||
| 90179-08146 | ||||
| 90339-11001 | ||||
| 90385-10012 | ||||
| 90561-08006 | ||||
| 91511-60614 | ||||
| 91611-60825 | ||||
| 91651-40814 | ||||
| Linked diagrams | ||||
| 1701 | ||||

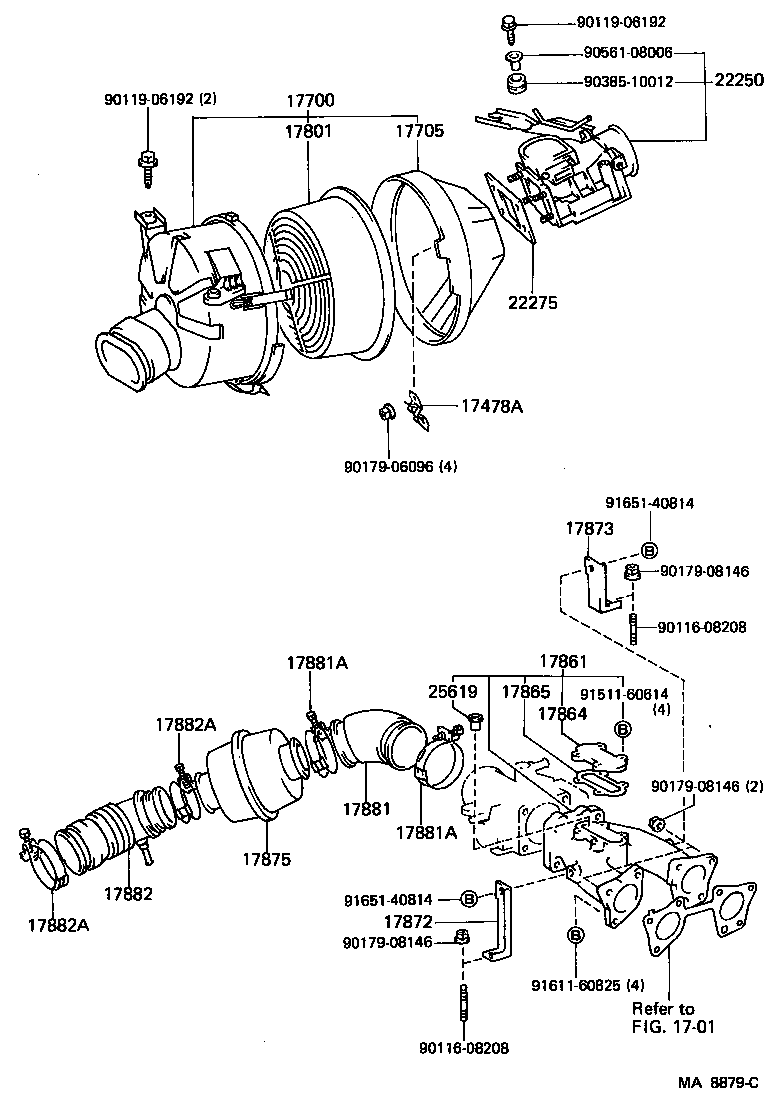

(8601- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90116-08208 | ||||
| 90119-06192 | ||||
| 90179-06096 | ||||
| 90179-08146 | ||||
| 90385-10012 | ||||
| 90561-08006 | ||||
| 91511-60614 | ||||
| 91611-60825 | ||||
| 91651-40814 | ||||
| Linked diagrams | ||||
| 1701 | ||||
