MA70R-BLPVF (1988)
Toyota Supra
Production
Aug 1988
-
May 1993
Engine
7MGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )RHD

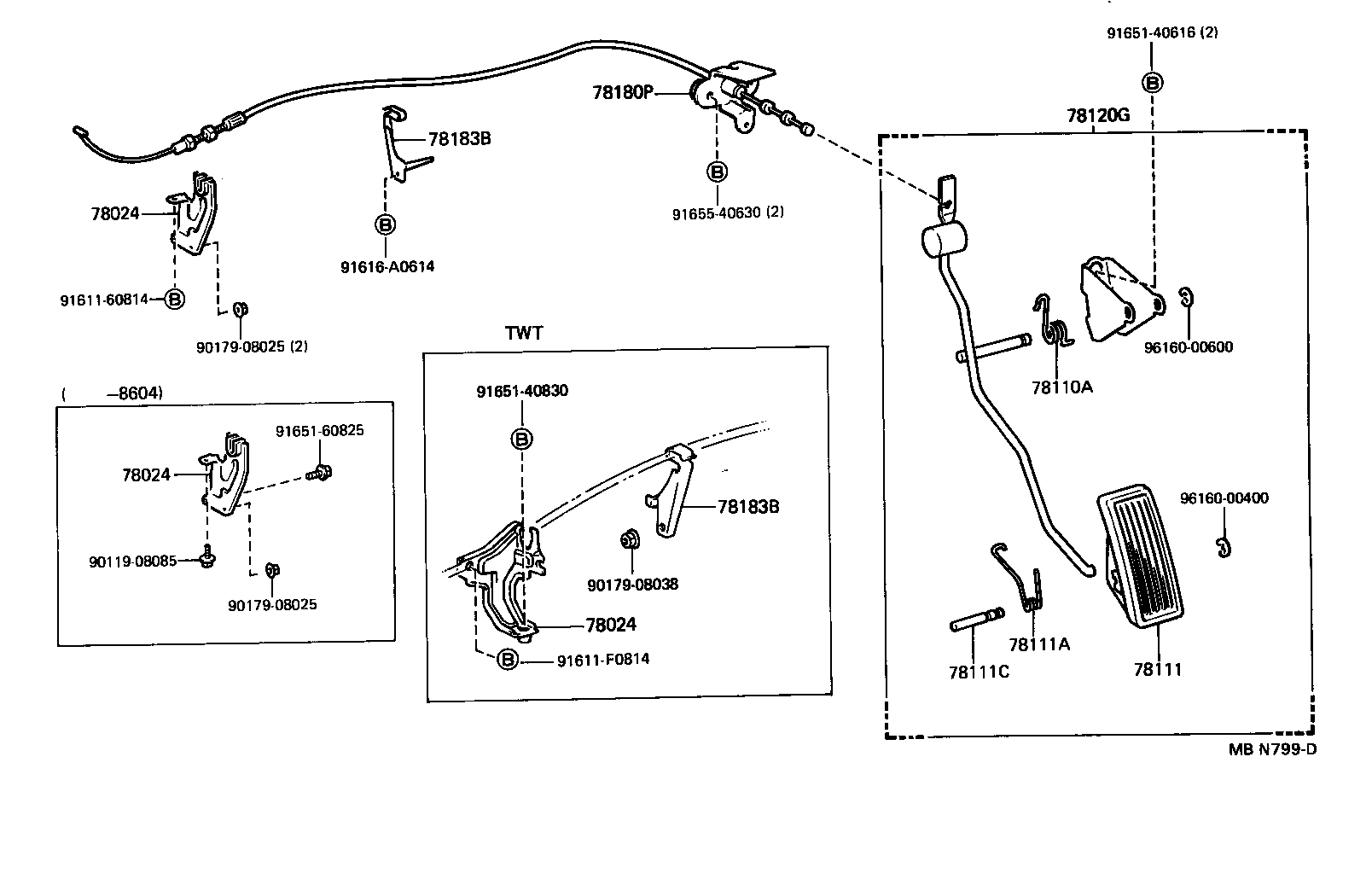

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-14100 |
MA70..RHD..4FC..TWC |
1 | ||
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-14100 |
MA70..RHD..4FC..TWC |
1 | ||
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-14100 |
MA70..RHD..4FC..TWC |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18060 |
MA70..4FC;MA70..LHD..5F |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-12100 |
MA70 |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-23088 |
MA70 |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
MA70 |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-14471 |
MA70..RHD..4FC |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-14830 |
MA70..RHD..4FC..TWC |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 90959-01440 |
MA70..TWC..C W(*66) |
1 | ||
| 90959-01243 |
MA70..RHD..TWC |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 90959-01440 |
MA70..TWC..C W(*66) |
1 | ||
| 90959-01243 |
MA70..RHD..TWC |
1 | ||
| Common parts | ||||
| 90119-08085 | ||||
| 90179-08025 | ||||
| 90179-08038 | ||||
| 91611-60814 | ||||
| 91611-F0814 | ||||
| 91616-A0614 | ||||
| 91651-40616 | ||||
| 91651-40830 | ||||
| 91651-60825 | ||||
| 91655-40630 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
(8808- )TWC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06317 | ||||
| 90179-08025 | ||||
| 91651-40616 | ||||
| 91655-40630 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
