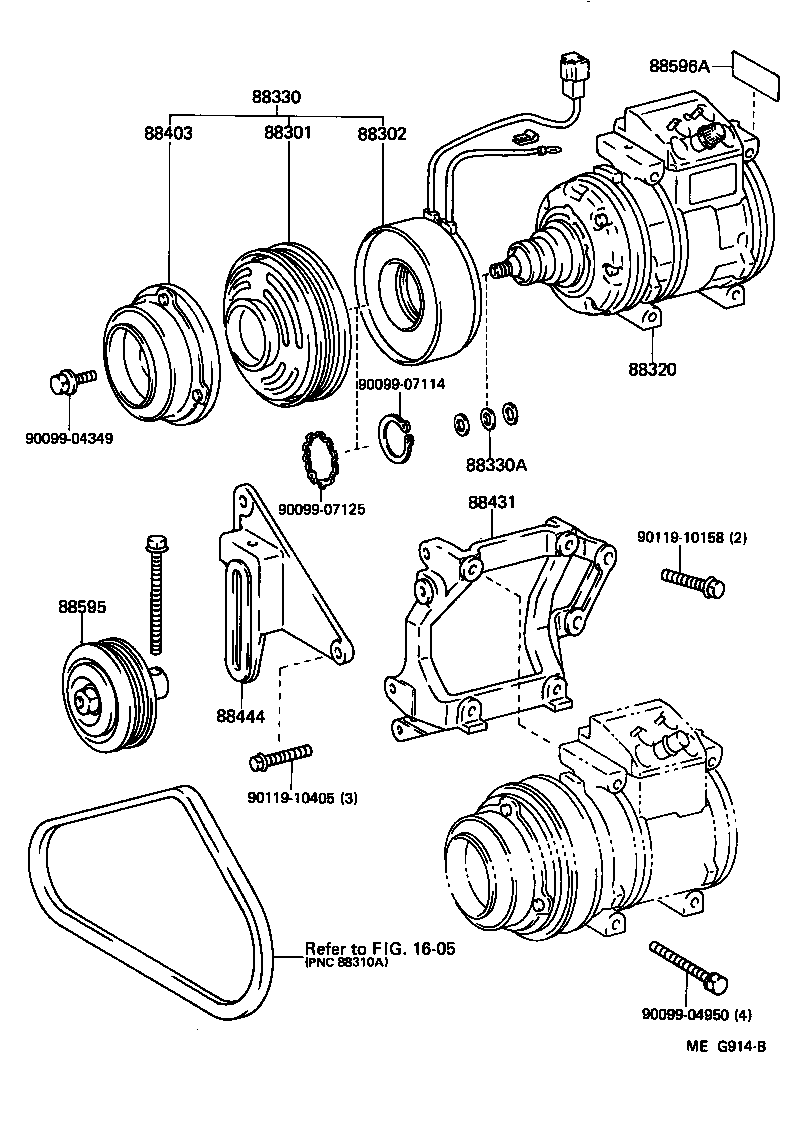

MA70R-BLPVF (1986)
Toyota Supra
Production
Jan 1986
-
Aug 1988
Engine
7MGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8601- )EUR,GCC,GEN,SA
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-14080 |
MA70 |
1 | ||
| 88412-14110 |
MA70 |
1 | ||
| 88412-14100 |
MA70 |
1 | ||
| 88412-12160 |
MA70 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-14100 |
MA70 |
1 | ||
| 88411-14110 |
MA70 |
1 | ||
| 88411-14111 |
MA70 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-14521 |
MA70 |
1 | ||
| 88320-14520 |
MA70 |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-14181 |
MA70 |
1 | ||
| 88410-14180 |
MA70 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
MA70 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-16011 |
MA70 |
1 | ||
| 88403-14050 |
MA70 |
1 | ||
| 88403-16010 |
MA70 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-24070 |
MA70 |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-24010 |
MA70 |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-17010 |
MA70 |
1 | ||
| 88596A - PLATE, CAUTION | ||||
| 88356-12010 |
MA70 |
1 | ||
| Common parts | ||||
| 90099-04349 | ||||
| 90099-04950 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 90119-10158 | ||||
| 90119-10405 | ||||
| Linked diagrams | ||||
| 1605 | ||||

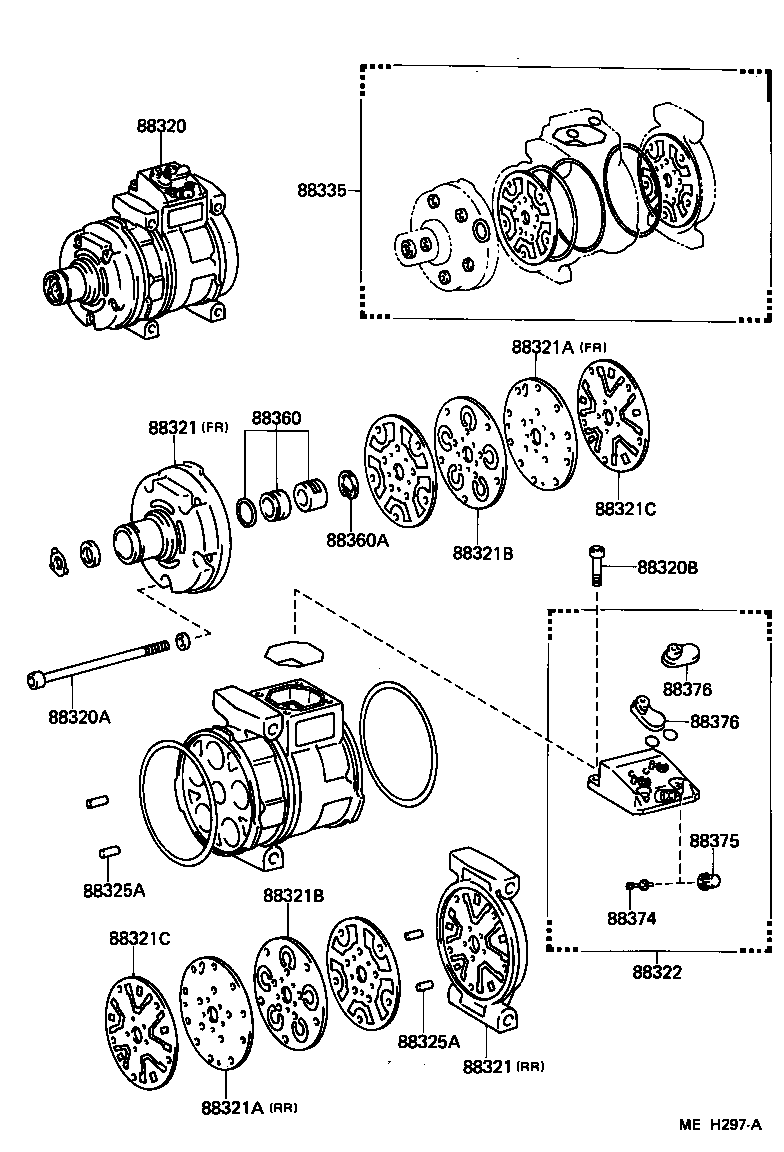

(8601- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-14521 |
MA70 |
1 | ||
| 88320-14520 |
MA70 |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 90099-04958 |
MA70 |
5 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 90099-04924 |
MA70 |
4 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-14020 |
MA70 FR |
1 | ||
| 88321-14021 |
MA70 FR |
1 | ||
| 88322-14020 |
MA70 RR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-14020 |
MA70 FR |
1 | ||
| 88321-14021 |
MA70 FR |
1 | ||
| 88322-14020 |
MA70 RR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88342-14020 |
MA70 RR |
1 | ||
| 88341-14020 |
MA70 FR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88342-14020 |
MA70 RR |
1 | ||
| 88341-14020 |
MA70 FR |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88344-14020 |
MA70 |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88344-14020 |
MA70 |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14020 |
MA70 |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14020 |
MA70 |
2 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-14310 |
MA70 |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
MA70 |
4 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
MA70 |
4 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-14010 |
MA70 |
1 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-14040 |
MA70 |
1 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
MA70 |
1 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
MA70 |
1 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30270 |
MA70 |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22010 |
MA70 SUCTION |
1 | ||
| 88376-22020 |
MA70 DISCHARGE |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22010 |
MA70 SUCTION |
1 | ||
| 88376-22020 |
MA70 DISCHARGE |
1 | ||
ILLUST NO. 1 OF 2(8601- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-14080 |
MA70 |
1 | ||
| 88412-14110 |
MA70 |
1 | ||
| 88412-14100 |
MA70 |
1 | ||
| 88412-12160 |
MA70 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-14100 |
MA70 |
1 | ||
| 88411-14110 |
MA70 |
1 | ||
| 88411-14111 |
MA70 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-14521 |
MA70 |
1 | ||
| 88320-14520 |
MA70 |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-14181 |
MA70 |
1 | ||
| 88410-14180 |
MA70 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
MA70 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-16011 |
MA70 |
1 | ||
| 88403-14050 |
MA70 |
1 | ||
| 88403-16010 |
MA70 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-24070 |
MA70 |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-24010 |
MA70 |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-17010 |
MA70 |
1 | ||
| 88596A - PLATE, CAUTION | ||||
| 88356-12010 |
MA70 |
1 | ||
| Common parts | ||||
| 90099-04349 | ||||
| 90099-04950 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 90119-10158 | ||||
| 90119-10405 | ||||
| Linked diagrams | ||||
| 1605 | ||||
ILLUST NO. 2 OF 2(8601- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-14521 |
MA70 |
1 | ||
| 88320-14520 |
MA70 |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 90099-04958 |
MA70 |
5 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 90099-04924 |
MA70 |
4 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-14020 |
MA70 FR |
1 | ||
| 88321-14021 |
MA70 FR |
1 | ||
| 88322-14020 |
MA70 RR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-14020 |
MA70 FR |
1 | ||
| 88321-14021 |
MA70 FR |
1 | ||
| 88322-14020 |
MA70 RR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88342-14020 |
MA70 RR |
1 | ||
| 88341-14020 |
MA70 FR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88342-14020 |
MA70 RR |
1 | ||
| 88341-14020 |
MA70 FR |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88344-14020 |
MA70 |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88344-14020 |
MA70 |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14020 |
MA70 |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14020 |
MA70 |
2 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-14310 |
MA70 |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
MA70 |
4 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
MA70 |
4 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-14010 |
MA70 |
1 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-14040 |
MA70 |
1 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
MA70 |
1 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
MA70 |
1 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30270 |
MA70 |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22010 |
MA70 SUCTION |
1 | ||
| 88376-22020 |
MA70 DISCHARGE |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22010 |
MA70 SUCTION |
1 | ||
| 88376-22020 |
MA70 DISCHARGE |
1 | ||
