MA70R-BLPVF (1986)
Toyota Supra
Production
Jan 1986
-
Aug 1988
Engine
7MGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8601- )

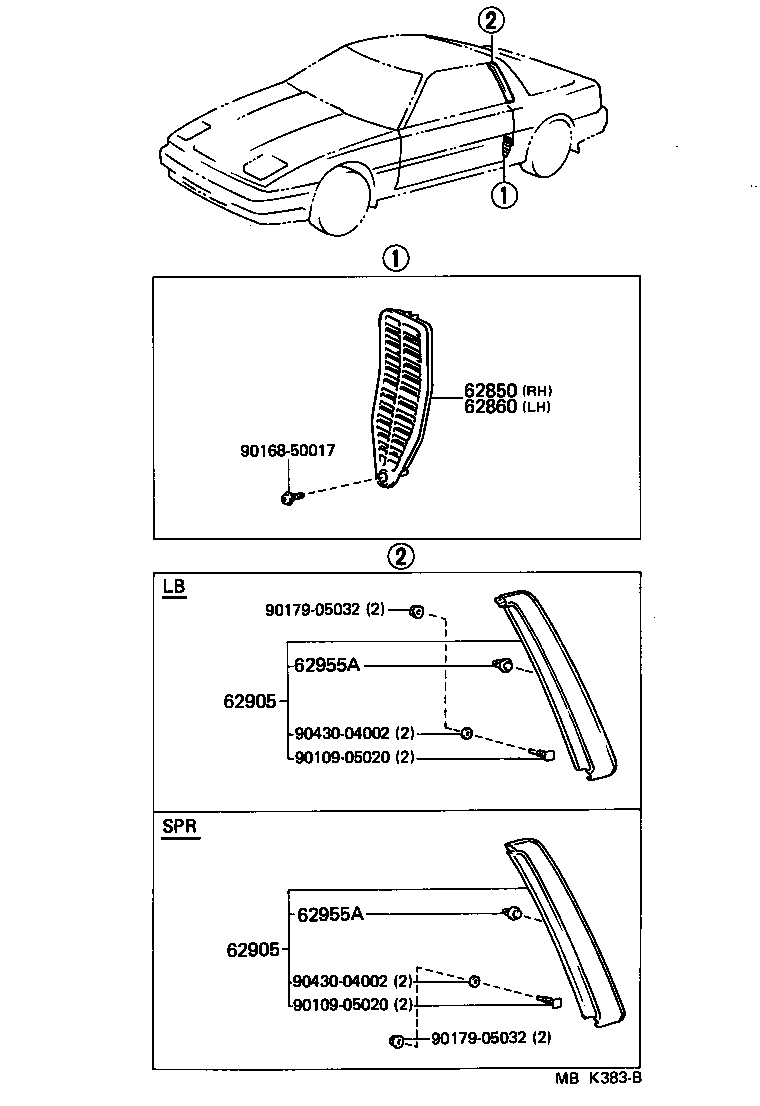

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62850 - VALVE ASSY, ROOM PRESSURE RELIEF, RH | ||||
| 62850-14060 |
MA70 |
1 | ||
| 62860 - VALVE ASSY, ROOM PRESSURE RELIEF, LH | ||||
| 62850-14060 |
MA70 |
1 | ||
| 62905 - LOUVER, QUARTER VENTILATION | ||||
| 62905-14070 |
MA70..LB RH |
1 | ||
| 62906-14070 |
MA70..LB LH |
1 | ||
| 62905 - LOUVER, QUARTER VENTILATION | ||||
| 62905-14070 |
MA70..LB RH |
1 | ||
| 62906-14070 |
MA70..LB LH |
1 | ||
| 62955A - RETAINER, QUARTER VENT LOUVER | ||||
| 62955-20020 |
MA70 |
2 | ||
| 62955A - RETAINER, QUARTER VENT LOUVER | ||||
| 62955-20020 |
MA70 |
2 | ||
| Common parts | ||||
| 90109-05020 | ||||
| 90168-50017 | ||||
| 90179-05032 | ||||
| 90430-04002 | ||||
(8601- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62850 - VALVE ASSY, ROOM PRESSURE RELIEF, RH | ||||
| 62850-14060 |
MA70 |
1 | ||
| 62860 - VALVE ASSY, ROOM PRESSURE RELIEF, LH | ||||
| 62850-14060 |
MA70 |
1 | ||
| 62905 - LOUVER, QUARTER VENTILATION | ||||
| 62905-14070 |
MA70..LB RH |
1 | ||
| 62906-14070 |
MA70..LB LH |
1 | ||
| 62905 - LOUVER, QUARTER VENTILATION | ||||
| 62905-14070 |
MA70..LB RH |
1 | ||
| 62906-14070 |
MA70..LB LH |
1 | ||
| 62955A - RETAINER, QUARTER VENT LOUVER | ||||
| 62955-20020 |
MA70 |
2 | ||
| 62955A - RETAINER, QUARTER VENT LOUVER | ||||
| 62955-20020 |
MA70 |
2 | ||
| Common parts | ||||
| 90109-05020 | ||||
| 90168-50017 | ||||
| 90179-05032 | ||||
| 90430-04002 | ||||
