MA70R-BLMVZQ (1988)
Toyota Supra
Production
Aug 1988
-
May 1993
Engine
7MGTE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )7MGTE

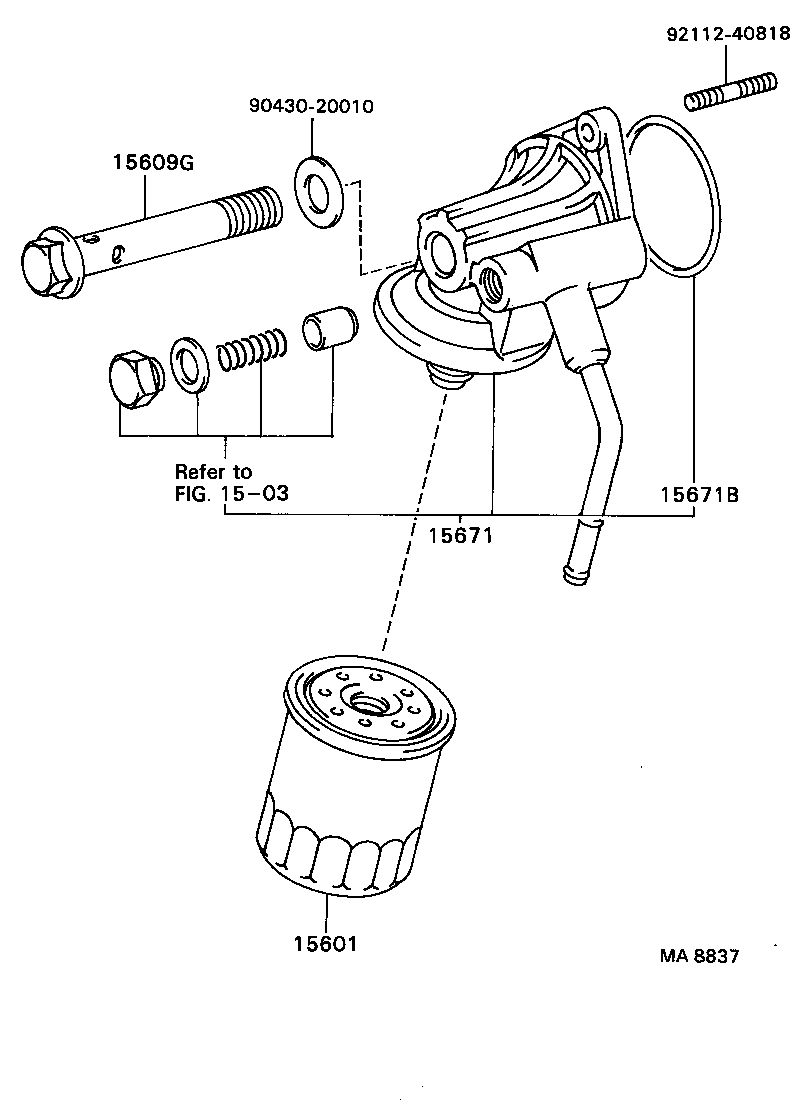

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15601 - FILTER SUB-ASSY, OIL | ||||
| 90915-03002 |
7MG#..MA70 |
1 | ||
| 90915-20001 |
7MG#..MA70 |
1 | ||
| 15609G - BOLT, UNION(FOR OIL FILTER BRACKET) | ||||
| 90401-20006 |
7MGTE..MA70 |
1 | ||
| 15671 - BRACKET, OIL FILTER | ||||
| 15670-42010 |
7MGTE..MA70 |
1 | ||
| 15671B - GASKET, OIL FILTER BRACKET | ||||
| 15188-46010 |
7MGTE..MA70 |
1 | ||
| 96732-31070 |
7MGTE..MA70 |
1 | ||
| Common parts | ||||
| 90430-20010 | ||||
| 92112-40818 | ||||
| Linked diagrams | ||||
| 1503 | ||||
(8808- )7MGTE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15601 - FILTER SUB-ASSY, OIL | ||||
| 90915-03002 |
7MG#..MA70 |
1 | ||
| 90915-20001 |
7MG#..MA70 |
1 | ||
| 15609G - BOLT, UNION(FOR OIL FILTER BRACKET) | ||||
| 90401-20006 |
7MGTE..MA70 |
1 | ||
| 15671 - BRACKET, OIL FILTER | ||||
| 15670-42010 |
7MGTE..MA70 |
1 | ||
| 15671B - GASKET, OIL FILTER BRACKET | ||||
| 15188-46010 |
7MGTE..MA70 |
1 | ||
| 96732-31070 |
7MGTE..MA70 |
1 | ||
| Common parts | ||||
| 90430-20010 | ||||
| 92112-40818 | ||||
| Linked diagrams | ||||
| 1503 | ||||
