MA70R-BLMVZC (1988)

Toyota Supra

Production Aug 1988 - May 1993
Engine 7MGTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

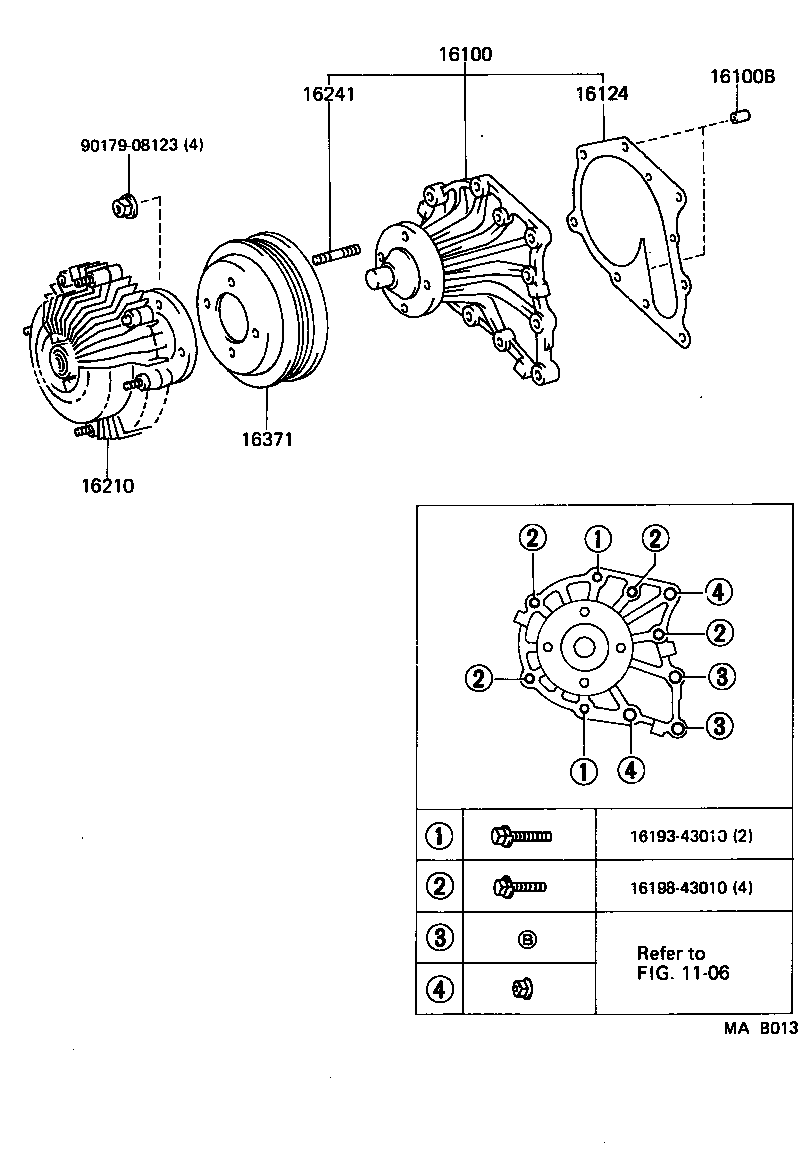

Click highlighted areas on diagram

diagram 1106 16100 16100B 16124 1619343010 1619843010 16210 16241 16371 9017908123
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-49755

7MGE..MA70;7MGTE..MA70..C

 1
16100-49756

7MG#..MA70..C,GEN,V

 1
16100B - PIN, RING(FOR WATER PUMP SET)
16185-70010

7MG#..MA70

 2
16124 - GASKET, WATER PUMP COVER
16124-42020

7MG#..MA70

 1
16124-42010

7MG#..MA70

 1
16210 - COUPLING ASSY, FLUID
16210-43021

7MGTE..MA70..C;7MGE..MA70..ARL,GEN,V

 1
16210-43020

7MGTE..MA70..C;7MGE..MA70..ARL,GEN,V

 1
16241 - BOLT, STUD(FOR WATER PUMP COUPLING)
16198-43040

7MGE..MA70;7MGTE..MA70..C

 1
16371 - PULLEY, FAN
16173-42020

7MGE..MA70;7MGTE..MA70..C

 1
Common parts
16193-43010
16198-43010
90179-08123
Linked diagrams
1106
