MA70R-BLMVZC (1988)
Toyota Supra
(8808- )

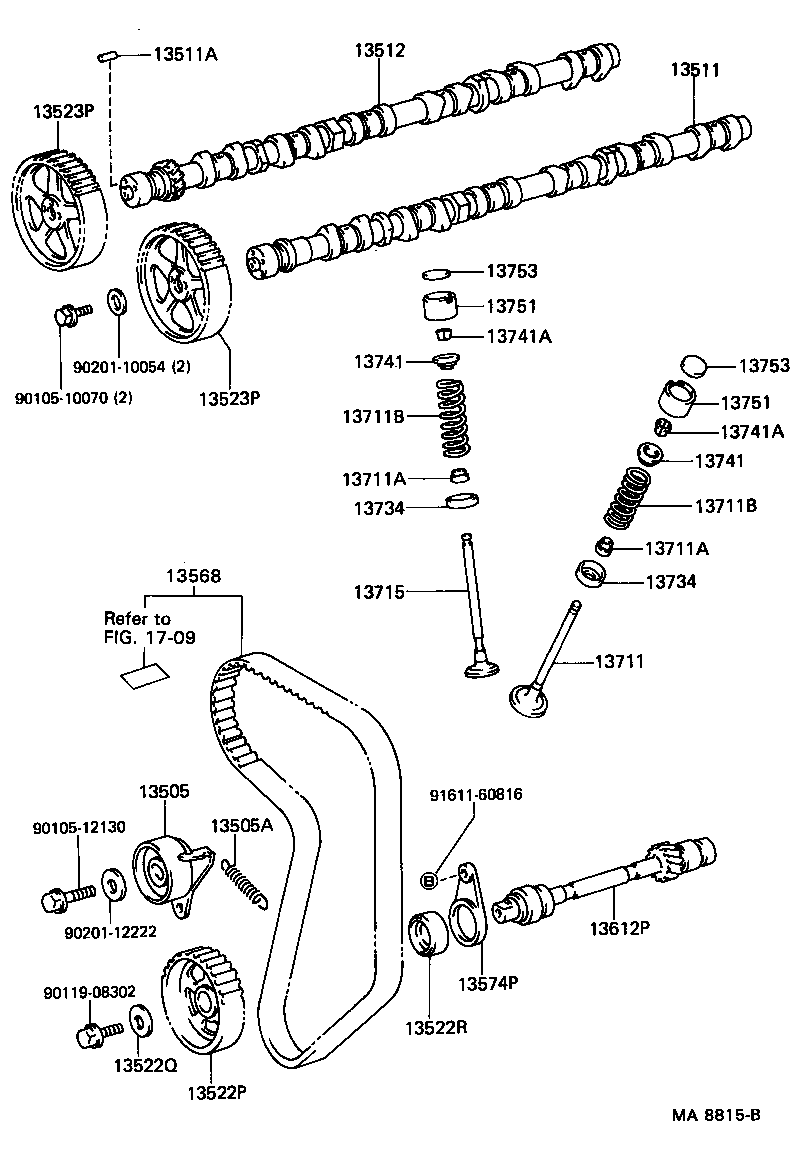

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13505 - IDLER SUB-ASSY, TIMING BELT, NO.1 | ||||
| 13505-42020 |
7MG#..MA70 |
1 | ||
| 13505A - SPRING, TENSION(FOR IDLER) | ||||
| 90507-18008 |
7MG#..MA70 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-42010 |
7MGTE..MA70 |
1 | ||
| 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) | ||||
| 90250-05121 |
7MG#..MA70 L=15,OD=5 |
2 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-42010 |
7MG#..MA70 |
1 | ||
| 13502-42010 |
7MG#..MA70..ARL,C |
1 | ||
| 13522P - PULLEY, PUMP DRIVE SHAFT | ||||
| 13524-42010 |
7MG#..MA70 |
1 | ||
| 13522Q - WASHER, PLATE(FOR PUMP DRIVE SHAFT PULLEY) | ||||
| 90201-08020 |
7MG#..MA70 |
1 | ||
| 13522R - COLLAR(FOR PUMP DRIVE SHAFT PULLEY) | ||||
| 90387-26001 |
7MG#..MA70 |
1 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13523-42010 |
7MG#..MA70 |
2 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13523-42010 |
7MG#..MA70 |
2 | ||
| 13568 - BELT, TIMING | ||||
| 13568-42010 |
7MG#..MA70 |
1 | ||
| 13568-42011 |
7MG#..MA70 |
1 | ||
| 13568-49015 |
7MG#..MA70 |
1 | ||
| 13574P - PLATE, PUMP DRIVE SHAFT THRUST | ||||
| 13574-41010 |
7MG#..MA70 |
1 | ||
| 13612P - SHAFT, PUMP DRIVE | ||||
| 13612-42020 |
7MG#..MA70 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-42020 |
7MG#..MA70 |
12 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02062 |
7MG#..MA70 |
24 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02062 |
7MG#..MA70 |
24 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-33011 |
7MG#..MA70 |
24 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-33011 |
7MG#..MA70 |
24 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-42010 |
7MG#..MA70 |
12 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-16010 |
7MG#..MA70 |
24 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-16010 |
7MG#..MA70 |
24 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-16010 |
7MG#..MA70 |
24 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-16010 |
7MG#..MA70 |
24 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03021 |
7MG#..MA70 |
48 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03021 |
7MG#..MA70 |
48 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-16010 |
7MG#..MA70 |
24 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-16010 |
7MG#..MA70 |
24 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-16080 |
7MG#..MA70 T=2.65 |
24 | ||
| 13753-16100 |
7MG#..MA70 T=2.70 |
24 | ||
| 13753-16020 |
7MG#..MA70 T=2.50 |
24 | ||
| 13753-16040 |
7MG#..MA70 T=2.55 |
24 | ||
| 13753-16120 |
7MG#..MA70 T=2.75 |
24 | ||
| 13753-16260 |
7MG#..MA70 T=3.10 |
24 | ||
| 13753-16180 |
7MG#..MA70 T=2.90 |
24 | ||
| 13753-16240 |
7MG#..MA70 T=3.05 |
24 | ||
| 13753-16200 |
7MG#..MA70 T=2.95 |
24 | ||
| 13753-16220 |
7MG#..MA70 T=3.00 |
24 | ||
| 13753-16160 |
7MG#..MA70 T=2.85 |
24 | ||
| 13753-16280 |
7MG#..MA70 T=3.15 |
24 | ||
| 13753-16140 |
7MG#..MA70 T=2.80 |
24 | ||
| 13753-16300 |
7MG#..MA70 T=3.20 |
24 | ||
| 13753-16320 |
7MG#..MA70 T=3.25 |
24 | ||
| 13753-16340 |
7MG#..MA70 T=3.30 |
24 | ||
| 13753-16060 |
7MG#..MA70 T=2.60 |
24 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-16080 |
7MG#..MA70 T=2.65 |
24 | ||
| 13753-16100 |
7MG#..MA70 T=2.70 |
24 | ||
| 13753-16020 |
7MG#..MA70 T=2.50 |
24 | ||
| 13753-16040 |
7MG#..MA70 T=2.55 |
24 | ||
| 13753-16120 |
7MG#..MA70 T=2.75 |
24 | ||
| 13753-16260 |
7MG#..MA70 T=3.10 |
24 | ||
| 13753-16180 |
7MG#..MA70 T=2.90 |
24 | ||
| 13753-16240 |
7MG#..MA70 T=3.05 |
24 | ||
| 13753-16200 |
7MG#..MA70 T=2.95 |
24 | ||
| 13753-16220 |
7MG#..MA70 T=3.00 |
24 | ||
| 13753-16160 |
7MG#..MA70 T=2.85 |
24 | ||
| 13753-16280 |
7MG#..MA70 T=3.15 |
24 | ||
| 13753-16140 |
7MG#..MA70 T=2.80 |
24 | ||
| 13753-16300 |
7MG#..MA70 T=3.20 |
24 | ||
| 13753-16320 |
7MG#..MA70 T=3.25 |
24 | ||
| 13753-16340 |
7MG#..MA70 T=3.30 |
24 | ||
| 13753-16060 |
7MG#..MA70 T=2.60 |
24 | ||
| Common parts | ||||
| 90105-10070 | ||||
| 90105-12130 | ||||
| 90119-08302 | ||||
| 90201-10054 | ||||
| 90201-12222 | ||||
| 91611-60816 | ||||
| Linked diagrams | ||||
| 1709 | ||||
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13505 - IDLER SUB-ASSY, TIMING BELT, NO.1 | ||||
| 13505-42020 |
7MG#..MA70 |
1 | ||
| 13505A - SPRING, TENSION(FOR IDLER) | ||||
| 90507-18008 |
7MG#..MA70 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-42010 |
7MGTE..MA70 |
1 | ||
| 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) | ||||
| 90250-05121 |
7MG#..MA70 L=15,OD=5 |
2 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-42010 |
7MG#..MA70 |
1 | ||
| 13502-42010 |
7MG#..MA70..ARL,C |
1 | ||
| 13522P - PULLEY, PUMP DRIVE SHAFT | ||||
| 13524-42010 |
7MG#..MA70 |
1 | ||
| 13522Q - WASHER, PLATE(FOR PUMP DRIVE SHAFT PULLEY) | ||||
| 90201-08020 |
7MG#..MA70 |
1 | ||
| 13522R - COLLAR(FOR PUMP DRIVE SHAFT PULLEY) | ||||
| 90387-26001 |
7MG#..MA70 |
1 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13523-42010 |
7MG#..MA70 |
2 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13523-42010 |
7MG#..MA70 |
2 | ||
| 13568 - BELT, TIMING | ||||
| 13568-42010 |
7MG#..MA70 |
1 | ||
| 13568-42011 |
7MG#..MA70 |
1 | ||
| 13568-49015 |
7MG#..MA70 |
1 | ||
| 13574P - PLATE, PUMP DRIVE SHAFT THRUST | ||||
| 13574-41010 |
7MG#..MA70 |
1 | ||
| 13612P - SHAFT, PUMP DRIVE | ||||
| 13612-42020 |
7MG#..MA70 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-42020 |
7MG#..MA70 |
12 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02062 |
7MG#..MA70 |
24 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02062 |
7MG#..MA70 |
24 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-33011 |
7MG#..MA70 |
24 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-33011 |
7MG#..MA70 |
24 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-42010 |
7MG#..MA70 |
12 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-16010 |
7MG#..MA70 |
24 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-16010 |
7MG#..MA70 |
24 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-16010 |
7MG#..MA70 |
24 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-16010 |
7MG#..MA70 |
24 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03021 |
7MG#..MA70 |
48 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03021 |
7MG#..MA70 |
48 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-16010 |
7MG#..MA70 |
24 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-16010 |
7MG#..MA70 |
24 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-16080 |
7MG#..MA70 T=2.65 |
24 | ||
| 13753-16100 |
7MG#..MA70 T=2.70 |
24 | ||
| 13753-16020 |
7MG#..MA70 T=2.50 |
24 | ||
| 13753-16040 |
7MG#..MA70 T=2.55 |
24 | ||
| 13753-16120 |
7MG#..MA70 T=2.75 |
24 | ||
| 13753-16260 |
7MG#..MA70 T=3.10 |
24 | ||
| 13753-16180 |
7MG#..MA70 T=2.90 |
24 | ||
| 13753-16240 |
7MG#..MA70 T=3.05 |
24 | ||
| 13753-16200 |
7MG#..MA70 T=2.95 |
24 | ||
| 13753-16220 |
7MG#..MA70 T=3.00 |
24 | ||
| 13753-16160 |
7MG#..MA70 T=2.85 |
24 | ||
| 13753-16280 |
7MG#..MA70 T=3.15 |
24 | ||
| 13753-16140 |
7MG#..MA70 T=2.80 |
24 | ||
| 13753-16300 |
7MG#..MA70 T=3.20 |
24 | ||
| 13753-16320 |
7MG#..MA70 T=3.25 |
24 | ||
| 13753-16340 |
7MG#..MA70 T=3.30 |
24 | ||
| 13753-16060 |
7MG#..MA70 T=2.60 |
24 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-16080 |
7MG#..MA70 T=2.65 |
24 | ||
| 13753-16100 |
7MG#..MA70 T=2.70 |
24 | ||
| 13753-16020 |
7MG#..MA70 T=2.50 |
24 | ||
| 13753-16040 |
7MG#..MA70 T=2.55 |
24 | ||
| 13753-16120 |
7MG#..MA70 T=2.75 |
24 | ||
| 13753-16260 |
7MG#..MA70 T=3.10 |
24 | ||
| 13753-16180 |
7MG#..MA70 T=2.90 |
24 | ||
| 13753-16240 |
7MG#..MA70 T=3.05 |
24 | ||
| 13753-16200 |
7MG#..MA70 T=2.95 |
24 | ||
| 13753-16220 |
7MG#..MA70 T=3.00 |
24 | ||
| 13753-16160 |
7MG#..MA70 T=2.85 |
24 | ||
| 13753-16280 |
7MG#..MA70 T=3.15 |
24 | ||
| 13753-16140 |
7MG#..MA70 T=2.80 |
24 | ||
| 13753-16300 |
7MG#..MA70 T=3.20 |
24 | ||
| 13753-16320 |
7MG#..MA70 T=3.25 |
24 | ||
| 13753-16340 |
7MG#..MA70 T=3.30 |
24 | ||
| 13753-16060 |
7MG#..MA70 T=2.60 |
24 | ||
| Common parts | ||||
| 90105-10070 | ||||
| 90105-12130 | ||||
| 90119-08302 | ||||
| 90201-10054 | ||||
| 90201-12222 | ||||
| 91611-60816 | ||||
| Linked diagrams | ||||
| 1709 | ||||
