MA70R-BLMVZC (1988)

Toyota Supra

Production Aug 1988 - May 1993
Engine 7MGTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

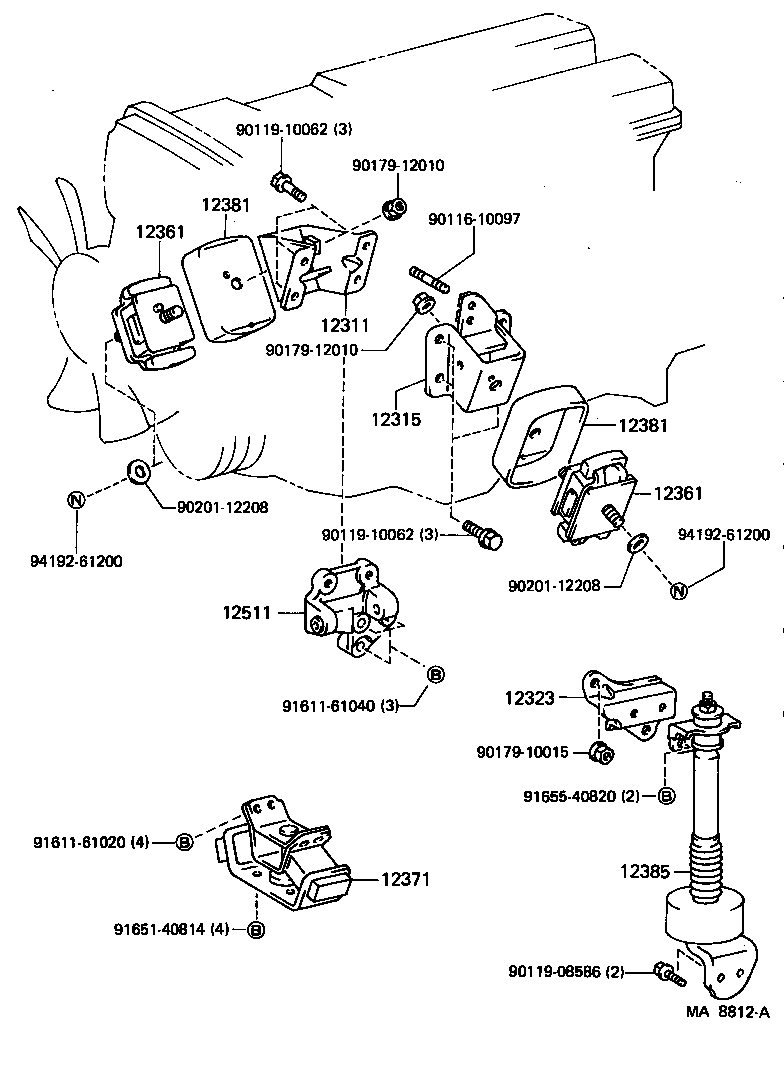

(8808-8901)

Click highlighted areas on diagram

diagram 12311 12315 12323 12361 12361 12371 12381 12381 12385 12511 9011610097 9011908586 9011910062 9011910062 9017910015 9017912010 9017912010 9020112208 9020112208 9161161020 9161161040 9165140814 9165540820 9419261200 9419261200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-42040

7MG#..MA70

 1
12311-42020

7MG#..MA70

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-42020

7MG#..MA70

 1
12315-42040

7MG#..MA70

 1
12323 - BRACKET, ENGINE MOUNTING ABSORBER
12323-42010

7MG#..MA70

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-42050

7MG#..MA70

 2
12361-42030

7MG#..MA70

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-42050

7MG#..MA70

 2
12361-42030

7MG#..MA70

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-42020

7MG#..MA70

 1
12371-70020

7MG#..MA70

 1
12371-42020

7MGE..MA70..LHD..EUR;7MG#..MA70..ARL,C,GEN,V;7MGE..MA70..RHD..5F..EUR

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-42010

7MG#..MA70

 2
12381-42030

7MG#..MA70

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-42010

7MG#..MA70

 2
12381-42030

7MG#..MA70

 2
12385 - ABSORBER, ENGINE MOUNTING, NO.1
12308-42010

7MG#..MA70

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-42010

7MG#..MA70

 1
Common parts
90116-10097
90119-08586
90119-10062
90179-10015
90179-12010
90201-12208
91611-61020
91611-61040
91651-40814
91655-40820
94192-61200

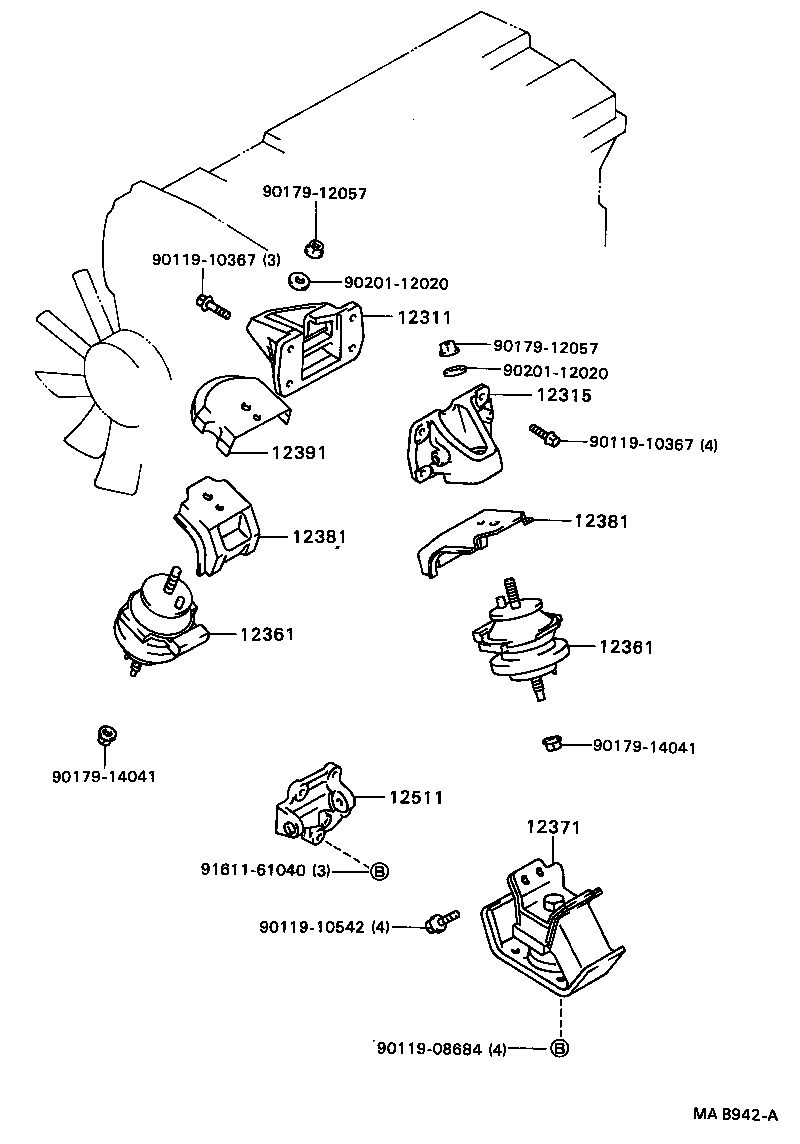

(8901- )

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12381 12381 12391 12511 9011908684 9011910367 9011910367 9011910542 9017912057 9017912057 9017914041 9017914041 9020112020 9020112020 9161161040
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-42040

7MG#..MA70

 1
12311-42020

7MG#..MA70

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-42020

7MG#..MA70

 1
12315-42040

7MG#..MA70

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-42050

7MG#..MA70

 2
12361-42030

7MG#..MA70

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-42050

7MG#..MA70

 2
12361-42030

7MG#..MA70

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-42020

7MG#..MA70

 1
12371-70020

7MG#..MA70

 1
12371-42020

7MGE..MA70..LHD..EUR;7MG#..MA70..ARL,C,GEN,V;7MGE..MA70..RHD..5F..EUR

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-42010

7MG#..MA70

 2
12381-42030

7MG#..MA70

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-42010

7MG#..MA70

 2
12381-42030

7MG#..MA70

 2
12391 - INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH
12391-42011

7MG#..MA70

 1
12391-42010

7MG#..MA70

 1
12391-46020

7MG#..MA70

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-42010

7MG#..MA70

 1
Common parts
90119-08684
90119-10367
90119-10542
90179-12057
90179-14041
90201-12020
91611-61040

(8808-8901)

Click highlighted areas on diagram

diagram 12311 12315 12323 12361 12361 12371 12381 12381 12385 12511 9011610097 9011908586 9011910062 9011910062 9017910015 9017912010 9017912010 9020112208 9020112208 9161161020 9161161040 9165140814 9165540820 9419261200 9419261200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-42040

7MG#..MA70

 1
12311-42020

7MG#..MA70

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-42020

7MG#..MA70

 1
12315-42040

7MG#..MA70

 1
12323 - BRACKET, ENGINE MOUNTING ABSORBER
12323-42010

7MG#..MA70

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-42050

7MG#..MA70

 2
12361-42030

7MG#..MA70

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-42050

7MG#..MA70

 2
12361-42030

7MG#..MA70

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-42020

7MG#..MA70

 1
12371-70020

7MG#..MA70

 1
12371-42020

7MGE..MA70..LHD..EUR;7MG#..MA70..ARL,C,GEN,V;7MGE..MA70..RHD..5F..EUR

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-42010

7MG#..MA70

 2
12381-42030

7MG#..MA70

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-42010

7MG#..MA70

 2
12381-42030

7MG#..MA70

 2
12385 - ABSORBER, ENGINE MOUNTING, NO.1
12308-42010

7MG#..MA70

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-42010

7MG#..MA70

 1
Common parts
90116-10097
90119-08586
90119-10062
90179-10015
90179-12010
90201-12208
91611-61020
91611-61040
91651-40814
91655-40820
94192-61200

(8901- )

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12381 12381 12391 12511 9011908684 9011910367 9011910367 9011910542 9017912057 9017912057 9017914041 9017914041 9020112020 9020112020 9161161040
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-42040

7MG#..MA70

 1
12311-42020

7MG#..MA70

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-42020

7MG#..MA70

 1
12315-42040

7MG#..MA70

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-42050

7MG#..MA70

 2
12361-42030

7MG#..MA70

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-42050

7MG#..MA70

 2
12361-42030

7MG#..MA70

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-42020

7MG#..MA70

 1
12371-70020

7MG#..MA70

 1
12371-42020

7MGE..MA70..LHD..EUR;7MG#..MA70..ARL,C,GEN,V;7MGE..MA70..RHD..5F..EUR

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-42010

7MG#..MA70

 2
12381-42030

7MG#..MA70

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-42010

7MG#..MA70

 2
12381-42030

7MG#..MA70

 2
12391 - INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH
12391-42011

7MG#..MA70

 1
12391-42010

7MG#..MA70

 1
12391-46020

7MG#..MA70

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-42010

7MG#..MA70

 1
Common parts
90119-08684
90119-10367
90119-10542
90179-12057
90179-14041
90201-12020
91611-61040
