Toyota Supra MA70 TIMING GEAR COVER & REAR END PLATE

Manufacturers Home
Toyota
EU
SUPRA
MA70R-BLMVZC (1988)
1106 - TIMING GEAR COVER & REAR END PLATE

MA70R-BLMVZC (1988)

Toyota Supra

Production Aug 1988 - May 1993

Engine 7MGTE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8808- )

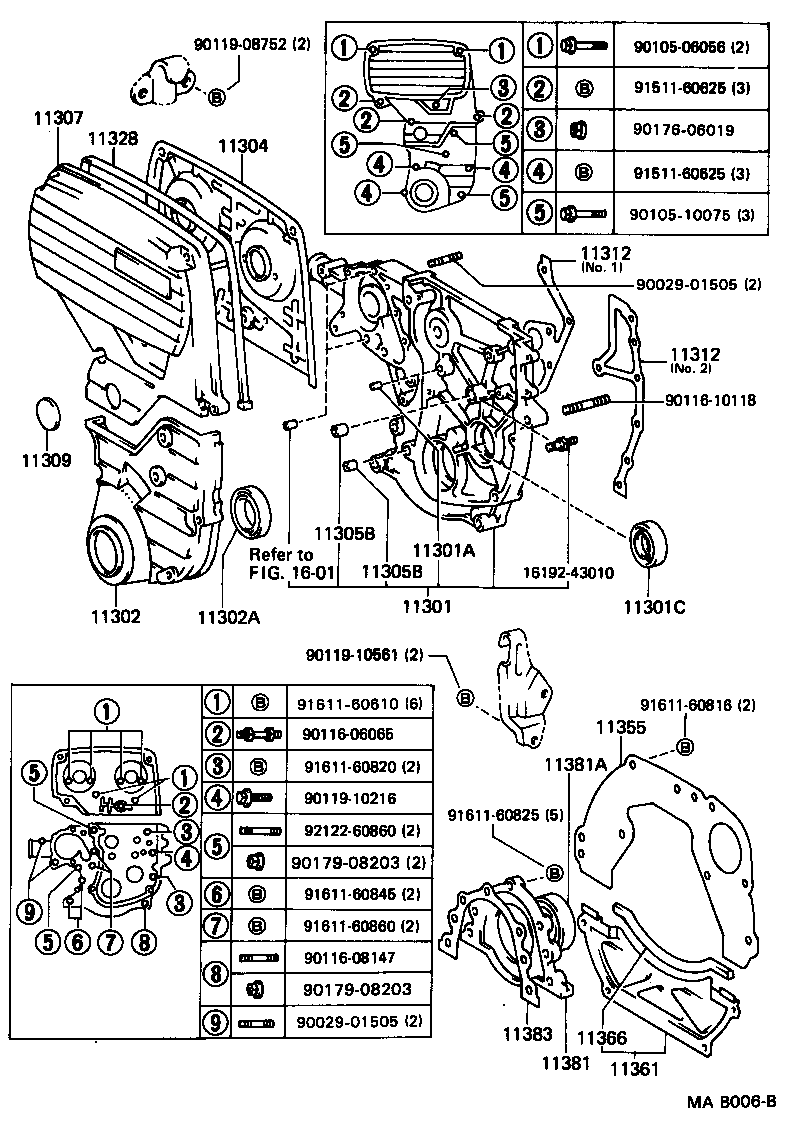

Click highlighted areas on diagram

Part #	Description	Period	Qty
11301 - CASE SUB-ASSY, TIMING GEAR
11301-42010	7MG#..MA70	08/1988 - 05/1993	1
11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE)
90250-08074	7MG#..MA70 L=15,OD=8	08/1988 - 05/1993	1
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-42003	7MG#..MA70	08/1988 - 05/1993	1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-42020	7MG#..MA70	08/1988 - 05/1993	1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-52003	7MG#..MA70	08/1988 - 05/1993	1
11304 - COVER, TIMING CHAIN OR BELT, NO.2
11322-42010	7MG#..MA70	08/1988 - 05/1993	1
11305B - PIN, RING(FOR OIL SEAL RETAINER, NO.2)
90253-13013	7MG#..MA70 OD=13	08/1988 - 05/1993	1
90253-11001	7MG#..MA70	08/1988 - 08/1990	1
90253-11001	7MGTE..MA70;7MGE..MA70..GEN,V	08/1990 - 05/1993	1
11305B - PIN, RING(FOR OIL SEAL RETAINER, NO.2)
90253-13013	7MG#..MA70 OD=13	08/1988 - 05/1993	1
90253-11001	7MG#..MA70	08/1988 - 08/1990	1
90253-11001	7MGTE..MA70;7MGE..MA70..GEN,V	08/1990 - 05/1993	1
11307 - COVER, SUB-ASSY, TIMING BELT, NO.3
11304-42010	7MG#..MA70	08/1988 - 05/1993	1
11309 - COVER SUB-ASSY, TIMING BELT, NO.4
11325-42010	7MG#..MA70	08/1988 - 05/1993	1
11312 - GASKET, FRONT END PLATE
11313-42020	7MG#..MA70 NO.2	12/1989 - 05/1993	1
11312-43010	7MG#..MA70 NO.1	08/1988 - 12/1989	1
11312-42010	7MG#..MA70 NO.1	12/1989 - 05/1993	1
11313-42010	7MG#..MA70 NO.2	08/1988 - 12/1989	1
11312 - GASKET, FRONT END PLATE
11313-42020	7MG#..MA70 NO.2	12/1989 - 05/1993	1
11312-43010	7MG#..MA70 NO.1	08/1988 - 12/1989	1
11312-42010	7MG#..MA70 NO.1	12/1989 - 05/1993	1
11313-42010	7MG#..MA70 NO.2	08/1988 - 12/1989	1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-42010	7MG#..MA70	08/1988 - 05/1993	1
11355 - PLATE, REAR END
11355-41010	7MG#..MA70	08/1988 - 05/1993	1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-43010	7MG#..MA70	08/1988 - 05/1993	1
11381A - SEAL, ENGINE REAR OIL
90311-80001	7MG#..MA70	08/1988 - 05/1993	1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-41010	7MG#..MA70	08/1988 - 05/1993	1
Common parts
16192-43010
90029-01505
90105-06056
90105-10075
90116-06065
90116-08147
90116-10118
90119-08752
90119-10216
90119-10561
90176-06019
90179-08203
91511-60625
91611-60610
91611-60816
91611-60820
91611-60825
91611-60845
91611-60860
92122-60860
Linked diagrams
