MA70R-BLMVF (1986)
Toyota Supra
(8601- )

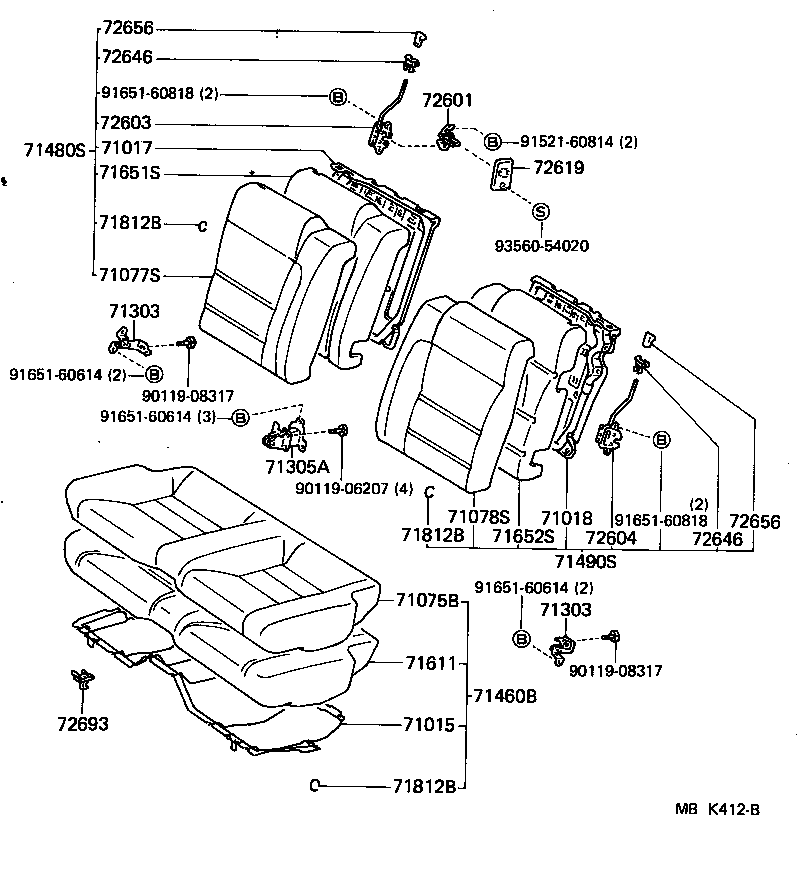

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-14170 |
MA70 |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-14270 |
MA70 |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-14110 |
MA70 |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-1428005 |
MA70 FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71065-1428004 |
MA70 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71065-1428005 |
MA70..ARL,EUR,GEN,SA FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71065-1429003 |
MA70..EUR,GCC,GEN LEATHER,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71065-1428003 |
MA70 FB,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71065-1429004 |
MA70..EUR,GCC,GEN LEATHER,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71065-1429005 |
MA70..EUR,GCC,GEN LEATHER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71065-1429002 |
MA70..GCC,GEN LEATHER,MAROON,MAROON,TRIM3# |
1 | ||
| 71065-1429005 |
MA70..EUR,GEN LEATHER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71065-1429004 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71065-1428002 |
MA70..ARL,GCC,GEN FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71065-1429002 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,MAROON,MAROON,TRIM3# |
1 | ||
| 71065-1434005 |
MA70 FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71065-1429003 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71065-1434003 |
MA70 FB,GRAY,MIDIUM GRAY,TRIM1# |
1 | ||
| 71065-1434002 |
MA70..ARL,GCC,GEN FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71065-1429005 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71065-1434004 |
MA70 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-1D25002 |
MA70..ARL,GCC,GEN FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71077-1D25005 |
MA70..ARL,EUR,GEN,SA FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71077-1D26005 |
MA70..EUR,GCC,GEN LEATHER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71077-1D25003 |
MA70 FB,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71077-1D26003 |
MA70..EUR,GCC,GEN LEATHER,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71077-1D25005 |
MA70 FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71077-1D26005 |
MA70..EUR,GEN LEATHER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71077-1D26004 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71077-1D30003 |
MA70 FB,GRAY,MIDIUM GRAY,TRIM1# |
1 | ||
| 71077-1D26005 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71077-1D25004 |
MA70 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71077-1D30005 |
MA70..ARL,EUR,GEN,SA FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71077-1D26004 |
MA70..EUR,GCC,GEN LEATHER,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71077-1D26003 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71077-1D26002 |
MA70..GCC,GEN LEATHER,MAROON,MAROON,TRIM3# |
1 | ||
| 71077-1D30002 |
MA70..ARL,GCC,GEN FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71077-1D26002 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,MAROON,MAROON,TRIM3# |
1 | ||
| 71077-1D30004 |
MA70 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-1479002 |
MA70..GCC,GEN LEATHER,MAROON,MAROON,TRIM3# |
1 | ||
| 71078-1478002 |
MA70..ARL,GCC,GEN FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71078-1478005 |
MA70..ARL,EUR,GEN,SA FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71078-1479005 |
MA70..EUR,GCC,GEN LEATHER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71078-1479004 |
MA70..EUR,GCC,GEN LEATHER,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71078-1479004 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71078-1485002 |
MA70..ARL,GCC,GEN FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71078-1485005 |
MA70..ARL,EUR,GEN,SA FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71078-1478003 |
MA70 FB,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71078-1479002 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,MAROON,MAROON,TRIM3# |
1 | ||
| 71078-1479003 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71078-1479005 |
MA70..EUR,GEN LEATHER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71078-1478005 |
MA70 FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71078-1479003 |
MA70..EUR,GCC,GEN LEATHER,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71078-1478004 |
MA70 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71078-1479005 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71078-1485003 |
MA70 FB,GRAY,MIDIUM GRAY,TRIM1# |
1 | ||
| 71078-1485004 |
MA70 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-14030 |
MA70 |
2 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-14030 |
MA70 |
2 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-14060 |
MA70 |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71560-1433003 |
MA70 FB,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71560-1434005 |
MA70..EUR,GEN LEATHER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71560-1434003 |
MA70..EUR,GCC,GEN LEATHER,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71560-1434005 |
MA70..EUR,GCC,GEN LEATHER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71560-1433004 |
MA70 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71560-1434003 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71560-1434004 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71560-1433005 |
MA70 FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71560-1434004 |
MA70..EUR,GCC,GEN LEATHER,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71560-1433103 |
MA70 FB,GRAY,MIDIUM GRAY,TRIM1# |
1 | ||
| 71560-1434005 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71560-1433105 |
MA70..ARL,EUR,GEN,SA FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71560-1434002 |
MA70..GCC,GEN LEATHER,MAROON,MAROON,TRIM3# |
1 | ||
| 71560-1434002 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,MAROON,MAROON,TRIM3# |
1 | ||
| 71560-1433104 |
MA70 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71560-1433102 |
MA70..ARL,GCC,GEN FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-1D09005 |
MA70 FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71480-1D37002 |
MA70..GCC,GEN LEATHER,MAROON,MAROON,TRIM3# |
1 | ||
| 71480-1D37005 |
MA70..EUR,GCC,GEN LEATHER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71480-1D37004 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71480-1D09002 |
MA70..ARL,GCC,GEN FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71480-1D09003 |
MA70 FB,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71480-1D09004 |
MA70 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71480-1D37002 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,MAROON,MAROON,TRIM3# |
1 | ||
| 71480-1D40003 |
MA70 FB,GRAY,MIDIUM GRAY,TRIM1# |
1 | ||
| 71480-1D40005 |
MA70..ARL,EUR,GEN,SA FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71480-1D09005 |
MA70..ARL,EUR,GEN,SA FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71480-1D37005 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71480-1D37003 |
MA70..EUR,GCC,GEN LEATHER,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71480-1D37003 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71480-1D37004 |
MA70..EUR,GCC,GEN LEATHER,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71480-1D40002 |
MA70..ARL,GCC,GEN FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71480-1D37005 |
MA70..EUR,GEN LEATHER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71480-1D40004 |
MA70 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-1469002 |
MA70..ARL,GCC,GEN FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71490-1469004 |
MA70 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71490-1B01005 |
MA70..EUR,GCC,GEN LEATHER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71490-1469005 |
MA70 FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71490-1469003 |
MA70 FB,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71490-1469005 |
MA70..ARL,EUR,GEN,SA FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71490-1B01002 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,MAROON,MAROON,TRIM3# |
1 | ||
| 71490-1B01002 |
MA70..GCC,GEN LEATHER,MAROON,MAROON,TRIM3# |
1 | ||
| 71490-1B01005 |
MA70..EUR,GEN LEATHER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71490-1B01003 |
MA70..EUR,GCC,GEN LEATHER,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71490-1B01003 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71490-1B05002 |
MA70..ARL,GCC,GEN FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71490-1B01005 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71490-1B05005 |
MA70..ARL,EUR,GEN,SA FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71490-1B05003 |
MA70 FB,GRAY,MIDIUM GRAY,TRIM1# |
1 | ||
| 71490-1B01004 |
MA70..EUR,GCC,GEN LEATHER,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71490-1B01004 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71490-1B05004 |
MA70 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-14200 |
MA70 |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-14250 |
MA70 |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-14150 |
MA70 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
MA70 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
MA70 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
MA70 |
1 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72610-14040 |
MA70 |
2 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-14120 |
MA70 |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72640-14100 |
MA70 |
1 | ||
| 72619 - COVER, REAR SEAT BACK LOCK STRIKER | ||||
| 72616-1402005 |
MA70 LH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72615-1404005 |
MA70 RH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72616-1402003 |
MA70 LH,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 72615-1404003 |
MA70 RH,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 72615-1404004 |
MA70 RH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72616-1402002 |
MA70..ARL,GCC,GEN LH,MAROON,MAROON,TRIM3# |
1 | ||
| 72615-1404002 |
MA70..ARL,GCC,GEN RH,MAROON,MAROON,TRIM3# |
1 | ||
| 72615-1404005 |
MA70..ARL,EUR,GEN,SA RH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72616-1402004 |
MA70 LH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72616-1402005 |
MA70..ARL,EUR,GEN,SA LH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-1405004 |
MA70 BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 72646-1405005 |
MA70 BEIGE,BEIGE,TRIM4# |
2 | ||
| 72646-1405005 |
MA70..ARL,EUR,GEN,SA BEIGE,BEIGE,TRIM4# |
2 | ||
| 72646-1405002 |
MA70..ARL,GCC,GEN MAROON,MAROON,TRIM3# |
2 | ||
| 72646-1405003 |
MA70 GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-1405004 |
MA70 BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 72646-1405005 |
MA70 BEIGE,BEIGE,TRIM4# |
2 | ||
| 72646-1405005 |
MA70..ARL,EUR,GEN,SA BEIGE,BEIGE,TRIM4# |
2 | ||
| 72646-1405002 |
MA70..ARL,GCC,GEN MAROON,MAROON,TRIM3# |
2 | ||
| 72646-1405003 |
MA70 GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-1402004 |
MA70 BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 72661-1402005 |
MA70..ARL,EUR,GEN,SA BEIGE,BEIGE,TRIM4# |
2 | ||
| 72661-1402005 |
MA70 BEIGE,BEIGE,TRIM4# |
2 | ||
| 72661-1402003 |
MA70 GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 72661-1402002 |
MA70..ARL,GCC,GEN MAROON,MAROON,TRIM3# |
2 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-1402004 |
MA70 BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 72661-1402005 |
MA70..ARL,EUR,GEN,SA BEIGE,BEIGE,TRIM4# |
2 | ||
| 72661-1402005 |
MA70 BEIGE,BEIGE,TRIM4# |
2 | ||
| 72661-1402003 |
MA70 GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 72661-1402002 |
MA70..ARL,GCC,GEN MAROON,MAROON,TRIM3# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-24010 |
MA70 |
2 | ||
| Common parts | ||||
| 90119-06207 | ||||
| 90119-08317 | ||||
| 91521-60814 | ||||
| 91651-60614 | ||||
| 91651-60818 | ||||
| 93560-54020 | ||||
(8601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-14170 |
MA70 |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-14270 |
MA70 |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-14110 |
MA70 |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-1428005 |
MA70 FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71065-1428004 |
MA70 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71065-1428005 |
MA70..ARL,EUR,GEN,SA FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71065-1429003 |
MA70..EUR,GCC,GEN LEATHER,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71065-1428003 |
MA70 FB,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71065-1429004 |
MA70..EUR,GCC,GEN LEATHER,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71065-1429005 |
MA70..EUR,GCC,GEN LEATHER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71065-1429002 |
MA70..GCC,GEN LEATHER,MAROON,MAROON,TRIM3# |
1 | ||
| 71065-1429005 |
MA70..EUR,GEN LEATHER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71065-1429004 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71065-1428002 |
MA70..ARL,GCC,GEN FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71065-1429002 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,MAROON,MAROON,TRIM3# |
1 | ||
| 71065-1434005 |
MA70 FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71065-1429003 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71065-1434003 |
MA70 FB,GRAY,MIDIUM GRAY,TRIM1# |
1 | ||
| 71065-1434002 |
MA70..ARL,GCC,GEN FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71065-1429005 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71065-1434004 |
MA70 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-1D25002 |
MA70..ARL,GCC,GEN FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71077-1D25005 |
MA70..ARL,EUR,GEN,SA FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71077-1D26005 |
MA70..EUR,GCC,GEN LEATHER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71077-1D25003 |
MA70 FB,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71077-1D26003 |
MA70..EUR,GCC,GEN LEATHER,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71077-1D25005 |
MA70 FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71077-1D26005 |
MA70..EUR,GEN LEATHER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71077-1D26004 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71077-1D30003 |
MA70 FB,GRAY,MIDIUM GRAY,TRIM1# |
1 | ||
| 71077-1D26005 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71077-1D25004 |
MA70 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71077-1D30005 |
MA70..ARL,EUR,GEN,SA FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71077-1D26004 |
MA70..EUR,GCC,GEN LEATHER,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71077-1D26003 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71077-1D26002 |
MA70..GCC,GEN LEATHER,MAROON,MAROON,TRIM3# |
1 | ||
| 71077-1D30002 |
MA70..ARL,GCC,GEN FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71077-1D26002 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,MAROON,MAROON,TRIM3# |
1 | ||
| 71077-1D30004 |
MA70 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-1479002 |
MA70..GCC,GEN LEATHER,MAROON,MAROON,TRIM3# |
1 | ||
| 71078-1478002 |
MA70..ARL,GCC,GEN FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71078-1478005 |
MA70..ARL,EUR,GEN,SA FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71078-1479005 |
MA70..EUR,GCC,GEN LEATHER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71078-1479004 |
MA70..EUR,GCC,GEN LEATHER,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71078-1479004 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71078-1485002 |
MA70..ARL,GCC,GEN FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71078-1485005 |
MA70..ARL,EUR,GEN,SA FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71078-1478003 |
MA70 FB,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71078-1479002 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,MAROON,MAROON,TRIM3# |
1 | ||
| 71078-1479003 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71078-1479005 |
MA70..EUR,GEN LEATHER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71078-1478005 |
MA70 FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71078-1479003 |
MA70..EUR,GCC,GEN LEATHER,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71078-1478004 |
MA70 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71078-1479005 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71078-1485003 |
MA70 FB,GRAY,MIDIUM GRAY,TRIM1# |
1 | ||
| 71078-1485004 |
MA70 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-14030 |
MA70 |
2 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-14030 |
MA70 |
2 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-14060 |
MA70 |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71560-1433003 |
MA70 FB,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71560-1434005 |
MA70..EUR,GEN LEATHER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71560-1434003 |
MA70..EUR,GCC,GEN LEATHER,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71560-1434005 |
MA70..EUR,GCC,GEN LEATHER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71560-1433004 |
MA70 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71560-1434003 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71560-1434004 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71560-1433005 |
MA70 FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71560-1434004 |
MA70..EUR,GCC,GEN LEATHER,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71560-1433103 |
MA70 FB,GRAY,MIDIUM GRAY,TRIM1# |
1 | ||
| 71560-1434005 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71560-1433105 |
MA70..ARL,EUR,GEN,SA FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71560-1434002 |
MA70..GCC,GEN LEATHER,MAROON,MAROON,TRIM3# |
1 | ||
| 71560-1434002 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,MAROON,MAROON,TRIM3# |
1 | ||
| 71560-1433104 |
MA70 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71560-1433102 |
MA70..ARL,GCC,GEN FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-1D09005 |
MA70 FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71480-1D37002 |
MA70..GCC,GEN LEATHER,MAROON,MAROON,TRIM3# |
1 | ||
| 71480-1D37005 |
MA70..EUR,GCC,GEN LEATHER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71480-1D37004 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71480-1D09002 |
MA70..ARL,GCC,GEN FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71480-1D09003 |
MA70 FB,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71480-1D09004 |
MA70 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71480-1D37002 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,MAROON,MAROON,TRIM3# |
1 | ||
| 71480-1D40003 |
MA70 FB,GRAY,MIDIUM GRAY,TRIM1# |
1 | ||
| 71480-1D40005 |
MA70..ARL,EUR,GEN,SA FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71480-1D09005 |
MA70..ARL,EUR,GEN,SA FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71480-1D37005 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71480-1D37003 |
MA70..EUR,GCC,GEN LEATHER,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71480-1D37003 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71480-1D37004 |
MA70..EUR,GCC,GEN LEATHER,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71480-1D40002 |
MA70..ARL,GCC,GEN FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71480-1D37005 |
MA70..EUR,GEN LEATHER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71480-1D40004 |
MA70 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-1469002 |
MA70..ARL,GCC,GEN FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71490-1469004 |
MA70 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71490-1B01005 |
MA70..EUR,GCC,GEN LEATHER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71490-1469005 |
MA70 FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71490-1469003 |
MA70 FB,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71490-1469005 |
MA70..ARL,EUR,GEN,SA FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71490-1B01002 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,MAROON,MAROON,TRIM3# |
1 | ||
| 71490-1B01002 |
MA70..GCC,GEN LEATHER,MAROON,MAROON,TRIM3# |
1 | ||
| 71490-1B01005 |
MA70..EUR,GEN LEATHER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71490-1B01003 |
MA70..EUR,GCC,GEN LEATHER,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71490-1B01003 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71490-1B05002 |
MA70..ARL,GCC,GEN FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71490-1B01005 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71490-1B05005 |
MA70..ARL,EUR,GEN,SA FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71490-1B05003 |
MA70 FB,GRAY,MIDIUM GRAY,TRIM1# |
1 | ||
| 71490-1B01004 |
MA70..EUR,GCC,GEN LEATHER,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71490-1B01004 |
MA70..RHD..GEN NEW ZEALAND SPEC,W/*SPS,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71490-1B05004 |
MA70 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-14200 |
MA70 |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-14250 |
MA70 |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-14150 |
MA70 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
MA70 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
MA70 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
MA70 |
1 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72610-14040 |
MA70 |
2 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-14120 |
MA70 |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72640-14100 |
MA70 |
1 | ||
| 72619 - COVER, REAR SEAT BACK LOCK STRIKER | ||||
| 72616-1402005 |
MA70 LH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72615-1404005 |
MA70 RH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72616-1402003 |
MA70 LH,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 72615-1404003 |
MA70 RH,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 72615-1404004 |
MA70 RH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72616-1402002 |
MA70..ARL,GCC,GEN LH,MAROON,MAROON,TRIM3# |
1 | ||
| 72615-1404002 |
MA70..ARL,GCC,GEN RH,MAROON,MAROON,TRIM3# |
1 | ||
| 72615-1404005 |
MA70..ARL,EUR,GEN,SA RH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72616-1402004 |
MA70 LH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72616-1402005 |
MA70..ARL,EUR,GEN,SA LH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-1405004 |
MA70 BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 72646-1405005 |
MA70 BEIGE,BEIGE,TRIM4# |
2 | ||
| 72646-1405005 |
MA70..ARL,EUR,GEN,SA BEIGE,BEIGE,TRIM4# |
2 | ||
| 72646-1405002 |
MA70..ARL,GCC,GEN MAROON,MAROON,TRIM3# |
2 | ||
| 72646-1405003 |
MA70 GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-1405004 |
MA70 BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 72646-1405005 |
MA70 BEIGE,BEIGE,TRIM4# |
2 | ||
| 72646-1405005 |
MA70..ARL,EUR,GEN,SA BEIGE,BEIGE,TRIM4# |
2 | ||
| 72646-1405002 |
MA70..ARL,GCC,GEN MAROON,MAROON,TRIM3# |
2 | ||
| 72646-1405003 |
MA70 GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-1402004 |
MA70 BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 72661-1402005 |
MA70..ARL,EUR,GEN,SA BEIGE,BEIGE,TRIM4# |
2 | ||
| 72661-1402005 |
MA70 BEIGE,BEIGE,TRIM4# |
2 | ||
| 72661-1402003 |
MA70 GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 72661-1402002 |
MA70..ARL,GCC,GEN MAROON,MAROON,TRIM3# |
2 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-1402004 |
MA70 BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 72661-1402005 |
MA70..ARL,EUR,GEN,SA BEIGE,BEIGE,TRIM4# |
2 | ||
| 72661-1402005 |
MA70 BEIGE,BEIGE,TRIM4# |
2 | ||
| 72661-1402003 |
MA70 GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 72661-1402002 |
MA70..ARL,GCC,GEN MAROON,MAROON,TRIM3# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-24010 |
MA70 |
2 | ||
| Common parts | ||||
| 90119-06207 | ||||
| 90119-08317 | ||||
| 91521-60814 | ||||
| 91651-60614 | ||||
| 91651-60818 | ||||
| 93560-54020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
