MA70R-BJPVZQ (1988)
Toyota Supra
ILLUST NO. 5 OF 5(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82710-22020 | ||||
| 82711-12200 | ||||
| 82711-14110 | ||||
| 82711-14560 | ||||
| 82711-1A210 | ||||
| 82711-1B020 | ||||
| 82711-22620 | ||||
| 82711-24060 | ||||
| 82711-24070 | ||||
| 82711-24220 | ||||
| 82711-24230 | ||||
| 82711-24240 | ||||
| 82711-24290 | ||||
| 82711-24310 | ||||
| 82711-24330 | ||||
| 82711-24370 | ||||
| 82711-30130 | ||||
| 82711-32360 | ||||
| 82711-95015 | ||||
| 82715-22280 | ||||
| 82715-30160 | ||||
| 90461-06303 | ||||
| 90461-08312 | ||||
| 90463-10012 | ||||
| 90949-01217 | ||||

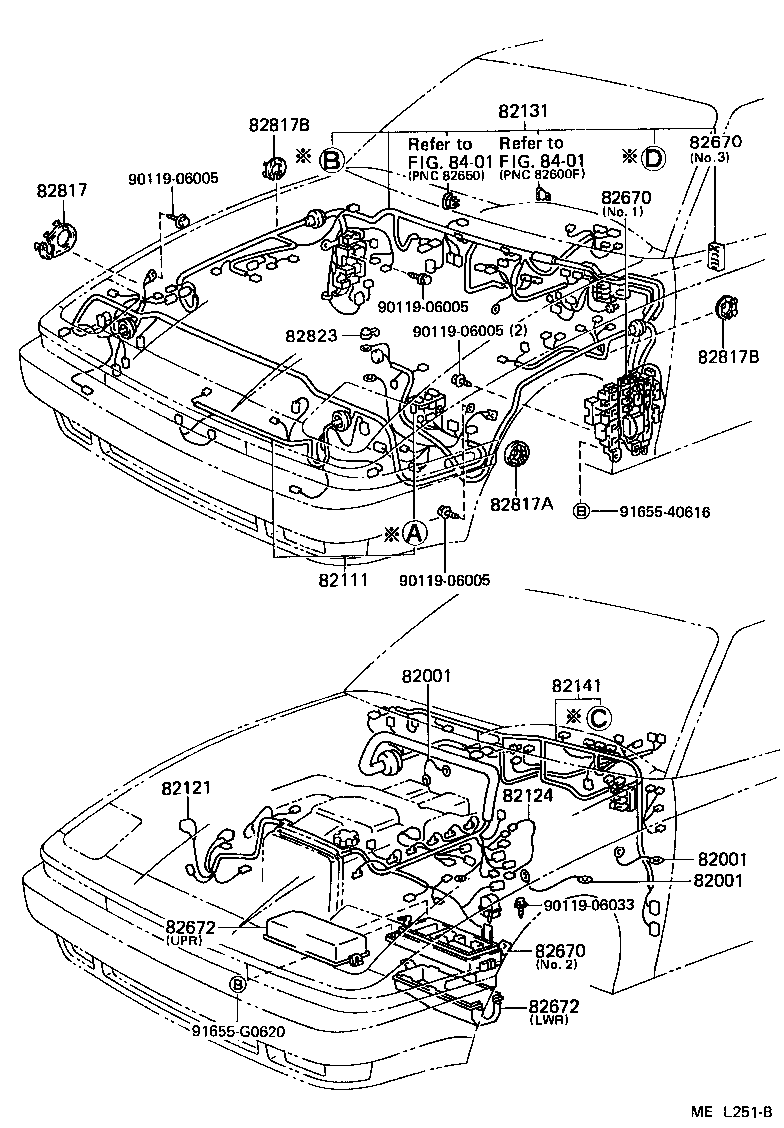

ILLUST NO. 1 OF 5(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07148 |
MA70..GEN,V TO EXTENSION |
1 | ||
| 90980-07308 |
MA70 TO ENGINE |
1 | ||
| 90980-07268 |
MA70..ARL;MA70..TWT..C TO EXTENSION |
1 | ||
| 90980-07176 |
MA70 TO CLUTCH |
1 | ||
| 90980-07308 |
MA70 TO ENGINE |
1 | ||
| 90980-07268 |
MA70..ARL,C TO EXTENSION |
1 | ||
| 90980-07176 |
MA70 TO CLUTCH |
1 | ||
| 90980-07268 |
MA70..ARL,C TO EXTENSION |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07148 |
MA70..GEN,V TO EXTENSION |
1 | ||
| 90980-07308 |
MA70 TO ENGINE |
1 | ||
| 90980-07268 |
MA70..ARL;MA70..TWT..C TO EXTENSION |
1 | ||
| 90980-07176 |
MA70 TO CLUTCH |
1 | ||
| 90980-07308 |
MA70 TO ENGINE |
1 | ||
| 90980-07268 |
MA70..ARL,C TO EXTENSION |
1 | ||
| 90980-07176 |
MA70 TO CLUTCH |
1 | ||
| 90980-07268 |
MA70..ARL,C TO EXTENSION |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07148 |
MA70..GEN,V TO EXTENSION |
1 | ||
| 90980-07308 |
MA70 TO ENGINE |
1 | ||
| 90980-07268 |
MA70..ARL;MA70..TWT..C TO EXTENSION |
1 | ||
| 90980-07176 |
MA70 TO CLUTCH |
1 | ||
| 90980-07308 |
MA70 TO ENGINE |
1 | ||
| 90980-07268 |
MA70..ARL,C TO EXTENSION |
1 | ||
| 90980-07176 |
MA70 TO CLUTCH |
1 | ||
| 90980-07268 |
MA70..ARL,C TO EXTENSION |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-1B270 |
MA70..TWT..ARL |
1 | ||
| 82111-1B230 |
MA70..RHD..(C,EUR) |
1 | ||
| 82111-1B410 |
MA70..RHD..C |
1 | ||
| 82111-1B300 |
MA70..RHD..C |
1 | ||
| 82111-1B450 |
MA70..ARL |
1 | ||
| 82111-1B271 |
MA70..ARL |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-14010 |
MA70..RHD..(C,EUR) |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-14600 |
MA70..RHD..TWT |
1 | ||
| 82121-14760 |
MA70..RHD..TWT |
1 | ||
| 82121-14601 |
MA70..RHD..TWT |
1 | ||
| 82121-14761 |
MA70..RHD..TWT |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-1D180 |
MA70..RHD..(C,EUR) |
1 | ||
| 82131-1D181 |
MA70..RHD..C |
1 | ||
| 82131-1B890 |
MA70..RHD..(C,EUR) UNITED KINGDOM SPEC |
1 | ||
| 82131-1B881 |
MA70..ARL |
1 | ||
| 82131-1B880 |
MA70..ARL |
1 | ||
| 82131-1D590 |
MA70..RHD..C |
1 | ||
| 82131-1D580 |
MA70..ARL |
1 | ||
| 82131-1B882 |
MA70..ARL |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-1B070 |
MA70..ARL |
1 | ||
| 82141-14881 |
MA70..RHD..(C,EUR,GEN) |
1 | ||
| 82141-14880 |
MA70..RHD |
1 | ||
| 82141-1B080 |
MA70..RHD..(ARL,C) |
1 | ||
| 82141-1B200 |
MA70..ARL |
1 | ||
| 82141-1B210 |
MA70..RHD..C |
1 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82671-24010 |
MA70 NO.2 |
1 | ||
| 82671-14020 |
MA70 NO.3 |
1 | ||
| 82671-20030 |
MA70 NO.1 |
1 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82671-24010 |
MA70 NO.2 |
1 | ||
| 82671-14020 |
MA70 NO.3 |
1 | ||
| 82671-20030 |
MA70 NO.1 |
1 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82671-24010 |
MA70 NO.2 |
1 | ||
| 82671-14020 |
MA70 NO.3 |
1 | ||
| 82671-20030 |
MA70 NO.1 |
1 | ||
| 82672 - COVER, JUNKTION BLOCK | ||||
| 82672-14070 |
MA70..ARL,GEN,V UPR |
1 | ||
| 82672-14080 |
MA70..C,EUR UPR |
1 | ||
| 82672-14070 |
MA70 UPR |
1 | ||
| 82672-24010 |
MA70 LWR |
1 | ||
| 82672 - COVER, JUNKTION BLOCK | ||||
| 82672-14070 |
MA70..ARL,GEN,V UPR |
1 | ||
| 82672-14080 |
MA70..C,EUR UPR |
1 | ||
| 82672-14070 |
MA70 UPR |
1 | ||
| 82672-24010 |
MA70 LWR |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-24150 |
MA70..TWT |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-24100 |
MA70 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-24110 |
MA70 |
2 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-24110 |
MA70 |
2 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22050 |
MA70 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06033 | ||||
| 90119-06067 | ||||
| 91655-40616 | ||||
| 91655-G0620 | ||||
| Linked diagrams | ||||
| 8401 | ||||

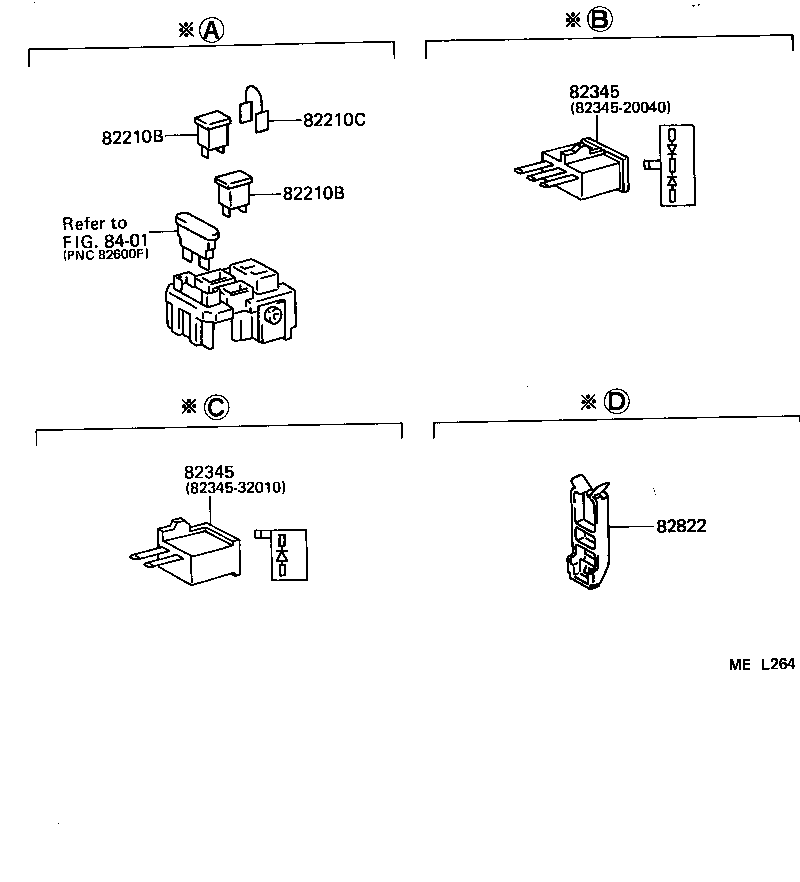

ILLUST NO. 2 OF 5(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210B - FUSIBLE LINK | ||||
| 90982-08189 |
MA70 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08188 |
MA70 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08190 |
MA70..C,EUR 60A,TERM.:FEMALE,YEL |
1 | ||
| 82210B - FUSIBLE LINK | ||||
| 90982-08189 |
MA70 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08188 |
MA70 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08190 |
MA70..C,EUR 60A,TERM.:FEMALE,YEL |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08246 |
MA70 100A,TERM.:MALE,BLUE |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
MA70..C,EUR |
2 | ||
| 82345-32010 |
MA70..C,EUR |
2 | ||
| 82345-20040 |
MA70..ARL |
1 | ||
| 82345-32010 |
MA70..C |
1 | ||
| 82345-20050 |
MA70..RHD..(C,EUR) UNITED KINGDON SPEC |
1 | ||
| 82345-20050 |
MA70..C |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
MA70..C,EUR |
2 | ||
| 82345-32010 |
MA70..C,EUR |
2 | ||
| 82345-20040 |
MA70..ARL |
1 | ||
| 82345-32010 |
MA70..C |
1 | ||
| 82345-20050 |
MA70..RHD..(C,EUR) UNITED KINGDON SPEC |
1 | ||
| 82345-20050 |
MA70..C |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
MA70..C,EUR |
2 | ||
| 82345-32010 |
MA70..C,EUR |
2 | ||
| 82345-20040 |
MA70..ARL |
1 | ||
| 82345-32010 |
MA70..C |
1 | ||
| 82345-20050 |
MA70..RHD..(C,EUR) UNITED KINGDON SPEC |
1 | ||
| 82345-20050 |
MA70..C |
1 | ||
| 86011H - FILTER, NOISE | ||||
| 90980-05080 |
MA70..C,EUR |
1 | ||
| Common parts | ||||
| 82345-20040 | ||||
| 82345-20050 | ||||
| 82345-32010 | ||||
| Linked diagrams | ||||
| 8401 | ||||

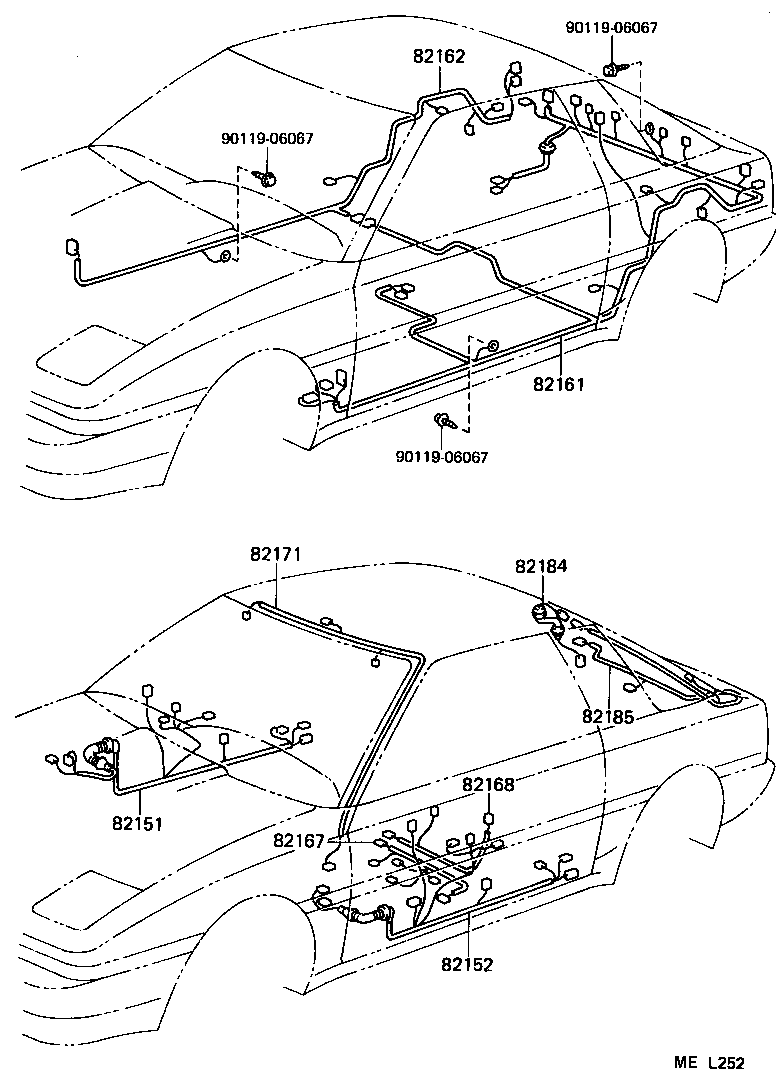

ILLUST NO. 3 OF 5(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-14470 |
MA70..RHD |
1 | ||
| 82151-14471 |
MA70..RHD |
1 | ||
| 82151-14550 |
MA70..RHD |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-14361 |
MA70..RHD |
1 | ||
| 82152-14400 |
MA70..RHD |
1 | ||
| 82152-14360 |
MA70..RHD |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-1B020 |
MA70..RHD |
1 | ||
| 82161-14811 |
MA70..RHD |
1 | ||
| 82161-14810 |
MA70..RHD |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-14060 |
MA70..RHD |
1 | ||
| 82162-14070 |
MA70..ARL W(TEMS) |
1 | ||
| 82162-14061 |
MA70..RHD |
1 | ||
| 82162-14110 |
MA70..RHD |
1 | ||
| 82162-14130 |
MA70..RHD..C W(SEAT HEATER) |
1 | ||
| 82162-14120 |
MA70..ARL W(TEMS) |
1 | ||
| 82162-14071 |
MA70..ARL W(TEMS) |
1 | ||
| 82162-14121 |
MA70..ARL W(TEMS) |
1 | ||
| 82162-14111 |
MA70..RHD |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-14090 |
MA70..V |
1 | ||
| 82167-14060 |
MA70..C |
1 | ||
| 82167-14020 |
MA70..V |
1 | ||
| 82168 - WIRE, SEAT, NO.2 | ||||
| 82167-24030 |
MA70 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-14220 |
MA70..RHD..SPR |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-14080 |
MA70 |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-14160 |
MA70..RHD;MA70..LHD..(GEN,V) |
1 | ||
| 82216 - WIRE, REAR WINDOW DEFOGGER | ||||
| 82216-14191 |
MA70..TWT..C;MA70..ARL,GEN,V |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06067 | ||||

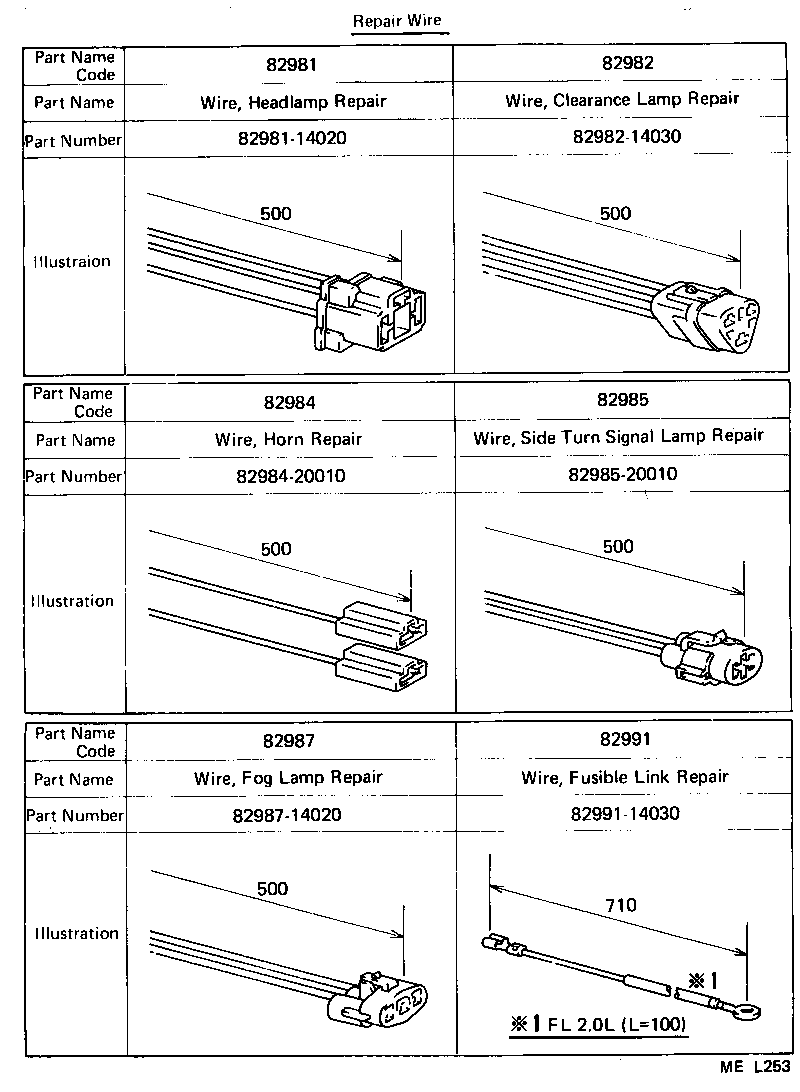

ILLUST NO. 4 OF 5(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-14010 |
MA70..ARL,GEN,V |
1 | ||
| 82981-14020 |
MA70..RHD..(C,EUR) |
1 | ||
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-14010 |
MA70..ARL,GEN,V |
1 | ||
| 82981-14020 |
MA70..RHD..(C,EUR) |
1 | ||
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-14010 |
MA70..ARL,GEN,V |
1 | ||
| 82981-14020 |
MA70..RHD..(C,EUR) |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-14030 |
MA70..C,EUR |
1 | ||
| 82982-12030 |
MA70..ARL,GEN,V |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-14030 |
MA70..C,EUR |
1 | ||
| 82982-12030 |
MA70..ARL,GEN,V |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-20010 |
MA70 |
1 | ||
| Common parts | ||||
| 82981-14010 | ||||
| 82981-14020 | ||||
| 82981-14030 | ||||
| 82982-12030 | ||||
| 82982-14030 | ||||
| 82984-20010 | ||||
ILLUST NO. 4 OF 5(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82985 - WIRE, SIDE TURN SIGNAL LAMP REPAIR | ||||
| 82985-20010 |
MA70 |
1 | ||
| 82987 - WIRE, FOG LAMP REPAIR | ||||
| 82987-14020 |
MA70..C,EUR |
1 | ||
| 82987-14010 |
MA70..ARL,GEN,V |
1 | ||
| 82987 - WIRE, FOG LAMP REPAIR | ||||
| 82987-14020 |
MA70..C,EUR |
1 | ||
| 82987-14010 |
MA70..ARL,GEN,V |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-14030 |
MA70 |
1 | ||
| Common parts | ||||
| 82985-20010 | ||||
| 82987-14010 | ||||
| 82987-14020 | ||||
| 82991-14030 | ||||
ILLUST NO. 5 OF 5(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82710-22030 | ||||
| 82711-12120 | ||||
| 82711-17260 | ||||
| 82711-22270 | ||||
| 82711-24040 | ||||
| 82711-2A090 | ||||
| 82711-2A130 | ||||
| 82711-2B660 | ||||
| 82715-22200 | ||||
| 82819-14230 | ||||
| 90467-09043 | ||||
ILLUST NO. 5 OF 5(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82710-22020 | ||||
| 82711-12200 | ||||
| 82711-14110 | ||||
| 82711-14560 | ||||
| 82711-1A210 | ||||
| 82711-1B020 | ||||
| 82711-22620 | ||||
| 82711-24060 | ||||
| 82711-24070 | ||||
| 82711-24220 | ||||
| 82711-24230 | ||||
| 82711-24240 | ||||
| 82711-24290 | ||||
| 82711-24310 | ||||
| 82711-24330 | ||||
| 82711-24370 | ||||
| 82711-30130 | ||||
| 82711-32360 | ||||
| 82711-95015 | ||||
| 82715-22280 | ||||
| 82715-30160 | ||||
| 90461-06303 | ||||
| 90461-08312 | ||||
| 90463-10012 | ||||
| 90949-01217 | ||||
ILLUST NO. 1 OF 5(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06033 | ||||
| 91655-40616 | ||||
| 91655-G0620 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 5(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06067 | ||||
ILLUST NO. 4 OF 5(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82981-14020 | ||||
| 82982-14030 | ||||
| 82984-20010 | ||||
| 82985-20010 | ||||
| 82987-14020 | ||||
| 82991-14030 | ||||
ILLUST NO. 2 OF 5(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 5 OF 5(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82710-22030 | ||||
| 82711-12120 | ||||
| 82711-17260 | ||||
| 82711-22270 | ||||
| 82711-24040 | ||||
| 82711-2A090 | ||||
| 82711-2A130 | ||||
| 82711-2B660 | ||||
| 82715-22200 | ||||
| 82819-14230 | ||||
| 90467-09043 | ||||
ILLUST NO. 4 OF 5(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82988-50010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
