MA70L-BLPVZK (1986)
Toyota Supra
Production
Aug 1986
-
Aug 1988
Engine
7MGTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8608- )

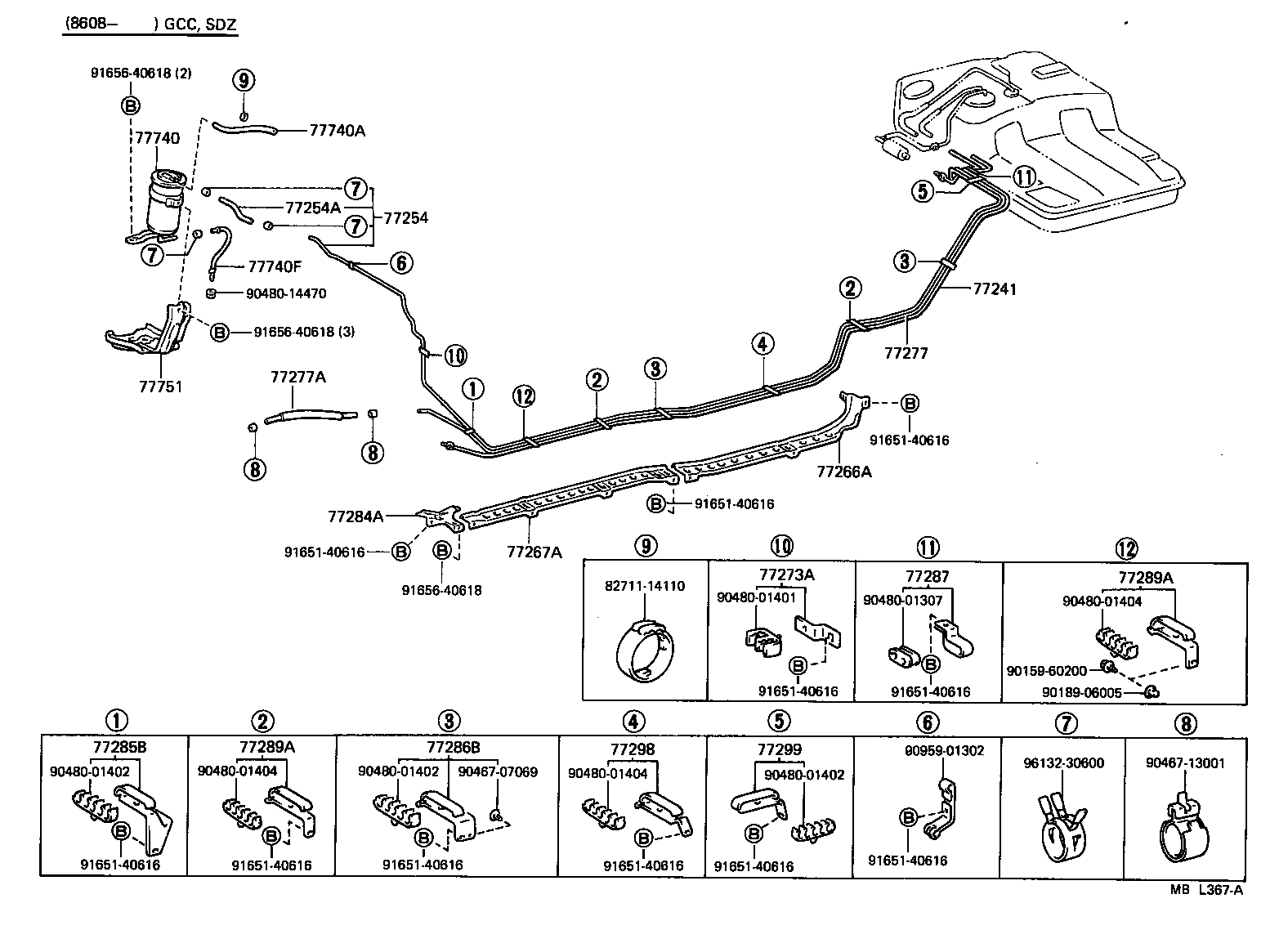

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-14400 |
MA70 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77019-14110 |
MA70 |
1 | ||
| 77019-14140 |
MA70 |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 77259-14040 |
MA70 L=200 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-14040 |
MA70 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-14010 |
MA70 |
1 | ||
| 77273A - CLAMP, FUEL TUBE W/GROMMET, NO.6 | ||||
| 77273-14020 |
MA70 |
1 | ||
| 77273-14010 |
MA70 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-14390 |
MA70 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23271-42010 |
MA70 |
1 | ||
| 77284A - PROTECTOR, FUEL TUBE, NO.3 | ||||
| 77284-14010 |
MA70 |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-14030 |
MA70 |
1 | ||
| 77285-14020 |
MA70 |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-14010 |
MA70 |
2 | ||
| 77286-14020 |
MA70 |
2 | ||
| 77287 - SUPPORT, TANK TO CANISTER TUBE, NO.1 | ||||
| 77287-14010 |
MA70 |
1 | ||
| 77287-14020 |
MA70 |
1 | ||
| 77289A - CLAMP, FUEL TUBE W/GROMMET, NO.3 | ||||
| 77289-14030 |
MA70 |
3 | ||
| 77289-14020 |
MA70 |
3 | ||
| 77289A - CLAMP, FUEL TUBE W/GROMMET, NO.3 | ||||
| 77289-14030 |
MA70 |
3 | ||
| 77289-14020 |
MA70 |
3 | ||
| 77298 - CLAMP, FUEL TUBE W/GROMMET, NO.4 | ||||
| 77298-14020 |
MA70 |
1 | ||
| 77298-14010 |
MA70 |
1 | ||
| 77299 - CLAMP, FUEL TUBE W/GROMMET, NO.5 | ||||
| 77299-14020 |
MA70 |
1 | ||
| 77299-14010 |
MA70 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-14410 |
MA70 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95411-19960 |
MA70 *H,L=510,MARK=#* |
1 | ||
| 77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 77264-14140 |
MA70 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 53751-14030 |
MA70 |
1 | ||
| 53751-14031 |
MA70 |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 90159-60200 | ||||
| 90189-06005 | ||||
| 90467-07069 | ||||
| 90467-13001 | ||||
| 90480-01307 | ||||
| 90480-01401 | ||||
| 90480-01402 | ||||
| 90480-01404 | ||||
| 90480-14470 | ||||
| 90488-01402 | ||||
| 90959-01302 | ||||
| 91651-40616 | ||||
| 91656-40618 | ||||
| 96132-30600 | ||||
