MA70L-BLPVZC (1988)
Toyota Supra

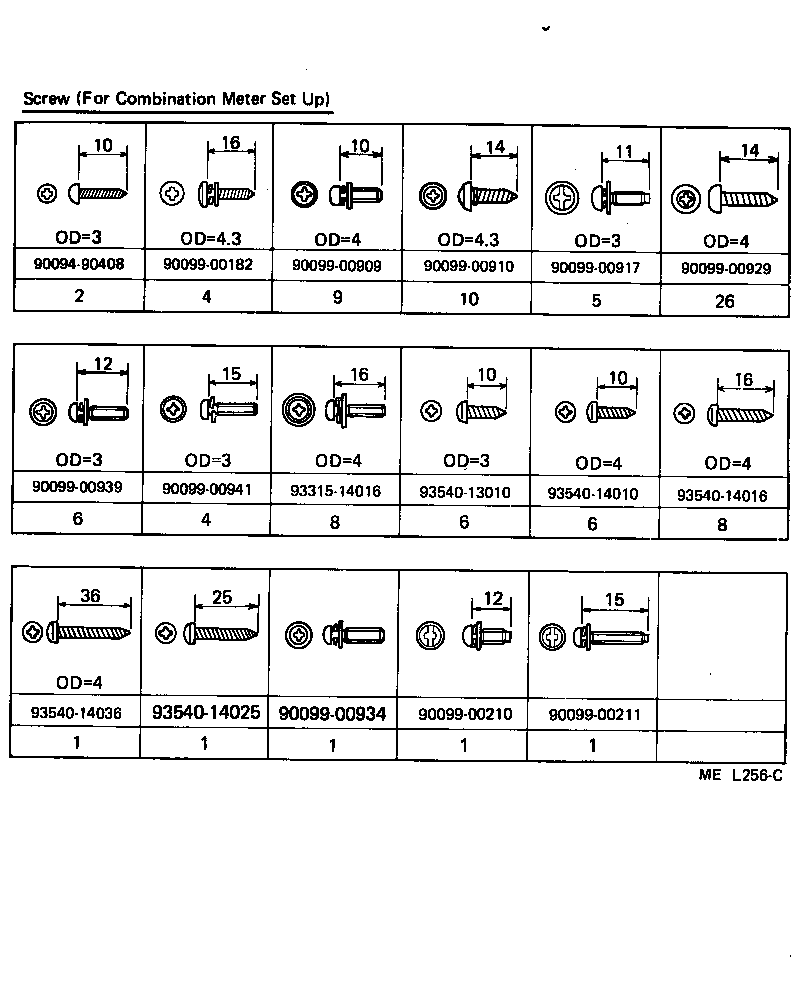

ILLUST NO. 2 OF 4(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90094-90408 | ||||
| 90099-00182 | ||||
| 90099-00210 | ||||
| 90099-00211 | ||||
| 90099-00909 | ||||
| 90099-00910 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90099-00934 | ||||
| 90099-00939 | ||||
| 90099-00941 | ||||
| 93315-14016 | ||||
| 93540-13010 | ||||
| 93540-14010 | ||||
| 93540-14016 | ||||
| 93540-14025 | ||||
| 93540-14036 | ||||

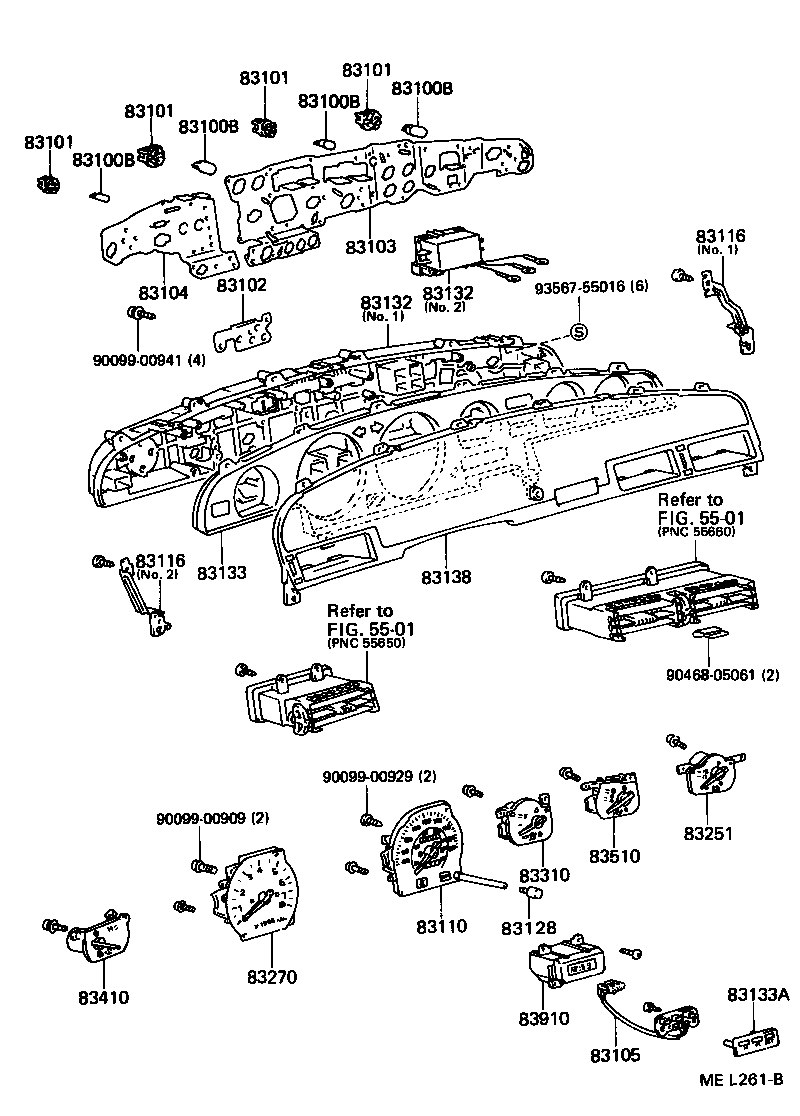

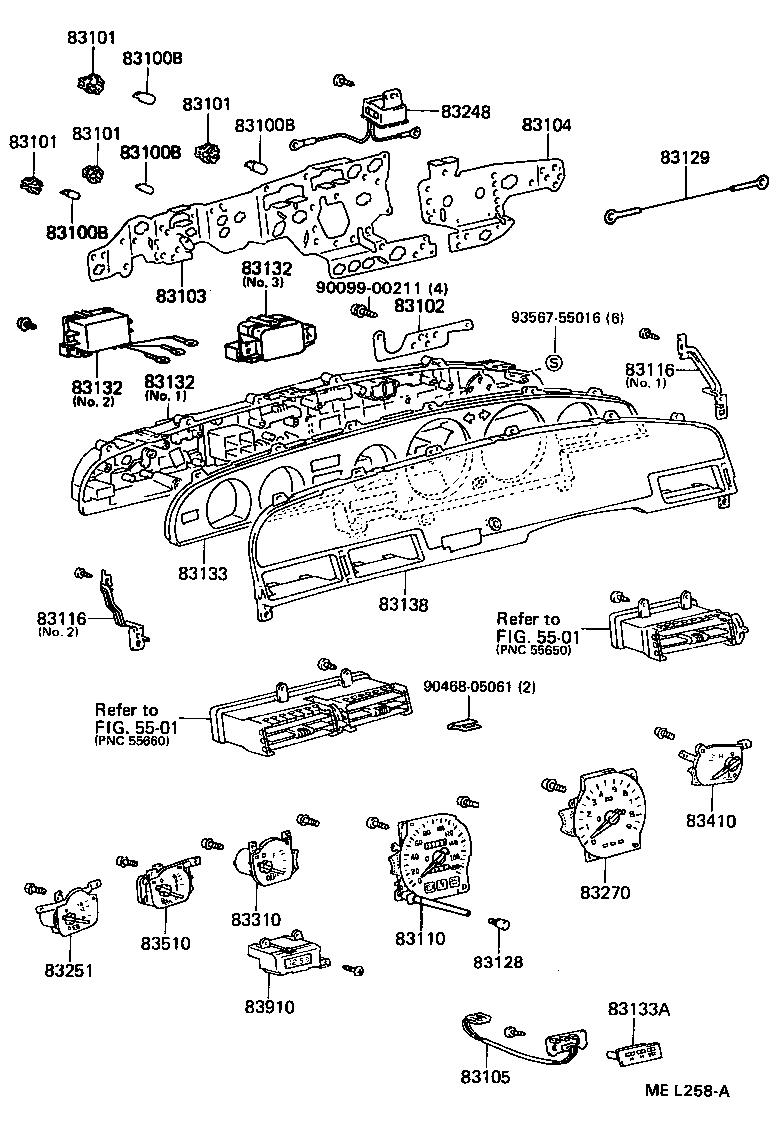

ILLUST NO. 1 OF 4(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24020 |
MA70 12V3.4W W(GREEN CAP),SOCKET=83101-14030 |
4 | ||
| 90981-11018 |
MA70..LHD..4FC..C 12V 1.2W W/O SOCKET,SOCKET=83101-14040 |
10 | ||
| 83109-24010 |
MA70 12V 1.4W,GREEN CAP,SOCKET=83101-14040 |
1 | ||
| 90981-11018 |
MA70..LHD..4FC..C 12V 1.2W W/O SOCKET,SOCKET=83101-14040 |
9 | ||
| 99132-12034 |
MA70 12V 3.4W,SOCKET=83101-14030 |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24020 |
MA70 12V3.4W W(GREEN CAP),SOCKET=83101-14030 |
4 | ||
| 90981-11018 |
MA70..LHD..4FC..C 12V 1.2W W/O SOCKET,SOCKET=83101-14040 |
10 | ||
| 83109-24010 |
MA70 12V 1.4W,GREEN CAP,SOCKET=83101-14040 |
1 | ||
| 90981-11018 |
MA70..LHD..4FC..C 12V 1.2W W/O SOCKET,SOCKET=83101-14040 |
9 | ||
| 99132-12034 |
MA70 12V 3.4W,SOCKET=83101-14030 |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24020 |
MA70 12V3.4W W(GREEN CAP),SOCKET=83101-14030 |
4 | ||
| 90981-11018 |
MA70..LHD..4FC..C 12V 1.2W W/O SOCKET,SOCKET=83101-14040 |
10 | ||
| 83109-24010 |
MA70 12V 1.4W,GREEN CAP,SOCKET=83101-14040 |
1 | ||
| 90981-11018 |
MA70..LHD..4FC..C 12V 1.2W W/O SOCKET,SOCKET=83101-14040 |
9 | ||
| 99132-12034 |
MA70 12V 3.4W,SOCKET=83101-14030 |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24020 |
MA70 12V3.4W W(GREEN CAP),SOCKET=83101-14030 |
4 | ||
| 90981-11018 |
MA70..LHD..4FC..C 12V 1.2W W/O SOCKET,SOCKET=83101-14040 |
10 | ||
| 83109-24010 |
MA70 12V 1.4W,GREEN CAP,SOCKET=83101-14040 |
1 | ||
| 90981-11018 |
MA70..LHD..4FC..C 12V 1.2W W/O SOCKET,SOCKET=83101-14040 |
9 | ||
| 99132-12034 |
MA70 12V 3.4W,SOCKET=83101-14030 |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
MA70..4FC..V;MA70..LHD..5F..EUR;MA70..RHD..4FC..(C,EUR) BULB=12V 1.4W |
9 | ||
| 83101-14040 |
MA70..LHD..4FC..C BULB=12V 1.4W |
10 | ||
| 83101-14040 |
MA70..LHD..4FC..C BULB=12V 1.4W |
11 | ||
| 83101-14030 |
MA70 BULB=12V 3.4W |
8 | ||
| 83101-14030 |
MA70 BULB=12V 3.4W |
4 | ||
| 83101-14040 |
MA70..LHD..4FC..C BULB=12V 1.4W |
9 | ||
| 83101-14040 |
MA70..LHD..4FC..C BULB=12V 1.4W |
10 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
MA70..4FC..V;MA70..LHD..5F..EUR;MA70..RHD..4FC..(C,EUR) BULB=12V 1.4W |
9 | ||
| 83101-14040 |
MA70..LHD..4FC..C BULB=12V 1.4W |
10 | ||
| 83101-14040 |
MA70..LHD..4FC..C BULB=12V 1.4W |
11 | ||
| 83101-14030 |
MA70 BULB=12V 3.4W |
8 | ||
| 83101-14030 |
MA70 BULB=12V 3.4W |
4 | ||
| 83101-14040 |
MA70..LHD..4FC..C BULB=12V 1.4W |
9 | ||
| 83101-14040 |
MA70..LHD..4FC..C BULB=12V 1.4W |
10 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
MA70..4FC..V;MA70..LHD..5F..EUR;MA70..RHD..4FC..(C,EUR) BULB=12V 1.4W |
9 | ||
| 83101-14040 |
MA70..LHD..4FC..C BULB=12V 1.4W |
10 | ||
| 83101-14040 |
MA70..LHD..4FC..C BULB=12V 1.4W |
11 | ||
| 83101-14030 |
MA70 BULB=12V 3.4W |
8 | ||
| 83101-14030 |
MA70 BULB=12V 3.4W |
4 | ||
| 83101-14040 |
MA70..LHD..4FC..C BULB=12V 1.4W |
9 | ||
| 83101-14040 |
MA70..LHD..4FC..C BULB=12V 1.4W |
10 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
MA70..4FC..V;MA70..LHD..5F..EUR;MA70..RHD..4FC..(C,EUR) BULB=12V 1.4W |
9 | ||
| 83101-14040 |
MA70..LHD..4FC..C BULB=12V 1.4W |
10 | ||
| 83101-14040 |
MA70..LHD..4FC..C BULB=12V 1.4W |
11 | ||
| 83101-14030 |
MA70 BULB=12V 3.4W |
8 | ||
| 83101-14030 |
MA70 BULB=12V 3.4W |
4 | ||
| 83101-14040 |
MA70..LHD..4FC..C BULB=12V 1.4W |
9 | ||
| 83101-14040 |
MA70..LHD..4FC..C BULB=12V 1.4W |
10 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1J530 |
MA70..LHD |
1 | ||
| 83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2 | ||||
| 83247-1J890 |
MA70..V |
1 | ||
| 83247-1D520 |
MA70..LHD..TWT W/O(REAR FOG LAMP WARNING) |
1 | ||
| 83247-1D500 |
MA70..LHD..TWT W(REAR FOG LAMP) |
1 | ||
| 83247-15430 |
MA70..LHD..C |
1 | ||
| 83247-15410 |
MA70..LHD..C W/O(REAR FOG LAMP WARNING) |
1 | ||
| 83104 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.3 | ||||
| 83247-1B020 |
MA70..LHD..4FC..C |
1 | ||
| 83247-1B060 |
MA70..LHD..4FC..(GEN,V) |
1 | ||
| 83105 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.4 | ||||
| 83247-1J140 |
MA70 |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-14641 |
MA70..LHD..TWT W(REAR FOG LAMP) |
1 | ||
| 83110-14301 |
MA70..LHD..TWT W/O(REAR FOG LAMP WARNING) |
1 | ||
| 83110-1B192 |
MA70..V |
1 | ||
| 83116 - BRACKET, SPEEDOMETER | ||||
| 83116-14150 |
MA70..LHD NO.1 |
1 | ||
| 83116-14170 |
MA70..LHD NO.2 |
1 | ||
| 83116 - BRACKET, SPEEDOMETER | ||||
| 83116-14150 |
MA70..LHD NO.1 |
1 | ||
| 83116-14170 |
MA70..LHD NO.2 |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-10260 |
MA70 |
1 | ||
| 83129 - WIRE, METER | ||||
| 83129-14270 |
MA70..LHD..TWT L=240 |
1 | ||
| 83129-14250 |
MA70..LHD..TWT L=90 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1D820 |
MA70..LHD..TWT NO.3 |
1 | ||
| 83132-1D800 |
MA70..LHD..4FC..C W(REAR FOG LAMP WARNING),NO.1 |
1 | ||
| 83132-1D760 |
MA70..LHD..4FC..C W/O(REAR FOG LAMP WARNING),NO.1 |
1 | ||
| 83132-1J870 |
MA70..LHD..TWT NO.2 |
1 | ||
| 83132-1J730 |
MA70..4FC..V NO.1 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1D820 |
MA70..LHD..TWT NO.3 |
1 | ||
| 83132-1D800 |
MA70..LHD..4FC..C W(REAR FOG LAMP WARNING),NO.1 |
1 | ||
| 83132-1D760 |
MA70..LHD..4FC..C W/O(REAR FOG LAMP WARNING),NO.1 |
1 | ||
| 83132-1J870 |
MA70..LHD..TWT NO.2 |
1 | ||
| 83132-1J730 |
MA70..4FC..V NO.1 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1D820 |
MA70..LHD..TWT NO.3 |
1 | ||
| 83132-1D800 |
MA70..LHD..4FC..C W(REAR FOG LAMP WARNING),NO.1 |
1 | ||
| 83132-1D760 |
MA70..LHD..4FC..C W/O(REAR FOG LAMP WARNING),NO.1 |
1 | ||
| 83132-1J870 |
MA70..LHD..TWT NO.2 |
1 | ||
| 83132-1J730 |
MA70..4FC..V NO.1 |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-1D170 |
MA70..LHD..C |
1 | ||
| 83133-14780 |
MA70..LHD..TWT |
1 | ||
| 83133A - PLATE, COMBINATION METER, NO.2 | ||||
| 83133-14840 |
MA70 |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-1B190 |
MA70..LHD |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86640-14090 |
MA70..V |
1 | ||
| 83251 - METER, VOLTAGE | ||||
| 83251-14870 |
MA70..LHD..TWT |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-1D710 |
MA70..LHD..4FC..(GEN,V) |
1 | ||
| 83242-1D830 |
MA70..LHD..4FC..C |
1 | ||
| 83242-15510 |
MA70..LHD..4FC..C |
1 | ||
| 83242-1J410 |
MA70..LHD..4FC..C |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-1B050 |
MA70..LHD..TWT |
1 | ||
| 83243-1B070 |
MA70..LHD |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-1B370 |
MA70..V |
1 | ||
| 83244-1B350 |
MA70..LHD..(C,EUR,GEN) |
1 | ||
| 83510 - GAGE ASSY, OIL PRESSURE RECEIVER | ||||
| 83246-14890 |
MA70..LHD |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-14351 |
MA70..LHD |
1 | ||
| Common parts | ||||
| 90099-00211 | ||||
| 90468-05061 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 5501 | ||||
ILLUST NO. 3 OF 4(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
MA70 |
1 | ||
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
MA70 |
1 | ||
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
MA70 |
1 | ||
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
MA70 |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-14700 |
MA70..4FC |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-14700 |
MA70..4FC |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-14700 |
MA70..4FC |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-14700 |
MA70..4FC |
1 | ||
| 83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2 | ||||
| 83710-14731 |
MA70..LHD |
1 | ||
| 83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2 | ||||
| 83710-14731 |
MA70..LHD |
1 | ||
| 83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2 | ||||
| 83710-14731 |
MA70..LHD |
1 | ||
| 83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2 | ||||
| 83710-14731 |
MA70..LHD |
1 | ||
| 83770 - ADAPTER ASSY, SPEEDOMETER CABLE | ||||
| 83770-30070 |
MA70..4FC |
1 | ||
| 83770 - ADAPTER ASSY, SPEEDOMETER CABLE | ||||
| 83770-30070 |
MA70..4FC |
1 | ||
| Common parts | ||||
| 83791-14190 | ||||
| 83791-14191 | ||||
| 83791-14230 | ||||
| 90959-01302 | ||||
| 91616-40614 | ||||

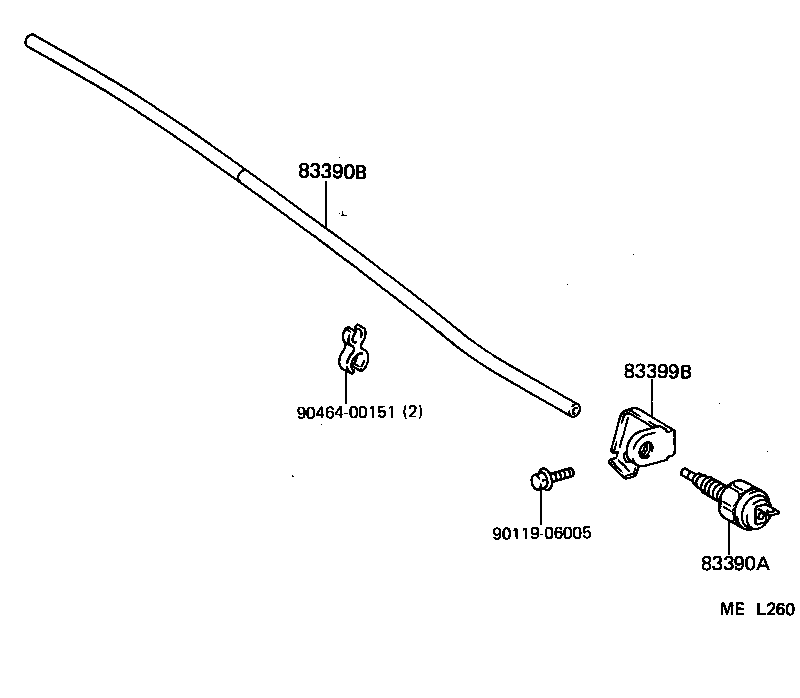

ILLUST NO. 4 OF 4(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83390A - SWITCH ASSY, VACUUM(FOR ECONOMETER) | ||||
| 83391-16020 |
MA70..LHD..(C,EUR) |
1 | ||
| 83399B - BRACKET, VACUUM SWITCH | ||||
| 83399-14100 |
MA70..LHD..(C,EUR) |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90464-00151 | ||||
ILLUST NO. 2 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90094-90408 | ||||
| 90099-00182 | ||||
| 90099-00210 | ||||
| 90099-00211 | ||||
| 90099-00909 | ||||
| 90099-00910 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90099-00934 | ||||
| 90099-00939 | ||||
| 90099-00941 | ||||
| 93315-14016 | ||||
| 93540-13010 | ||||
| 93540-14010 | ||||
| 93540-14016 | ||||
| 93540-14025 | ||||
| 93540-14036 | ||||
ILLUST NO. 1 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-00909 | ||||
| 90099-00929 | ||||
| 90099-00941 | ||||
| 90468-05061 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 5501 | ||||
ILLUST NO. 3 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 83791-14190 | ||||
| 83791-14191 | ||||
| 83791-14200 | ||||
| 83791-14210 | ||||
| 91616-40614 | ||||
