MA70L-BLPVZC (1988)
Toyota Supra
Production
Aug 1988
-
May 1993
Engine
7MGTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )LB

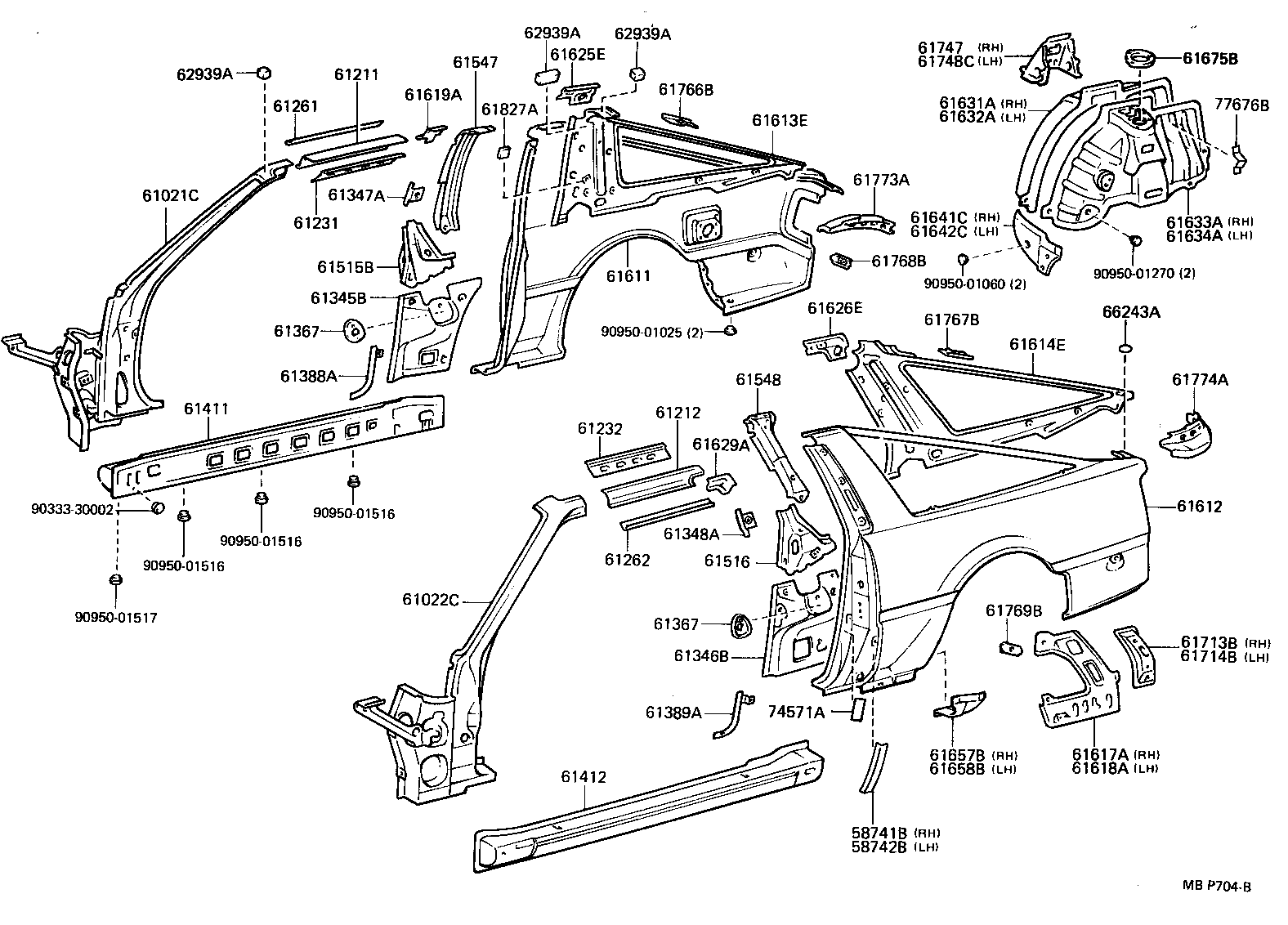

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61021C - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61021-14360 |
MA70..LHD..LB W(SUN ROOF) |
1 | ||
| 61021-14340 |
MA70..LHD..LB |
1 | ||
| 61022C - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61022-14360 |
MA70..LHD..LB |
1 | ||
| 61022-14380 |
MA70..LHD..LB W(SUN ROOF) |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-14150 |
MA70..LB |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-14150 |
MA70..LB |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-14211 |
MA70..LB |
1 | ||
| 61231-14210 |
MA70..LB |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-14191 |
MA70..LB |
1 | ||
| 61232-14190 |
MA70..LB |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-14080 |
MA70..LB |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-14080 |
MA70..LB |
1 | ||
| 61345B - PILLAR, CENTER BODY, INNER LOWER RH | ||||
| 61345-14030 |
MA70 |
1 | ||
| 61346B - PILLAR, CENTER BODY, INNER LOWER LH | ||||
| 61346-14030 |
MA70 |
1 | ||
| 61347A - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, RH | ||||
| 61347-14080 |
MA70 |
1 | ||
| 61348A - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LH | ||||
| 61348-14080 |
MA70 |
1 | ||
| 61367 - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER | ||||
| 61367-24010 |
MA70 |
1 | ||
| 61367 - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER | ||||
| 61367-24010 |
MA70 |
1 | ||
| 61388A - PLATE, CENTER BODY PILLAR END, RH | ||||
| 61388-14010 |
MA70..LB |
1 | ||
| 61389A - PLATE, CENTER BODY PILLAR END, LH | ||||
| 61389-14010 |
MA70..LB |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61401-14100 |
MA70..LB |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61402-14100 |
MA70..LB |
1 | ||
| 61515B - EXTENSION, QUARTER LOCK PILLAR, RH | ||||
| 61515-14010 |
MA70 |
1 | ||
| 61516 - EXTENSION, QUARTER LOCK PILLAR, LH | ||||
| 61516-14010 |
MA70 |
1 | ||
| 61547 - REINFORCEMENT, QUARTER PILLAR, INNER RH | ||||
| 61547-14020 |
MA70..LB |
1 | ||
| 61548 - REINFORCEMENT, QUARTER PILLAR, INNER LH | ||||
| 61548-14020 |
MA70..LB |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-1B914 |
MA70..LB |
1 | ||
| 61601-1B914 |
MA70..LB..(ARL,C,GEN) |
1 | ||
| 61601-1B915 |
MA70..LB..(C,EUR,GEN,V) W(REAR SPOILER) |
1 | ||
| 61601-1B915 |
MA70..LB..(C,GEN) W(REAR SPOILER) |
1 | ||
| 61601-1B915 |
MA70..LB..V |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-1B915 |
MA70..LB |
1 | ||
| 61602-1B916 |
MA70..LB..(C,EUR,GEN,V) W(REAR SPOILER) |
1 | ||
| 61602-1B915 |
MA70..LB..(C,GEN) |
1 | ||
| 61602-1B915 |
MA70..LB..(C,GEN,V) |
1 | ||
| 61602-1B916 |
MA70..LB..(ARL,V) |
1 | ||
| 61602-1B916 |
MA70..LB..(C,GEN) W(REAR SPOILER) |
1 | ||
| 61613E - PANEL, QUARTER, INNER RH | ||||
| 61613-14131 |
MA70 |
1 | ||
| 61613-14130 |
MA70 |
1 | ||
| 61614E - PANEL, QUARTER, INNER LH | ||||
| 61614-14130 |
MA70 |
1 | ||
| 61614-14131 |
MA70 |
1 | ||
| 61617A - PANEL, QUARTER INNER, REAR RH | ||||
| 61617-14080 |
MA70 |
1 | ||
| 61618A - PANEL, QUARTER, INNER REAR LH | ||||
| 61618-14090 |
MA70 |
1 | ||
| 61619A - REINFORCEMENT, QUARTER PANEL | ||||
| 61619-14040 |
MA70..LB |
1 | ||
| 61625E - EXTENSION, QUARTER PANEL, INNER REAR RH | ||||
| 61625-14060 |
MA70..LB |
1 | ||
| 61625-14061 |
MA70..LB |
1 | ||
| 61626E - EXTENSION, QUARTER PANEL, INNER REAR LH | ||||
| 61626-14061 |
MA70..LB |
1 | ||
| 61626-14060 |
MA70..LB |
1 | ||
| 61629A - REINFORCEMENT, QUARTER PANEL, LH | ||||
| 61629-14040 |
MA70..LB |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-14180 |
MA70 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-14180 |
MA70 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-14907 |
MA70 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-14908 |
MA70 |
1 | ||
| 61641C - GUSSET, QUARTER WHEEL HOUSE, FRONT RH | ||||
| 61641-14030 |
MA70 |
1 | ||
| 61642C - GUSSET, QUARTER WHEEL HOUSE, FRONT LH | ||||
| 61642-14020 |
MA70 |
1 | ||
| 61657B - HOUSING, QUARTER PANEL END, LOWER RH | ||||
| 61657-14050 |
MA70 |
1 | ||
| 61658B - HOUSING, QUARTER PANEL END, LOWER LH | ||||
| 61658-14040 |
MA70 |
1 | ||
| 61675B - REINFORCEMENT, REAR SUSPENSION SPRING SUPPORT | ||||
| 61675-14040 |
MA70 |
2 | ||
| 61713B - REINFORCE, ROOF SIDE, OUTER RH | ||||
| 61713-14020 |
MA70 |
1 | ||
| 61714B - REINFORCE, ROOF SIDE, OUTER LH | ||||
| 61714-14020 |
MA70 |
1 | ||
| 61766B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH | ||||
| 61766-14050 |
MA70 |
1 | ||
| 61767B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH | ||||
| 61767-14060 |
MA70 |
1 | ||
| 61768B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH | ||||
| 61768-32010 |
MA70 |
1 | ||
| 61769B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH | ||||
| 61768-32010 |
MA70 |
1 | ||
| 61773A - PATCH, BACK DOOR OPENING, LOWER RH | ||||
| 61773-14021 |
MA70 |
1 | ||
| 61773-14020 |
MA70 |
1 | ||
| 61774A - PATCH, BACK DOOR OPENING, LOWER LH | ||||
| 61774-14020 |
MA70 |
1 | ||
| 61827A - PLATE, NOISE CONTROL, NO.4 | ||||
| 61827-14010 |
MA70..LB |
2 | ||
| 62939A - SILENCER, QUARTER VENT | ||||
| 62939-14030 |
MA70 |
2 | ||
| 62939A - SILENCER, QUARTER VENT | ||||
| 62939-14030 |
MA70 |
2 | ||
| 62939A - SILENCER, QUARTER VENT | ||||
| 62939-14030 |
MA70 |
2 | ||
| 66243A - PROTECTOR, REAR BODY, NO.1 | ||||
| 66243-20010 |
MA70 |
2 | ||
| 77676B - BRACKET, FUEL TANK FILLER PIPE PROTECTOR, NO.2 | ||||
| 77676-14020 |
MA70 |
1 | ||
| Common parts | ||||
| 90333-30002 | ||||
| 90950-01025 | ||||
| 90950-01060 | ||||
| 90950-01270 | ||||
| 90950-01516 | ||||
| 90950-01517 | ||||
(8808- )LB

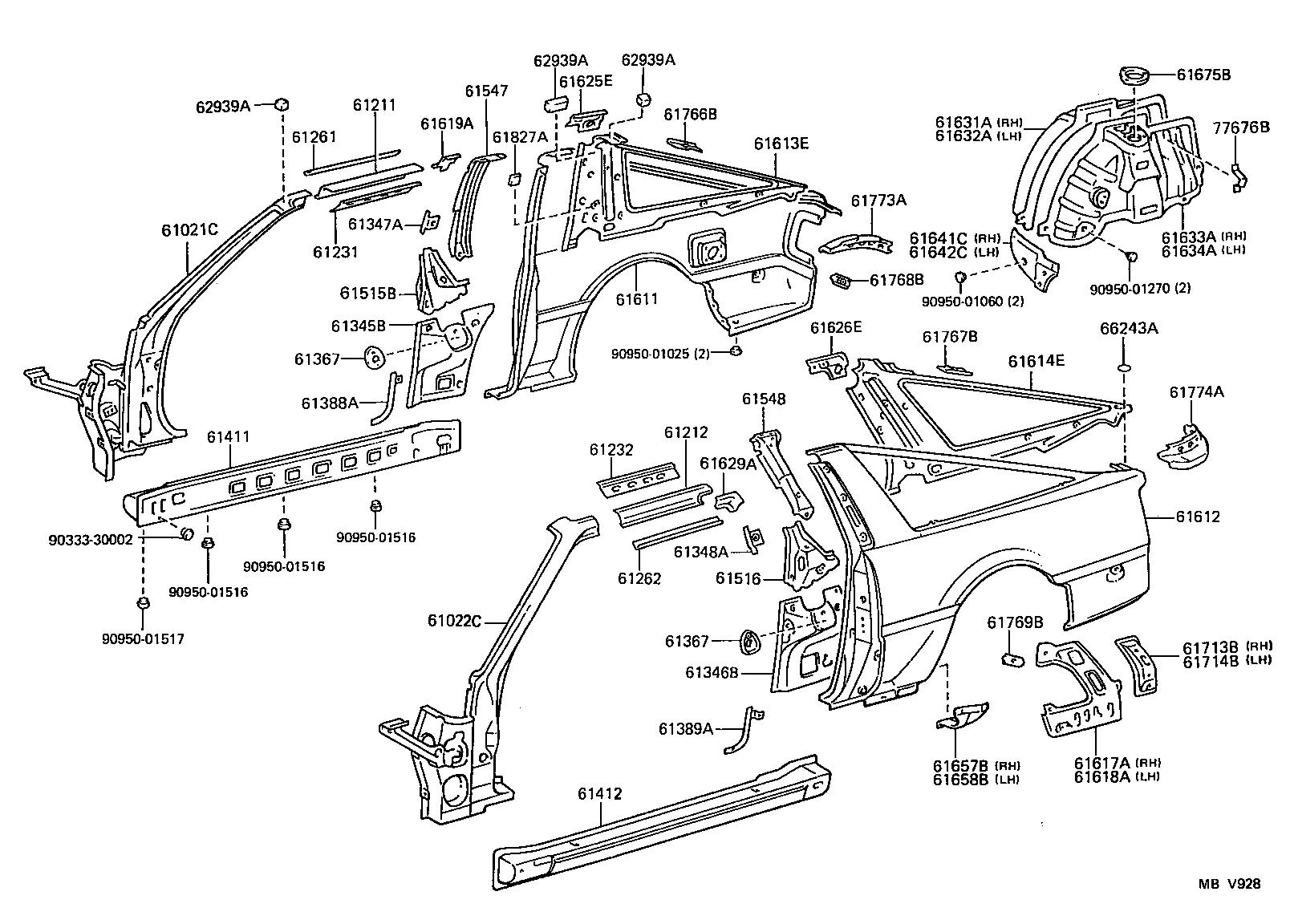

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90333-30002 | ||||
| 90950-01025 | ||||
| 90950-01060 | ||||
| 90950-01270 | ||||
| 90950-01516 | ||||
| 90950-01517 | ||||
