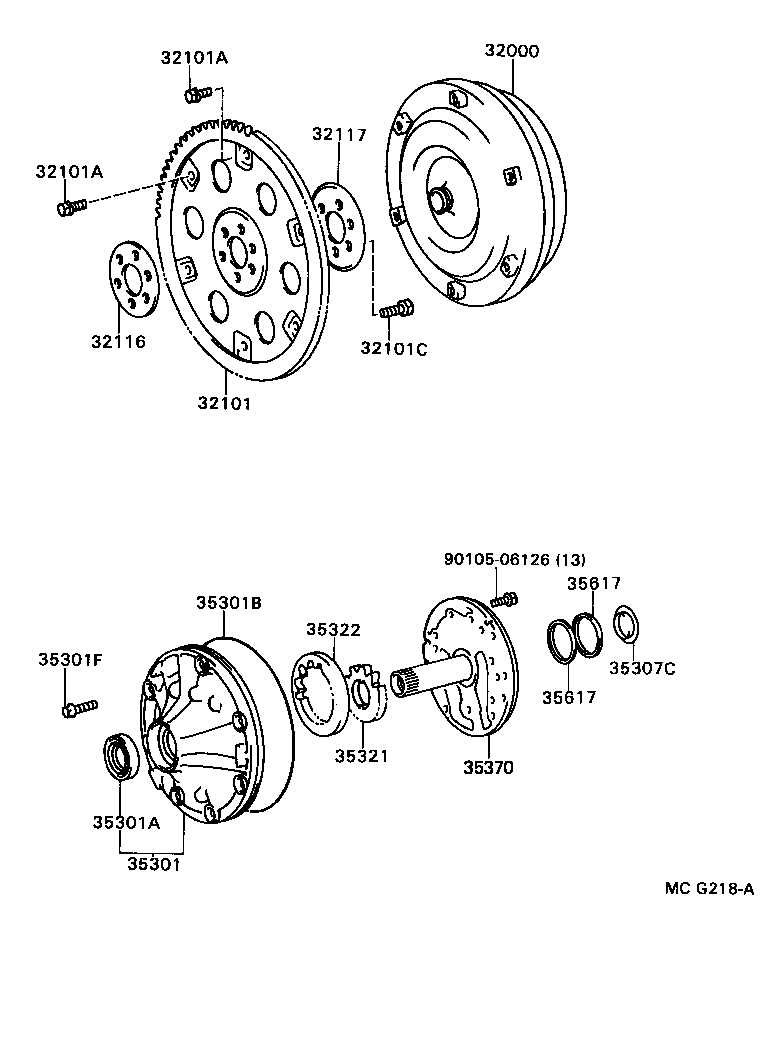

MA70L-BLPVZC (1988)
Toyota Supra
(8808- )4FC
A340E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-14120 |
MA70..4FC..TWT |
1 | ||
| 32101 - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-14052 |
MA70..4FC |
1 | ||
| 32101-14051 |
MA70..4FC |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90119-09009 |
MA70..4FC *9-1.25PX12.8-8.8,YELLOW |
5 | ||
| 90119-09010 |
MA70..4FC *9-1.25PX12.8-9,GREEN |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90119-09009 |
MA70..4FC *9-1.25PX12.8-8.8,YELLOW |
5 | ||
| 90119-09010 |
MA70..4FC *9-1.25PX12.8-9,GREEN |
1 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90109-10037 |
MA70..4FC *10-1.25PX18-12 |
6 | ||
| 32116 - SPACER, DRIVE PLATE, FRONT | ||||
| 32116-30011 |
MA70..4FC |
1 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-30011 |
MA70..4FC |
1 | ||
| 35301 - BODY SUB-ASSY, FRONT OIL PUMP | ||||
| 35301-30040 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) |
1 | ||
| 35301-30040 |
MA70..4FC |
1 | ||
| 35301A - SEAL, OIL (FOR FRONT OIL PUMP) | ||||
| 90311-38029 |
MA70..4FC |
1 | ||
| 90311-38029 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 90301-99033 |
MA70..4FC |
1 | ||
| 90301-99033 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) |
1 | ||
| 35301F - BOLT (FOR FRONT OIL PUMP SETTING) | ||||
| 90105-08091 |
MA70..4FC *8-1.25PX35-35 |
7 | ||
| 90105-08091 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) *8-1.25PX35-35 |
7 | ||
| 35307C - RACE, THRUST BEARING (FOR STATOR SHAFT) | ||||
| 35789-30020 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) T=3.7 |
1 | ||
| 35789-30020 |
MA70..4FC T=3.7 |
1 | ||
| 35789-30020 |
MA70..4FC T=3.7 |
1 | ||
| 35321 - GEAR, FRONT OIL PUMP DRIVE | ||||
| 35321-32050 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) T=9.456-9.474 |
1 | ||
| 35321-32050 |
MA70..4FC T=9.456-9.474 |
1 | ||
| 35321-32050 |
MA70..4FC T=9.456-9.474 |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-32050 |
MA70..4FC T=9.456-9.474 |
1 | ||
| 35322-32050 |
MA70..4FC T=9.456-9.474 |
1 | ||
| 35322-32050 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) T=9.456-9.474 |
1 | ||
| 35370 - SHAFT ASSY, STATOR | ||||
| 35370-30031 |
MA70..4FC |
1 | ||
| 35370-30031 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) |
1 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-30020 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) |
2 | ||
| 35617-30020 |
MA70..4FC |
2 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-30020 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) |
2 | ||
| 35617-30020 |
MA70..4FC |
2 | ||
| Common parts | ||||
| 90105-06126 | ||||
(8808- )4FC
A340E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-14120 |
MA70..4FC..TWT |
1 | ||
| 32101 - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-14052 |
MA70..4FC |
1 | ||
| 32101-14051 |
MA70..4FC |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90119-09009 |
MA70..4FC *9-1.25PX12.8-8.8,YELLOW |
5 | ||
| 90119-09010 |
MA70..4FC *9-1.25PX12.8-9,GREEN |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90119-09009 |
MA70..4FC *9-1.25PX12.8-8.8,YELLOW |
5 | ||
| 90119-09010 |
MA70..4FC *9-1.25PX12.8-9,GREEN |
1 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90109-10037 |
MA70..4FC *10-1.25PX18-12 |
6 | ||
| 32116 - SPACER, DRIVE PLATE, FRONT | ||||
| 32116-30011 |
MA70..4FC |
1 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-30011 |
MA70..4FC |
1 | ||
| 35301 - BODY SUB-ASSY, FRONT OIL PUMP | ||||
| 35301-30040 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) |
1 | ||
| 35301-30040 |
MA70..4FC |
1 | ||
| 35301A - SEAL, OIL (FOR FRONT OIL PUMP) | ||||
| 90311-38029 |
MA70..4FC |
1 | ||
| 90311-38029 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 90301-99033 |
MA70..4FC |
1 | ||
| 90301-99033 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) |
1 | ||
| 35301F - BOLT (FOR FRONT OIL PUMP SETTING) | ||||
| 90105-08091 |
MA70..4FC *8-1.25PX35-35 |
7 | ||
| 90105-08091 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) *8-1.25PX35-35 |
7 | ||
| 35307C - RACE, THRUST BEARING (FOR STATOR SHAFT) | ||||
| 35789-30020 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) T=3.7 |
1 | ||
| 35789-30020 |
MA70..4FC T=3.7 |
1 | ||
| 35789-30020 |
MA70..4FC T=3.7 |
1 | ||
| 35321 - GEAR, FRONT OIL PUMP DRIVE | ||||
| 35321-32050 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) T=9.456-9.474 |
1 | ||
| 35321-32050 |
MA70..4FC T=9.456-9.474 |
1 | ||
| 35321-32050 |
MA70..4FC T=9.456-9.474 |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-32050 |
MA70..4FC T=9.456-9.474 |
1 | ||
| 35322-32050 |
MA70..4FC T=9.456-9.474 |
1 | ||
| 35322-32050 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) T=9.456-9.474 |
1 | ||
| 35370 - SHAFT ASSY, STATOR | ||||
| 35370-30031 |
MA70..4FC |
1 | ||
| 35370-30031 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) |
1 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-30020 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) |
2 | ||
| 35617-30020 |
MA70..4FC |
2 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-30020 |
MA70..LB..4FC;MA70..SPR..4FC..(ARL,C,GEN) |
2 | ||
| 35617-30020 |
MA70..4FC |
2 | ||
| Common parts | ||||
| 90105-06126 | ||||
