MA70L-BLPVFW (1986)

Toyota Supra

Production Jan 1986 - Aug 1988
Engine 7MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8601- )

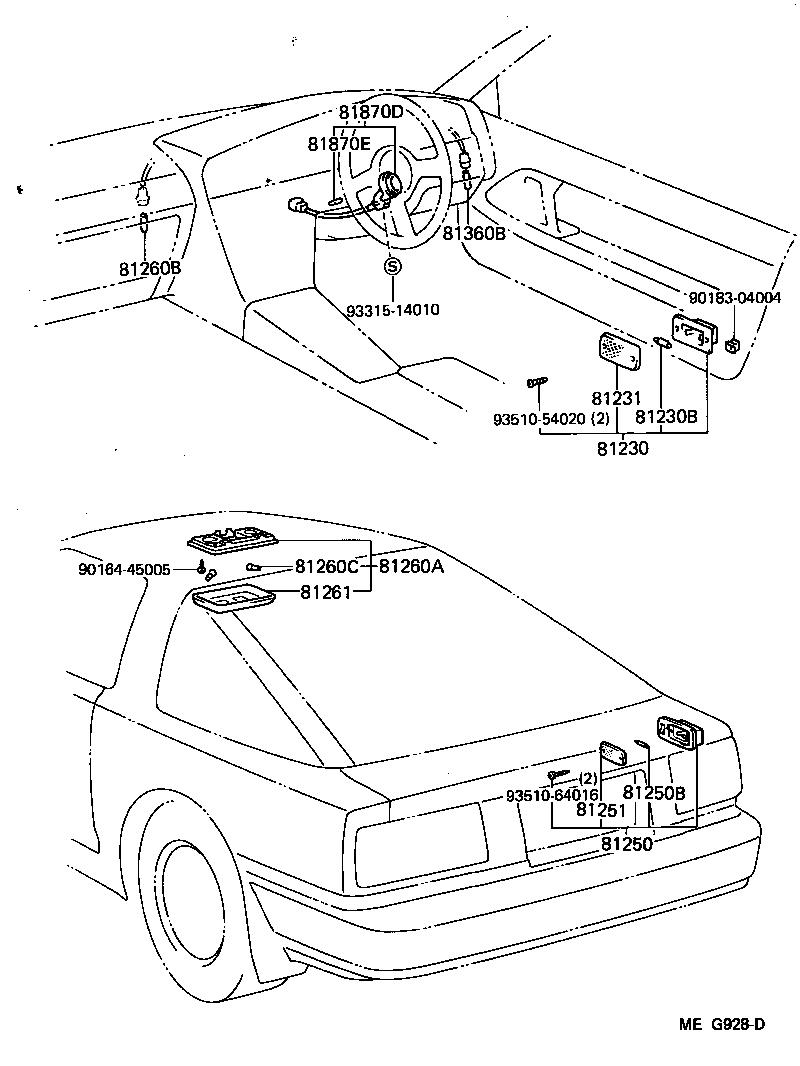

Click highlighted areas on diagram

diagram 81230 81230B 81231 81250 81250B 81251 81260A 81260B 81260C 81261 81360B 81870D 81870E 9016445005 9018304004 9331514010 9351054020 9351064016
Part # Description Qty Price
81230 - LAMP ASSY, COURTESY
81230-14040

MA70

 2
81230B - BULB(FOR COURTESY LAMP)
99132-13050

MA70

12V 5W,12V 5W

 2
81231 - LENS, COURTESY LAMP
81231-30100

MA70

 2
81250 - LAMP ASSY, ROOM, NO.2
81250-1403015

MA70

BEIGE,DARK BEIGE,TRIM4#

 1
81250-1403014

MA70

BLUE,BLUE,TRIM8#

 1
81250-1403032

MA70

MAROON,MAROON,TRIM3#

 1
81250-1403033

MA70

GRAY,MEDIUM GRAY,TRIM1#

 1
81250B - BULB, ROOM LAMP, NO.2
99132-13050

MA70

12V 5W,12V 5W

 1
81251 - LENS, ROOM LAMP, NO.2
81251-14030

MA70

 1
81260A - LAMP ASSY, MAP
81260-1407004

MA70

BLUE,DEEP BLUE,TRIM8#

 1
81260-1407005

MA70

BEIGE,DARK BEIGE,TRIM4#

 1
81260-1407003

MA70

GRAY,MEDIUM GRAY,TRIM1#

 1
81260B - BULB(FOR GLOVE BOX)
90981-11014

MA70

14V 1.4W,12V 1.4W

 1
81260C - BULB(FOR MAP LAMP)
90981-12005

MA70

12V 8W,12V 8W

 2
81261 - LENS AND COVER, MAP LAMP
81261-1407004

MA70

BLUE,DEEP BLUE,TRIM8#

 2
81261-1407003

MA70

GRAY,MEDIUM GRAY,TRIM1#

 2
81261-1407005

MA70

BEIGE,DARK BEIGE,TRIM4#

 2
81360B - BULB, STEP OR SPOT LAMP
90981-11014

MA70

14V 1.4W,12V 1.4W

 1
81870D - LAMP ASSY, KEY CYLINDER
81870-14010

MA70

 1
81870E - BULB, KEY CYLINDER LAMP
90981-11018

MA70

12V 1.2W W/O SOCKET

 1
Common parts
90164-45005
90183-04004
93315-14010
93510-54020
93510-64016

(8601- )

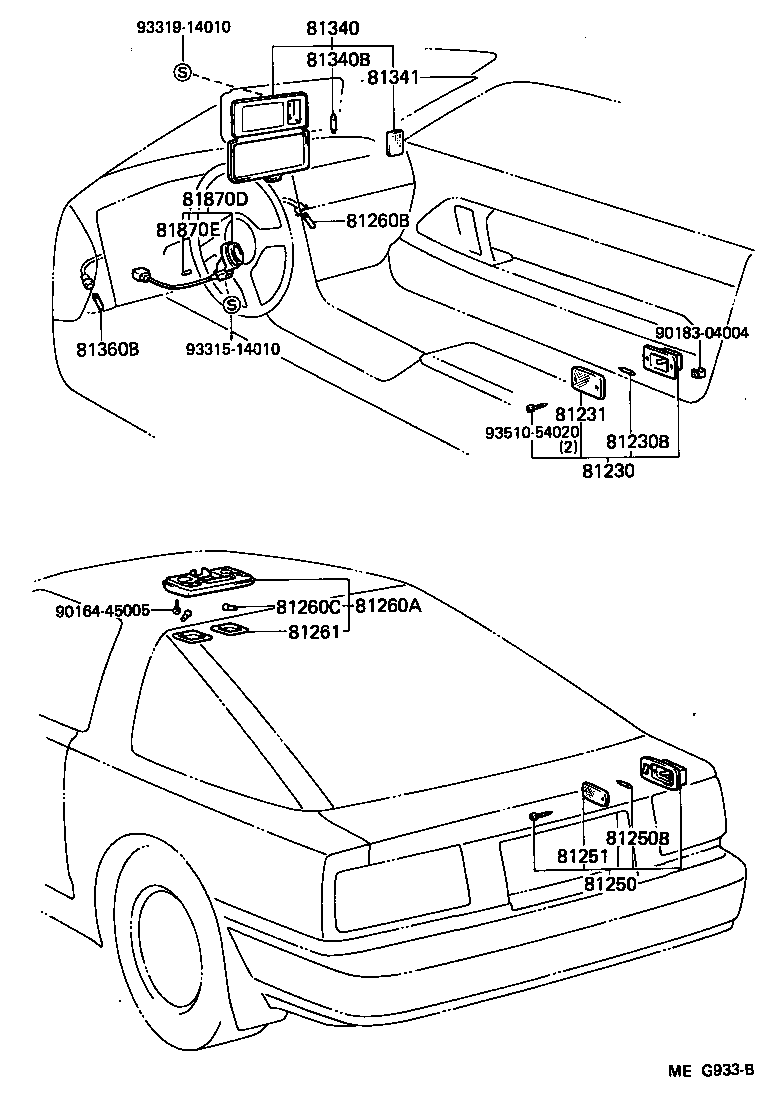

Click highlighted areas on diagram

diagram 81230 81230B 81231 81250 81250B 81251 81260A 81260B 81260C 81261 81340 81340B 81341 81360B 81870D 81870E 9016445005 9018304004 9331514010 9331914010 9351054020
Part # Description Qty Price
Common parts
90164-45005
90183-04004
93315-14010
93319-14010
93510-54020
