MA70L-BLPVFV (1986)

Toyota Supra

Production Jan 1986 - Aug 1988
Engine 7MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8601- )

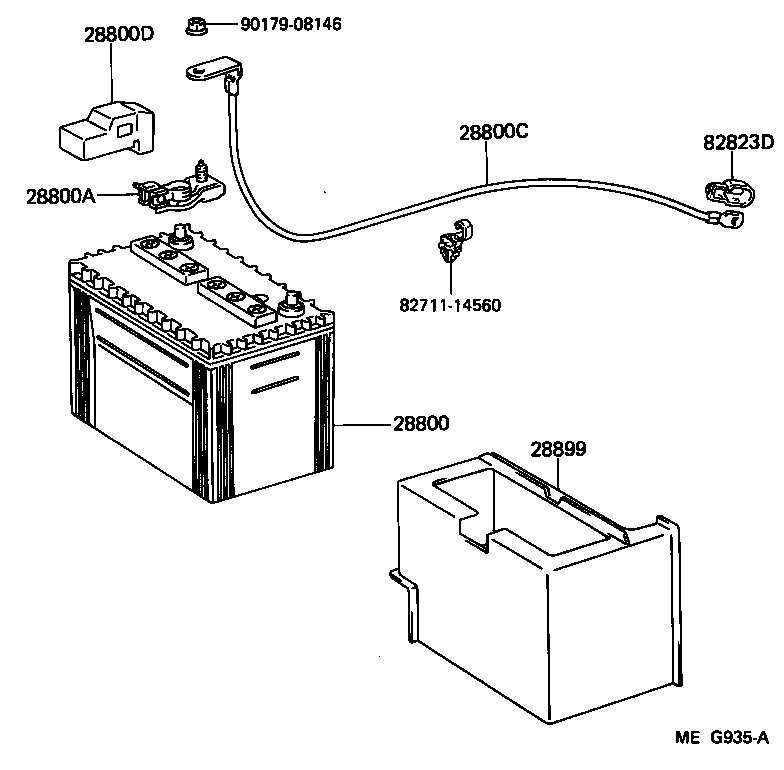

Click highlighted areas on diagram

diagram 28800 28800A 28800C 28800D 28899 8271114560 82823D 9017908146
Part # Description Qty Price
28800 - BATTERY
28800-42030

7MG#..MA70

55D23L,55D23L-HY

 1
28800-15050

7MG#..MA70

55D23L,55D23L-MF

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05029

7MGE..MA70

 1
90982-05030

7MGE..MA70

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82122-24140

7MG#..MA70

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-24010

7MGE..MA70

 1
28899 - INSULATOR, BATTERY
28899-42020

7MG#..MA70

55D23L

 1
82823D - CAP, TERMINAL
82823-20030

MA70

 1
Common parts
82711-14560
90179-08146

(8601- )

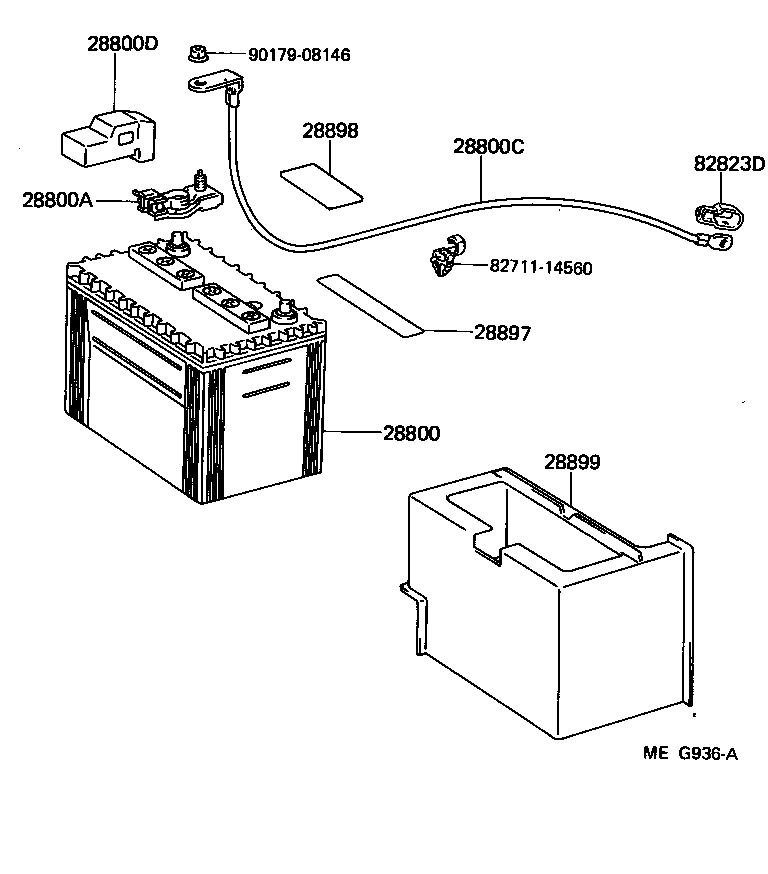

Click highlighted areas on diagram

diagram 28800 28800A 28800C 28800D 28897 28898 28899 8271114560 82823D 9017908146
Part # Description Qty Price
Common parts
82711-14560
90179-08146
