MA70L-BLPVFV (1986)

Toyota Supra

Production Jan 1986 - Aug 1988
Engine 7MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8601- )

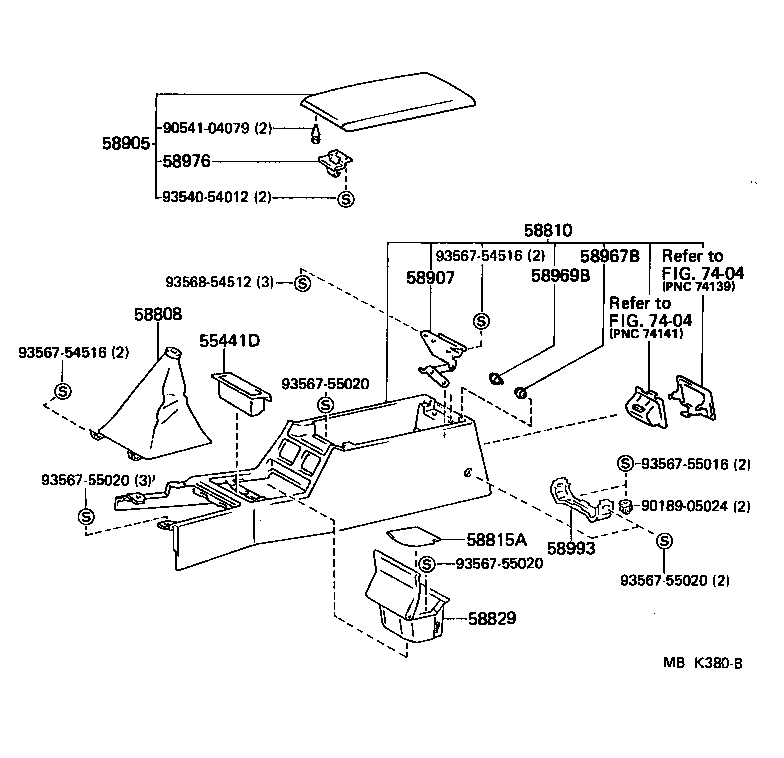

Click highlighted areas on diagram

diagram 55441D 58808 58810 58815A 58829 58905 58907 58967B 58969B 58976 58993 7404 7404 9018905024 9054104079 9354054012 9356754516 9356754516 9356755016 9356755020 9356755020 9356755020 9356755020 9356854512
Part # Description Qty Price
55441D - BOX, INSTRUMENT PANEL COIN
55441-1410005

MA70

BEIGE,DARK BEIGE,TRIM4#

 1
55441-1410003

MA70

GRAY,MEDIUM GRAY,TRIM1#

 1
55441-1410002

MA70..ARL,GCC,GEN

MAROON,MAROON,TRIM3#

 1
55441-1410004

MA70

BLUE,DEEP BLUE,TRIM8#

 1
58810 - CONSOLE ASSY
58810-1438003

MA70..LHD

GRAY,MEDIUM GRAY,TRIM1#

 1
58810-1438002

MA70..LHD..(GCC,GEN)

MAROON,MAROON,TRIM3#

 1
58810-1438004

MA70..LHD

BLUE,DEEP BLUE,TRIM8#

 1
58810-1438005

MA70..LHD

BEIGE,DARK BEIGE,TRIM4#

 1
58815A - CARPET, CONSOLE BOX
58815-14040

MA70..LHD

 1
58829 - POCKET, CONSOLE BOX
58806-1402003

MA70..LHD

GRAY,MEDIUM GRAY,TRIM1#

 1
58806-1402005

MA70..LHD

BEIGE,DARK BEIGE,TRIM4#

 1
58806-1402002

MA70..LHD..(GCC,GEN)

MAROON,MAROON,TRIM3#

 1
58806-1402004

MA70..LHD

BLUE,DEEP BLUE,TRIM8#

 1
58806-1402102

MA70..LHD..(GCC,GEN)

MAROON,MAROON,TRIM3#

 1
58806-1402103

MA70..LHD

GRAY,MEDIUM GRAY,TRIM1#

 1
58806-1402104

MA70..LHD

BLUE,DEEP BLUE,TRIM8#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-1405004

MA70

BLUE,DEEP BLUE,TRIM8#

 1
58905-1405002

MA70..ARL,GCC,GEN

MAROON,MAROON,TRIM3#

 1
58905-1405003

MA70

GRAY,MEDIUM GRAY,TRIM1#

 1
58905-1405005

MA70

BEIGE,DARK BEIGE,TRIM4#

 1
58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58907-14020

MA70

 1
58967B - SPACER, CONSOLE COMPARTMENT DOOR STOPPER
58967-14030

MA70

 1
58969B - STOPPER, CONSOLE COMPARTMENT DOOR, NO.3
58969-14010

MA70

 1
58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58976-22020

MA70

 1
58993 - BRACKET, CONSOLE BOX MOUNTING, REAR
58993-14010

MA70

 1
Common parts
90189-05024
90541-04079
93540-54012
93567-54516
93567-55016
93567-55020
93568-54512
Linked diagrams
7404

(8601- )

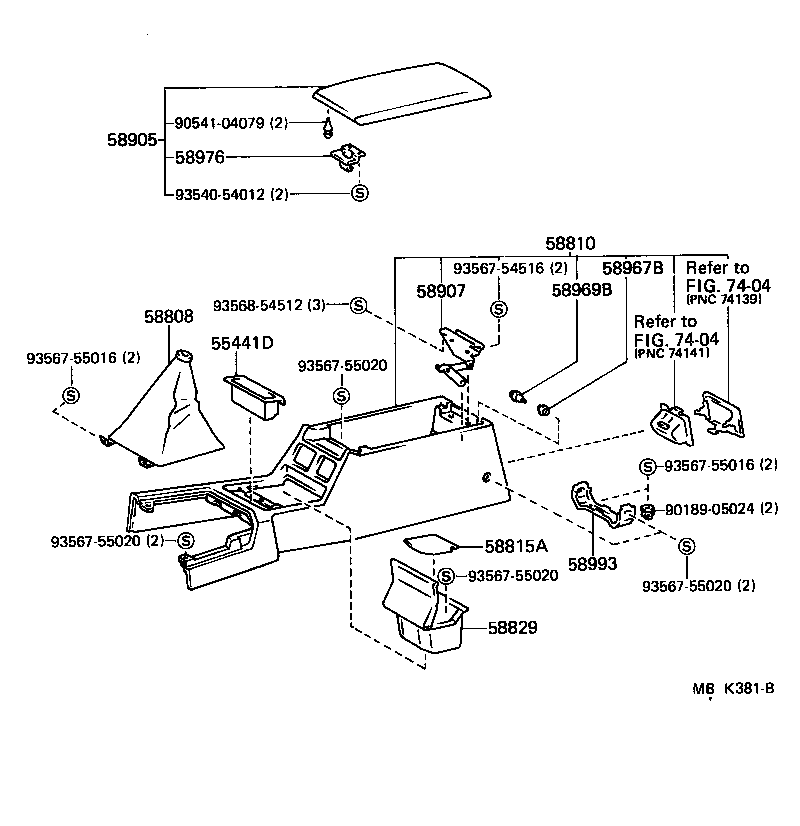

Click highlighted areas on diagram

diagram 55441D 58808 58810 58815A 58829 58905 58907 58967B 58969B 58976 58993 7404 7404 9018905024 9054104079 9354054012 9356754516 9356755016 9356755016 9356755020 9356755020 9356755020 9356755020 9356854512
Part # Description Qty Price
Common parts
90189-05024
90541-04079
93540-54012
93567-54516
93567-55016
93567-55020
93568-54512
Linked diagrams
7404
