MA70L-BLPVFV (1986)
Toyota Supra
Production
Jan 1986
-
Aug 1988
Engine
7MGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8601- )

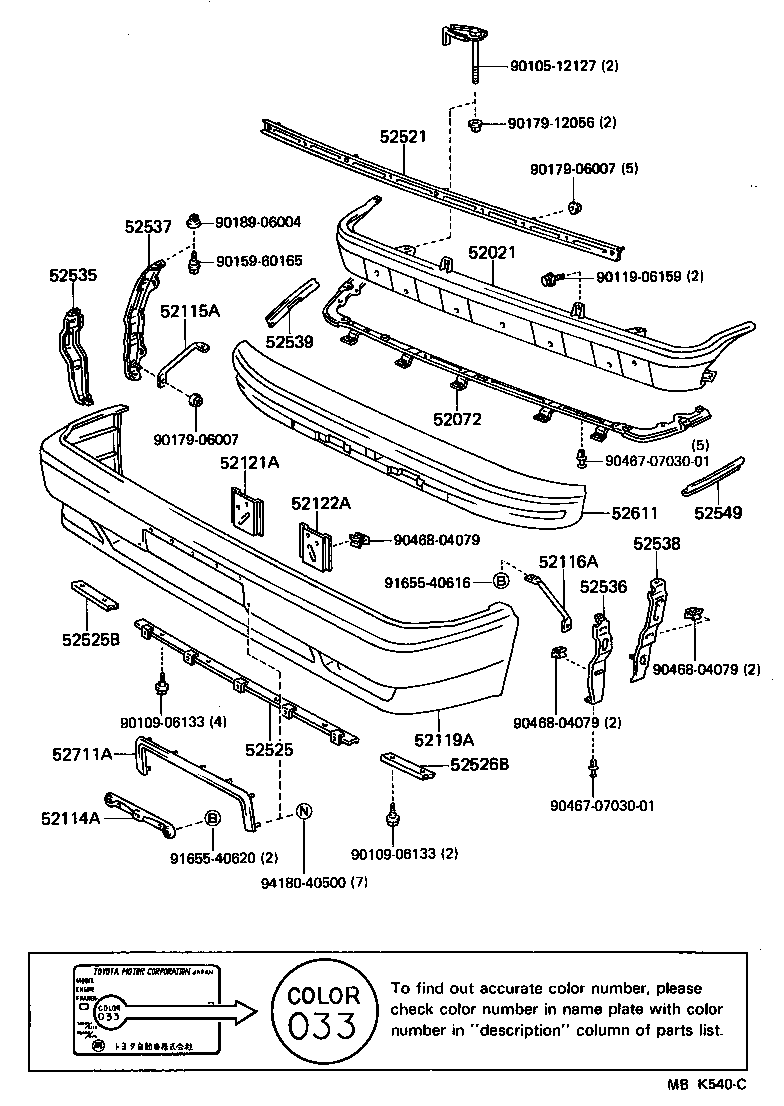

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-14140 |
MA70..GCC |
1 | ||
| 52072 - RETAINER SUB-ASSY, FRONT BUMPER, LOWER | ||||
| 52072-14030 |
MA70 |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-14110 |
MA70 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52115-14110 |
MA70 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-14907 |
MA70..GCC |
1 | ||
| 52121A - BRACKET, FRONT LICENSE PLATE MOUNTING, RH | ||||
| 52121-14090 |
MA70 |
1 | ||
| 52122A - BRACKET, FRONT LICENSE PLATE MOUNTING, LH | ||||
| 52122-14010 |
MA70 |
1 | ||
| 52521 - RETAINER, FRONT BUMPER, UPPER CENTER | ||||
| 52521-14080 |
MA70 |
1 | ||
| 52525 - RETAINER, FRONT BUMPER, LOWER CENTER | ||||
| 52525-14080 |
MA70 |
1 | ||
| 52525B - RETAINER, FRONT BUMPER, LOWER SIDE RH | ||||
| 52526-14070 |
MA70 |
1 | ||
| 52526B - RETAINER, FRONT BUMPER, LOWER SIDE LH | ||||
| 52526-14070 |
MA70 |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-14020 |
MA70 |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52535-14020 |
MA70 |
1 | ||
| 52537 - RETAINER, FRONT BUMPER END, RH | ||||
| 52537-14010 |
MA70 |
1 | ||
| 52538 - RETAINER, FRONT BUMPER END, LH | ||||
| 52538-14010 |
MA70 |
1 | ||
| 52539 - RETAINER, FRONT BUMPER SIDE, NO.3 RH | ||||
| 52539-14010 |
MA70 |
1 | ||
| 52549 - RETAINER, FRONT BUMPER SIDE, NO.3 LH | ||||
| 52539-14010 |
MA70 |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-14090 |
MA70 |
1 | ||
| Common parts | ||||
| 90105-12127 | ||||
| 90109-06133 | ||||
| 90119-06159 | ||||
| 90159-60165 | ||||
| 90179-06007 | ||||
| 90179-12056 | ||||
| 90189-06004 | ||||
| 90467-0703001 | ||||
| 90468-04079 | ||||
| 91655-40616 | ||||
| 91655-40620 | ||||
| 94180-40500 | ||||
(8601- )

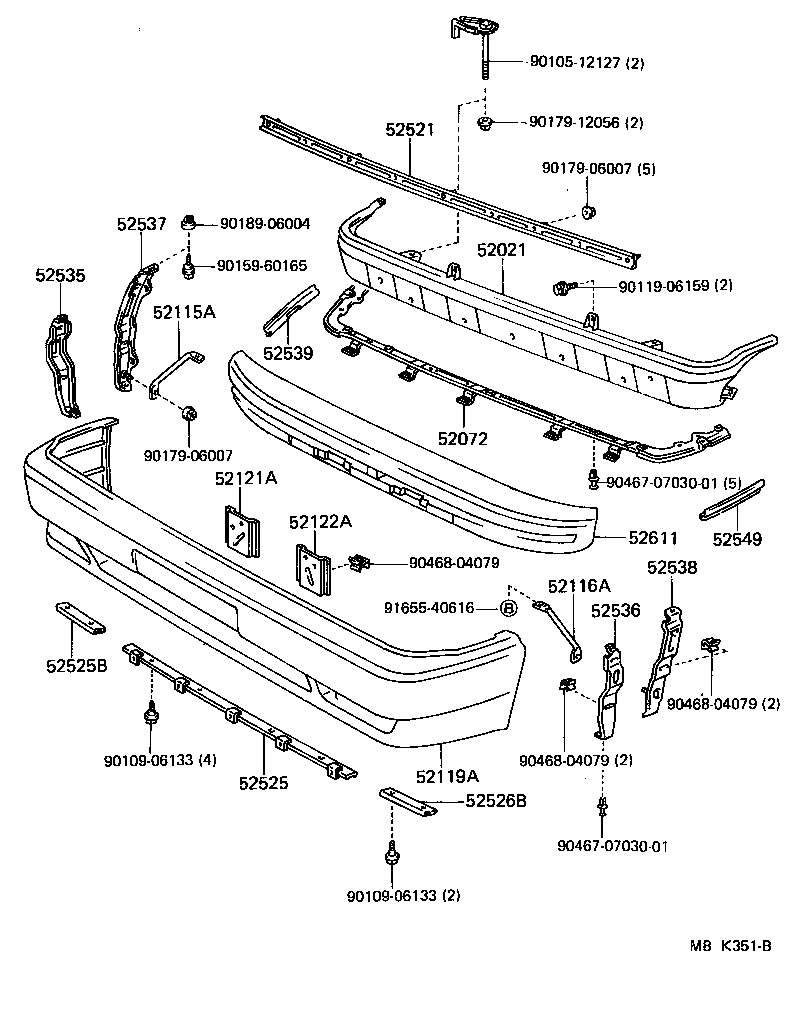

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-12127 | ||||
| 90109-06133 | ||||
| 90119-06159 | ||||
| 90159-60165 | ||||
| 90179-06007 | ||||
| 90179-12056 | ||||
| 90189-06004 | ||||
| 90467-0703001 | ||||
| 90468-04079 | ||||
| 91655-40616 | ||||
