MA70L-BLPVFK (1986)
Toyota Supra
(8601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06333 | ||||
| 90179-06070 | ||||
| 90179-08001 | ||||
| 90179-08110 | ||||
| 90333-30006 | ||||
| 93540-54010 | ||||
(8601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1446004 |
MA70 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 67650-1442003 |
MA70 W/LEATHER SEAT,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 67650-1442004 |
MA70 W/LEATHER SEAT,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 67650-1446002 |
MA70 MAROON,MAROON,TRIM3# |
1 | ||
| 67650-1446103 |
MA70 GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 67650-1446003 |
MA70 GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 67650-1442005 |
MA70 W/LEATHER SEAT,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67650-1446102 |
MA70 MAROON,MAROON,TRIM3# |
1 | ||
| 67650-1442002 |
MA70 W/LEATHER SEAT,MAROON,MAROON,TRIM3# |
1 | ||
| 67650-1446104 |
MA70 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 67650-1446005 |
MA70 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67650-1446105 |
MA70 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67601E - CAP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90339-1000133 |
MA70 GRAY,MEDIUM GRAY,TRIM1# |
4 | ||
| 90339-1000114 |
MA70 BLUE,DEEP BLUE,TRIM8# |
4 | ||
| 90339-1000115 |
MA70 BEIGE,BEIGE,TRIM4# |
4 | ||
| 90339-1000122 |
MA70 MAROON,MAROON,TRIM3# |
4 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1B84004 |
MA70..TWC BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 67620-1B84003 |
MA70..TWC GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 67620-1B84005 |
MA70..TWC BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67620-1B76003 |
MA70..TWC W/LEATHER SEAT,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 67620-1B76005 |
MA70..TWC W/LEATHER SEAT,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67620-1B84002 |
MA70..TWC MAROON,MAROON,TRIM3# |
1 | ||
| 67620-1B84102 |
MA70..TWC MAROON,MAROON,TRIM3# |
1 | ||
| 67620-1B84104 |
MA70..TWC BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 67620-1B76004 |
MA70..TWC W/LEATHER SEAT,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 67620-1B84105 |
MA70..TWC BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67620-1B76002 |
MA70..TWC W/LEATHER SEAT,MAROON,MAROON,TRIM3# |
1 | ||
| 67620-1B84103 |
MA70..TWC GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 67651A - GRILLE, SPEAKER DOOR | ||||
| 67651-1401002 |
MA70 RH,MAROON,MAROON,TRIM3# |
1 | ||
| 67651-1401004 |
MA70 RH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 67651-1401003 |
MA70 RH,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 67652-1401004 |
MA70 LH,BLUE,BLUE,TRIM8# |
1 | ||
| 67652-1401003 |
MA70 LH,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 67652-1401002 |
MA70 LH,MAROON,MAROON,TRIM3# |
1 | ||
| 67651-1401005 |
MA70 RH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67652-1401005 |
MA70 LH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67770-1405003 |
MA70 GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 67770-1405004 |
MA70 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 67770-1405005 |
MA70 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67770-1405002 |
MA70 MAROON,MAROON,TRIM3# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67780-1402003 |
MA70 GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 67780-1402002 |
MA70 MAROON,MAROON,TRIM3# |
1 | ||
| 67780-1402004 |
MA70 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 67780-1402005 |
MA70 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-14220 |
MA70 RH |
1 | ||
| 68220-14190 |
MA70 LH |
1 | ||
| Common parts | ||||
| 67771-14040 | ||||
| 90159-40135 | ||||
| 90168-40025 | ||||
| 90183-04004 | ||||
| 90189-04101 | ||||
| 90468-05017 | ||||
| 93560-54016 | ||||

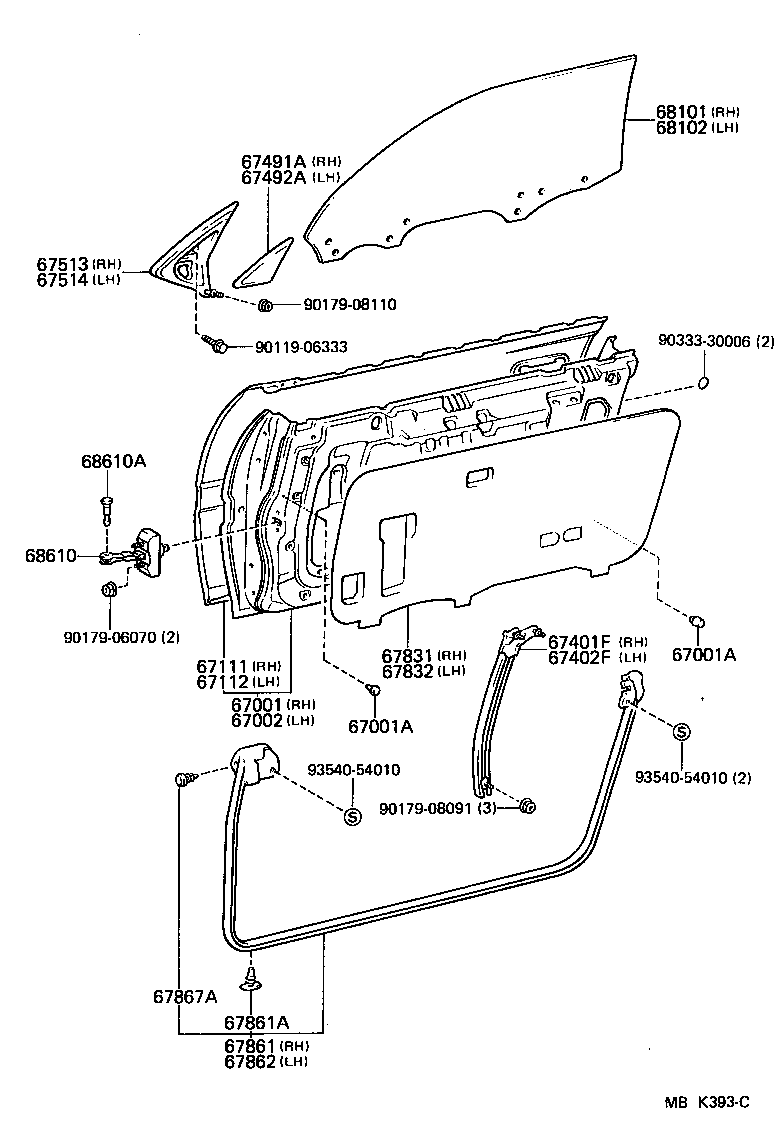

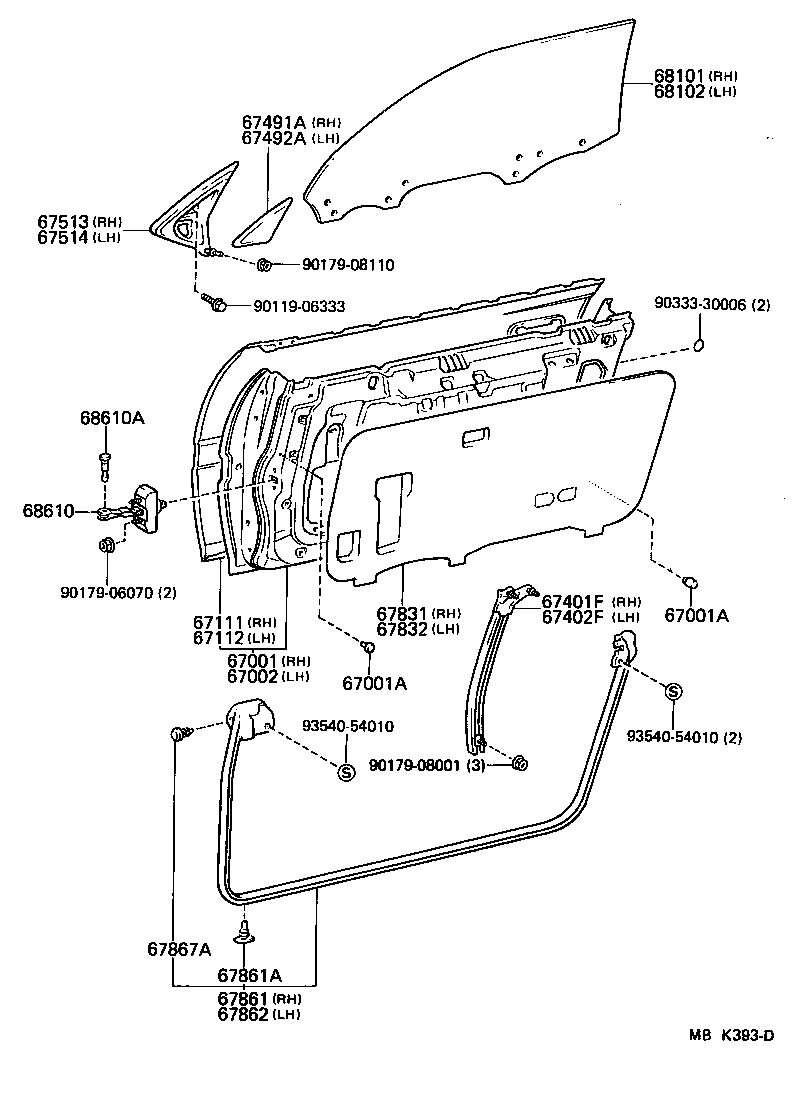

ILLUST NO. 1 OF 2(8601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-14340 |
MA70..LB |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09051 |
MA70 INNER PANEL |
4 | ||
| 90541-06013 |
MA70 SIDE IMPACT BEAM |
4 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09051 |
MA70 INNER PANEL |
4 | ||
| 90541-06013 |
MA70 SIDE IMPACT BEAM |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-14370 |
MA70..LB |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-14220 |
MA70 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-14230 |
MA70 |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-14230 |
MA70 |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-14220 |
MA70 |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-14110 |
MA70 |
1 | ||
| 67491-14111 |
MA70 |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-14110 |
MA70 |
1 | ||
| 67492-14111 |
MA70 |
1 | ||
| 67513 - BRACKET, FRONT DOOR MIRROR, RH | ||||
| 67513-14020 |
MA70 |
1 | ||
| 67513-14021 |
MA70 |
1 | ||
| 67514 - BRACKET, FRONT DOOR MIRROR, LH | ||||
| 67514-14021 |
MA70 |
1 | ||
| 67514-14022 |
MA70 |
1 | ||
| 67514-14020 |
MA70 |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-14200 |
MA70 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-14110 |
MA70 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-14300 |
MA70 |
1 | ||
| 67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP) | ||||
| 67868-30040 |
MA70 |
44 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-14300 |
MA70 |
1 | ||
| 67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 67869-30020 |
MA70 |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-14330 |
MA70 *TT,T=5.0,*TT,T=5.0 |
1 | ||
| 68111-14340 |
MA70 *TT,T=5.0,BRONZE,*TT,T=5.0,BRONZE |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-14340 |
MA70 *TT,T=5.0,*TT,T=5.0 |
1 | ||
| 68112-14350 |
MA70 *TT,T=5.0,BRONZE,*TT,T=5.0,BRONZE |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-14070 |
MA70 |
2 | ||
| 68610-14060 |
MA70 |
2 | ||
| 68610A - PIN(FOR FRONT DOOR CHECK) | ||||
| 68617-90K00 |
MA70 |
2 | ||
| Common parts | ||||
| 90119-06333 | ||||
| 90179-06070 | ||||
| 90179-08091 | ||||
| 90179-08110 | ||||
| 90333-30006 | ||||
| 93540-54010 | ||||

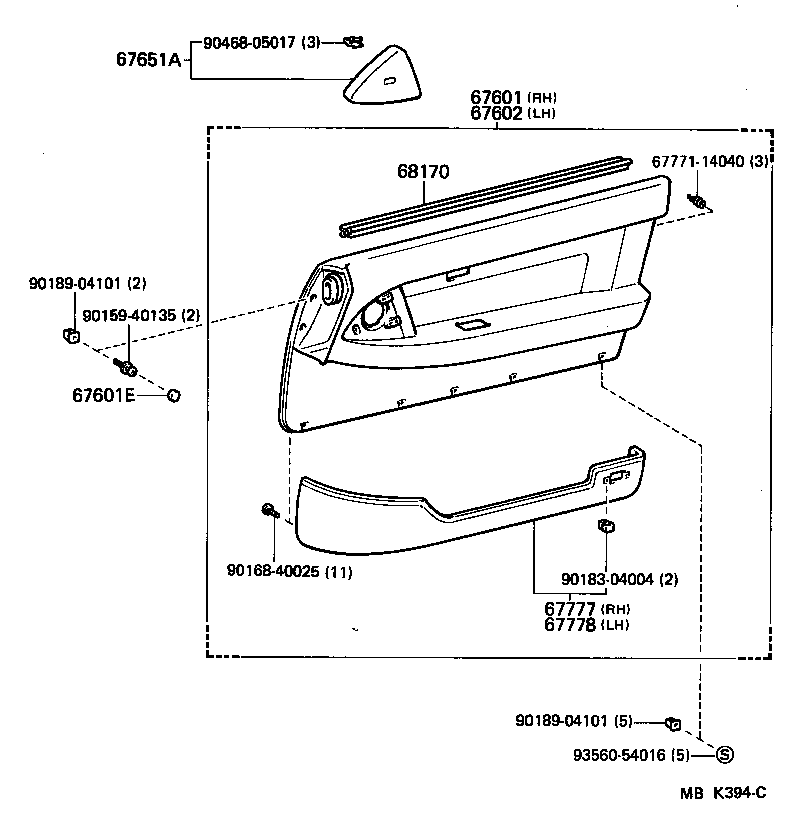

ILLUST NO. 2 OF 2(8601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1446004 |
MA70 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 67650-1442003 |
MA70 W/LEATHER SEAT,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 67650-1442004 |
MA70 W/LEATHER SEAT,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 67650-1446002 |
MA70 MAROON,MAROON,TRIM3# |
1 | ||
| 67650-1446103 |
MA70 GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 67650-1446003 |
MA70 GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 67650-1442005 |
MA70 W/LEATHER SEAT,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67650-1446102 |
MA70 MAROON,MAROON,TRIM3# |
1 | ||
| 67650-1442002 |
MA70 W/LEATHER SEAT,MAROON,MAROON,TRIM3# |
1 | ||
| 67650-1446104 |
MA70 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 67650-1446005 |
MA70 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67650-1446105 |
MA70 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67601E - CAP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90339-1000133 |
MA70 GRAY,MEDIUM GRAY,TRIM1# |
4 | ||
| 90339-1000114 |
MA70 BLUE,DEEP BLUE,TRIM8# |
4 | ||
| 90339-1000115 |
MA70 BEIGE,BEIGE,TRIM4# |
4 | ||
| 90339-1000122 |
MA70 MAROON,MAROON,TRIM3# |
4 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1B84004 |
MA70..TWC BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 67620-1B84003 |
MA70..TWC GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 67620-1B84005 |
MA70..TWC BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67620-1B76003 |
MA70..TWC W/LEATHER SEAT,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 67620-1B76005 |
MA70..TWC W/LEATHER SEAT,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67620-1B84002 |
MA70..TWC MAROON,MAROON,TRIM3# |
1 | ||
| 67620-1B84102 |
MA70..TWC MAROON,MAROON,TRIM3# |
1 | ||
| 67620-1B84104 |
MA70..TWC BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 67620-1B76004 |
MA70..TWC W/LEATHER SEAT,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 67620-1B84105 |
MA70..TWC BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67620-1B76002 |
MA70..TWC W/LEATHER SEAT,MAROON,MAROON,TRIM3# |
1 | ||
| 67620-1B84103 |
MA70..TWC GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 67651A - GRILLE, SPEAKER DOOR | ||||
| 67651-1401002 |
MA70 RH,MAROON,MAROON,TRIM3# |
1 | ||
| 67651-1401004 |
MA70 RH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 67651-1401003 |
MA70 RH,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 67652-1401004 |
MA70 LH,BLUE,BLUE,TRIM8# |
1 | ||
| 67652-1401003 |
MA70 LH,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 67652-1401002 |
MA70 LH,MAROON,MAROON,TRIM3# |
1 | ||
| 67651-1401005 |
MA70 RH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67652-1401005 |
MA70 LH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67770-1405003 |
MA70 GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 67770-1405004 |
MA70 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 67770-1405005 |
MA70 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67770-1405002 |
MA70 MAROON,MAROON,TRIM3# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67780-1402003 |
MA70 GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 67780-1402002 |
MA70 MAROON,MAROON,TRIM3# |
1 | ||
| 67780-1402004 |
MA70 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 67780-1402005 |
MA70 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-14220 |
MA70 RH |
1 | ||
| 68220-14190 |
MA70 LH |
1 | ||
| Common parts | ||||
| 67771-14040 | ||||
| 90159-40135 | ||||
| 90168-40025 | ||||
| 90183-04004 | ||||
| 90189-04101 | ||||
| 90468-05017 | ||||
| 93560-54016 | ||||
