MA70L-BLPVFC (1986)

Toyota Supra

Production Jan 1986 - Aug 1988
Engine 7MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8601- )

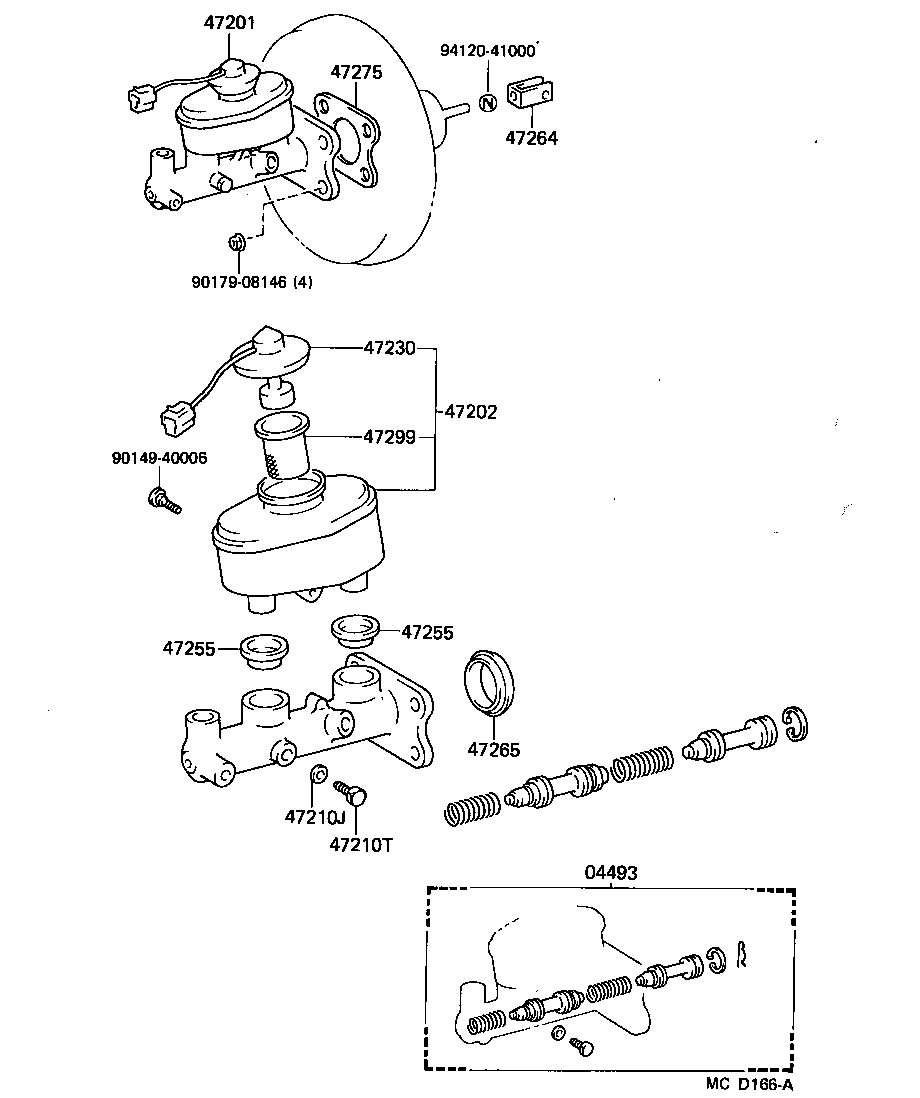

Click highlighted areas on diagram

diagram 04493 47201 47201 47202 47210J 47210T 47230 47255 47255 47264 47265 47275 47299 9014940006 9017908146 9412041000
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04493-14120

MA70

 1
04493-14130

MA70..EUR,GCC,GEN,SA

W/*66

 1
04493-14131

MA70..EUR,GCC,GEN,SA

W/*66

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-14560

MA70..LHD..(EUR,GCC)

 1
47201-14610

MA70..LHD

W/*66

 1
47201-14550

MA70..LHD..(EUR,GCC)

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-14560

MA70..LHD..(EUR,GCC)

 1
47201-14610

MA70..LHD

W/*66

 1
47201-14550

MA70..LHD..(EUR,GCC)

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47202-14300

MA70..LHD..(EUR,GCC)

W/*66

 1
47202-14300

MA70..LHD..(EUR,GCC)

 1
47202-14290

MA70..LHD..(EUR,GCC)

 1
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104

MA70

 1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06008

MA70

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
84460-14070

MA70..LHD..(EUR,GCC)

W/*66

 1
84460-14090

MA70..LHD..(EUR,GCC)

 1
84460-14070

MA70..LHD..(EUR,GCC)

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-10010

MA70

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-10010

MA70

 2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-30040

MA70

 1
47265 - BOOT, MASTER CYLINDER
47265-20050

MA70

 1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-24010

MA70

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-32010

MA70

 1
Common parts
90149-40006
90179-08146
94120-41000

(8601- )

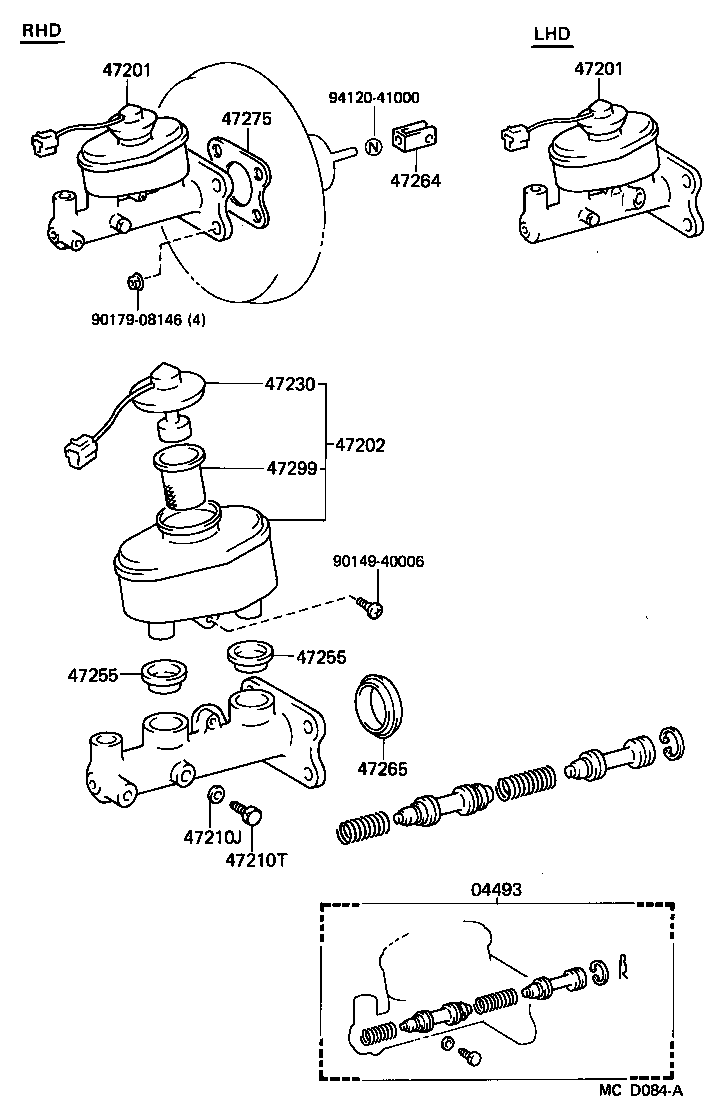

Click highlighted areas on diagram

diagram 04493 47201 47202 47210J 47210T 47230 47255 47255 47264 47265 47275 47299 9014940006 9017908146 9412041000
Part # Description Qty Price
Common parts
90149-40006
90179-08146
94120-41000
