Toyota Supra MA70 HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

Manufacturers Home
Toyota
EU
SUPRA
MA70L-BLPVFA (1988)
8715 - HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

MA70L-BLPVFA (1988)

Toyota Supra

Production Aug 1988 - May 1993

Engine 7MGE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

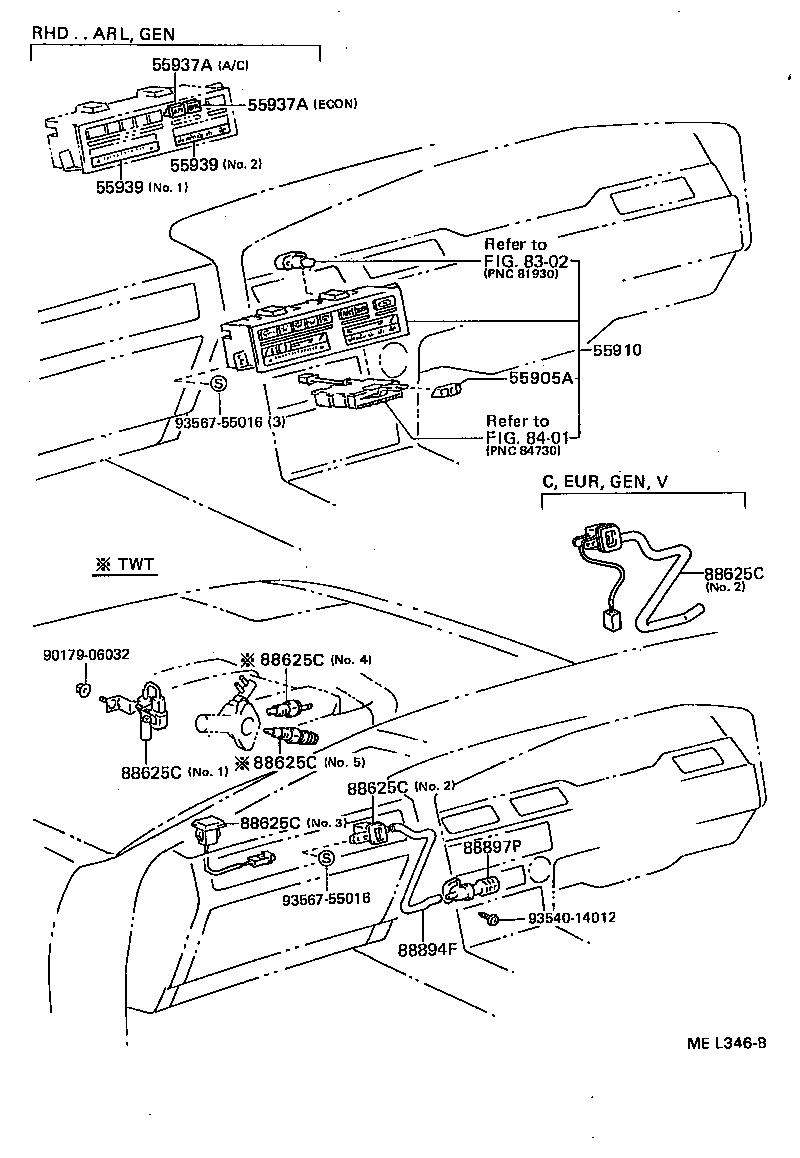

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90179-06032
93540-14012
93567-55016
Linked diagrams
8302
8401

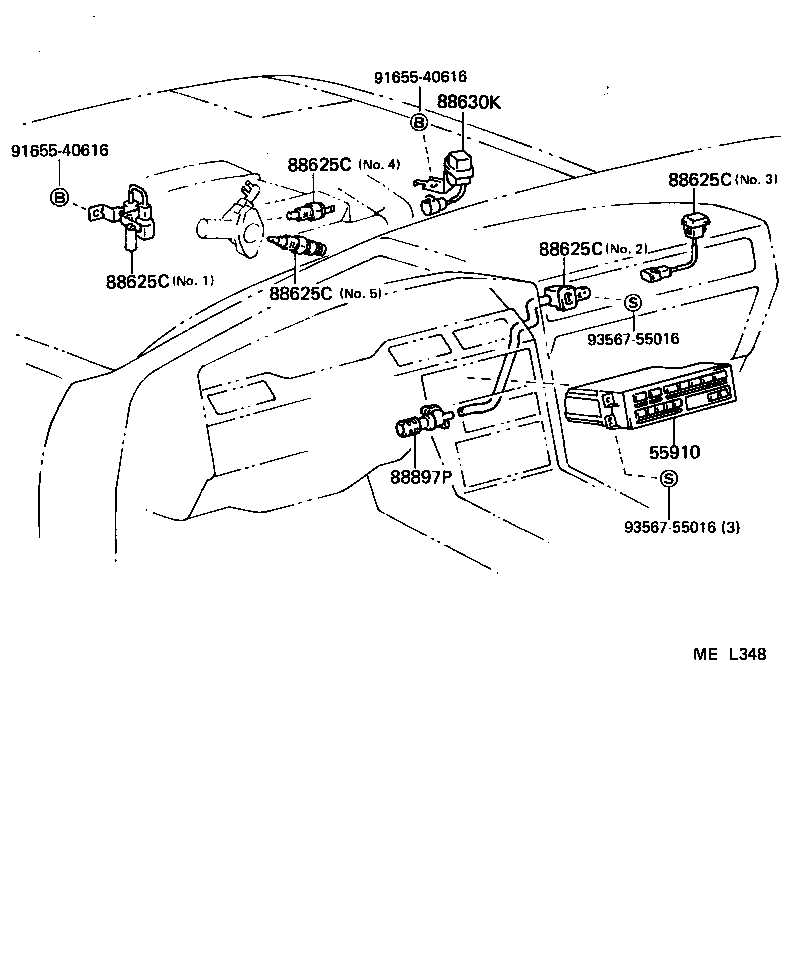

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55900-14500	MA70..USA	08/1988 - 05/1993	1
88625C - THERMISTOR, COOLER
88625-20140	MA70 NO.3	08/1988 - 08/1989	1
88790-14100	MA70 NO.2	08/1988 - 08/1989	1
88790-14110	MA70 NO.1	08/1988 - 08/1989	1
88625-20140	MA70 NO.3	08/1990 - 05/1993	1
88790-14100	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA NO.2	08/1989 - 08/1990	1
88625-20140	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA NO.3	08/1989 - 08/1990	1
88790-14110	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA NO.1	08/1989 - 08/1990	1
88790-14100	MA70 NO.2	08/1990 - 05/1993	1
88790-14110	MA70 NO.1	08/1990 - 05/1993	1
88625C - THERMISTOR, COOLER
88625-20140	MA70 NO.3	08/1988 - 08/1989	1
88790-14100	MA70 NO.2	08/1988 - 08/1989	1
88790-14110	MA70 NO.1	08/1988 - 08/1989	1
88625-20140	MA70 NO.3	08/1990 - 05/1993	1
88790-14100	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA NO.2	08/1989 - 08/1990	1
88625-20140	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA NO.3	08/1989 - 08/1990	1
88790-14110	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA NO.1	08/1989 - 08/1990	1
88790-14100	MA70 NO.2	08/1990 - 05/1993	1
88790-14110	MA70 NO.1	08/1990 - 05/1993	1
88625C - THERMISTOR, COOLER
88625-20140	MA70 NO.3	08/1988 - 08/1989	1
88790-14100	MA70 NO.2	08/1988 - 08/1989	1
88790-14110	MA70 NO.1	08/1988 - 08/1989	1
88625-20140	MA70 NO.3	08/1990 - 05/1993	1
88790-14100	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA NO.2	08/1989 - 08/1990	1
88625-20140	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA NO.3	08/1989 - 08/1990	1
88790-14110	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA NO.1	08/1989 - 08/1990	1
88790-14100	MA70 NO.2	08/1990 - 05/1993	1
88790-14110	MA70 NO.1	08/1990 - 05/1993	1
88625C - THERMISTOR, COOLER
88625-20140	MA70 NO.3	08/1988 - 08/1989	1
88790-14100	MA70 NO.2	08/1988 - 08/1989	1
88790-14110	MA70 NO.1	08/1988 - 08/1989	1
88625-20140	MA70 NO.3	08/1990 - 05/1993	1
88790-14100	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA NO.2	08/1989 - 08/1990	1
88625-20140	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA NO.3	08/1989 - 08/1990	1
88790-14110	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA NO.1	08/1989 - 08/1990	1
88790-14100	MA70 NO.2	08/1990 - 05/1993	1
88790-14110	MA70 NO.1	08/1990 - 05/1993	1
88625C - THERMISTOR, COOLER
88625-20140	MA70 NO.3	08/1988 - 08/1989	1
88790-14100	MA70 NO.2	08/1988 - 08/1989	1
88790-14110	MA70 NO.1	08/1988 - 08/1989	1
88625-20140	MA70 NO.3	08/1990 - 05/1993	1
88790-14100	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA NO.2	08/1989 - 08/1990	1
88625-20140	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA NO.3	08/1989 - 08/1990	1
88790-14110	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA NO.1	08/1989 - 08/1990	1
88790-14100	MA70 NO.2	08/1990 - 05/1993	1
88790-14110	MA70 NO.1	08/1990 - 05/1993	1
88897P - ASPIRATOR
88897-14010	MA70	08/1988 - 08/1989	1
88897-14010	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA	08/1989 - 08/1990	1
88897-14010	MA70	08/1990 - 05/1993	1
Common parts
91655-40616
93567-55016

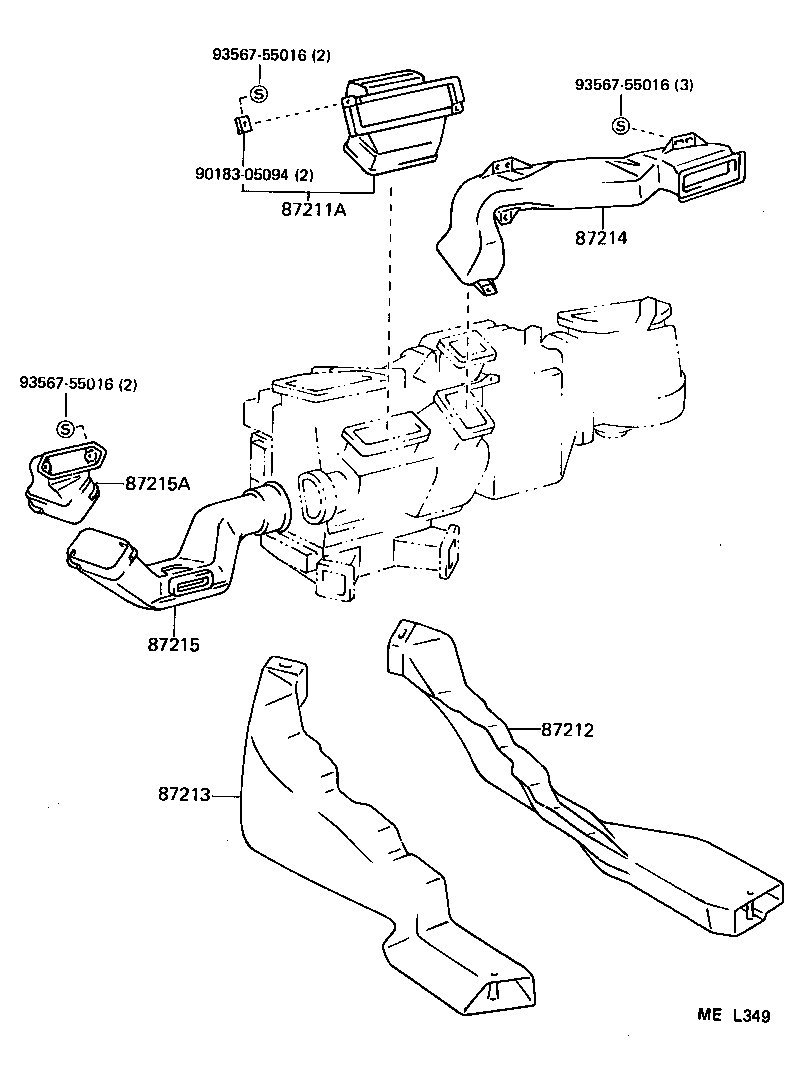

ILLUST NO. 2 OF 2(8808- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
87211A - DUCT, AIR, NO.2
55845-14200	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA	08/1989 - 08/1990	1
55845-14200	MA70	08/1988 - 08/1989	1
55845-14200	MA70	08/1990 - 05/1993	1
87212 - DUCT, AIR, REAR NO.1
87212-14050	MA70	08/1990 - 05/1993	1
87212-14050	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA	08/1989 - 08/1990	1
87212-14050	MA70	08/1988 - 08/1989	1
87213 - DUCT, AIR, REAR NO.2
87213-14020	MA70	08/1990 - 05/1993	1
87213-14020	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA	08/1989 - 08/1990	1
87213-14020	MA70	08/1988 - 08/1989	1
87214 - DUCT, AIR, SIDE NO.1 RH
55846-14120	MA70	08/1988 - 08/1989	1
55846-14120	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA	08/1989 - 08/1990	1
55846-14120	MA70	08/1990 - 05/1993	1
87215 - DUCT, AIR, SIDE NO.1 LH
55844-14170	MA70..USA	08/1989 - 08/1991	1
55844-14160	MA70	08/1988 - 08/1989	1
55844-14170	MA70	08/1991 - 05/1993	1
87215A - DUCT, AIR, SIDE NO.2 LH
55843-14150	MA70	08/1991 - 05/1993	1
55843-14150	MA70..USA	08/1989 - 08/1991	1
55843-14140	MA70	08/1988 - 08/1989	1
Common parts
90183-05094
93567-55016
