Toyota Supra MA70 FRONT TURN SIGNAL LAMP

Manufacturers Home
Toyota
EU
SUPRA
MA70L-BLPVFA (1988)
8103 - FRONT TURN SIGNAL LAMP

MA70L-BLPVFA (1988)

Toyota Supra

Production Aug 1988 - May 1993

Engine 7MGE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(8808- )

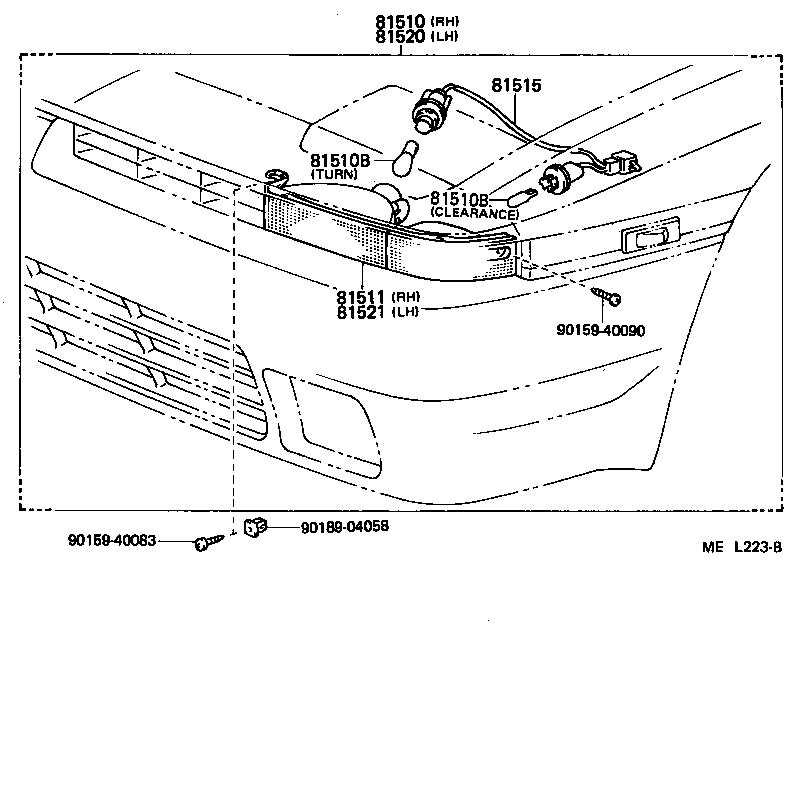

Click highlighted areas on diagram

Part #	Description	Period	Qty
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-14351	MA70	08/1988 - 08/1989	1
81510-14351	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA	08/1989 - 08/1990	1
81510-14351	MA70	08/1990 - 05/1993	1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11270	MA70 12V 27W,TURN	08/1988 - 08/1989	2
90981-11020	MA70 12V 3.8W,CLEARANCE	08/1988 - 08/1989	2
90981-11020	MA70 12V 3.8W,CLEARANCE	08/1990 - 05/1993	2
99132-11270	MA70 12V 27W,TURN	08/1990 - 05/1993	2
90981-11020	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA 12V 3.8W,CLEARANCE	08/1989 - 08/1990	2
99132-11270	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA 12V 27W,TURN	08/1989 - 08/1990	2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11270	MA70 12V 27W,TURN	08/1988 - 08/1989	2
90981-11020	MA70 12V 3.8W,CLEARANCE	08/1988 - 08/1989	2
90981-11020	MA70 12V 3.8W,CLEARANCE	08/1990 - 05/1993	2
99132-11270	MA70 12V 27W,TURN	08/1990 - 05/1993	2
90981-11020	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA 12V 3.8W,CLEARANCE	08/1989 - 08/1990	2
99132-11270	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA 12V 27W,TURN	08/1989 - 08/1990	2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-14351	MA70	08/1988 - 08/1989	1
81511-14351	MA70	08/1990 - 05/1993	1
81511-14351	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA	08/1989 - 08/1990	1
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
81515-14331	MA70	08/1988 - 08/1989	2
81515-14331	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA	08/1989 - 08/1990	2
81515-14331	MA70	08/1990 - 05/1993	2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-14351	MA70	08/1988 - 08/1989	1
81520-14351	MA70	08/1990 - 05/1993	1
81520-14351	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA	08/1989 - 08/1990	1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-14351	MA70	08/1988 - 08/1989	1
81521-14351	MA70	08/1990 - 05/1993	1
81521-14351	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA	08/1989 - 08/1990	1
Common parts
90159-40083
90159-40090
90189-04058

(8808- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-14351	MA70	08/1988 - 08/1989	1
81510-14351	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA	08/1989 - 08/1990	1
81510-14351	MA70	08/1990 - 05/1993	1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11270	MA70 12V 27W,TURN	08/1988 - 08/1989	2
90981-11020	MA70 12V 3.8W,CLEARANCE	08/1988 - 08/1989	2
90981-11020	MA70 12V 3.8W,CLEARANCE	08/1990 - 05/1993	2
99132-11270	MA70 12V 27W,TURN	08/1990 - 05/1993	2
90981-11020	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA 12V 3.8W,CLEARANCE	08/1989 - 08/1990	2
99132-11270	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA 12V 27W,TURN	08/1989 - 08/1990	2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11270	MA70 12V 27W,TURN	08/1988 - 08/1989	2
90981-11020	MA70 12V 3.8W,CLEARANCE	08/1988 - 08/1989	2
90981-11020	MA70 12V 3.8W,CLEARANCE	08/1990 - 05/1993	2
99132-11270	MA70 12V 27W,TURN	08/1990 - 05/1993	2
90981-11020	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA 12V 3.8W,CLEARANCE	08/1989 - 08/1990	2
99132-11270	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA 12V 27W,TURN	08/1989 - 08/1990	2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-14351	MA70	08/1988 - 08/1989	1
81511-14351	MA70	08/1990 - 05/1993	1
81511-14351	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA	08/1989 - 08/1990	1
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
81515-14331	MA70	08/1988 - 08/1989	2
81515-14331	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA	08/1989 - 08/1990	2
81515-14331	MA70	08/1990 - 05/1993	2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-14351	MA70	08/1988 - 08/1989	1
81520-14351	MA70	08/1990 - 05/1993	1
81520-14351	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA	08/1989 - 08/1990	1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-14351	MA70	08/1988 - 08/1989	1
81521-14351	MA70	08/1990 - 05/1993	1
81521-14351	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA	08/1989 - 08/1990	1
Common parts
90159-40083
90159-40090
90189-04058
