MA70L-BLPVFA (1988)

Toyota Supra

Production Aug 1988 - May 1993
Engine 7MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

Click highlighted areas on diagram

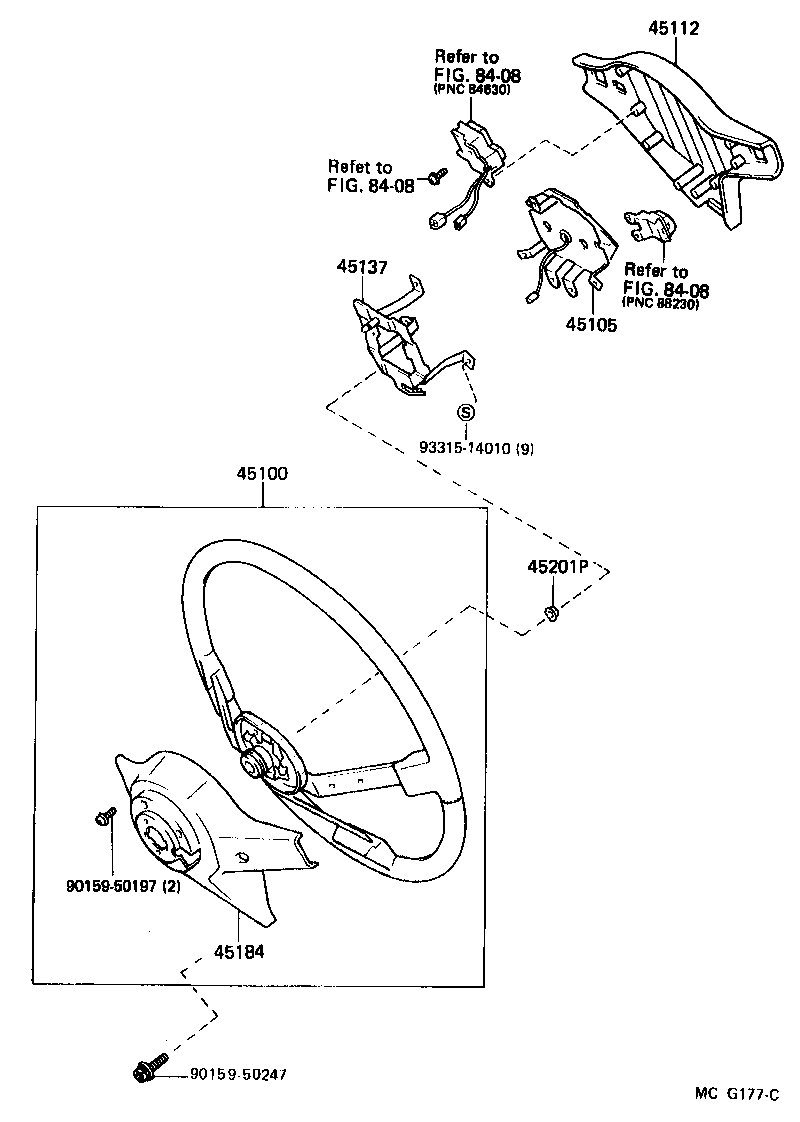

diagram 45100 45105 45112 45137 45184 45201P 8408 8408 8408 9015950197 9015950247 9331514010
Part # Description Qty Price
Common parts
90159-50197
90159-50247
93315-14010
Linked diagrams
8408

(8808-8908) ; (8908-9108)CND

Click highlighted areas on diagram

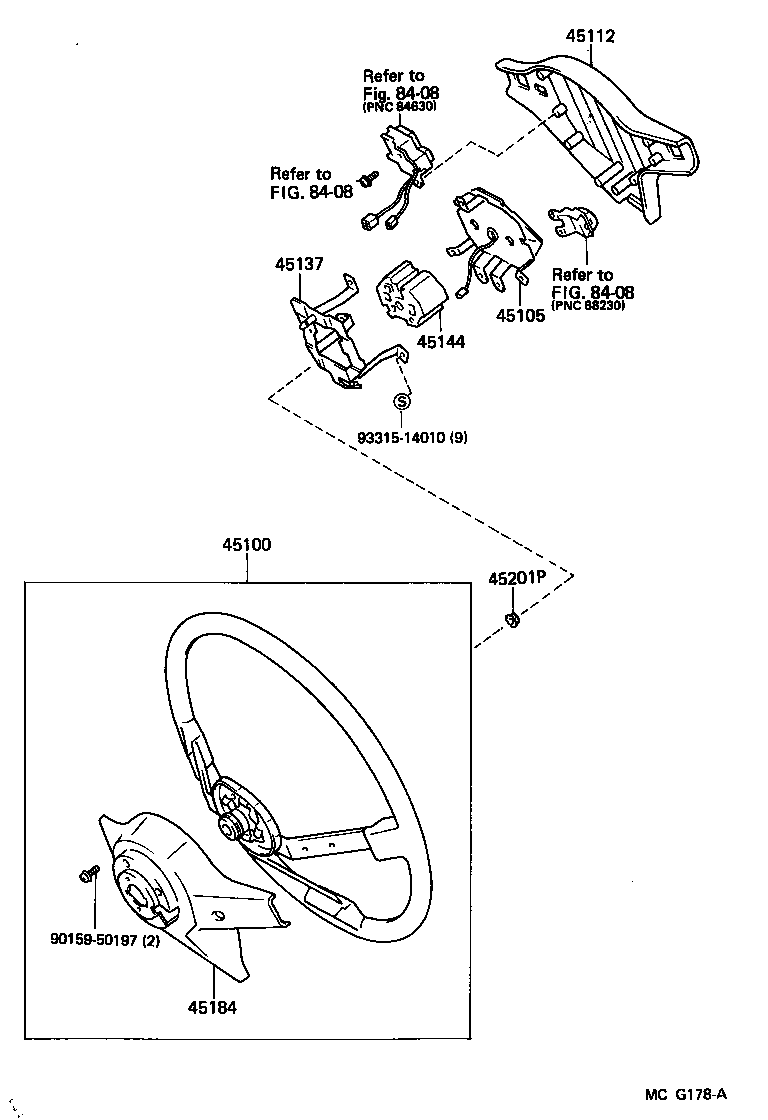

diagram 45100 45105 45112 45137 45144 45184 45201P 8408 8408 8408 9015950197 9331514010
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-14510

MA70..USA

 1
45100-14470

MA70

 1
45100-14511

MA70..USA

 1
45100-14511

MA70

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-14110

MA70

 1
45112 - PAD, STEERING WHEEL
45112-14170

MA70

 1
45137 - PLATE, HORN BUTTON STOP
45106-14020

MA70

 1
45144 - PAD, ENERGY ABSORBING
45144-14010

MA70

 1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-14130

MA70

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

MA70

 1
90179-12086

MA70

 1
90179-12086

MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA

 1
Common parts
90159-50197
93315-14010
Linked diagrams
8408

(8908- )USA ; (9108- )CND

Click highlighted areas on diagram

diagram 45100 45130 45186 45187 45201P 9014860006
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-14510

MA70..USA

 1
45100-14470

MA70

 1
45100-14511

MA70..USA

 1
45100-14511

MA70

 1
45130 - BUTTON ASSY, HORN
45130-14260

MA70

 1
45130-14290

MA70

 1
45130-14290

MA70..USA

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-14010

MA70

 1
45186-14010

MA70..USA

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-14010

MA70..USA

 1
45187-14010

MA70

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

MA70

 1
90179-12086

MA70

 1
90179-12086

MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA

 1
Common parts
90148-60006
