MA70L-BLPVFA (1986)
Toyota Supra
Production
Jan 1986
-
Aug 1988
Engine
7MGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8601- )

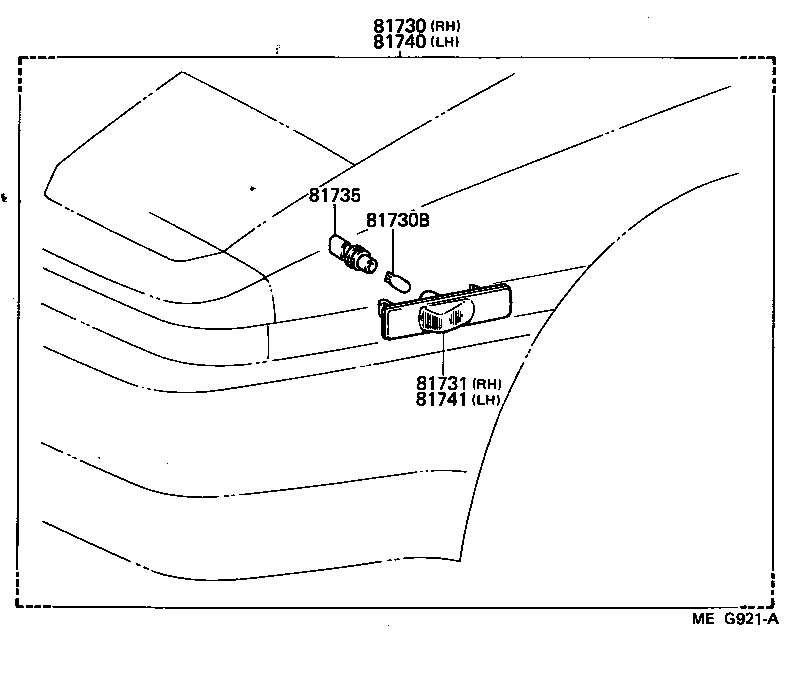

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81730 - LAMP ASSY, SIDE TURN SIGNAL, RH | ||||
| 81730-20150 |
MA70 |
1 | ||
| 81730B - BULB (FOR SIDE TURN SIGNAL LAMP) | ||||
| 90981-11020 |
MA70 12V 3.8W,12V 3.8W |
2 | ||
| 81731 - LENS, SIDE TURN SIGNAL LAMP, RH | ||||
| 81731-20160 |
MA70 |
1 | ||
| 81735 - SOCKET AND WIRE, SIDE TURN SIGNAL LAMP | ||||
| 81735-12180 |
MA70 |
2 | ||
| 81740 - LAMP ASSY, SIDE TURN SIGNAL, LH | ||||
| 81740-20150 |
MA70 |
1 | ||
| 81741 - LENS, SIDE TURN SIGNAL LAMP, LH | ||||
| 81741-20160 |
MA70 |
1 | ||
(8601- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81730 - LAMP ASSY, SIDE TURN SIGNAL, RH | ||||
| 81730-20150 |
MA70 |
1 | ||
| 81730B - BULB (FOR SIDE TURN SIGNAL LAMP) | ||||
| 90981-11020 |
MA70 12V 3.8W,12V 3.8W |
2 | ||
| 81731 - LENS, SIDE TURN SIGNAL LAMP, RH | ||||
| 81731-20160 |
MA70 |
1 | ||
| 81735 - SOCKET AND WIRE, SIDE TURN SIGNAL LAMP | ||||
| 81735-12180 |
MA70 |
2 | ||
| 81740 - LAMP ASSY, SIDE TURN SIGNAL, LH | ||||
| 81740-20150 |
MA70 |
1 | ||
| 81741 - LENS, SIDE TURN SIGNAL LAMP, LH | ||||
| 81741-20160 |
MA70 |
1 | ||
