MA70L-BLPVFA (1986)
Toyota Supra
Production
Jan 1986
-
Aug 1988
Engine
7MGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8601- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06140 | ||||
| 90119-06150 | ||||
| 90119-10427 | ||||
| 90159-50157 | ||||
| 90159-50218 | ||||
| 90159-60135 | ||||
| 90179-05020 | ||||
| 90179-10074 | ||||
| 90179-12016 | ||||
| 90183-06065 | ||||
| 90189-06006 | ||||
| 90240-08020 | ||||
| 90386-01004 | ||||
| 90461-06177 | ||||
| 90468-14004 | ||||
| 90468-20007 | ||||
| 90959-01256 | ||||
| 91511-60610 | ||||
| 91655-60820 | ||||
| 93319-14010 | ||||
| 93385-15014 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 6709 | ||||

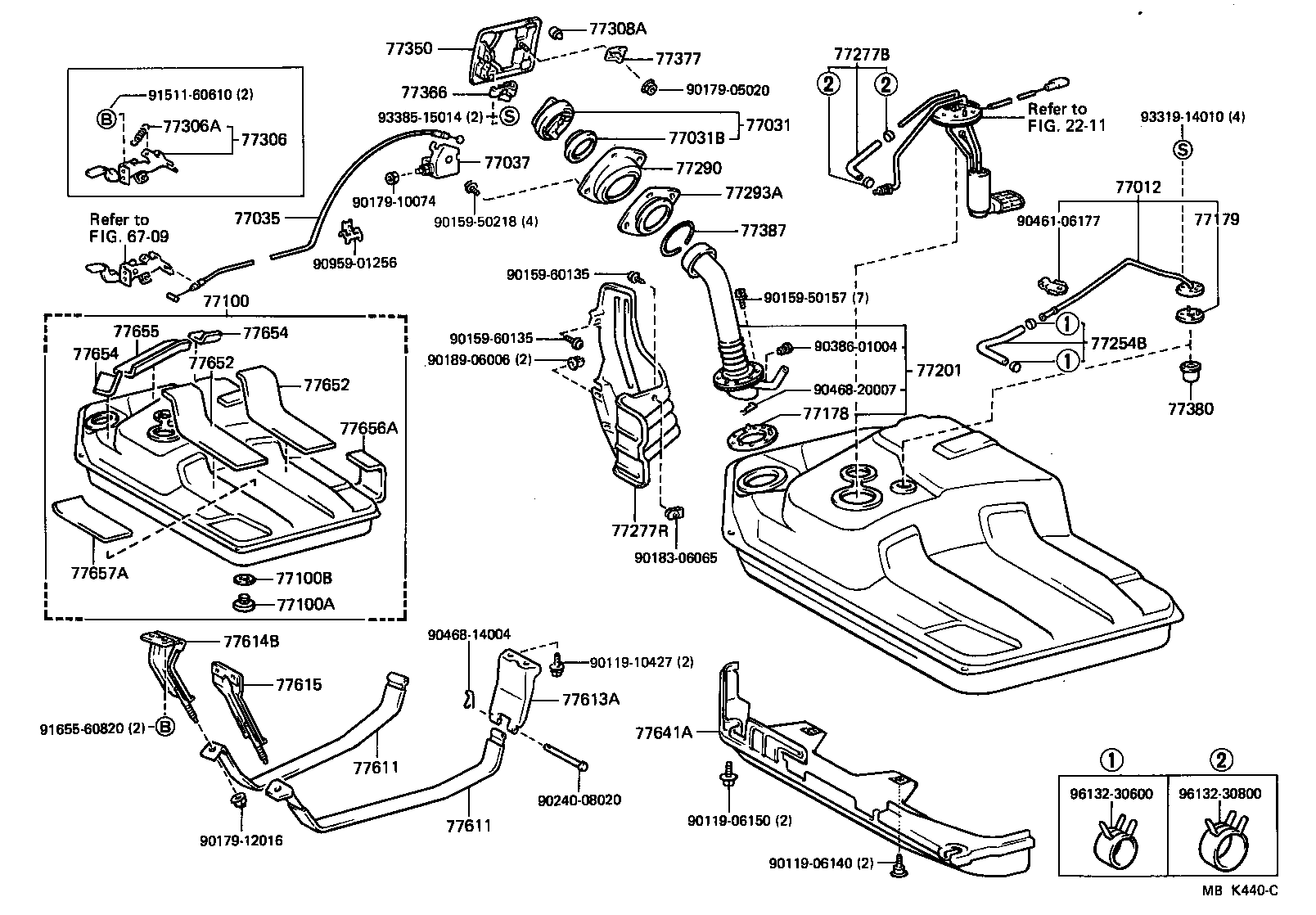

ILLUST NO. 1 OF 2(8601- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77012 - TUBE SUB-ASSY, FUEL TANK BREATHER | ||||
| 77012-14050 |
MA70 |
1 | ||
| 77012-14060 |
MA70 |
1 | ||
| 77012-14051 |
MA70 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-12140 |
MA70 |
1 | ||
| 77310-16010 |
MA70 |
1 | ||
| 77310-16011 |
MA70 |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-16010 |
MA70 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-14200 |
MA70 |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-90K00 |
MA70 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-19426 |
MA70 |
1 | ||
| 77001-19425 |
MA70 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
MA70 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
MA70 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77169-14010 |
MA70 |
1 | ||
| 77179 - RETAINER, FUEL TANK MOUNTING, FRONT | ||||
| 77179-16010 |
MA70 |
1 | ||
| 77179-14040 |
MA70 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-14290 |
MA70 |
1 | ||
| 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) | ||||
| 77209-14080 |
MA70 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 77049-14040 |
MA70 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-14120 |
MA70 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-14060 |
MA70 |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-20010 |
MA70 |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-08013 |
MA70 |
2 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-14050 |
MA70 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-24010 |
MA70 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-20030 |
MA70 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-14010 |
MA70 |
1 | ||
| 77380-14020 |
MA70 |
1 | ||
| 77387 - RING, FUEL INLET BOX | ||||
| 77391-16011 |
MA70 |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-14070 |
MA70 RH |
1 | ||
| 77602-14050 |
MA70 LH |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-14070 |
MA70 RH |
1 | ||
| 77602-14050 |
MA70 LH |
1 | ||
| 77613A - BRACKET, FUEL TANK BAND, NO.1 | ||||
| 77613-14050 |
MA70 |
2 | ||
| 77614B - BRACKET, FUEL TANK BAND, NO.2 | ||||
| 77614-14030 |
MA70 |
1 | ||
| 77615 - BRACKET, FUEL TANK BAND, NO.3 | ||||
| 77615-14010 |
MA70 |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-14090 |
MA70 |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-14080 |
MA70 |
2 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-14080 |
MA70 |
2 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-14100 |
MA70 |
2 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-14100 |
MA70 |
2 | ||
| 77655 - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-14060 |
MA70 |
1 | ||
| 77656A - CUSHION, FUEL TANK, NO.4 | ||||
| 77654-14030 |
MA70 |
1 | ||
| 77657A - CUSHION, FUEL TANK, NO.5 | ||||
| 77655-14010 |
MA70 |
1 | ||
| Common parts | ||||
| 90119-06140 | ||||
| 90119-06150 | ||||
| 90119-10427 | ||||
| 90159-50157 | ||||
| 90159-50218 | ||||
| 90159-60135 | ||||
| 90179-05020 | ||||
| 90179-10074 | ||||
| 90179-12016 | ||||
| 90183-06065 | ||||
| 90189-06006 | ||||
| 90240-08020 | ||||
| 90386-01004 | ||||
| 90461-06177 | ||||
| 90468-14004 | ||||
| 90468-20007 | ||||
| 90959-01256 | ||||
| 93319-14010 | ||||
| 93385-15014 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 6709 | ||||

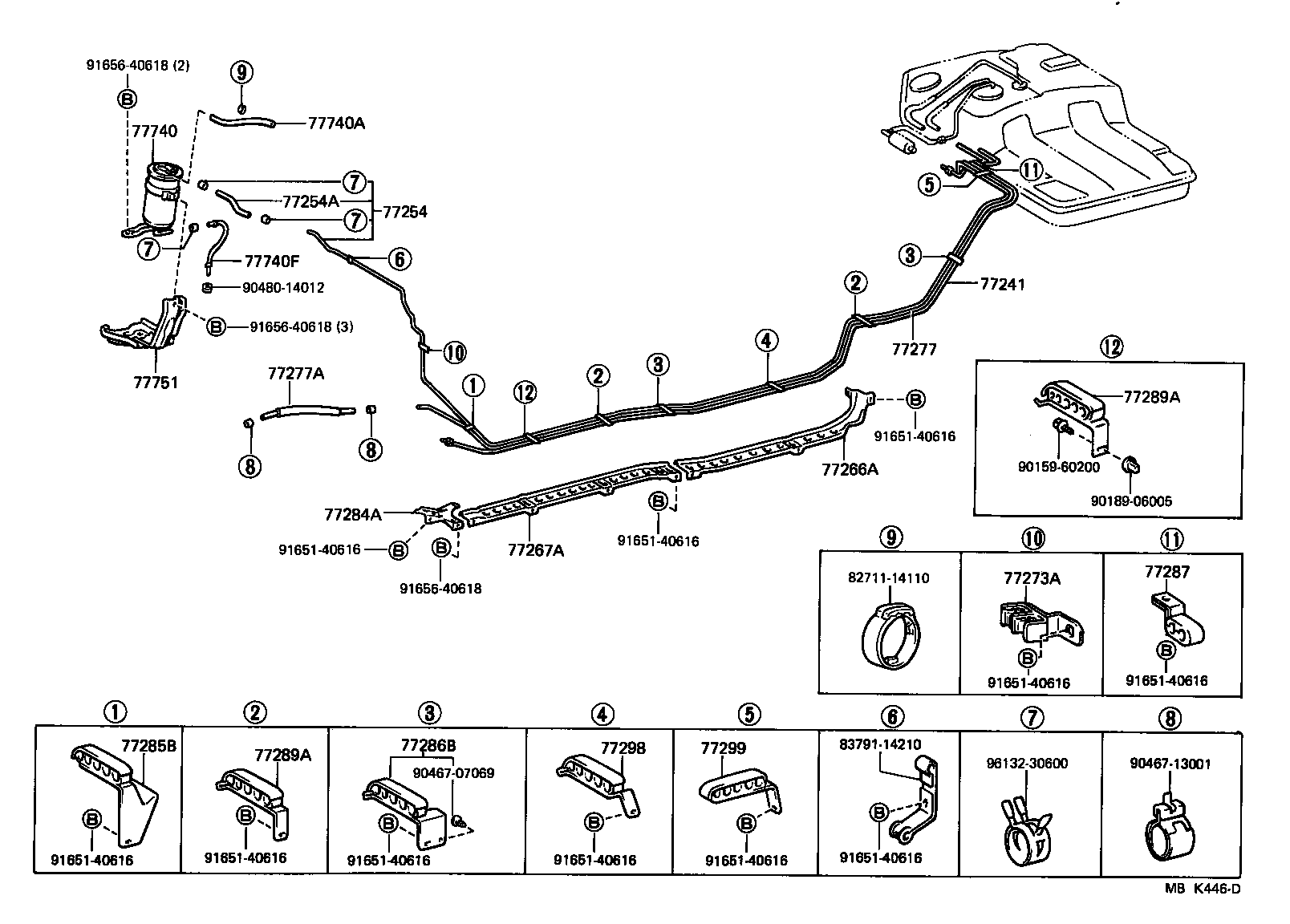

ILLUST NO. 2 OF 2(8601-8608)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-14400 |
MA70 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77019-14110 |
MA70 |
1 | ||
| 77019-14140 |
MA70 |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 77259-14040 |
MA70 L=200 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-14040 |
MA70 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-14010 |
MA70 |
1 | ||
| 77273A - CLAMP, FUEL TUBE W/GROMMET, NO.6 | ||||
| 77273-14020 |
MA70 |
1 | ||
| 77273-14010 |
MA70 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-14390 |
MA70 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23271-42010 |
MA70 |
1 | ||
| 77284A - PROTECTOR, FUEL TUBE, NO.3 | ||||
| 77284-14010 |
MA70 |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-14020 |
MA70 |
1 | ||
| 77285-14030 |
MA70 |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-14010 |
MA70 |
2 | ||
| 77286-14020 |
MA70 |
2 | ||
| 77287 - SUPPORT, TANK TO CANISTER TUBE, NO.1 | ||||
| 77287-14010 |
MA70 |
1 | ||
| 77287-14020 |
MA70 |
1 | ||
| 77289A - CLAMP, FUEL TUBE W/GROMMET, NO.3 | ||||
| 77289-14030 |
MA70 |
3 | ||
| 77289-14020 |
MA70 |
3 | ||
| 77289A - CLAMP, FUEL TUBE W/GROMMET, NO.3 | ||||
| 77289-14030 |
MA70 |
3 | ||
| 77289-14020 |
MA70 |
3 | ||
| 77298 - CLAMP, FUEL TUBE W/GROMMET, NO.4 | ||||
| 77298-14020 |
MA70 |
1 | ||
| 77298-14010 |
MA70 |
1 | ||
| 77299 - CLAMP, FUEL TUBE W/GROMMET, NO.5 | ||||
| 77299-14020 |
MA70 |
1 | ||
| 77299-14010 |
MA70 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-14410 |
MA70 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95411-19960 |
MA70 *H,L=510,MARK=#* |
1 | ||
| 77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 77264-14140 |
MA70 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 53751-14030 |
MA70 |
1 | ||
| 53751-14031 |
MA70 |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 83791-14210 | ||||
| 90159-60200 | ||||
| 90189-06005 | ||||
| 90467-07069 | ||||
| 90467-13001 | ||||
| 90480-14012 | ||||
| 91651-40616 | ||||
| 91656-40618 | ||||
| 96132-30600 | ||||

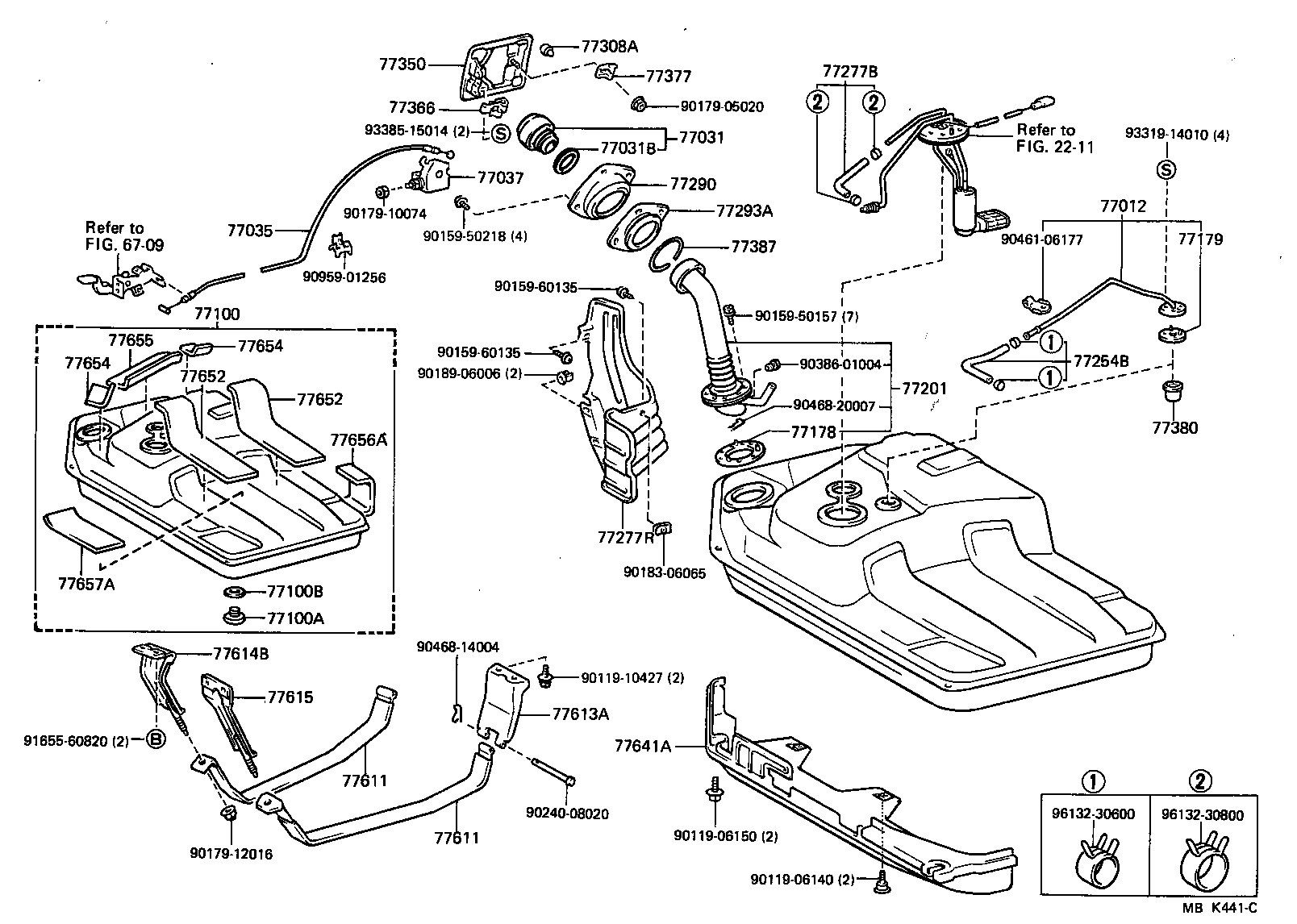

(8608- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-14400 |
MA70 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77019-14110 |
MA70 |
1 | ||
| 77019-14140 |
MA70 |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 77259-14040 |
MA70 L=200 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-14040 |
MA70 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-14010 |
MA70 |
1 | ||
| 77273A - CLAMP, FUEL TUBE W/GROMMET, NO.6 | ||||
| 77273-14020 |
MA70 |
1 | ||
| 77273-14010 |
MA70 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-14390 |
MA70 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23271-42010 |
MA70 |
1 | ||
| 77284A - PROTECTOR, FUEL TUBE, NO.3 | ||||
| 77284-14010 |
MA70 |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-14030 |
MA70 |
1 | ||
| 77285-14020 |
MA70 |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-14010 |
MA70 |
2 | ||
| 77286-14020 |
MA70 |
2 | ||
| 77287 - SUPPORT, TANK TO CANISTER TUBE, NO.1 | ||||
| 77287-14010 |
MA70 |
1 | ||
| 77287-14020 |
MA70 |
1 | ||
| 77289A - CLAMP, FUEL TUBE W/GROMMET, NO.3 | ||||
| 77289-14030 |
MA70 |
3 | ||
| 77289-14020 |
MA70 |
3 | ||
| 77289A - CLAMP, FUEL TUBE W/GROMMET, NO.3 | ||||
| 77289-14030 |
MA70 |
3 | ||
| 77289-14020 |
MA70 |
3 | ||
| 77298 - CLAMP, FUEL TUBE W/GROMMET, NO.4 | ||||
| 77298-14020 |
MA70 |
1 | ||
| 77298-14010 |
MA70 |
1 | ||
| 77299 - CLAMP, FUEL TUBE W/GROMMET, NO.5 | ||||
| 77299-14020 |
MA70 |
1 | ||
| 77299-14010 |
MA70 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-14410 |
MA70 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95411-19960 |
MA70 *H,L=510,MARK=#* |
1 | ||
| 77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 77264-14140 |
MA70 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 53751-14030 |
MA70 |
1 | ||
| 53751-14031 |
MA70 |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 90159-60200 | ||||
| 90189-06005 | ||||
| 90467-07069 | ||||
| 90467-13001 | ||||
| 90480-01307 | ||||
| 90480-01401 | ||||
| 90480-01402 | ||||
| 90480-01404 | ||||
| 90480-14470 | ||||
| 90488-01402 | ||||
| 90959-01302 | ||||
| 91651-40616 | ||||
| 91656-40618 | ||||
| 96132-30600 | ||||
