MA70L-BLPVF (1986)
Toyota Supra
Production
Jan 1986
-
Aug 1988
Engine
7MGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8601- )

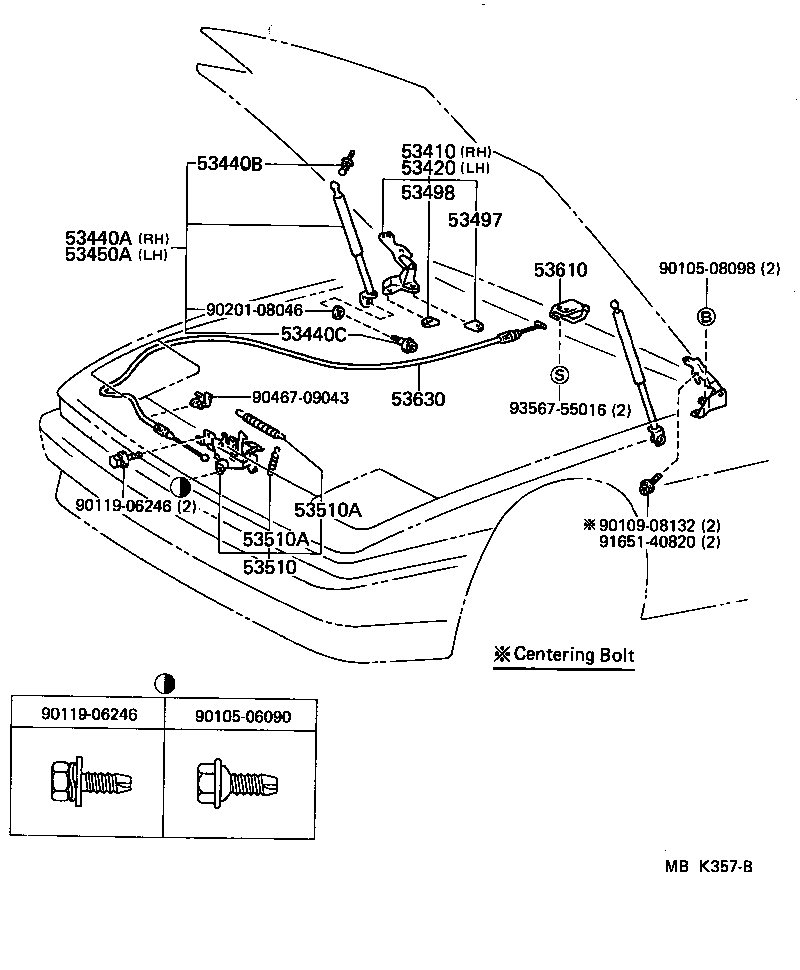

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-14110 |
MA70 |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-14080 |
MA70 |
1 | ||
| 53440A - SUPPORT ASSY, HOOD, RH | ||||
| 53440-19035 |
MA70 |
1 | ||
| 53440B - BOLT, HOOD SUPPORT, NO.1 | ||||
| 68961-14040 |
MA70 |
2 | ||
| 53440C - BOLT, HOOD SUPPORT, NO.2 | ||||
| 68961-96440 |
MA70 |
2 | ||
| 53450A - SUPPORT ASSY, HOOD, LH | ||||
| 53450-19035 |
MA70 |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-14070 |
MA70 |
2 | ||
| 53498 - PAD, HOOD HINGE, NO.2 | ||||
| 53498-14010 |
MA70 |
2 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-14221 |
MA70..LHD |
1 | ||
| 53510-14220 |
MA70..LHD |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09029 |
MA70 WD=0.9,WD=0.9,CW=26.5 |
1 | ||
| 90506-18024 |
MA70 WD=1.8,CW=18 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09029 |
MA70 WD=0.9,WD=0.9,CW=26.5 |
1 | ||
| 90506-18024 |
MA70 WD=1.8,CW=18 |
1 | ||
| 53610 - LEVER ASSY, HOOD LOCK RELEASE | ||||
| 53601-2006015 |
MA70..ARL,EUR,GEN,SA BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 53601-2006024 |
MA70 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 53601-2006032 |
MA70..ARL,GCC,GEN MAROON,MAROON,TRIM3# |
1 | ||
| 53601-2006033 |
MA70 GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 53601-2006015 |
MA70 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-14240 |
MA70..LHD |
1 | ||
| 53630-14241 |
MA70..LHD |
1 | ||
| Common parts | ||||
| 90105-06090 | ||||
| 90105-08098 | ||||
| 90109-08132 | ||||
| 90119-06246 | ||||
| 90201-08046 | ||||
| 90467-09043 | ||||
| 91651-40820 | ||||
| 93567-55016 | ||||
(8601- )

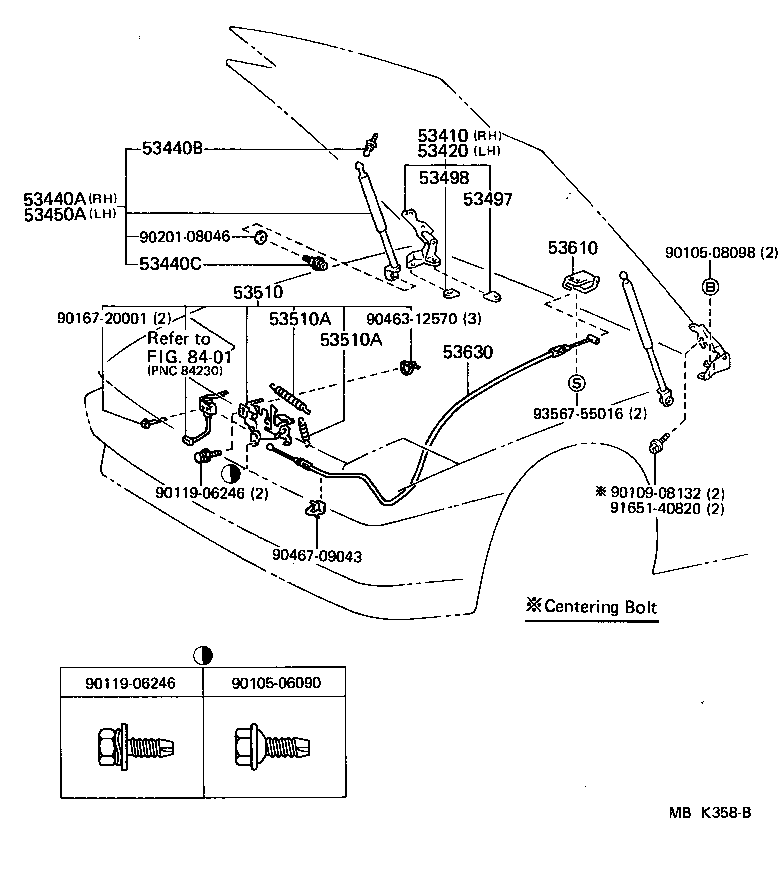

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-06090 | ||||
| 90105-08098 | ||||
| 90109-08132 | ||||
| 90119-06246 | ||||
| 90167-20001 | ||||
| 90201-08046 | ||||
| 90463-12570 | ||||
| 90467-09043 | ||||
| 91651-40820 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
