MA70L-BLPVF (1986)
Toyota Supra
(8601- )

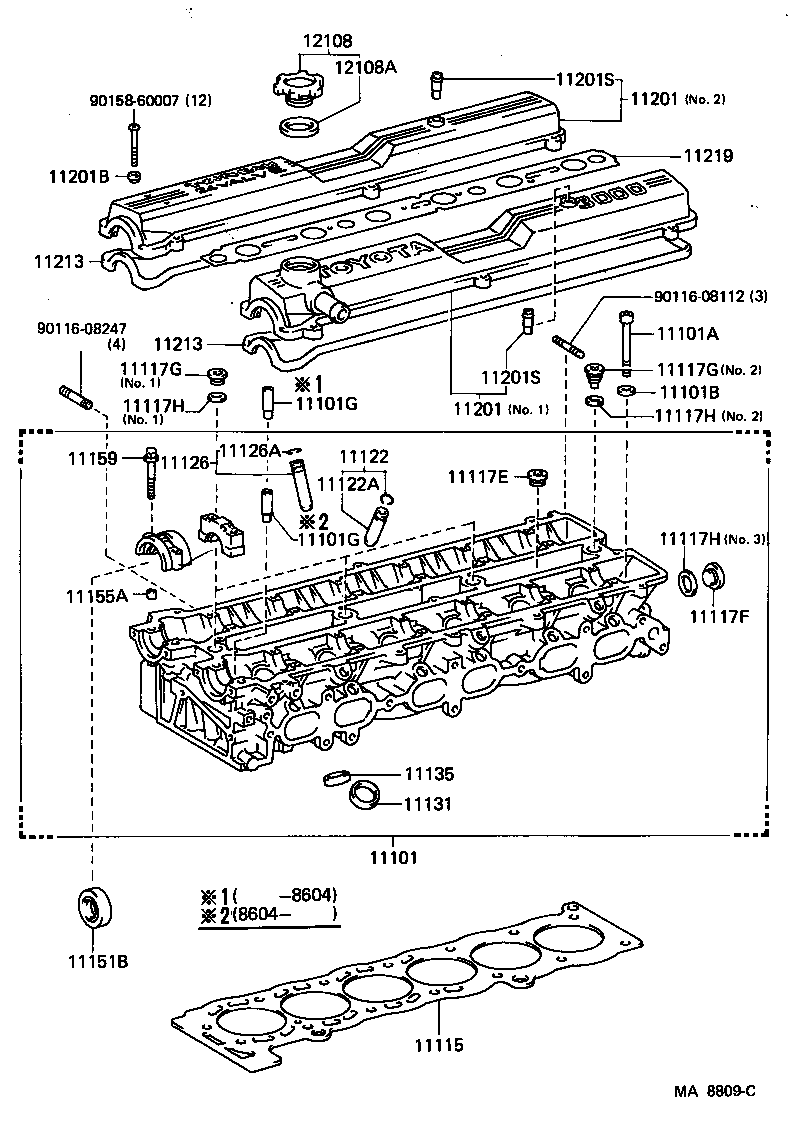

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-42030 |
7MG#..MA70 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90110-12002 |
7MG#..MA70 |
14 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-12027 |
7MG#..MA70 |
14 | ||
| 11101G - UNION(FOR CYLINDER HEAD) | ||||
| 90406-16002 |
7MG#..MA70 |
1 | ||
| 11101G - UNION(FOR CYLINDER HEAD) | ||||
| 90406-16002 |
7MG#..MA70 |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-42020 |
7MG#..MA70 |
1 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-27003 |
7MG#..MA70 |
3 | ||
| 11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2 | ||||
| 90341-36001 |
7MG#..MA70 |
1 | ||
| 11117G - PLUG, W/HEAD STRAIGHT SCREW, NO.3 | ||||
| 90341-24007 |
7MG#..MA70 NO.2 |
1 | ||
| 90341-24006 |
7MGE..MA70 NO.1 |
3 | ||
| 90341-24008 |
7MG#..MA70 NO.1 |
3 | ||
| 11117G - PLUG, W/HEAD STRAIGHT SCREW, NO.3 | ||||
| 90341-24007 |
7MG#..MA70 NO.2 |
1 | ||
| 90341-24006 |
7MGE..MA70 NO.1 |
3 | ||
| 90341-24008 |
7MG#..MA70 NO.1 |
3 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-24006 |
7MGE..MA70 NO.1,2 |
4 | ||
| 90430-36001 |
7MG#..MA70 NO.3 |
1 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-24006 |
7MGE..MA70 NO.1,2 |
4 | ||
| 90430-36001 |
7MG#..MA70 NO.3 |
1 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-24006 |
7MGE..MA70 NO.1,2 |
4 | ||
| 90430-36001 |
7MG#..MA70 NO.3 |
1 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-42010 |
7MG#..MA70 O/S 0.05,O/S 0.05 |
12 | ||
| 11122-42010 |
7MG#..MA70 STD,STD |
12 | ||
| 11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH) | ||||
| 90520-10004 |
7MG#..MA70 |
1 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11123-16020 |
7MG#..MA70 O/S 0.05,O/S 0.05 |
12 | ||
| 11122-16020 |
7MG#..MA70 STD,STD |
12 | ||
| 11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH) | ||||
| 90520-10004 |
7MG#..MA70 |
12 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11131-42010 |
7MG#..MA70 STD,STD |
12 | ||
| 11132-42010 |
7MG#..MA70 O/S 0.03,O/S 0.03 |
12 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11136-42010 |
7MG#..MA70 O/S 0.03,O/S 0.03 |
12 | ||
| 11135-42010 |
7MG#..MA70 STD,STD |
12 | ||
| 11151B - SEAL, OIL(FOR CAMSHAFT SETTING) | ||||
| 90311-35013 |
7MGE..MA70 |
2 | ||
| 90311-35017 |
7MG#..MA70 |
2 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-11021 |
7MG#..MA70 |
28 | ||
| 11159 - BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-08548 |
7MG#..MA70 |
28 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-42020 |
7MGE..MA70 NO.1 |
1 | ||
| 11202-42020 |
7MGE..MA70 NO.2 |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-42020 |
7MGE..MA70 NO.1 |
1 | ||
| 11202-42020 |
7MGE..MA70 NO.2 |
1 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-07001 |
7MG#..MA70 |
12 | ||
| 11201S - TUBE, AIR | ||||
| 17361-41010 |
7MG#..MA70 |
2 | ||
| 11201S - TUBE, AIR | ||||
| 17361-41010 |
7MG#..MA70 |
2 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-42020 |
7MG#..MA70 |
2 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-42020 |
7MG#..MA70 |
2 | ||
| 11219 - COVER, CYLINDER HEAD, NO.3 | ||||
| 11219-42010 |
7MG#..MA70 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-13030 |
7MG#..MA70 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
7MG#..MA70 |
1 | ||
| Common parts | ||||
| 90116-08112 | ||||
| 90116-08247 | ||||
| 90158-60007 | ||||
(8601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-42030 |
7MG#..MA70 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90110-12002 |
7MG#..MA70 |
14 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-12027 |
7MG#..MA70 |
14 | ||
| 11101G - UNION(FOR CYLINDER HEAD) | ||||
| 90406-16002 |
7MG#..MA70 |
1 | ||
| 11101G - UNION(FOR CYLINDER HEAD) | ||||
| 90406-16002 |
7MG#..MA70 |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-42020 |
7MG#..MA70 |
1 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-27003 |
7MG#..MA70 |
3 | ||
| 11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2 | ||||
| 90341-36001 |
7MG#..MA70 |
1 | ||
| 11117G - PLUG, W/HEAD STRAIGHT SCREW, NO.3 | ||||
| 90341-24007 |
7MG#..MA70 NO.2 |
1 | ||
| 90341-24006 |
7MGE..MA70 NO.1 |
3 | ||
| 90341-24008 |
7MG#..MA70 NO.1 |
3 | ||
| 11117G - PLUG, W/HEAD STRAIGHT SCREW, NO.3 | ||||
| 90341-24007 |
7MG#..MA70 NO.2 |
1 | ||
| 90341-24006 |
7MGE..MA70 NO.1 |
3 | ||
| 90341-24008 |
7MG#..MA70 NO.1 |
3 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-24006 |
7MGE..MA70 NO.1,2 |
4 | ||
| 90430-36001 |
7MG#..MA70 NO.3 |
1 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-24006 |
7MGE..MA70 NO.1,2 |
4 | ||
| 90430-36001 |
7MG#..MA70 NO.3 |
1 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-24006 |
7MGE..MA70 NO.1,2 |
4 | ||
| 90430-36001 |
7MG#..MA70 NO.3 |
1 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-42010 |
7MG#..MA70 O/S 0.05,O/S 0.05 |
12 | ||
| 11122-42010 |
7MG#..MA70 STD,STD |
12 | ||
| 11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH) | ||||
| 90520-10004 |
7MG#..MA70 |
1 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11123-16020 |
7MG#..MA70 O/S 0.05,O/S 0.05 |
12 | ||
| 11122-16020 |
7MG#..MA70 STD,STD |
12 | ||
| 11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH) | ||||
| 90520-10004 |
7MG#..MA70 |
12 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11131-42010 |
7MG#..MA70 STD,STD |
12 | ||
| 11132-42010 |
7MG#..MA70 O/S 0.03,O/S 0.03 |
12 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11136-42010 |
7MG#..MA70 O/S 0.03,O/S 0.03 |
12 | ||
| 11135-42010 |
7MG#..MA70 STD,STD |
12 | ||
| 11151B - SEAL, OIL(FOR CAMSHAFT SETTING) | ||||
| 90311-35013 |
7MGE..MA70 |
2 | ||
| 90311-35017 |
7MG#..MA70 |
2 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-11021 |
7MG#..MA70 |
28 | ||
| 11159 - BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-08548 |
7MG#..MA70 |
28 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-42020 |
7MGE..MA70 NO.1 |
1 | ||
| 11202-42020 |
7MGE..MA70 NO.2 |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-42020 |
7MGE..MA70 NO.1 |
1 | ||
| 11202-42020 |
7MGE..MA70 NO.2 |
1 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-07001 |
7MG#..MA70 |
12 | ||
| 11201S - TUBE, AIR | ||||
| 17361-41010 |
7MG#..MA70 |
2 | ||
| 11201S - TUBE, AIR | ||||
| 17361-41010 |
7MG#..MA70 |
2 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-42020 |
7MG#..MA70 |
2 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-42020 |
7MG#..MA70 |
2 | ||
| 11219 - COVER, CYLINDER HEAD, NO.3 | ||||
| 11219-42010 |
7MG#..MA70 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-13030 |
7MG#..MA70 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
7MG#..MA70 |
1 | ||
| Common parts | ||||
| 90116-08112 | ||||
| 90116-08247 | ||||
| 90158-60007 | ||||
