Toyota Supra MA70 HEADLAMP - JDM Part Detective

MA70L-BLPVF (1988)

Toyota Supra

Production Aug 1988 - May 1993

Engine 7MGE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

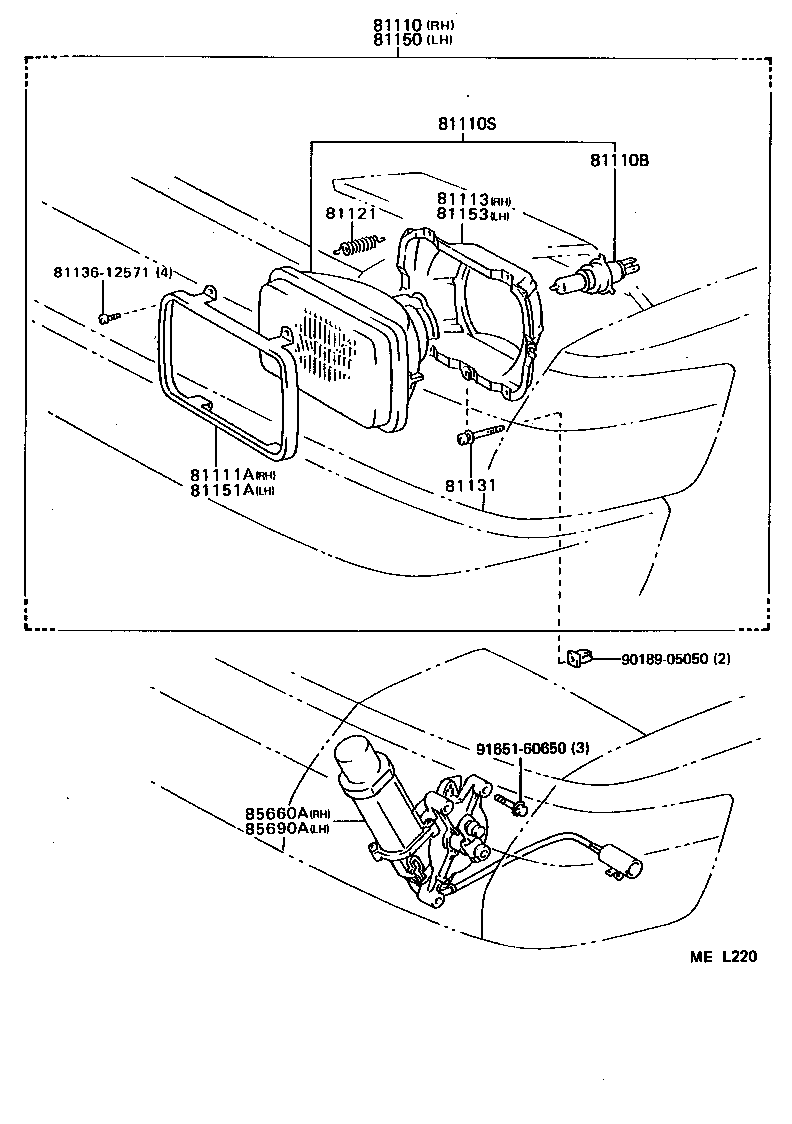

(8808- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
81110 - HEADLAMP ASSY, RH
81110-1B080	MA70..LHD..(C,EUR,GEN)	08/1988 - 05/1993	1
81110-1B090	MA70..LHD..(C,EUR,GEN) HALOGEN,YELLOW	08/1988 - 05/1993	1
81110-1B110	MA70..V	08/1988 - 05/1993	1
81110-1B100	MA70..LHD..GEN HALOGEN,WHITE	08/1988 - 08/1989	1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13016	MA70..LHD..(C,EUR,GEN) 12V 60/55W,HAL YE	08/1988 - 05/1993	2
90981-13015	MA70..C,GEN 12V 60/55W,HAL WH	08/1989 - 08/1990	2
90981-13015	MA70..ARL,C,GEN 12V 60/55W,HAL WH	08/1990 - 05/1993	2
90981-13015	MA70..ARL,C,EUR,GEN 12V 60/55W,HAL WH	08/1988 - 08/1989	2
81110S - SEALED BEAM UNIT, NO.1
90981-04020	MA70..V 12V 65/35W,HAL,WB	08/1988 - 05/1993	2
90981-04025	MA70..LHD..(C,EUR,GEN) 12V 60/55W,*HWS	08/1988 - 05/1993	2
90981-04026	MA70..LHD..(C,EUR,GEN) 12V 60/55W,*HYS	08/1988 - 05/1993	2
90981-04024	MA70..LHD..GEN 12V 60/55W,*HWS,RH TRAFFIC SPEC	08/1988 - 08/1989	2
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-17010	MA70..LHD..C;MA70..ARL,GEN,V	09/1989 - 05/1993	1
81111-17010	MA70	08/1988 - 09/1989	1
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-17010	MA70	08/1988 - 08/1989	1
81113-17010	MA70..LHD..C;MA70..ARL,GEN,V	08/1989 - 05/1993	1
81121 - SPRING, HEADLAMP TENSION
90075-25501	MA70	08/1988 - 05/1993	2
81131 - SCREW, HEADLAMP ADJUSTING
81131-17010	MA70	08/1988 - 05/1993	4
81150 - HEADLAMP ASSY, LH
81150-1B080	MA70..LHD..(C,EUR,GEN)	08/1988 - 05/1993	1
81150-1B110	MA70..V	08/1988 - 05/1993	1
81150-1B090	MA70..LHD..(C,EUR,GEN) HALOGEN,YELLOW	08/1988 - 05/1993	1
81150-1B100	MA70..LHD..GEN HALOGEN,WHITE	08/1988 - 08/1989	1
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81111-17010	MA70..LHD..C;MA70..ARL,GEN,V	09/1989 - 05/1993	1
81111-17010	MA70	08/1988 - 09/1989	1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-17010	MA70..LHD..C;MA70..ARL,GEN,V	08/1989 - 05/1993	1
81153-17010	MA70	08/1988 - 08/1989	1
85660A - MOTOR ASSY, LIGHT RETRACTOR, RH
85660-14050	MA70	08/1988 - 10/1989	1
85660-14050	MA70	10/1989 - 08/1991	1
85660-14050	MA70	08/1991 - 05/1993	1
85690A - MOTOR ASSY, LIGHT RETRACTOR, LH
85690-14050	MA70	08/1991 - 05/1993	1
85690-14050	MA70	08/1988 - 10/1989	1
85690-14050	MA70	10/1989 - 08/1991	1
Common parts
81136-12571
90189-05050
91651-60650

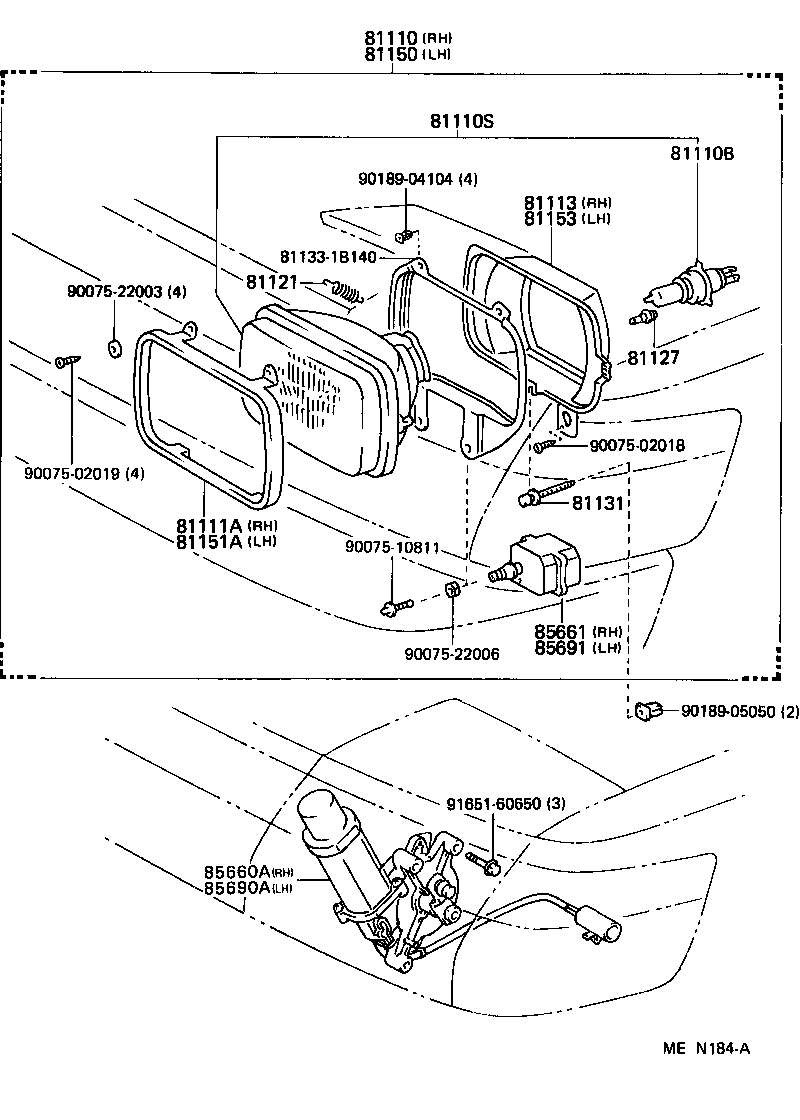

(8908- )

Click highlighted areas on diagram

W/LEVELING

Part #	Description	Period	Qty
81110 - HEADLAMP ASSY, RH
81110-1B080	MA70..LHD..(C,EUR,GEN)	08/1988 - 05/1993	1
81110-1B090	MA70..LHD..(C,EUR,GEN) HALOGEN,YELLOW	08/1988 - 05/1993	1
81110-1B110	MA70..V	08/1988 - 05/1993	1
81110-1B100	MA70..LHD..GEN HALOGEN,WHITE	08/1988 - 08/1989	1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13016	MA70..LHD..(C,EUR,GEN) 12V 60/55W,HAL YE	08/1988 - 05/1993	2
90981-13015	MA70..C,GEN 12V 60/55W,HAL WH	08/1989 - 08/1990	2
90981-13015	MA70..ARL,C,GEN 12V 60/55W,HAL WH	08/1990 - 05/1993	2
90981-13015	MA70..ARL,C,EUR,GEN 12V 60/55W,HAL WH	08/1988 - 08/1989	2
81110S - SEALED BEAM UNIT, NO.1
90981-04020	MA70..V 12V 65/35W,HAL,WB	08/1988 - 05/1993	2
90981-04025	MA70..LHD..(C,EUR,GEN) 12V 60/55W,*HWS	08/1988 - 05/1993	2
90981-04026	MA70..LHD..(C,EUR,GEN) 12V 60/55W,*HYS	08/1988 - 05/1993	2
90981-04024	MA70..LHD..GEN 12V 60/55W,*HWS,RH TRAFFIC SPEC	08/1988 - 08/1989	2
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-17010	MA70..LHD..C;MA70..ARL,GEN,V	09/1989 - 05/1993	1
81111-17010	MA70	08/1988 - 09/1989	1
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-17010	MA70	08/1988 - 08/1989	1
81113-17010	MA70..LHD..C;MA70..ARL,GEN,V	08/1989 - 05/1993	1
81121 - SPRING, HEADLAMP TENSION
90075-25501	MA70	08/1988 - 05/1993	2
81131 - SCREW, HEADLAMP ADJUSTING
81131-17010	MA70	08/1988 - 05/1993	4
81150 - HEADLAMP ASSY, LH
81150-1B080	MA70..LHD..(C,EUR,GEN)	08/1988 - 05/1993	1
81150-1B110	MA70..V	08/1988 - 05/1993	1
81150-1B090	MA70..LHD..(C,EUR,GEN) HALOGEN,YELLOW	08/1988 - 05/1993	1
81150-1B100	MA70..LHD..GEN HALOGEN,WHITE	08/1988 - 08/1989	1
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81111-17010	MA70..LHD..C;MA70..ARL,GEN,V	09/1989 - 05/1993	1
81111-17010	MA70	08/1988 - 09/1989	1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-17010	MA70..LHD..C;MA70..ARL,GEN,V	08/1989 - 05/1993	1
81153-17010	MA70	08/1988 - 08/1989	1
85660A - MOTOR ASSY, LIGHT RETRACTOR, RH
85660-14050	MA70	08/1988 - 10/1989	1
85660-14050	MA70	10/1989 - 08/1991	1
85660-14050	MA70	08/1991 - 05/1993	1
85690A - MOTOR ASSY, LIGHT RETRACTOR, LH
85690-14050	MA70	08/1991 - 05/1993	1
85690-14050	MA70	08/1988 - 10/1989	1
85690-14050	MA70	10/1989 - 08/1991	1
Common parts
81133-1B140
90075-02018
90075-02019
90075-10811
90075-22003
90075-22006
90189-04104
90189-05050
91651-60650

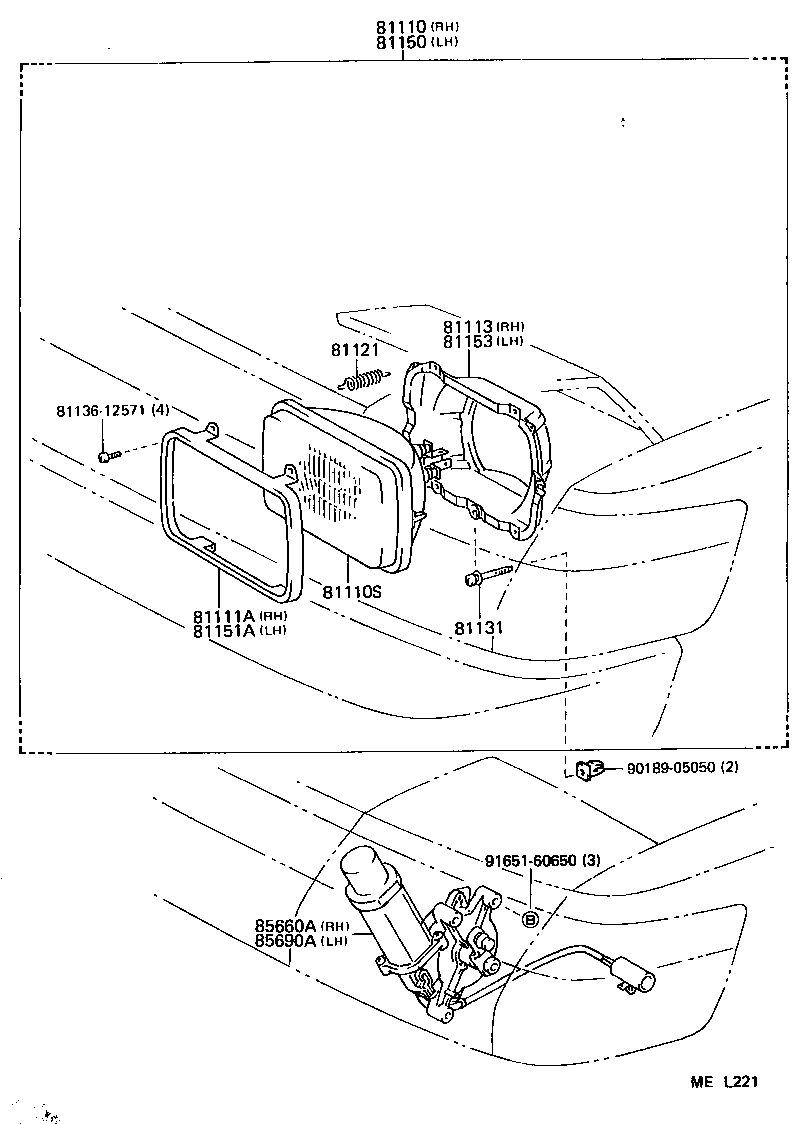

(8808- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
81136-12571
90189-05050
91651-60650
