8718 - HEATING & AIR CONDITIONING - COOLER PIPING

MA70L-BLMVZC (1988)

Toyota Supra

Production Aug 1988 - May 1993

Engine 7MGTE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

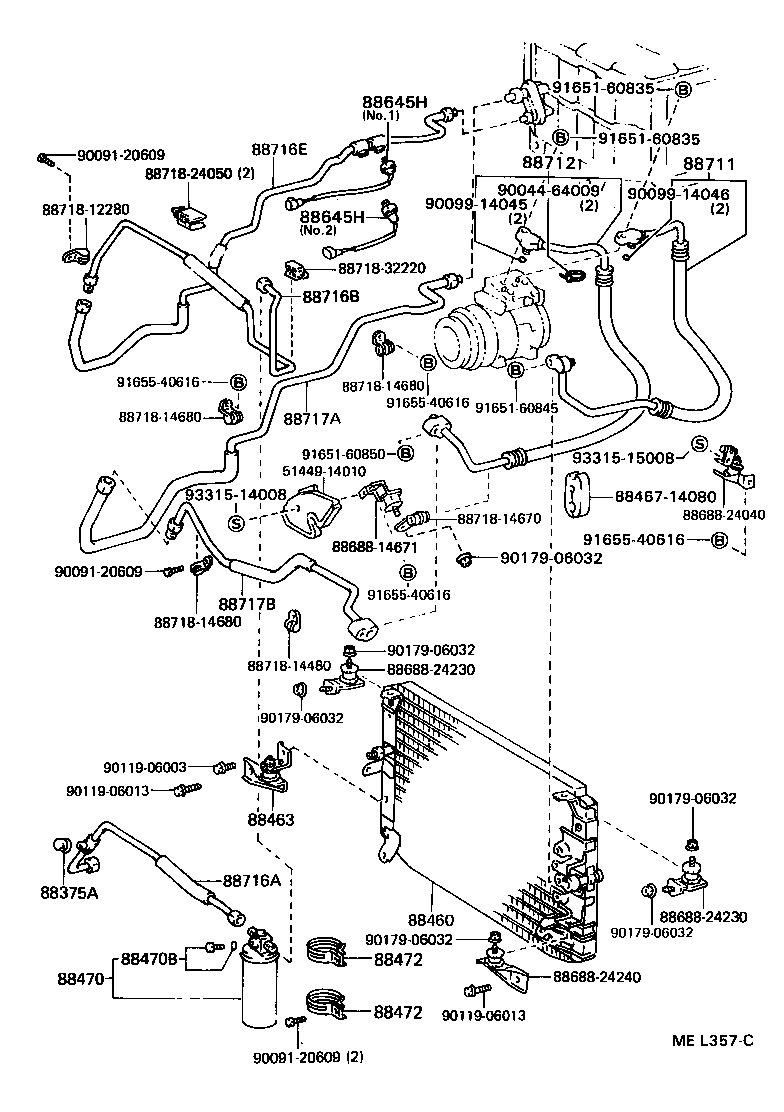

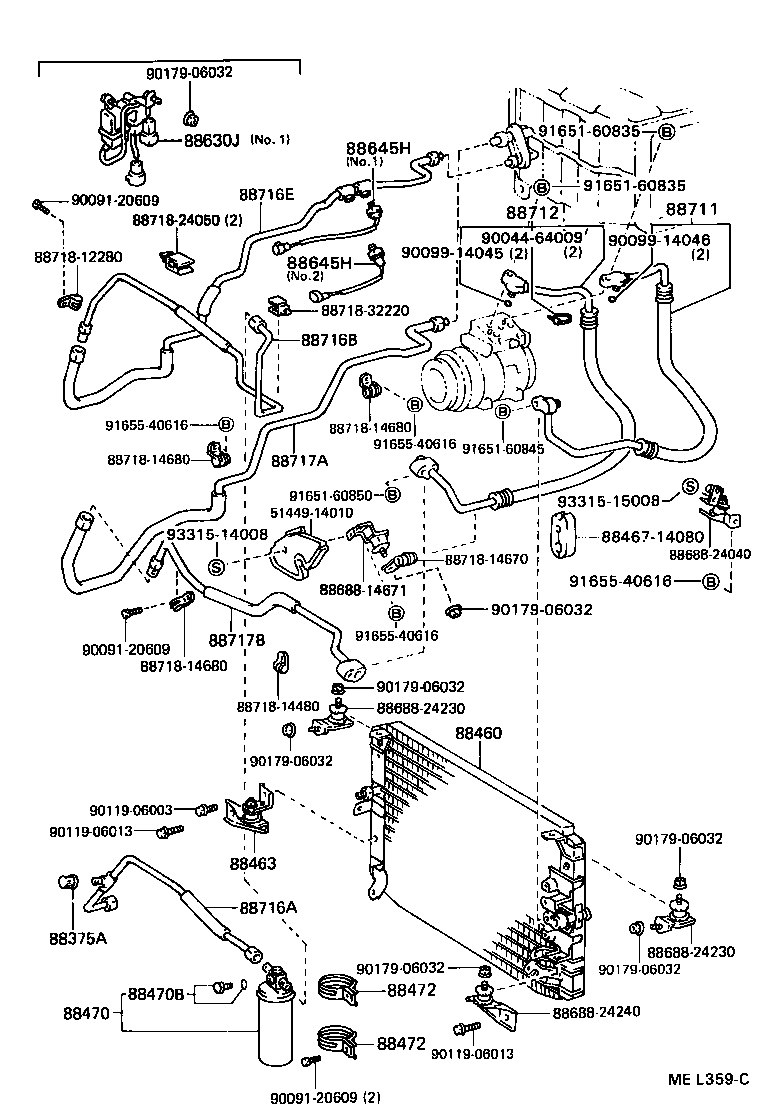

ILLUST NO. 1 OF 2(8808- )LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-20010	MA70..LHD;MA70..RHD..TWT..C	08/1988 - 05/1993	1
88460 - CONDENSER ASSY, COOLER
88460-14252	MA70..LHD..(GEN,V)	08/1988 - 07/1990	1
88460-14290	MA70..LHD..(GEN,V)	07/1990 - 05/1993	1
88460-14262	MA70..LHD..TWT	08/1988 - 05/1993	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-24050	MA70..C,EUR,GEN,V	08/1988 - 05/1993	1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-95401	MA70	08/1991 - 05/1993	1
88471-95401	MA70	08/1988 - 08/1990	1
88471-95401	MA70..ARL,C,V;MA70..LHD..GEN	08/1990 - 08/1991	1
88470B - BOLT, FUSE
88475-12020	MA70..ARL,C,V;MA70..LHD..GEN	08/1990 - 08/1991	1
88475-12020	MA70	08/1991 - 05/1993	1
88475-12020	MA70	08/1988 - 08/1990	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-22090	MA70..ARL,C,V;MA70..LHD..GEN	08/1990 - 08/1991	2
88472-22090	MA70..RHD;MA70..LHD..TWT;MA70..LHD..(GEN,V)	08/1988 - 08/1990	2
88472-22090	MA70	08/1991 - 05/1993	2
88472 - BRACKET, RECEIVER TANK, NO.1
88472-22090	MA70..ARL,C,V;MA70..LHD..GEN	08/1990 - 08/1991	2
88472-22090	MA70..RHD;MA70..LHD..TWT;MA70..LHD..(GEN,V)	08/1988 - 08/1990	2
88472-22090	MA70	08/1991 - 05/1993	2
88645H - SWITCH, PRESSURE NO.1
88645-14010	MA70..LHD NO.1	08/1988 - 05/1993	1
88645-10020	MA70..ARL,C,V;MA70..LHD..GEN NO.2	08/1990 - 08/1991	1
88645-10020	MA70 NO.2	08/1988 - 08/1990	1
88645-10020	MA70 NO.2	08/1991 - 05/1993	1
88645H - SWITCH, PRESSURE NO.1
88645-14010	MA70..LHD NO.1	08/1988 - 05/1993	1
88645-10020	MA70..ARL,C,V;MA70..LHD..GEN NO.2	08/1990 - 08/1991	1
88645-10020	MA70 NO.2	08/1988 - 08/1990	1
88645-10020	MA70 NO.2	08/1991 - 05/1993	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-24070	MA70..ARL,C;MA70..LHD..GEN	08/1990 - 08/1991	1
88711-14630	MA70..V	08/1988 - 05/1993	1
88711-24070	MA70..ARL,C,GEN	08/1991 - 05/1993	1
88711-24070	MA70..ARL,C,EUR,GEN	08/1988 - 08/1990	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-1B090	MA70..LHD	08/1988 - 05/1993	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-1B121	MA70..LHD;MA70..RHD..TWT..C	08/1988 - 05/1993	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-1B073	MA70..LHD	08/1988 - 05/1993	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-1B112	MA70..LHD	08/1988 - 05/1993	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-14312	MA70..LHD	08/1988 - 05/1993	1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-14282	MA70..LHD	08/1988 - 05/1993	1
Common parts
51449-14010
88467-14080
88688-14671
88688-24040
88688-24230
88688-24240
88718-12280
88718-14480
88718-14670
88718-14680
88718-24050
88718-32220
90044-64009
90091-20609
90099-14045
90099-14046
90119-06003
90119-06013
90179-06032
91651-60835
91651-60845
91651-60850
91655-40616
93315-14008
93315-15008

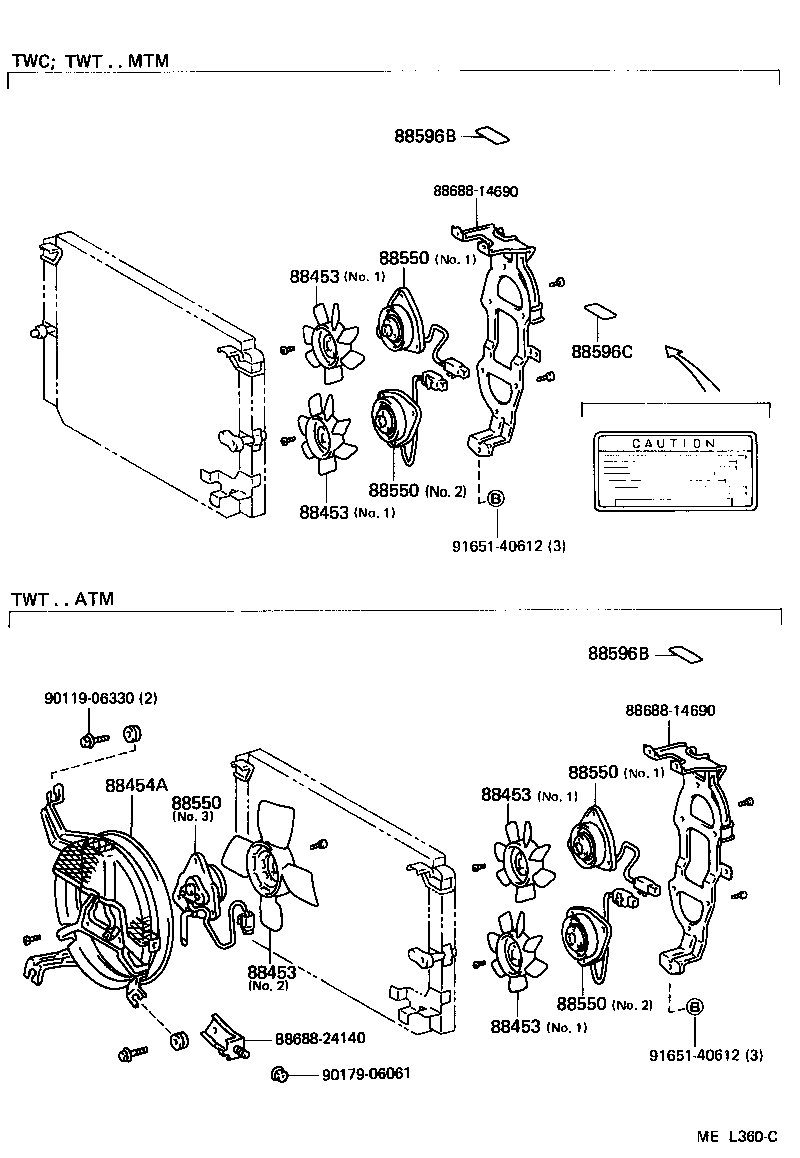

ILLUST NO. 2 OF 2(8808- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
88453 - FAN, COOLING (FOR CONDENSER)
88453-12040	MA70..LHD..GEN;MA70..5F..TWT..C;MA70..5F..(ARL,V);MA70..4FC..(ARL,C,V) NO.1	08/1990 - 08/1991	2
88453-12040	MA70..ARL,GEN,V;MA70..5F..TWT..C;MA70..4FC..(C,EUR) NO.1	08/1988 - 08/1990	2
88453-12040	MA70..4FC..C;MA70..ARL,GEN,V;MA70..5F..TWT..C NO.1	08/1991 - 05/1993	2
88453 - FAN, COOLING (FOR CONDENSER)
88453-12040	MA70..LHD..GEN;MA70..5F..TWT..C;MA70..5F..(ARL,V);MA70..4FC..(ARL,C,V) NO.1	08/1990 - 08/1991	2
88453-12040	MA70..ARL,GEN,V;MA70..5F..TWT..C;MA70..4FC..(C,EUR) NO.1	08/1988 - 08/1990	2
88453-12040	MA70..4FC..C;MA70..ARL,GEN,V;MA70..5F..TWT..C NO.1	08/1991 - 05/1993	2
88453 - FAN, COOLING (FOR CONDENSER)
88453-12040	MA70..LHD..GEN;MA70..5F..TWT..C;MA70..5F..(ARL,V);MA70..4FC..(ARL,C,V) NO.1	08/1990 - 08/1991	2
88453-12040	MA70..ARL,GEN,V;MA70..5F..TWT..C;MA70..4FC..(C,EUR) NO.1	08/1988 - 08/1990	2
88453-12040	MA70..4FC..C;MA70..ARL,GEN,V;MA70..5F..TWT..C NO.1	08/1991 - 05/1993	2
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-14040	MA70..LHD..GEN;MA70..4FC..(ARL,C,V);MA70..LHD..5F..(C,V);MA70..RHD..5F..TWT..C NO.1	08/1990 - 08/1991	1
88550-14030	MA70..5F..V;MA70..LHD..GEN;MA70..5F..TWT..C;MA70..4FC..(C,EUR,V) NO.2	08/1988 - 09/1989	1
88550-14040	MA70..GEN,V;MA70..5F..TWT..C;MA70..4FC..(ARL,C) NO.1	09/1989 - 08/1990	1
88550-14040	MA70..LHD..GEN;MA70..5F..TWT..C;MA70..5F..TWC..(ARL,V);MA70..4FC..(ARL,C,EUR,V) NO.1	08/1988 - 09/1989	1
88550-14060	MA70..GEN,V;MA70..5F..TWT..C;MA70..4FC..(ARL,C) NO.2	09/1989 - 08/1990	1
88550-14040	MA70..GEN,V;MA70..5F..TWT..C;MA70..4FC..(ARL,C) NO.1	08/1991 - 05/1993	1
88550-14060	MA70..GEN,V;MA70..5F..TWT..C;MA70..4FC..(ARL,C) NO.2	08/1991 - 05/1993	1
88550-14060	MA70..LHD..GEN;MA70..4FC..(ARL,C,V);MA70..LHD..5F..(C,V);MA70..RHD..5F..TWT..C NO.2	08/1990 - 08/1991	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-14040	MA70..LHD..GEN;MA70..4FC..(ARL,C,V);MA70..LHD..5F..(C,V);MA70..RHD..5F..TWT..C NO.1	08/1990 - 08/1991	1
88550-14030	MA70..5F..V;MA70..LHD..GEN;MA70..5F..TWT..C;MA70..4FC..(C,EUR,V) NO.2	08/1988 - 09/1989	1
88550-14040	MA70..GEN,V;MA70..5F..TWT..C;MA70..4FC..(ARL,C) NO.1	09/1989 - 08/1990	1
88550-14040	MA70..LHD..GEN;MA70..5F..TWT..C;MA70..5F..TWC..(ARL,V);MA70..4FC..(ARL,C,EUR,V) NO.1	08/1988 - 09/1989	1
88550-14060	MA70..GEN,V;MA70..5F..TWT..C;MA70..4FC..(ARL,C) NO.2	09/1989 - 08/1990	1
88550-14040	MA70..GEN,V;MA70..5F..TWT..C;MA70..4FC..(ARL,C) NO.1	08/1991 - 05/1993	1
88550-14060	MA70..GEN,V;MA70..5F..TWT..C;MA70..4FC..(ARL,C) NO.2	08/1991 - 05/1993	1
88550-14060	MA70..LHD..GEN;MA70..4FC..(ARL,C,V);MA70..LHD..5F..(C,V);MA70..RHD..5F..TWT..C NO.2	08/1990 - 08/1991	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-14040	MA70..LHD..GEN;MA70..4FC..(ARL,C,V);MA70..LHD..5F..(C,V);MA70..RHD..5F..TWT..C NO.1	08/1990 - 08/1991	1
88550-14030	MA70..5F..V;MA70..LHD..GEN;MA70..5F..TWT..C;MA70..4FC..(C,EUR,V) NO.2	08/1988 - 09/1989	1
88550-14040	MA70..GEN,V;MA70..5F..TWT..C;MA70..4FC..(ARL,C) NO.1	09/1989 - 08/1990	1
88550-14040	MA70..LHD..GEN;MA70..5F..TWT..C;MA70..5F..TWC..(ARL,V);MA70..4FC..(ARL,C,EUR,V) NO.1	08/1988 - 09/1989	1
88550-14060	MA70..GEN,V;MA70..5F..TWT..C;MA70..4FC..(ARL,C) NO.2	09/1989 - 08/1990	1
88550-14040	MA70..GEN,V;MA70..5F..TWT..C;MA70..4FC..(ARL,C) NO.1	08/1991 - 05/1993	1
88550-14060	MA70..GEN,V;MA70..5F..TWT..C;MA70..4FC..(ARL,C) NO.2	08/1991 - 05/1993	1
88550-14060	MA70..LHD..GEN;MA70..4FC..(ARL,C,V);MA70..LHD..5F..(C,V);MA70..RHD..5F..TWT..C NO.2	08/1990 - 08/1991	1
88596B - PLATE, CAUTION, NO.1
88596-24010	MA70..C,EUR,GEN,V	08/1988 - 05/1993	1
88596B - PLATE, CAUTION, NO.1
88596-24010	MA70..C,EUR,GEN,V	08/1988 - 05/1993	1
88596C - PLATE, CAUTION, NO.2
88723-33020	MA70..LHD..C	09/1991 - 05/1993	1
88596C - PLATE, CAUTION, NO.2
88723-33020	MA70..LHD..C	09/1991 - 05/1993	1
Common parts
88688-14690
88688-24120
88899-14080
91651-40612
93315-15010

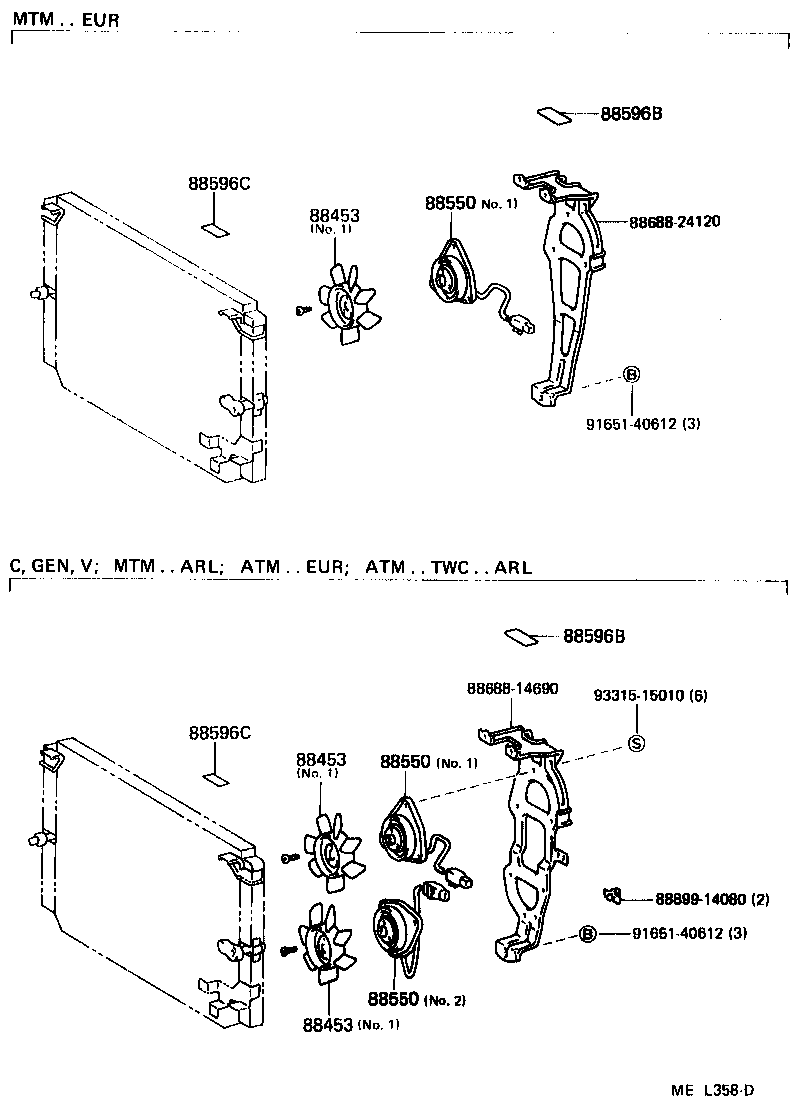

ILLUST NO. 2 OF 2(8808- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
88453 - FAN, COOLING (FOR CONDENSER)
88453-12040	MA70..LHD..GEN;MA70..5F..TWT..C;MA70..5F..(ARL,V);MA70..4FC..(ARL,C,V) NO.1	08/1990 - 08/1991	2
88453-12040	MA70..ARL,GEN,V;MA70..5F..TWT..C;MA70..4FC..(C,EUR) NO.1	08/1988 - 08/1990	2
88453-12040	MA70..4FC..C;MA70..ARL,GEN,V;MA70..5F..TWT..C NO.1	08/1991 - 05/1993	2
88453 - FAN, COOLING (FOR CONDENSER)
88453-12040	MA70..LHD..GEN;MA70..5F..TWT..C;MA70..5F..(ARL,V);MA70..4FC..(ARL,C,V) NO.1	08/1990 - 08/1991	2
88453-12040	MA70..ARL,GEN,V;MA70..5F..TWT..C;MA70..4FC..(C,EUR) NO.1	08/1988 - 08/1990	2
88453-12040	MA70..4FC..C;MA70..ARL,GEN,V;MA70..5F..TWT..C NO.1	08/1991 - 05/1993	2
88453 - FAN, COOLING (FOR CONDENSER)
88453-12040	MA70..LHD..GEN;MA70..5F..TWT..C;MA70..5F..(ARL,V);MA70..4FC..(ARL,C,V) NO.1	08/1990 - 08/1991	2
88453-12040	MA70..ARL,GEN,V;MA70..5F..TWT..C;MA70..4FC..(C,EUR) NO.1	08/1988 - 08/1990	2
88453-12040	MA70..4FC..C;MA70..ARL,GEN,V;MA70..5F..TWT..C NO.1	08/1991 - 05/1993	2
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-14040	MA70..LHD..GEN;MA70..4FC..(ARL,C,V);MA70..LHD..5F..(C,V);MA70..RHD..5F..TWT..C NO.1	08/1990 - 08/1991	1
88550-14030	MA70..5F..V;MA70..LHD..GEN;MA70..5F..TWT..C;MA70..4FC..(C,EUR,V) NO.2	08/1988 - 09/1989	1
88550-14040	MA70..GEN,V;MA70..5F..TWT..C;MA70..4FC..(ARL,C) NO.1	09/1989 - 08/1990	1
88550-14040	MA70..LHD..GEN;MA70..5F..TWT..C;MA70..5F..TWC..(ARL,V);MA70..4FC..(ARL,C,EUR,V) NO.1	08/1988 - 09/1989	1
88550-14060	MA70..GEN,V;MA70..5F..TWT..C;MA70..4FC..(ARL,C) NO.2	09/1989 - 08/1990	1
88550-14040	MA70..GEN,V;MA70..5F..TWT..C;MA70..4FC..(ARL,C) NO.1	08/1991 - 05/1993	1
88550-14060	MA70..GEN,V;MA70..5F..TWT..C;MA70..4FC..(ARL,C) NO.2	08/1991 - 05/1993	1
88550-14060	MA70..LHD..GEN;MA70..4FC..(ARL,C,V);MA70..LHD..5F..(C,V);MA70..RHD..5F..TWT..C NO.2	08/1990 - 08/1991	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-14040	MA70..LHD..GEN;MA70..4FC..(ARL,C,V);MA70..LHD..5F..(C,V);MA70..RHD..5F..TWT..C NO.1	08/1990 - 08/1991	1
88550-14030	MA70..5F..V;MA70..LHD..GEN;MA70..5F..TWT..C;MA70..4FC..(C,EUR,V) NO.2	08/1988 - 09/1989	1
88550-14040	MA70..GEN,V;MA70..5F..TWT..C;MA70..4FC..(ARL,C) NO.1	09/1989 - 08/1990	1
88550-14040	MA70..LHD..GEN;MA70..5F..TWT..C;MA70..5F..TWC..(ARL,V);MA70..4FC..(ARL,C,EUR,V) NO.1	08/1988 - 09/1989	1
88550-14060	MA70..GEN,V;MA70..5F..TWT..C;MA70..4FC..(ARL,C) NO.2	09/1989 - 08/1990	1
88550-14040	MA70..GEN,V;MA70..5F..TWT..C;MA70..4FC..(ARL,C) NO.1	08/1991 - 05/1993	1
88550-14060	MA70..GEN,V;MA70..5F..TWT..C;MA70..4FC..(ARL,C) NO.2	08/1991 - 05/1993	1
88550-14060	MA70..LHD..GEN;MA70..4FC..(ARL,C,V);MA70..LHD..5F..(C,V);MA70..RHD..5F..TWT..C NO.2	08/1990 - 08/1991	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-14040	MA70..LHD..GEN;MA70..4FC..(ARL,C,V);MA70..LHD..5F..(C,V);MA70..RHD..5F..TWT..C NO.1	08/1990 - 08/1991	1
88550-14030	MA70..5F..V;MA70..LHD..GEN;MA70..5F..TWT..C;MA70..4FC..(C,EUR,V) NO.2	08/1988 - 09/1989	1
88550-14040	MA70..GEN,V;MA70..5F..TWT..C;MA70..4FC..(ARL,C) NO.1	09/1989 - 08/1990	1
88550-14040	MA70..LHD..GEN;MA70..5F..TWT..C;MA70..5F..TWC..(ARL,V);MA70..4FC..(ARL,C,EUR,V) NO.1	08/1988 - 09/1989	1
88550-14060	MA70..GEN,V;MA70..5F..TWT..C;MA70..4FC..(ARL,C) NO.2	09/1989 - 08/1990	1
88550-14040	MA70..GEN,V;MA70..5F..TWT..C;MA70..4FC..(ARL,C) NO.1	08/1991 - 05/1993	1
88550-14060	MA70..GEN,V;MA70..5F..TWT..C;MA70..4FC..(ARL,C) NO.2	08/1991 - 05/1993	1
88550-14060	MA70..LHD..GEN;MA70..4FC..(ARL,C,V);MA70..LHD..5F..(C,V);MA70..RHD..5F..TWT..C NO.2	08/1990 - 08/1991	1
Common parts
16702-42010
88467-14070
88467-20040
88688-14690
88688-24140
90119-06078
90179-06032
91651-40612

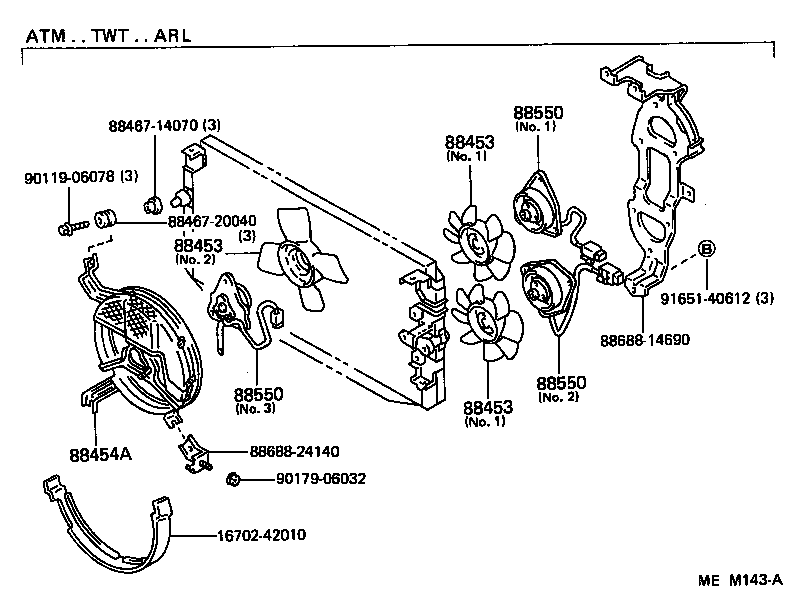

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
51449-14010
88467-14080
88688-14671
88688-24040
88688-24230
88688-24240
88718-12280
88718-14480
88718-14670
88718-14680
88718-24050
88718-32220
90044-64009
90091-20609
90099-14045
90099-14046
90119-06003
90119-06013
90179-06032
91651-60835
91651-60845
91651-60850
91655-40616
93315-14008
93315-15008

ILLUST NO. 2 OF 2(8808- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
88688-14690
88688-24140
90119-06330
90179-06061
91651-40612
