MA70L-BLMVZC (1988)

Toyota Supra

Production Aug 1988 - May 1993
Engine 7MGTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )LHD

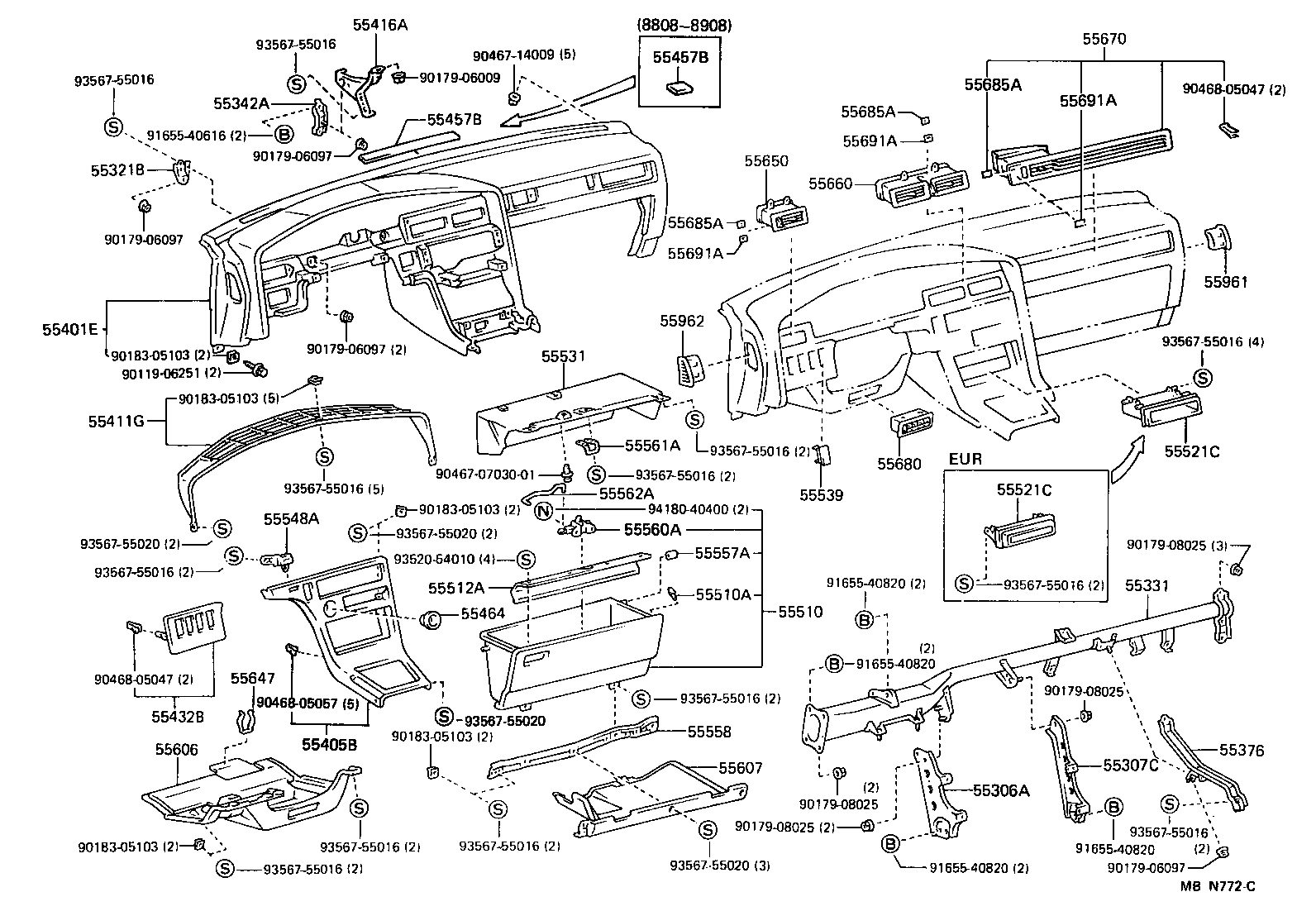

Click highlighted areas on diagram

diagram 55306A 55307C 55321B 55331 55342A 55376 55401E 55405B 55411G 55416A 55432B 55457B 55457B 55464 55510 55510A 55512A 55521C 55521C 55531 55539 55548A 55557A 55558 55560A 55561A 55562A 55606 55607 55647 55650 55660 55670 55680 55685A 55685A 55685A 55691A 55691A 55691A 55961 55962 9011906251 9017906009 9017906097 9017906097 9017906097 9017906097 9017908025 9017908025 9017908025 9017908025 9018305103 9018305103 9018305103 9018305103 9018305103 904670703001 9046714009 9046805047 9046805047 9046805057 9165540616 9165540820 9165540820 9165540820 9165540820 9352054010 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755020 9356755020 9356755020 9356755020 9418040400
Part # Description Qty Price
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-14090

MA70..LHD

 1
55351-14130

MA70..LHD

 1
55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55307-14140

MA70..LHD

 1
55321B - BRACKET, INSTRUMENT PANEL, NO.1
55321-14060

MA70..LHD

 1
55331 - REINFORCEMENT, INSTRUMENT PANEL
55330-14051

MA70..LHD

 1
55330-14050

MA70..LHD

 1
55342A - BRACE, INSTRUMENT PANEL TO COWL, NO.2
55342-14040

MA70

 1
55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55376-14040

MA70..LHD

 1
55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY
55401-1449002

MA70..LHD..(GEN,V)

MAROON,TRIM3#

 1
55401-1449003

MA70..LHD

MEDIUM GRAY,TRIM1#

 1
55401-1449006

MA70..LHD..C

BROWN,TRIM4#

 1
55401-1449004

MA70..LHD

DEEP BLUE,TRIM8#

 1
55401-1449006

MA70..LHD

BROWN,TRIM4#

 1
55401-1449006

MA70..LHD..(C,EUR,GEN)

BROWN,TRIM4#

 1
55401-1449013

MA70..LHD

SHADOW GRAY,TRIM1#

 1
55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55405-14110

MA70..LHD

 1
55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1
55411-14540

MA70..LHD

 1
55416A - RETAINER, METER HOOD, NO.1
55416-14070

MA70..LHD

 1
55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER
55432-14240

MA70..LHD

 1
55457B - SPACER, INSTRUMENT PANEL SAFETY PAD
55355-14060

MA70

 4
55457-22030

MA70

 3
55457B - SPACER, INSTRUMENT PANEL SAFETY PAD
55457-22030

MA70

 3
55355-14060

MA70

 4
55464 - BASE, CIGARETTE LIGHTER
55477-24020

MA70

 1
55510 - DOOR ASSY, GLOVE COMPARTMENT
55550-1417006

MA70..LHD..(C,EUR,GEN)

BROWN,TRIM4#

 1
55550-1417002

MA70..LHD..(GEN,V)

MAROON,TRIM3#

 1
55550-1417003

MA70..LHD

MEDIUM GRAY,TRIM1#

 1
55550-1417006

MA70..LHD

BROWN,TRIM4#

 1
55550-1417006

MA70..LHD..C

BROWN,TRIM4#

 1
55550-1417013

MA70..LHD

SHADOW GRAY,TRIM1#

 1
55550-1417004

MA70..LHD

DEEP BLUE,TRIM8#

 1
55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR)
90541-03015

MA70

 3
55512A - PLATE, GLOVE COMPARTMENT
55512-14070

MA70..LHD

 1
55521C - COVER, STEREO OPENING
55022-14010

MA70..LHD..C

W(*IPM)

 1
55521-16010

MA70..GEN,V;MA70..LHD..C

 1
55521C - COVER, STEREO OPENING
55022-14010

MA70..LHD..C

W(*IPM)

 1
55521-16010

MA70..GEN,V;MA70..LHD..C

 1
55531 - PANEL, GLOVE COMPARTMENT
55531-14110

MA70..LHD

 1
55539 - COVER, SPARE SWITCH HOLE
55539-14050

MA70

 1
55539-14050

MA70..LHD..C;MA70..ARL,GEN,V

 1
55539-14050

MA70

 1
55548A - COVER, INSTRUMENT PANEL HOLE
55548-14040

MA70

 1
55548-14040

MA70

 1
55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK
55557-16010

MA70

 2
55558 - REINFORCEMENT, GLOVE COMPARTMENT DOOR
55558-14031

MA70..LHD

 1
55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR
55560-14040

MA70..LHD

 1
55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK
55561-14060

MA70

 1
55562A - LINK, GLOVE COMPARTMENT DOOR LOCK
55562-14040

MA70..LHD

 1
55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1
55606-1407006

MA70..LHD

BROWN,TRIM4#

 1
55606-1407003

MA70..LHD

MEDIUM GRAY,TRIM1#

 1
55606-1407006

MA70..LHD..C

BROWN,TRIM4#

 1
55606-1407006

MA70..LHD..(C,EUR,GEN)

BROWN,TRIM4#

 1
55606-1407013

MA70..LHD

SHADOW GRAY,TRIM1#

 1
55606-1407004

MA70..LHD

DEEP BLUE,TRIM8#

 1
55606-1407002

MA70..LHD..(GEN,V)

MAROON,TRIM3#

 1
55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2
55607-1410003

MA70..LHD

MEDIUM GRAY,TRIM1#

 1
55607-1410006

MA70..LHD..(C,EUR,GEN)

BROWN,TRIM4#

 1
55607-1410002

MA70..LHD..(GEN,V)

MAROON,TRIM3#

 1
55607-1410006

MA70..LHD..C

BROWN,TRIM4#

 1
55607-1410004

MA70..LHD

DEEP BLUE,TRIM8#

 1
55607-1410006

MA70..LHD

BROWN,TRIM4#

 1
55607-1410013

MA70..LHD

SHADOW GRAY,TRIM1#

 1
55647 - CLAMP, INSTRUMENT PANEL UNDER COVER
55647-22010

MA70

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-14120

MA70..LHD

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-14120

MA70..LHD

 1
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55670-1408006

MA70..LHD

BROWN,TRIM4#

 1
55670-1408003

MA70..LHD

MEDIUM GRAY,TRIM1#

 1
55670-1408006

MA70..LHD..(C,EUR,GEN)

BROWN,TRIM4#

 1
55670-1408013

MA70..LHD

SHADOW GRAY,TRIM1#

 1
55670-1408004

MA70..LHD

DEEP BLUE,TRIM8#

 1
55670-1408002

MA70..LHD..(GEN,V)

MAROON,TRIM3#

 1
55670-1408006

MA70..LHD..C

BROWN,TRIM4#

 1
55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1
55680-14030E0

MA70..ARL,C,EUR,GEN

BROWN,TRIM4#

 1
55680-14030B0

MA70

MEDIUM GRAY,TRIM1#

 1
55680-14030B0

MA70

MEDIUM GRAY,TRIM1#

 1
55680-1403052

MA70..ARL,GEN,V

DEEP RED,TRIM3#

 1
55680-14030B0

MA70..C,EUR,GEN,V

MEDIUM GRAY,TRIM1#

 1
55680-1403013

MA70

SHADOW GRAY,TRIM1#

 1
55680-14030D0

MA70..ARL,GEN,V

MAROON,TRIM3#

 1
55680-1403004

MA70

DEEP BLUE,TRIM8#

 1
55680-14030E0

MA70..LHD..C

BROWN,TRIM4#

 1
55680-14030E0

MA70

BROWN,TRIM4#

 1
55680-14030E0

MA70..C,EUR,GEN

BROWN,TRIM4#

 1
55685A - PLATE, AIR DAMPER CONTROL NAME, NO.4
55685-14010

MA70

 1
55685A - PLATE, AIR DAMPER CONTROL NAME, NO.4
55685-14010

MA70

 1
55685A - PLATE, AIR DAMPER CONTROL NAME, NO.4
55685-14010

MA70

 1
55691A - PLATE, AIR DAMPER CONTROL NAME, NO.1
55691-14010

MA70

 1
55691A - PLATE, AIR DAMPER CONTROL NAME, NO.1
55691-14010

MA70

 1
55691A - PLATE, AIR DAMPER CONTROL NAME, NO.1
55691-14010

MA70

 1
55961 - NOZZLE, SIDE DEFROSTER, NO.1
55961-1407003

MA70

MEDIUM GRAY,TRIM1#

 1
55961-1407006

MA70..ARL,C,EUR,GEN

BROWN,TRIM4#

 1
55961-1407006

MA70..C,EUR,GEN;MA70..LB..5F..ARL;MA70..4FC..TWT..ARL

BROWN,TRIM4#

 1
55961-1407003

MA70

MEDIUM GRAY,TRIM1#

 1
55961-1407003

MA70..C,EUR,GEN,V

MEDIUM GRAY,TRIM1#

 1
55961-1407006

MA70

BROWN,TRIM4#

 1
55961-1407012

MA70..ARL,GEN,V

DEEP RED,TRIM3#

 1
55961-1407013

MA70

SHADOW GRAY,TRIM1#

 1
55961-1407006

MA70..LHD..C

BROWN,TRIM4#

 1
55961-1407004

MA70

DEEP BLUE,TRIM8#

 1
55961-1407002

MA70..ARL,GEN,V

MAROON,TRIM3#

 1
55962 - NOZZLE, SIDE DEFROSTER, NO.2
55962-1405006

MA70..ARL,C,EUR,GEN

BROWN,TRIM4#

 1
55962-1405002

MA70..ARL,GEN,V

MAROON,TRIM3#

 1
55962-1405003

MA70

MEDIUM GRAY,TRIM1#

 1
55962-1405003

MA70

MEDIUM GRAY,TRIM1#

 1
55962-1405004

MA70

DEEP BLUE,TRIM8#

 1
55962-1405003

MA70..C,EUR,GEN,V

MEDIUM GRAY,TRIM1#

 1
55962-1405013

MA70

SHADOW GRAY,TRIM1#

 1
55962-1405006

MA70

BROWN,TRIM4#

 1
55962-1405006

MA70..C,EUR,GEN

BROWN,TRIM4#

 1
55962-1405012

MA70..ARL,GEN,V

DEEP RED,TRIM3#

 1
55962-1405006

MA70..LHD..C

BROWN,TRIM4#

 1
Common parts
90119-06251
90179-06009
90179-06097
90179-08025
90183-05103
90467-0703001
90467-14009
90468-05047
90468-05057
91655-40616
91655-40820
93520-54010
93567-55016
93567-55020
94180-40400

(8808- )

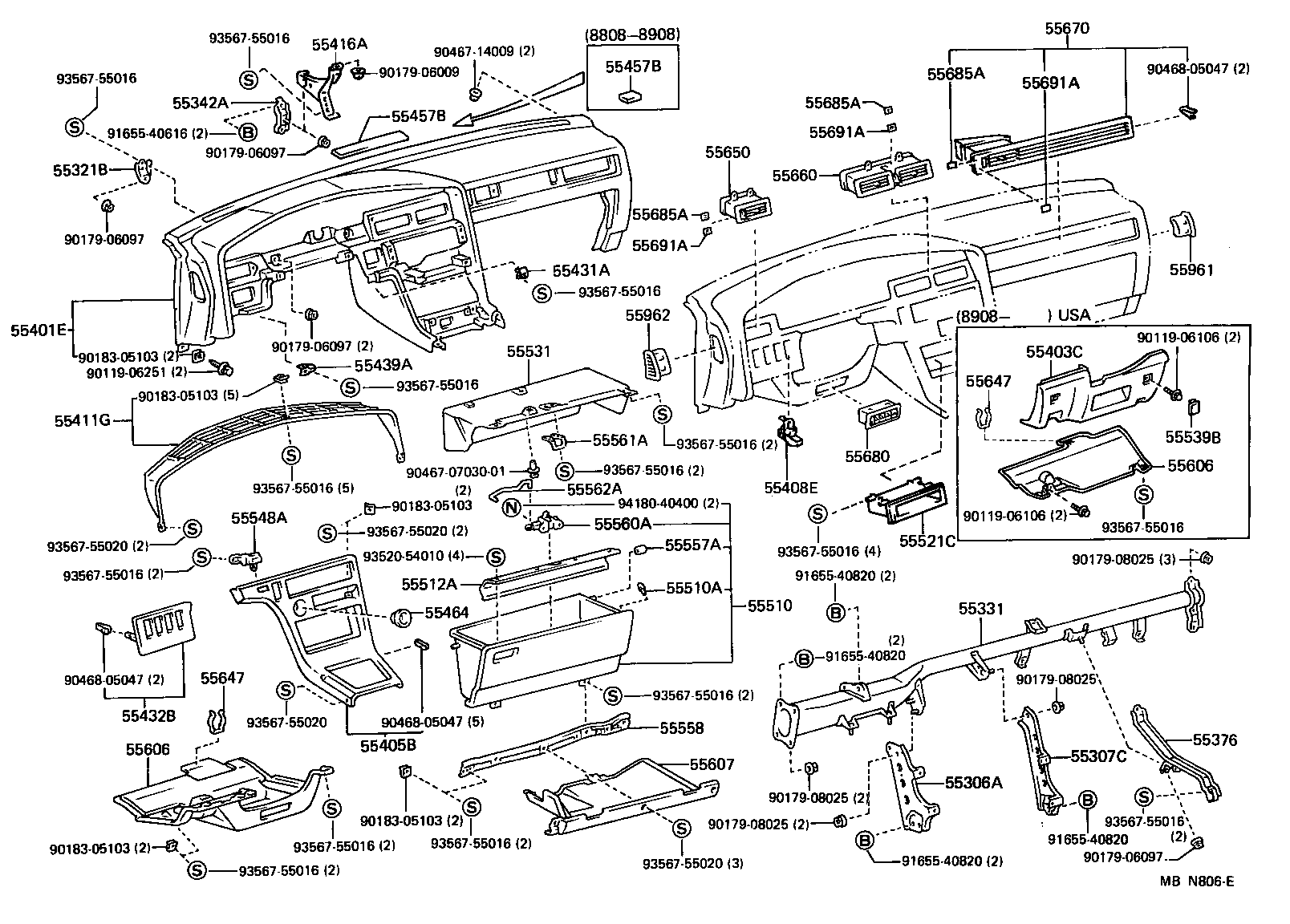

Click highlighted areas on diagram

diagram 55306A 55307C 55321B 55331 55342A 55376 55401E 55403C 55405B 55408E 55411G 55416A 55431A 55432B 55439A 55457B 55457B 55464 55510 55510A 55512A 55521C 55531 55539B 55548A 55557A 55558 55560A 55561A 55562A 55606 55606 55607 55647 55647 55650 55660 55670 55680 55685A 55685A 55685A 55691A 55691A 55691A 55961 55962 9011906106 9011906106 9011906251 9017906009 9017906097 9017906097 9017906097 9017906097 9017908025 9017908025 9017908025 9017908025 9018305103 9018305103 9018305103 9018305103 9018305103 904670703001 9046714009 9046805047 9046805047 9046805047 9165540616 9165540820 9165540820 9165540820 9165540820 9352054010 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755020 9356755020 9356755020 9356755020 9418040400
Part # Description Qty Price
Common parts
90119-06106
90119-06251
90179-06009
90179-06097
90179-08025
90183-05103
90467-0703001
90467-14009
90468-05047
91655-40616
91655-40820
93520-54010
93567-55016
93567-55020
94180-40400
