MA70L-BLMVZC (1988)
Toyota Supra

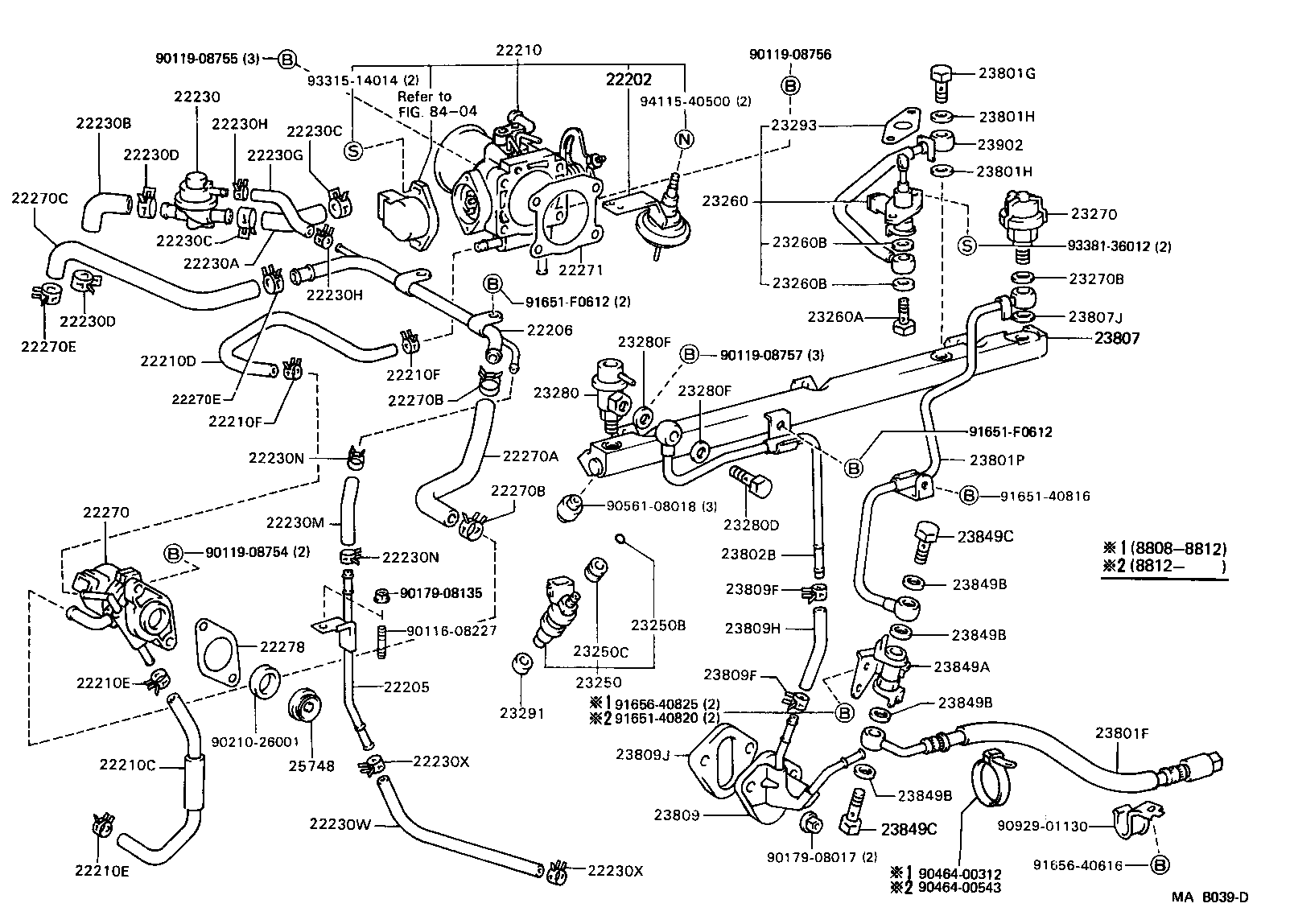

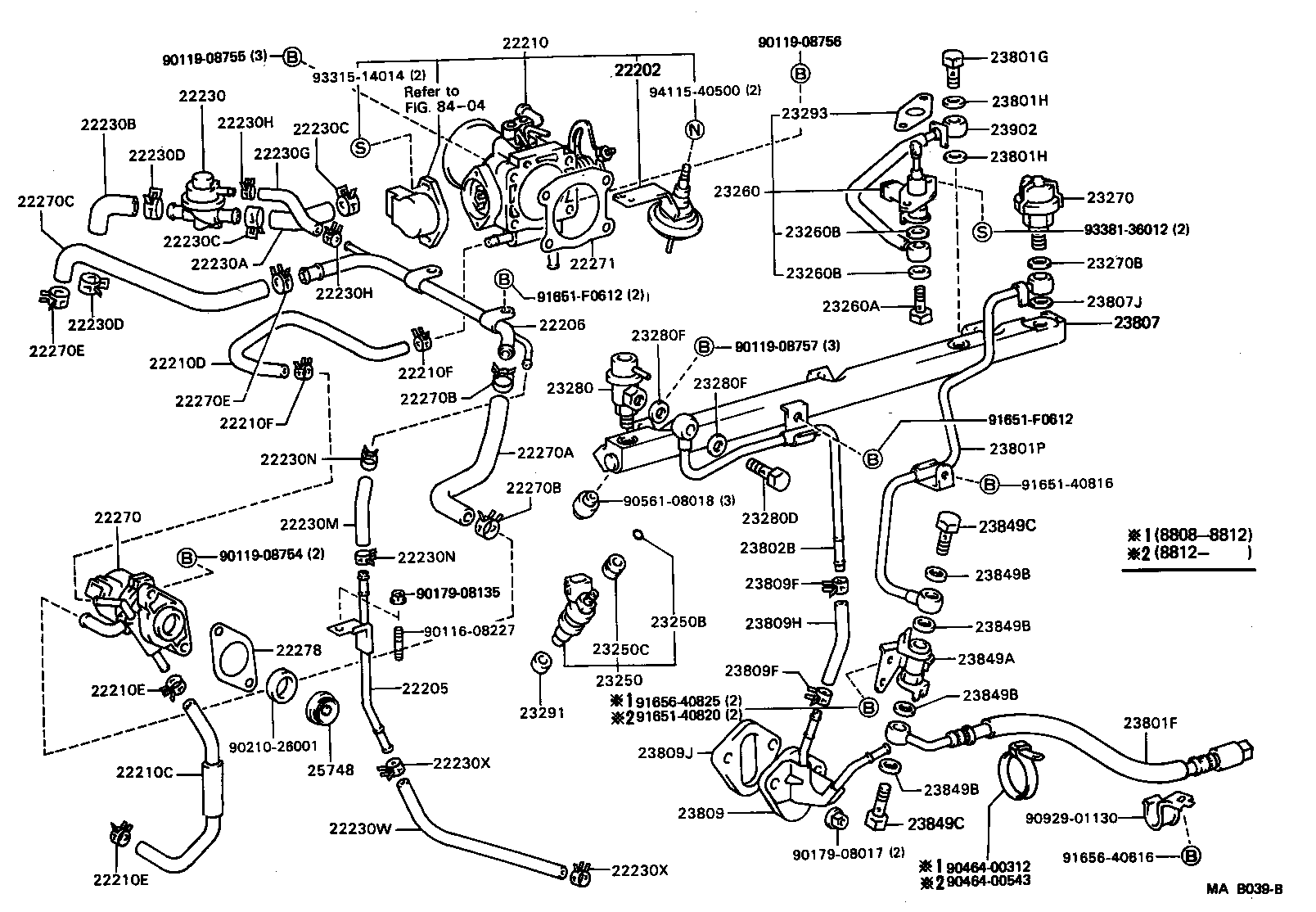

ILLUST NO. 1 OF 3(8808- )7MGTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22202 - DASH POT SUB-ASSY | ||||
| 22202-42260 |
7MGTE..MA70..5F |
1 | ||
| 22205 - PIPE SUB-ASSY, AUXILIARY AIR | ||||
| 22205-42010 |
7MGTE..MA70 |
1 | ||
| 22206 - PIPE SUB-ASSY, IDLE SPEED CONTROL | ||||
| 22206-42011 |
7MGTE..MA70 |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-42260 |
7MGTE..MA70..LHD..5F |
1 | ||
| 22210C - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-42010 |
7MG#..MA70 |
1 | ||
| 22210D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-42040 |
7MGTE..MA70 |
1 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 96135-41300 |
7MG#..MA70 |
2 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 96135-41300 |
7MG#..MA70 |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 96135-41300 |
7MG#..MA70 |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 96135-41300 |
7MG#..MA70 |
2 | ||
| 22230 - VALVE ASSY, AUXILIARY AIR | ||||
| 17670-42010 |
7MGTE..MA70 |
1 | ||
| 22230A - HOSE, AUXILIARY AIR VALVE, NO.1 | ||||
| 17341-42070 |
7MGTE..MA70 |
1 | ||
| 22230B - HOSE, AUXILIARY AIR VALVE, NO.2 | ||||
| 17342-42040 |
7MGTE..MA70 |
1 | ||
| 22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1 | ||||
| 90467-26002 |
7MGTE..MA70 |
2 | ||
| 22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1 | ||||
| 90467-26002 |
7MGTE..MA70 |
2 | ||
| 22230D - CLIP, AUXILIARY AIR VALVE HOSE, NO.2 | ||||
| 90467-26002 |
7MGTE..MA70 |
2 | ||
| 22230D - CLIP, AUXILIARY AIR VALVE HOSE, NO.2 | ||||
| 90467-26002 |
7MGTE..MA70 |
2 | ||
| 22230G - HOSE, AUXILIARY AIR VALVE, NO.3 | ||||
| 90445-10022 |
7MGTE..MA70 |
1 | ||
| 22230H - CLIP, AUXILIARY AIR VALVE HOSE, NO.3 | ||||
| 96132-30400 |
7MGTE..MA70 |
2 | ||
| 22230H - CLIP, AUXILIARY AIR VALVE HOSE, NO.3 | ||||
| 96132-30400 |
7MGTE..MA70 |
2 | ||
| 22230M - HOSE, AUXILIARY AIR VALVE, NO.4 | ||||
| 90910-05191 |
7MGTE..MA70 |
1 | ||
| 22230N - CLIP, AUXILIARY AIR VALVE, NO.4 | ||||
| 96132-30400 |
7MGTE..MA70 |
2 | ||
| 22230N - CLIP, AUXILIARY AIR VALVE, NO.4 | ||||
| 96132-30400 |
7MGTE..MA70 |
2 | ||
| 22230W - HOSE, AUXILIARY AIR VALVE, NO.5 | ||||
| 90910-05192 |
7MGTE..MA70 |
1 | ||
| 22230X - CLIP, AUXILIARY AIR VALVE, NO.5 | ||||
| 96132-30400 |
7MGTE..MA70 |
2 | ||
| 22230X - CLIP, AUXILIARY AIR VALVE, NO.5 | ||||
| 96132-30400 |
7MGTE..MA70 |
2 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-42010 |
7MGTE..MA70;7MGE..MA70..ARL,EUR,GEN,V |
1 | ||
| 22270A - HOSE, AIR, NO.1(FOR IDLE SPEED CONTROL VALVE) | ||||
| 17347-42010 |
7MGTE..MA70 |
1 | ||
| 22270B - CLIP(FOR AIR HOSE) | ||||
| 96134-42300 |
7MG#..MA70 |
2 | ||
| 22270B - CLIP(FOR AIR HOSE) | ||||
| 96134-42300 |
7MG#..MA70 |
2 | ||
| 22270C - HOSE, AIR, NO.2(FOR IDLE SPEED CONTROL VALVE) | ||||
| 17348-42010 |
7MGTE..MA70 |
1 | ||
| 22270E - CLIP(FOR AIR HOSE NO.2) | ||||
| 90467-23003 |
7MGTE..MA70 |
2 | ||
| 22270E - CLIP(FOR AIR HOSE NO.2) | ||||
| 90467-23003 |
7MGTE..MA70 |
2 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-42010 |
7MGTE..MA70 |
1 | ||
| 22271-42040 |
7MGTE..MA70 |
1 | ||
| 22278 - GASKET, IDLE SPEED CONTROL VALVE | ||||
| 22278-42010 |
7MG#..MA70 |
1 | ||
| 22278-43011 |
7MG#..MA70 |
1 | ||
| 22278-42010 |
7MGTE..MA70..LHD SWEDEN SPEC |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-42010 |
7MGTE..MA70 |
6 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
7MG#..MA70 |
6 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
7MG#..MA70 |
6 | ||
| 23260 - INJECTOR ASSY, COLD START FUEL | ||||
| 23260-49105 |
7MGTE..MA70 |
1 | ||
| 23260-49106 |
7MGTE..MA70 |
1 | ||
| 23260-49126 |
7MGTE..MA70 |
1 | ||
| 23260A - BOLT, UNION | ||||
| 90401-08003 |
7MG#..MA70 |
1 | ||
| 90401-08006 |
7MG#..MA70 |
1 | ||
| 23260B - GASKET | ||||
| 90430-08012 |
7MG#..MA70 |
2 | ||
| 90430-08005 |
7MG#..MA70 |
2 | ||
| 23260B - GASKET | ||||
| 90430-08012 |
7MG#..MA70 |
2 | ||
| 90430-08005 |
7MG#..MA70 |
2 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-42010 |
7MGTE..MA70 |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 90430-17002 |
7MG#..MA70 |
1 | ||
| 90430-17006 |
7MG#..MA70 |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-42020 |
7MGTE..MA70 |
1 | ||
| 23280D - BOLT, UNION(FOR FUEL PIPE OR HOSE SET) | ||||
| 90401-10011 |
7MG#..MA70 |
1 | ||
| 90401-10034 |
7MG#..MA70 |
1 | ||
| 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) | ||||
| 90430-10012 |
7MG#..MA70 |
2 | ||
| 90430-10204 |
7MG#..MA70 |
2 | ||
| 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) | ||||
| 90430-10012 |
7MG#..MA70 |
2 | ||
| 90430-10204 |
7MG#..MA70 |
2 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
7MG#..MA70 |
6 | ||
| 23293 - GASKET, COLD START INJECTOR | ||||
| 23293-42010 |
7MGTE..MA70..LHD SWEDEN SPEC |
1 | ||
| 23293-42010 |
7MG#..MA70 |
1 | ||
| 23293-74010 |
7MG#..MA70 |
1 | ||
| 23801F - HOSE, FUEL, NO.1 | ||||
| 90923-01336 |
7MG#..MA70 |
1 | ||
| 90923-01360 |
7MG#..MA70 |
1 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-12097 |
7MG#..MA70 |
1 | ||
| 90401-12021 |
7MG#..MA70 |
1 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12026 |
7MG#..MA70 |
2 | ||
| 90430-12005 |
7MG#..MA70 |
2 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12026 |
7MG#..MA70 |
2 | ||
| 90430-12005 |
7MG#..MA70 |
2 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-42010 |
7MG#..MA70 |
1 | ||
| 23801-42030 |
7MG#..MA70 |
1 | ||
| 23802B - PIPE SUB-ASSY, FUEL, NO.2 | ||||
| 23803-42011 |
7MG#..MA70 |
1 | ||
| 23803-42010 |
7MG#..MA70 |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-42020 |
7MG#..MA70 |
1 | ||
| 23807J - GASKET, PIPE FUEL DELIVARY INLET | ||||
| 90430-14002 |
7MG#..MA70 |
1 | ||
| 90430-14007 |
7MG#..MA70 |
1 | ||
| 23809 - SUPPORT SUB-ASSY, FUEL PIPE | ||||
| 23849-41050 |
7MG#..MA70 |
1 | ||
| 23809F - CLIP(FOR FUEL PIPE SUPPORT) | ||||
| 96135-41300 |
7MG#..MA70 |
2 | ||
| 23809F - CLIP(FOR FUEL PIPE SUPPORT) | ||||
| 96135-41300 |
7MG#..MA70 |
2 | ||
| 23809H - HOSE, FUEL PIPE SUPPORT TO REGULATOR | ||||
| 95336-08020 |
7MG#..MA70 |
1 | ||
| 23809J - INSULATOR, FUEL PIPE SUPPORT | ||||
| 90923-06012 |
7MGTE..MA70..LHD SWEDEN SPEC |
1 | ||
| 90923-06012 |
7MG#..MA70 |
1 | ||
| 90923-06007 |
7MG#..MA70 |
1 | ||
| 23849A - SUPPORT, FUEL PIPE | ||||
| 23849-42010 |
7MG#..MA70 |
1 | ||
| 23849-42020 |
7MG#..MA70 |
1 | ||
| 23849B - GASKET(FOR FUEL PIPE SUPPORT) | ||||
| 90430-12005 |
7MG#..MA70 HOSE SIDE |
2 | ||
| 90430-12026 |
7MG#..MA70 PIPE SIDE |
2 | ||
| 90430-12005 |
7MG#..MA70 |
4 | ||
| 23849B - GASKET(FOR FUEL PIPE SUPPORT) | ||||
| 90430-12005 |
7MG#..MA70 HOSE SIDE |
2 | ||
| 90430-12026 |
7MG#..MA70 PIPE SIDE |
2 | ||
| 90430-12005 |
7MG#..MA70 |
4 | ||
| 23849B - GASKET(FOR FUEL PIPE SUPPORT) | ||||
| 90430-12005 |
7MG#..MA70 HOSE SIDE |
2 | ||
| 90430-12026 |
7MG#..MA70 PIPE SIDE |
2 | ||
| 90430-12005 |
7MG#..MA70 |
4 | ||
| 23849B - GASKET(FOR FUEL PIPE SUPPORT) | ||||
| 90430-12005 |
7MG#..MA70 HOSE SIDE |
2 | ||
| 90430-12026 |
7MG#..MA70 PIPE SIDE |
2 | ||
| 90430-12005 |
7MG#..MA70 |
4 | ||
| 23849C - BOLT, UNION(FOR FUEL PIPE SUPPORT) | ||||
| 90401-12097 |
7MG#..MA70 |
2 | ||
| 23849C - BOLT, UNION(FOR FUEL PIPE SUPPORT) | ||||
| 90401-12097 |
7MG#..MA70 |
2 | ||
| 23902 - TUBE SUB-ASSY, FUEL | ||||
| 23902-42010 |
7MGTE..MA70 |
1 | ||
| 25748 - VALVE, CHECK(FOR IDLE SPEED CONTROL) | ||||
| 25748-88341 |
7MGTE..MA70 |
1 | ||
| Common parts | ||||
| 90116-08227 | ||||
| 90119-08754 | ||||
| 90119-08755 | ||||
| 90119-08756 | ||||
| 90119-08757 | ||||
| 90179-08017 | ||||
| 90179-08135 | ||||
| 90210-26001 | ||||
| 90464-00312 | ||||
| 90464-00543 | ||||
| 90561-08018 | ||||
| 90929-01130 | ||||
| 91651-40816 | ||||
| 91651-40820 | ||||
| 91651-F0612 | ||||
| 91656-40616 | ||||
| 91656-40825 | ||||
| 93315-14014 | ||||
| 93381-36012 | ||||
| 94115-40500 | ||||
| Linked diagrams | ||||
| 8404 | ||||
ILLUST NO. 2 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23091 - TUBE SUB-ASSY, FUEL PUMP | ||||
| 23091-42040 |
7MG#..MA70 |
1 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-49155 |
7MG#..MA70..ARL,C,EUR |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
7MG#..MA70 |
2 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
7MG#..MA70 |
2 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
7MG#..MA70 |
2 | ||
| Common parts | ||||
| 91655-40616 | ||||
ILLUST NO. 3 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23206A - BRACKET, FUEL PUMP | ||||
| 23206-42060 |
7MGTE..MA70 |
1 | ||
| 23206B - GASKET, FUEL PUMP BRACKET | ||||
| 77169-14010 |
7MG#..MA70 |
1 | ||
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-16030 |
7MG#..MA70 |
1 | ||
| 23217-61010 |
7MG#..MA70..ARL,C |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23220-42070 |
7MGTE..MA70 |
1 | ||
| 23221-42130 |
7MG#..MA70..ARL,C |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
7MG#..MA70 |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 23239-16010 |
7MG#..MA70 |
1 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13001 |
7MGTE..MA70;7MGE..MA70..GEN,V |
2 | ||
| 90467-13054 |
7MG#..MA70 |
2 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13001 |
7MGTE..MA70;7MGE..MA70..GEN,V |
2 | ||
| 90467-13054 |
7MG#..MA70 |
2 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-43080 |
7MG#..MA70 |
1 | ||
| Common parts | ||||
| 90159-50157 | ||||
| 94115-40400 | ||||
| 94115-40500 | ||||
| 94511-00400 | ||||
| 94511-00500 | ||||
ILLUST NO. 1 OF 3(8808- )7MGTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90116-08227 | ||||
| 90119-08754 | ||||
| 90119-08755 | ||||
| 90119-08756 | ||||
| 90119-08757 | ||||
| 90179-08017 | ||||
| 90179-08135 | ||||
| 90210-26001 | ||||
| 90464-00312 | ||||
| 90464-00543 | ||||
| 90561-08018 | ||||
| 90929-01130 | ||||
| 91651-40816 | ||||
| 91651-40820 | ||||
| 91651-F0612 | ||||
| 91656-40616 | ||||
| 91656-40825 | ||||
| 93315-14014 | ||||
| 93381-36012 | ||||
| 94115-40500 | ||||
| Linked diagrams | ||||
| 8404 | ||||
ILLUST NO. 2 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23091 - TUBE SUB-ASSY, FUEL PUMP | ||||
| 23091-42040 |
7MG#..MA70 |
1 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-49155 |
7MG#..MA70..ARL,C,EUR |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
7MG#..MA70 |
2 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
7MG#..MA70 |
2 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
7MG#..MA70 |
2 | ||
| Common parts | ||||
| 91655-40616 | ||||
ILLUST NO. 3 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23206A - BRACKET, FUEL PUMP | ||||
| 23206-42060 |
7MGTE..MA70 |
1 | ||
| 23206B - GASKET, FUEL PUMP BRACKET | ||||
| 77169-14010 |
7MG#..MA70 |
1 | ||
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-16030 |
7MG#..MA70 |
1 | ||
| 23217-61010 |
7MG#..MA70..ARL,C |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23220-42070 |
7MGTE..MA70 |
1 | ||
| 23221-42130 |
7MG#..MA70..ARL,C |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
7MG#..MA70 |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 23239-16010 |
7MG#..MA70 |
1 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13001 |
7MGTE..MA70;7MGE..MA70..GEN,V |
2 | ||
| 90467-13054 |
7MG#..MA70 |
2 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13001 |
7MGTE..MA70;7MGE..MA70..GEN,V |
2 | ||
| 90467-13054 |
7MG#..MA70 |
2 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-43080 |
7MG#..MA70 |
1 | ||
| Common parts | ||||
| 90159-50157 | ||||
| 94115-40400 | ||||
| 94115-40500 | ||||
| 94511-00400 | ||||
| 94511-00500 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
