MA70L-BLMVFW (1988)
Toyota Supra

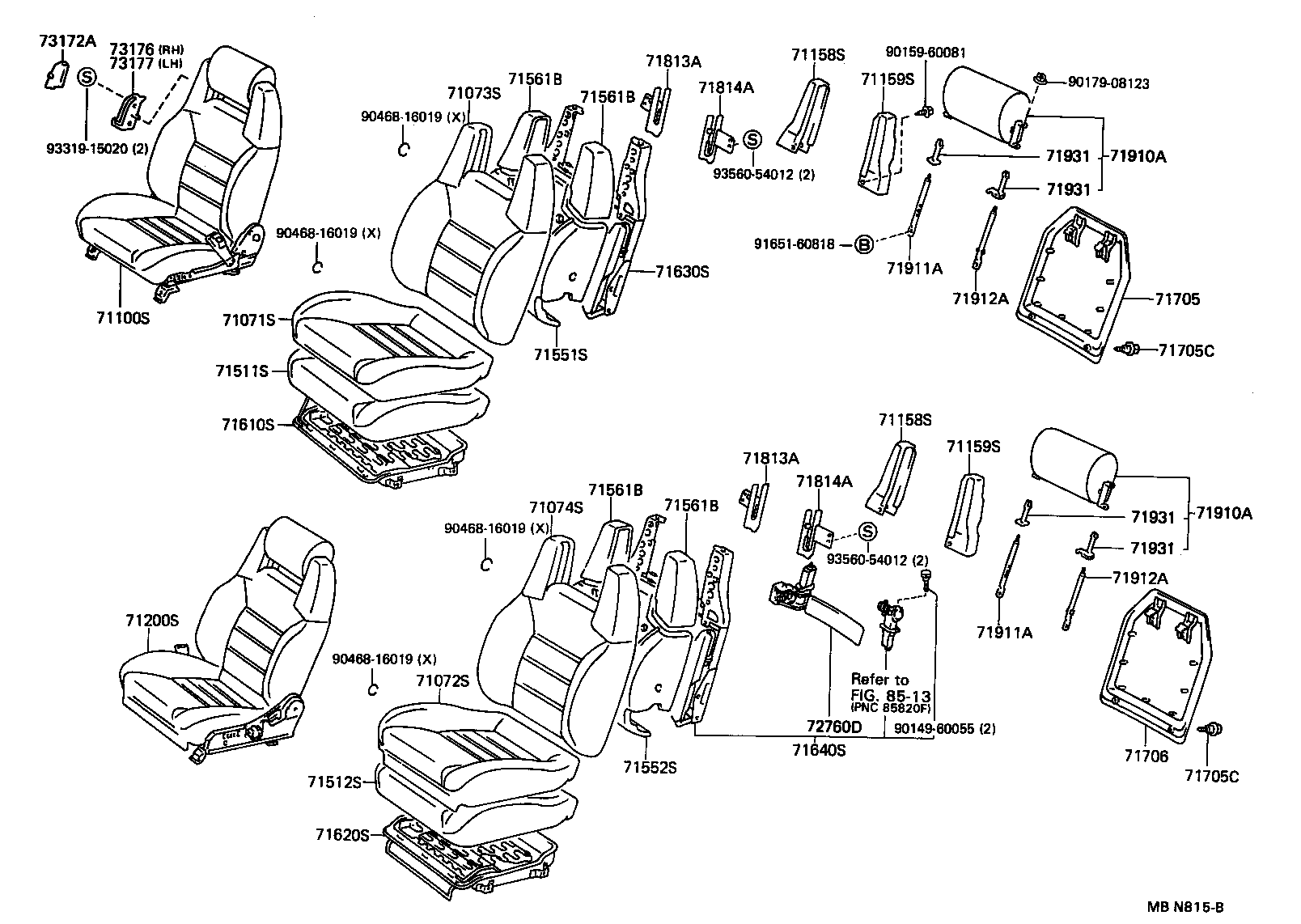

ILLUST NO. 1 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1D18203 |
MA70..LHD..(C,EUR) MEDIUM GRAY,TRIM1# |
1 | ||
| 71071-1D21106 |
MA70..LHD..(C,EUR,GEN) W(LEATHER SEAT),BRWON,TRIM4# |
1 | ||
| 71071-1D18204 |
MA70..LHD..(C,EUR) DEEP BLUE,TRIM8# |
1 | ||
| 71071-1D23203 |
MA70..LHD..(GEN,V) MEDIUM GRAY,TRIM1# |
1 | ||
| 71071-1D23204 |
MA70..LHD..(GEN,V) DEEP BLUE,TRIM8# |
1 | ||
| 71071-1D18206 |
MA70..LHD..(C,EUR) BROWN,TRIM4# |
1 | ||
| 71071-1D21102 |
MA70..LHD..(GEN,V) W(LEATHER SEAT),MAROON,TRIM3# |
1 | ||
| 71071-1D23202 |
MA70..LHD..(GEN,V) MAROON,TRIM3# |
1 | ||
| 71071-1D21103 |
MA70..LHD W(LEATHER SEAT),MEDIUM GRAY,TRIM1# |
1 | ||
| 71071-1D29203 |
MA70..LHD..(C,EUR) W(SEAT HEATER),MEDIUM GRAY,TRIM1# |
1 | ||
| 71071-1D21104 |
MA70..LHD W(LEATHER SEAT),DEEP BLUE,TRIM8# |
1 | ||
| 71071-1D29206 |
MA70..LHD..(C,EUR) W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71071-1D29204 |
MA70..LHD..(C,EUR) W(SEAT HEATER),DEEP BLUE,TRIM8# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-1D19203 |
MA70..LHD..(C,EUR) MEDIUM GRAY,TRIM1# |
1 | ||
| 71072-1D24203 |
MA70..LHD..(GEN,V) MEDIUM GRAY,TRIM1# |
1 | ||
| 71072-1D19204 |
MA70..LHD..(C,EUR) DEEP BLUE,TRIM8# |
1 | ||
| 71072-1D24204 |
MA70..LHD..(GEN,V) DEEP BLUE,TRIM8# |
1 | ||
| 71072-1D28106 |
MA70..LHD..(C,EUR,GEN) W(LEATHER SEAT),BRWON,TRIM4# |
1 | ||
| 71072-1D34203 |
MA70..LHD..(C,EUR) W(SEAT HEATER),MEDIUM GRAY,TRIM1# |
1 | ||
| 71072-1D24202 |
MA70..LHD..(GEN,V) MAROON,TRIM3# |
1 | ||
| 71072-1D28104 |
MA70..LHD W(LEATHER SEAT),DEEP BLUE,TRIM8# |
1 | ||
| 71072-1D34204 |
MA70..LHD..(C,EUR) W(SEAT HEATER),DEEP BLUE,TRIM8# |
1 | ||
| 71072-1D28103 |
MA70..LHD W(LEATHER SEAT),MEDIUM GRAY,TRIM1# |
1 | ||
| 71072-1D19206 |
MA70..LHD..(C,EUR) BROWN,TRIM4# |
1 | ||
| 71072-1D34206 |
MA70..LHD..(C,EUR) W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71072-1D28102 |
MA70..LHD..(GEN,V) W(LEATHER SEAT),MAROON,TRIM3# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1B65103 |
MA70..ARL,GEN,V MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-1B60203 |
MA70..LHD..(C,EUR) MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-1B60204 |
MA70..LHD..(C,EUR) DEEP BLUE,TRIM8# |
1 | ||
| 71073-1B66106 |
MA70..GEN;MA70..LHD..(C,EUR) W(LEATHER SEAT),BRWON,TRIM4# |
1 | ||
| 71073-1B60206 |
MA70..LHD..(C,EUR) BROWN,TRIM4# |
1 | ||
| 71073-1B65102 |
MA70..ARL,GEN,V MAROON,TRIM3# |
1 | ||
| 71073-1B72203 |
MA70..LHD..(C,EUR) W(SEAT HEATER),MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-1B72204 |
MA70..LHD..(C,EUR) W(SEAT HEATER),DEEP BLUE,TRIM8# |
1 | ||
| 71073-1B65103 |
MA70..GEN,V MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-1B66102 |
MA70..GEN,V W(LEATHER SEAT),MAROON,TRIM3# |
1 | ||
| 71073-1B72206 |
MA70..LHD..(C,EUR) W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71073-1B65104 |
MA70..ARL,GEN,V DEEP BLUE,TRIM8# |
1 | ||
| 71073-1B66103 |
MA70..GEN,V;MA70..LHD..(C,EUR) W(LEATHER SEAT),MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-1B66104 |
MA70..GEN,V;MA70..LHD..(C,EUR) W(LEATHER SEAT),DEEP BLUE,TRIM8# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1B65103 |
MA70..ARL,GEN,V MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-1B60203 |
MA70..LHD..(C,EUR) MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-1B60204 |
MA70..LHD..(C,EUR) DEEP BLUE,TRIM8# |
1 | ||
| 71073-1B66106 |
MA70..GEN;MA70..LHD..(C,EUR) W(LEATHER SEAT),BRWON,TRIM4# |
1 | ||
| 71073-1B60206 |
MA70..LHD..(C,EUR) BROWN,TRIM4# |
1 | ||
| 71073-1B65102 |
MA70..ARL,GEN,V MAROON,TRIM3# |
1 | ||
| 71073-1B72203 |
MA70..LHD..(C,EUR) W(SEAT HEATER),MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-1B72204 |
MA70..LHD..(C,EUR) W(SEAT HEATER),DEEP BLUE,TRIM8# |
1 | ||
| 71073-1B65103 |
MA70..GEN,V MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-1B66102 |
MA70..GEN,V W(LEATHER SEAT),MAROON,TRIM3# |
1 | ||
| 71073-1B72206 |
MA70..LHD..(C,EUR) W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71073-1B65104 |
MA70..ARL,GEN,V DEEP BLUE,TRIM8# |
1 | ||
| 71073-1B66103 |
MA70..GEN,V;MA70..LHD..(C,EUR) W(LEATHER SEAT),MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-1B66104 |
MA70..GEN,V;MA70..LHD..(C,EUR) W(LEATHER SEAT),DEEP BLUE,TRIM8# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1473104 |
MA70..ARL,GEN,V DEEP BLUE,TRIM8# |
1 | ||
| 71074-1478204 |
MA70..LHD..(C,EUR) W(SEAT HEATER),DEEP BLUE,TRIM8# |
1 | ||
| 71074-1473103 |
MA70..ARL,GEN,V MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-1473102 |
MA70..ARL,GEN,V MAROON,TRIM3# |
1 | ||
| 71074-1481103 |
MA70..LHD..(C,EUR) MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-1474106 |
MA70..GEN;MA70..LHD..(C,EUR) W(LEATHER SEAT),BRWON,TRIM4# |
1 | ||
| 71074-1481104 |
MA70..LHD..(C,EUR) DEEP BLUE,TRIM8# |
1 | ||
| 71074-1478203 |
MA70..LHD..(C,EUR) W(SEAT HEATER),MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-1474102 |
MA70..GEN,V W(LEATHER SEAT),MAROON,TRIM3# |
1 | ||
| 71074-1478206 |
MA70..LHD..(C,EUR) W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71074-1473103 |
MA70..GEN,V MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-1481106 |
MA70..LHD..(C,EUR) BROWN,TRIM4# |
1 | ||
| 71074-1474103 |
MA70..GEN,V;MA70..LHD..(C,EUR) W(LEATHER SEAT),MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-1474104 |
MA70..GEN,V;MA70..LHD..(C,EUR) W(LEATHER SEAT),DEEP BLUE,TRIM8# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1473104 |
MA70..ARL,GEN,V DEEP BLUE,TRIM8# |
1 | ||
| 71074-1478204 |
MA70..LHD..(C,EUR) W(SEAT HEATER),DEEP BLUE,TRIM8# |
1 | ||
| 71074-1473103 |
MA70..ARL,GEN,V MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-1473102 |
MA70..ARL,GEN,V MAROON,TRIM3# |
1 | ||
| 71074-1481103 |
MA70..LHD..(C,EUR) MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-1474106 |
MA70..GEN;MA70..LHD..(C,EUR) W(LEATHER SEAT),BRWON,TRIM4# |
1 | ||
| 71074-1481104 |
MA70..LHD..(C,EUR) DEEP BLUE,TRIM8# |
1 | ||
| 71074-1478203 |
MA70..LHD..(C,EUR) W(SEAT HEATER),MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-1474102 |
MA70..GEN,V W(LEATHER SEAT),MAROON,TRIM3# |
1 | ||
| 71074-1478206 |
MA70..LHD..(C,EUR) W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71074-1473103 |
MA70..GEN,V MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-1481106 |
MA70..LHD..(C,EUR) BROWN,TRIM4# |
1 | ||
| 71074-1474103 |
MA70..GEN,V;MA70..LHD..(C,EUR) W(LEATHER SEAT),MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-1474104 |
MA70..GEN,V;MA70..LHD..(C,EUR) W(LEATHER SEAT),DEEP BLUE,TRIM8# |
1 | ||
| 71158S - FRAME, FRONT SEAT BACK, UPPER RH | ||||
| 71158-14060 |
MA70..ARL,GEN,V;MA70..LHD..(C,EUR) LH |
1 | ||
| 71158-14070 |
MA70..ARL,GEN,V;MA70..LHD..(C,EUR) RH |
1 | ||
| 71158S - FRAME, FRONT SEAT BACK, UPPER RH | ||||
| 71158-14060 |
MA70..ARL,GEN,V;MA70..LHD..(C,EUR) LH |
1 | ||
| 71158-14070 |
MA70..ARL,GEN,V;MA70..LHD..(C,EUR) RH |
1 | ||
| 71159S - FRAME, FRONT SEAT BACK, UPPER LH | ||||
| 71159-14060 |
MA70..ARL,GEN,V;MA70..LHD..(C,EUR) LH |
1 | ||
| 71159-14050 |
MA70..ARL,GEN,V;MA70..LHD..(C,EUR) RH |
1 | ||
| 71159S - FRAME, FRONT SEAT BACK, UPPER LH | ||||
| 71159-14060 |
MA70..ARL,GEN,V;MA70..LHD..(C,EUR) LH |
1 | ||
| 71159-14050 |
MA70..ARL,GEN,V;MA70..LHD..(C,EUR) RH |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1D26202 |
MA70..LHD..(GEN,V) ***,MAROON,TRIM3# |
1 | ||
| 71410-1D26203 |
MA70..LHD..(GEN,V) ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71410-1D35204 |
MA70..LHD..(C,EUR) ***,W(SEAT HEATER),DEEP BLUE,TRIM8# |
1 | ||
| 71410-1D42006 |
MA70..LHD..(C,EUR) ***,W(LEATHER SEAT),BRWON,TRIM4# |
1 | ||
| 71410-1D26204 |
MA70..LHD..(GEN,V) ***,DEEP BLUE,TRIM8# |
1 | ||
| 71410-1D40006 |
MA70..LHD..(C,EUR) ***,BROWN,TRIM4# |
1 | ||
| 71410-1D40004 |
MA70..LHD..(C,EUR) ***,DEEP BLUE,TRIM8# |
1 | ||
| 71410-1D35203 |
MA70..LHD..(C,EUR) ***,W(SEAT HEATER),MEDIUM GRAY,TRIM1# |
1 | ||
| 71410-1D40003 |
MA70..LHD..(C,EUR) ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71410-1D35206 |
MA70..LHD..(C,EUR) ***,W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71410-1D30102 |
MA70..LHD..(GEN,V) ***,W(LEATHER SEAT),MAROON,TRIM3# |
1 | ||
| 71410-1D42004 |
MA70..LHD..(C,EUR) ***,W(LEATHER SEAT),DEEP BLUE,TRIM8# |
1 | ||
| 71410-1D30103 |
MA70..LHD..(GEN,V) ***,W(LEATHER SEAT),MEDIUM GRAY,TRIM1# |
1 | ||
| 71410-1D30104 |
MA70..LHD..(GEN,V) ***,W(LEATHER SEAT),DEEP BLUE,TRIM8# |
1 | ||
| 71410-1D42003 |
MA70..LHD..(C,EUR) ***,W(LEATHER SEAT),MEDIUM GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1D30203 |
MA70..LHD..(GEN,V) ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71420-1D39206 |
MA70..LHD..(C,EUR) ***,W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71420-1D39203 |
MA70..LHD..(C,EUR) ***,W(SEAT HEATER),MEDIUM GRAY,TRIM1# |
1 | ||
| 71420-1D30202 |
MA70..LHD..(GEN,V) ***,MAROON,TRIM3# |
1 | ||
| 71420-1D39204 |
MA70..LHD..(C,EUR) ***,W(SEAT HEATER),DEEP BLUE,TRIM8# |
1 | ||
| 71420-1D30204 |
MA70..LHD..(GEN,V) ***,DEEP BLUE,TRIM8# |
1 | ||
| 71420-1D44004 |
MA70..LHD..(C,EUR) ***,DEEP BLUE,TRIM8# |
1 | ||
| 71420-1D44003 |
MA70..LHD..(C,EUR) ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71420-1D44006 |
MA70..LHD..(C,EUR) ***,BROWN,TRIM4# |
1 | ||
| 71420-1D46006 |
MA70..LHD..(C,EUR) ***,W(LEATHER SEAT),BRWON,TRIM4# |
1 | ||
| 71420-1D46003 |
MA70..LHD..(C,EUR) ***,W(LEATHER SEAT),MEDIUM GRAY,TRIM1# |
1 | ||
| 71420-1D33104 |
MA70..LHD..(GEN,V) ***,W(LEATHER SEAT),DEEP BLUE,TRIM8# |
1 | ||
| 71420-1D33102 |
MA70..LHD..(GEN,V) ***,W(LEATHER SEAT),MAROON,TRIM3# |
1 | ||
| 71420-1D46004 |
MA70..LHD..(C,EUR) ***,W(LEATHER SEAT),DEEP BLUE,TRIM8# |
1 | ||
| 71420-1D33103 |
MA70..LHD..(GEN,V) ***,W(LEATHER SEAT),MEDIUM GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1D01202 |
MA70..V ***,MAROON,TRIM3# |
1 | ||
| 71430-1D01203 |
MA70..V ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71430-1D18204 |
MA70..LHD..(C,EUR) ***,W(SEAT HEATER),DEEP BLUE,TRIM8# |
1 | ||
| 71430-1D23003 |
MA70..LHD..(C,EUR) ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71430-1D18203 |
MA70..LHD..(C,EUR) ***,W(SEAT HEATER),MEDIUM GRAY,TRIM1# |
1 | ||
| 71430-1D18206 |
MA70..LHD..(C,EUR) ***,W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71430-1D01204 |
MA70..V ***,DEEP BLUE,TRIM8# |
1 | ||
| 71430-1D23004 |
MA70..LHD..(C,EUR) ***,DEEP BLUE,TRIM8# |
1 | ||
| 71430-1D23006 |
MA70..LHD..(C,EUR) ***,BROWN,TRIM4# |
1 | ||
| 71430-1D20102 |
MA70..V ***,W(LEATHER SEAT),MAROON,TRIM3# |
1 | ||
| 71430-1D24006 |
MA70..LHD..(C,EUR) ***,W(LEATHER SEAT),BRWON,TRIM4# |
1 | ||
| 71430-1D24004 |
MA70..LHD..(C,EUR) ***,W(LEATHER SEAT),DEEP BLUE,TRIM8# |
1 | ||
| 71430-1D20103 |
MA70..V ***,W(LEATHER SEAT),MEDIUM GRAY,TRIM1# |
1 | ||
| 71430-1D20104 |
MA70..V ***,W(LEATHER SEAT),DEEP BLUE,TRIM8# |
1 | ||
| 71430-1D24003 |
MA70..LHD..(C,EUR) ***,W(LEATHER SEAT),MEDIUM GRAY,TRIM1# |
1 | ||

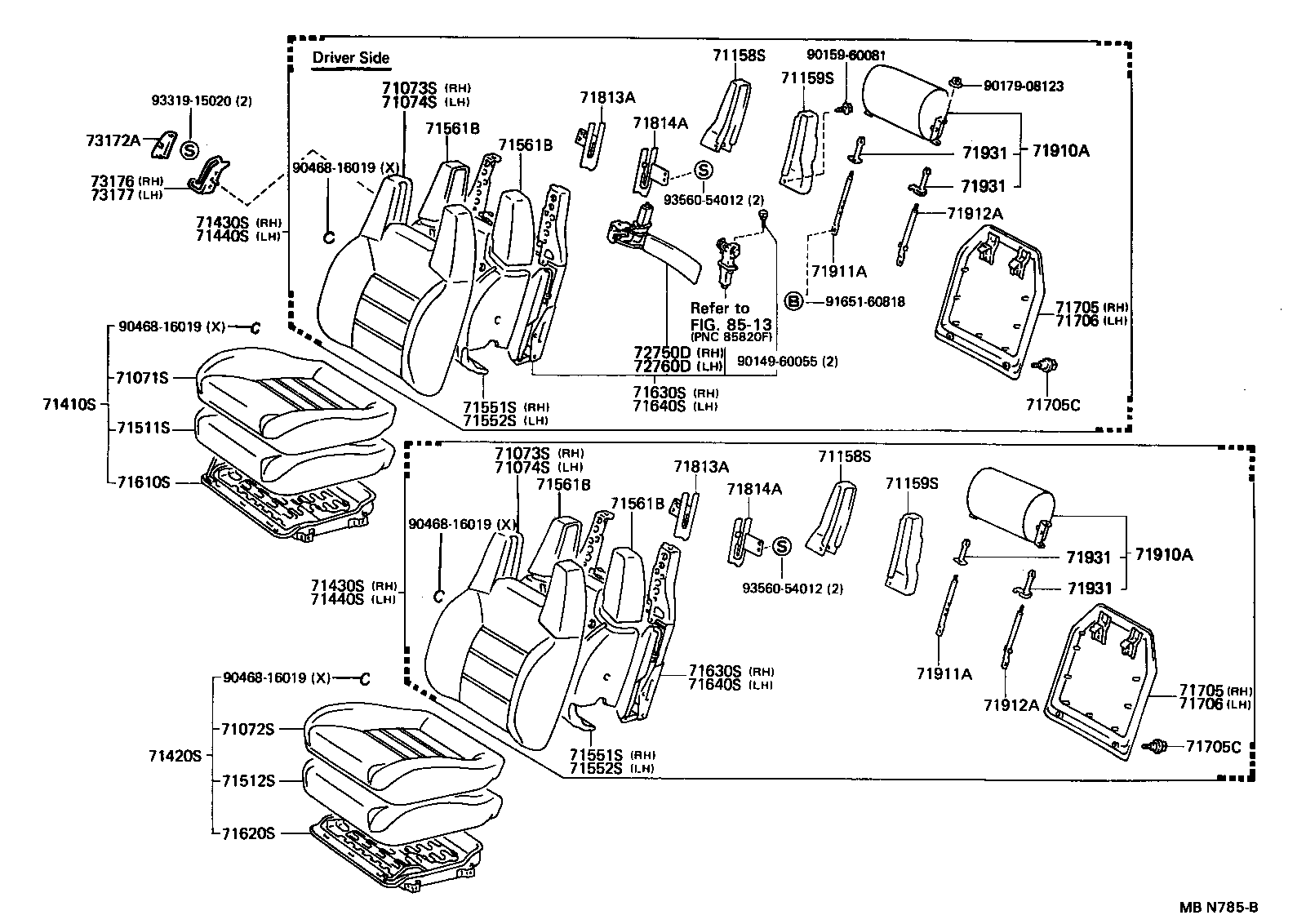

| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1D01202 |
MA70..V ***,MAROON,TRIM3# |
1 | ||
| 71430-1D01203 |
MA70..V ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71430-1D18204 |
MA70..LHD..(C,EUR) ***,W(SEAT HEATER),DEEP BLUE,TRIM8# |
1 | ||
| 71430-1D23003 |
MA70..LHD..(C,EUR) ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71430-1D18203 |
MA70..LHD..(C,EUR) ***,W(SEAT HEATER),MEDIUM GRAY,TRIM1# |
1 | ||
| 71430-1D18206 |
MA70..LHD..(C,EUR) ***,W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71430-1D01204 |
MA70..V ***,DEEP BLUE,TRIM8# |
1 | ||
| 71430-1D23004 |
MA70..LHD..(C,EUR) ***,DEEP BLUE,TRIM8# |
1 | ||
| 71430-1D23006 |
MA70..LHD..(C,EUR) ***,BROWN,TRIM4# |
1 | ||
| 71430-1D20102 |
MA70..V ***,W(LEATHER SEAT),MAROON,TRIM3# |
1 | ||
| 71430-1D24006 |
MA70..LHD..(C,EUR) ***,W(LEATHER SEAT),BRWON,TRIM4# |
1 | ||
| 71430-1D24004 |
MA70..LHD..(C,EUR) ***,W(LEATHER SEAT),DEEP BLUE,TRIM8# |
1 | ||
| 71430-1D20103 |
MA70..V ***,W(LEATHER SEAT),MEDIUM GRAY,TRIM1# |
1 | ||
| 71430-1D20104 |
MA70..V ***,W(LEATHER SEAT),DEEP BLUE,TRIM8# |
1 | ||
| 71430-1D24003 |
MA70..LHD..(C,EUR) ***,W(LEATHER SEAT),MEDIUM GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1D16203 |
MA70..LHD..(C,EUR) ***,W(SEAT HEATER),MEDIUM GRAY,TRIM1# |
1 | ||
| 71440-1D16204 |
MA70..LHD..(C,EUR) ***,W(SEAT HEATER),DEEP BLUE,TRIM8# |
1 | ||
| 71440-1D16206 |
MA70..LHD..(C,EUR) ***,W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71440-1D21103 |
MA70..V ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71440-1D21104 |
MA70..V ***,DEEP BLUE,TRIM8# |
1 | ||
| 71440-1D21102 |
MA70..V ***,MAROON,TRIM3# |
1 | ||
| 71440-1D25004 |
MA70..LHD..(C,EUR) ***,DEEP BLUE,TRIM8# |
1 | ||
| 71440-1D26006 |
MA70..LHD..(C,EUR) ***,W(LEATHER SEAT),BRWON,TRIM4# |
1 | ||
| 71440-1D25006 |
MA70..LHD..(C,EUR) ***,BROWN,TRIM4# |
1 | ||
| 71440-1D18103 |
MA70..V ***,W(LEATHER SEAT),MEDIUM GRAY,TRIM1# |
1 | ||
| 71440-1D18104 |
MA70..V ***,W(LEATHER SEAT),DEEP BLUE,TRIM8# |
1 | ||
| 71440-1D25003 |
MA70..LHD..(C,EUR) ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71440-1D26004 |
MA70..LHD..(C,EUR) ***,W(LEATHER SEAT),DEEP BLUE,TRIM8# |
1 | ||
| 71440-1D18102 |
MA70..V ***,W(LEATHER SEAT),MAROON,TRIM3# |
1 | ||
| 71440-1D26003 |
MA70..LHD..(C,EUR) ***,W(LEATHER SEAT),MEDIUM GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1D16203 |
MA70..LHD..(C,EUR) ***,W(SEAT HEATER),MEDIUM GRAY,TRIM1# |
1 | ||
| 71440-1D16204 |
MA70..LHD..(C,EUR) ***,W(SEAT HEATER),DEEP BLUE,TRIM8# |
1 | ||
| 71440-1D16206 |
MA70..LHD..(C,EUR) ***,W(SEAT HEATER),BROWN,TRIM4# |
1 | ||
| 71440-1D21103 |
MA70..V ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71440-1D21104 |
MA70..V ***,DEEP BLUE,TRIM8# |
1 | ||
| 71440-1D21102 |
MA70..V ***,MAROON,TRIM3# |
1 | ||
| 71440-1D25004 |
MA70..LHD..(C,EUR) ***,DEEP BLUE,TRIM8# |
1 | ||
| 71440-1D26006 |
MA70..LHD..(C,EUR) ***,W(LEATHER SEAT),BRWON,TRIM4# |
1 | ||
| 71440-1D25006 |
MA70..LHD..(C,EUR) ***,BROWN,TRIM4# |
1 | ||
| 71440-1D18103 |
MA70..V ***,W(LEATHER SEAT),MEDIUM GRAY,TRIM1# |
1 | ||
| 71440-1D18104 |
MA70..V ***,W(LEATHER SEAT),DEEP BLUE,TRIM8# |
1 | ||
| 71440-1D25003 |
MA70..LHD..(C,EUR) ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71440-1D26004 |
MA70..LHD..(C,EUR) ***,W(LEATHER SEAT),DEEP BLUE,TRIM8# |
1 | ||
| 71440-1D18102 |
MA70..V ***,W(LEATHER SEAT),MAROON,TRIM3# |
1 | ||
| 71440-1D26003 |
MA70..LHD..(C,EUR) ***,W(LEATHER SEAT),MEDIUM GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-14211 |
MA70 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-14021 |
MA70 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-14210 |
MA70 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-14210 |
MA70 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-14210 |
MA70 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-14210 |
MA70 |
1 | ||
| 71561B - PAD, FRONT SEAT BACK, UPPER | ||||
| 71562-14070 |
MA70..ARL,GEN,V;MA70..LHD..(C,EUR) DRIVER SEAT,LH |
1 | ||
| 71561-14190 |
MA70..ARL,GEN,V;MA70..LHD..(C,EUR) DRIVER SEAT,RH |
1 | ||
| 71561-14210 |
MA70..ARL,GEN,V;MA70..LHD..(C,EUR) PASSENGER SEAT,RH |
1 | ||
| 71562-14060 |
MA70..ARL,GEN,V;MA70..LHD..(C,EUR) PASSENGER SEAT,LH |
1 | ||
| 71561B - PAD, FRONT SEAT BACK, UPPER | ||||
| 71562-14070 |
MA70..ARL,GEN,V;MA70..LHD..(C,EUR) DRIVER SEAT,LH |
1 | ||
| 71561-14190 |
MA70..ARL,GEN,V;MA70..LHD..(C,EUR) DRIVER SEAT,RH |
1 | ||
| 71561-14210 |
MA70..ARL,GEN,V;MA70..LHD..(C,EUR) PASSENGER SEAT,RH |
1 | ||
| 71562-14060 |
MA70..ARL,GEN,V;MA70..LHD..(C,EUR) PASSENGER SEAT,LH |
1 | ||
| 71561B - PAD, FRONT SEAT BACK, UPPER | ||||
| 71562-14070 |
MA70..ARL,GEN,V;MA70..LHD..(C,EUR) DRIVER SEAT,LH |
1 | ||
| 71561-14190 |
MA70..ARL,GEN,V;MA70..LHD..(C,EUR) DRIVER SEAT,RH |
1 | ||
| 71561-14210 |
MA70..ARL,GEN,V;MA70..LHD..(C,EUR) PASSENGER SEAT,RH |
1 | ||
| 71562-14060 |
MA70..ARL,GEN,V;MA70..LHD..(C,EUR) PASSENGER SEAT,LH |
1 | ||
| 71561B - PAD, FRONT SEAT BACK, UPPER | ||||
| 71562-14070 |
MA70..ARL,GEN,V;MA70..LHD..(C,EUR) DRIVER SEAT,LH |
1 | ||
| 71561-14190 |
MA70..ARL,GEN,V;MA70..LHD..(C,EUR) DRIVER SEAT,RH |
1 | ||
| 71561-14210 |
MA70..ARL,GEN,V;MA70..LHD..(C,EUR) PASSENGER SEAT,RH |
1 | ||
| 71562-14060 |
MA70..ARL,GEN,V;MA70..LHD..(C,EUR) PASSENGER SEAT,LH |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-14250 |
MA70..LHD |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-14200 |
MA70..LHD |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-14230 |
MA70..LHD |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-14230 |
MA70..LHD |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-14210 |
MA70..LHD |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-14210 |
MA70..LHD |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-2409006 |
MA70..C,EUR,GEN LIGHT BROWN,TRIM4# |
1 | ||
| 71705-2409002 |
MA70..ARL,GEN,V MAROON,TRIM3# |
1 | ||
| 71705-2409003 |
MA70 LIGHT GRAY,TRIM1# |
1 | ||
| 71705-2409014 |
MA70 DEEP BLUE,TRIM8# |
1 | ||
| 71705-2409003 |
MA70..C,EUR,GEN,V LIGHT GRAY,TRIM1# |
1 | ||
| 71705-2409006 |
MA70..ARL,C,EUR,GEN LIGHT BROWN,TRIM4# |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-2409006 |
MA70..C,EUR,GEN LIGHT BROWN,TRIM4# |
1 | ||
| 71705-2409002 |
MA70..ARL,GEN,V MAROON,TRIM3# |
1 | ||
| 71705-2409003 |
MA70 LIGHT GRAY,TRIM1# |
1 | ||
| 71705-2409014 |
MA70 DEEP BLUE,TRIM8# |
1 | ||
| 71705-2409003 |
MA70..C,EUR,GEN,V LIGHT GRAY,TRIM1# |
1 | ||
| 71705-2409006 |
MA70..ARL,C,EUR,GEN LIGHT BROWN,TRIM4# |
1 | ||
| 71705C - SCREW(FOR FRONT SEAT BACK BOARD) | ||||
| 90149-5004313 |
MA70 LIGHT GRAY,TRIM1# |
4 | ||
| 90149-5004313 |
MA70..C,EUR,GEN,V LIGHT GRAY,TRIM1# |
4 | ||
| 90149-5004304 |
MA70 DEEP BLUE,TRIM8# |
4 | ||
| 90149-5004336 |
MA70..C,EUR,GEN LIGHT BROWN,TRIM4# |
4 | ||
| 90149-5004336 |
MA70..ARL,C,EUR,GEN LIGHT BROWN,TRIM4# |
4 | ||
| 90149-5004312 |
MA70..ARL,GEN,V MAROON,TRIM3# |
4 | ||
| 71705C - SCREW(FOR FRONT SEAT BACK BOARD) | ||||
| 90149-5004313 |
MA70 LIGHT GRAY,TRIM1# |
4 | ||
| 90149-5004313 |
MA70..C,EUR,GEN,V LIGHT GRAY,TRIM1# |
4 | ||
| 90149-5004304 |
MA70 DEEP BLUE,TRIM8# |
4 | ||
| 90149-5004336 |
MA70..C,EUR,GEN LIGHT BROWN,TRIM4# |
4 | ||
| 90149-5004336 |
MA70..ARL,C,EUR,GEN LIGHT BROWN,TRIM4# |
4 | ||
| 90149-5004312 |
MA70..ARL,GEN,V MAROON,TRIM3# |
4 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-2409006 |
MA70..ARL,C,EUR,GEN LIGHT BROWN,TRIM4# |
1 | ||
| 71705-2409003 |
MA70..C,EUR,GEN,V LIGHT GRAY,TRIM1# |
1 | ||
| 71705-2409006 |
MA70..C,EUR,GEN LIGHT BROWN,TRIM4# |
1 | ||
| 71705-2409003 |
MA70 LIGHT GRAY,TRIM1# |
1 | ||
| 71705-2409002 |
MA70..ARL,GEN,V MAROON,TRIM3# |
1 | ||
| 71705-2409014 |
MA70 DEEP BLUE,TRIM8# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-2409006 |
MA70..ARL,C,EUR,GEN LIGHT BROWN,TRIM4# |
1 | ||
| 71705-2409003 |
MA70..C,EUR,GEN,V LIGHT GRAY,TRIM1# |
1 | ||
| 71705-2409006 |
MA70..C,EUR,GEN LIGHT BROWN,TRIM4# |
1 | ||
| 71705-2409003 |
MA70 LIGHT GRAY,TRIM1# |
1 | ||
| 71705-2409002 |
MA70..ARL,GEN,V MAROON,TRIM3# |
1 | ||
| 71705-2409014 |
MA70 DEEP BLUE,TRIM8# |
1 | ||
| 71813A - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-1202013 |
MA70..C,EUR,GEN,V LIGHT GRAY,TRIM1# |
2 | ||
| 71813-1202022 |
MA70..ARL,GEN,V MAROON,TRIM3# |
2 | ||
| 71813-1202013 |
MA70 LIGHT GRAY,TRIM1# |
2 | ||
| 71813-1202016 |
MA70..ARL,C,EUR,GEN LIGHT BROWN,TRIM4# |
2 | ||
| 71813-1202016 |
MA70..C,EUR,GEN LIGHT BROWN,TRIM4# |
2 | ||
| 71813-1202014 |
MA70 DEEP BLUE,TRIM8# |
2 | ||
| 71813A - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-1202013 |
MA70..C,EUR,GEN,V LIGHT GRAY,TRIM1# |
2 | ||
| 71813-1202022 |
MA70..ARL,GEN,V MAROON,TRIM3# |
2 | ||
| 71813-1202013 |
MA70 LIGHT GRAY,TRIM1# |
2 | ||
| 71813-1202016 |
MA70..ARL,C,EUR,GEN LIGHT BROWN,TRIM4# |
2 | ||
| 71813-1202016 |
MA70..C,EUR,GEN LIGHT BROWN,TRIM4# |
2 | ||
| 71813-1202014 |
MA70 DEEP BLUE,TRIM8# |
2 | ||
| 71814A - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-1201016 |
MA70..C,EUR,GEN LIGHT BROWN,TRIM4# |
2 | ||
| 71814-1201013 |
MA70 LIGHT GRAY,TRIM1# |
2 | ||
| 71814-1201016 |
MA70..ARL,C,EUR,GEN LIGHT BROWN,TRIM4# |
2 | ||
| 71814-1201013 |
MA70..C,EUR,GEN,V LIGHT GRAY,TRIM1# |
2 | ||
| 71814-1201014 |
MA70 DEEP BLUE,TRIM8# |
2 | ||
| 71814-1201022 |
MA70..ARL,GEN,V MAROON,TRIM3# |
2 | ||
| 71814A - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-1201016 |
MA70..C,EUR,GEN LIGHT BROWN,TRIM4# |
2 | ||
| 71814-1201013 |
MA70 LIGHT GRAY,TRIM1# |
2 | ||
| 71814-1201016 |
MA70..ARL,C,EUR,GEN LIGHT BROWN,TRIM4# |
2 | ||
| 71814-1201013 |
MA70..C,EUR,GEN,V LIGHT GRAY,TRIM1# |
2 | ||
| 71814-1201014 |
MA70 DEEP BLUE,TRIM8# |
2 | ||
| 71814-1201022 |
MA70..ARL,GEN,V MAROON,TRIM3# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1468013 |
MA70 LIGHT GRAY,TRIM1# |
2 | ||
| 71910-1469102 |
MA70..LHD..(GEN,V) W(LEATHER SEAT),MAROON,TRIM3# |
2 | ||
| 71910-1469103 |
MA70..LHD W(LEATHER SEAT),LIGHT GRAY,TRIM1# |
2 | ||
| 71910-1469104 |
MA70..LHD W(LEATHER SEAT),DEEP BLUE,TRIM8# |
2 | ||
| 71910-1468016 |
MA70..C,EUR,GEN LIGHT BROWN,TRIM4# |
2 | ||
| 71910-1468012 |
MA70..ARL,GEN,V MAROON,TRIM3# |
2 | ||
| 71910-1468024 |
MA70 DEEP BLUE,TRIM8# |
2 | ||
| 71910-1468016 |
MA70..ARL,C,EUR,GEN LIGHT BROWN,TRIM4# |
2 | ||
| 71910-1468013 |
MA70..C,EUR,GEN,V LIGHT GRAY,TRIM1# |
2 | ||
| 71910-1469106 |
MA70..LHD..(C,EUR,GEN) W(LEATHER SEAT),LIGHT BROWN,TRIM4# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1468013 |
MA70 LIGHT GRAY,TRIM1# |
2 | ||
| 71910-1469102 |
MA70..LHD..(GEN,V) W(LEATHER SEAT),MAROON,TRIM3# |
2 | ||
| 71910-1469103 |
MA70..LHD W(LEATHER SEAT),LIGHT GRAY,TRIM1# |
2 | ||
| 71910-1469104 |
MA70..LHD W(LEATHER SEAT),DEEP BLUE,TRIM8# |
2 | ||
| 71910-1468016 |
MA70..C,EUR,GEN LIGHT BROWN,TRIM4# |
2 | ||
| 71910-1468012 |
MA70..ARL,GEN,V MAROON,TRIM3# |
2 | ||
| 71910-1468024 |
MA70 DEEP BLUE,TRIM8# |
2 | ||
| 71910-1468016 |
MA70..ARL,C,EUR,GEN LIGHT BROWN,TRIM4# |
2 | ||
| 71910-1468013 |
MA70..C,EUR,GEN,V LIGHT GRAY,TRIM1# |
2 | ||
| 71910-1469106 |
MA70..LHD..(C,EUR,GEN) W(LEATHER SEAT),LIGHT BROWN,TRIM4# |
2 | ||
| 71911A - STAY, FRONT SEAT HEADREST, RH | ||||
| 71911-14050 |
MA70..LHD..(C,EUR) |
1 | ||
| 71911-14050 |
MA70..LHD..(C,EUR) W(LEATHER SEAT) |
2 | ||
| 71911-14050 |
MA70..RHD;MA70..LHD..(GEN,V) OK |
2 | ||
| 71911A - STAY, FRONT SEAT HEADREST, RH | ||||
| 71911-14050 |
MA70..LHD..(C,EUR) |
1 | ||
| 71911-14050 |
MA70..LHD..(C,EUR) W(LEATHER SEAT) |
2 | ||
| 71911-14050 |
MA70..RHD;MA70..LHD..(GEN,V) OK |
2 | ||
| 71912A - STAY, FRONT SEAT HEADREST, LH | ||||
| 71912-14070 |
MA70..RHD;MA70..LHD..(GEN,V) OK |
2 | ||
| 71912-14070 |
MA70..LHD..(C,EUR) |
1 | ||
| 71912-14070 |
MA70..LHD..(C,EUR) W(LETHER SEAT) |
2 | ||
| 71912A - STAY, FRONT SEAT HEADREST, LH | ||||
| 71912-14070 |
MA70..RHD;MA70..LHD..(GEN,V) OK |
2 | ||
| 71912-14070 |
MA70..LHD..(C,EUR) |
1 | ||
| 71912-14070 |
MA70..LHD..(C,EUR) W(LETHER SEAT) |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1408014 |
MA70 W(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-1401023 |
MA70 W/O(LOCK),LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1408042 |
MA70..ARL,GEN,V W(LOCK),MAROON,TRIM3# |
2 | ||
| 71931-1401046 |
MA70..ARL,C,EUR,GEN W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-1408023 |
MA70 W(LOCK),LIGHT GRAY,TRIM1# |
2 | ||
| 71931-1401023 |
MA70..C,EUR,GEN,V W/O(LOCK),LIGHT GRAY,TRIM1# |
2 | ||
| 71931-1401014 |
MA70 W/O(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71930-1408023 |
MA70..C,EUR,GEN,V W(LOCK),LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1408046 |
MA70..ARL,C,EUR,GEN W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-1401046 |
MA70..C,EUR,GEN W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-1408046 |
MA70..C,EUR,GEN W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-1401042 |
MA70..ARL,GEN,V W/O(LOCK),MAROON,TRIM3# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1408014 |
MA70 W(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-1401023 |
MA70 W/O(LOCK),LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1408042 |
MA70..ARL,GEN,V W(LOCK),MAROON,TRIM3# |
2 | ||
| 71931-1401046 |
MA70..ARL,C,EUR,GEN W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-1408023 |
MA70 W(LOCK),LIGHT GRAY,TRIM1# |
2 | ||
| 71931-1401023 |
MA70..C,EUR,GEN,V W/O(LOCK),LIGHT GRAY,TRIM1# |
2 | ||
| 71931-1401014 |
MA70 W/O(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71930-1408023 |
MA70..C,EUR,GEN,V W(LOCK),LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1408046 |
MA70..ARL,C,EUR,GEN W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-1401046 |
MA70..C,EUR,GEN W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-1408046 |
MA70..C,EUR,GEN W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-1401042 |
MA70..ARL,GEN,V W/O(LOCK),MAROON,TRIM3# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1408014 |
MA70 W(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-1401023 |
MA70 W/O(LOCK),LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1408042 |
MA70..ARL,GEN,V W(LOCK),MAROON,TRIM3# |
2 | ||
| 71931-1401046 |
MA70..ARL,C,EUR,GEN W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-1408023 |
MA70 W(LOCK),LIGHT GRAY,TRIM1# |
2 | ||
| 71931-1401023 |
MA70..C,EUR,GEN,V W/O(LOCK),LIGHT GRAY,TRIM1# |
2 | ||
| 71931-1401014 |
MA70 W/O(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71930-1408023 |
MA70..C,EUR,GEN,V W(LOCK),LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1408046 |
MA70..ARL,C,EUR,GEN W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-1401046 |
MA70..C,EUR,GEN W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-1408046 |
MA70..C,EUR,GEN W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-1401042 |
MA70..ARL,GEN,V W/O(LOCK),MAROON,TRIM3# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1408014 |
MA70 W(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71931-1401023 |
MA70 W/O(LOCK),LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1408042 |
MA70..ARL,GEN,V W(LOCK),MAROON,TRIM3# |
2 | ||
| 71931-1401046 |
MA70..ARL,C,EUR,GEN W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-1408023 |
MA70 W(LOCK),LIGHT GRAY,TRIM1# |
2 | ||
| 71931-1401023 |
MA70..C,EUR,GEN,V W/O(LOCK),LIGHT GRAY,TRIM1# |
2 | ||
| 71931-1401014 |
MA70 W/O(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71930-1408023 |
MA70..C,EUR,GEN,V W(LOCK),LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1408046 |
MA70..ARL,C,EUR,GEN W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-1401046 |
MA70..C,EUR,GEN W/O(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71930-1408046 |
MA70..C,EUR,GEN W(LOCK),LIGHT BROWN,TRIM4# |
2 | ||
| 71931-1401042 |
MA70..ARL,GEN,V W/O(LOCK),MAROON,TRIM3# |
2 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72750-20070 |
MA70..LHD |
1 | ||
| 73172A - CAP, FRONT SHOULDER BELT HANGER | ||||
| 73173-1402003 |
MA70..ARL,GEN,V;MA70..LHD..(C,EUR) MEDIUM GRAY,TRIM1#,LH |
1 | ||
| 73172-1401006 |
MA70..ARL,GEN;MA70..LHD..(C,EUR) LIGHT BROWN,TRIM4#,RH |
1 | ||
| 73172-1401006 |
MA70..GEN;MA70..LHD..(C,EUR) LIGHT BROWN,TRIM4#,RH |
1 | ||
| 73172-1401003 |
MA70..GEN,V;MA70..LHD..(C,EUR) MEDIUM GRAY,TRIM1#,RH |
1 | ||
| 73173-1402003 |
MA70..GEN,V;MA70..LHD..(C,EUR) MEDIUM GRAY,TRIM1#,LH |
1 | ||
| 73172-1401002 |
MA70..ARL,GEN,V MAROON,TRIM3#,RH |
1 | ||
| 73172-1401003 |
MA70..ARL,GEN,V;MA70..LHD..(C,EUR) MEDIUM GRAY,TRIM1#,RH |
1 | ||
| 73173-1402006 |
MA70..GEN;MA70..LHD..(C,EUR) LIGHT BROWN,TRIM4#,LH |
1 | ||
| 73173-1402006 |
MA70..ARL,GEN;MA70..LHD..(C,EUR) LIGHT BROWN,TRIM4#,LH |
1 | ||
| 73173-1402004 |
MA70..ARL,GEN,V;MA70..LHD..(C,EUR) DEEP BLUE,TRIM8#,LH |
1 | ||
| 73173-1402002 |
MA70..ARL,GEN,V MAROON,TRIM3#,LH |
1 | ||
| 73172-1401004 |
MA70..ARL,GEN,V;MA70..LHD..(C,EUR) DEEP BLUE,TRIM8#,RH |
1 | ||
| 73176 - HANGER, FRONT SHOULDER BELT, RH (FOR FRONT SEAT) | ||||
| 73176-1404006 |
MA70..GEN;MA70..LHD..(C,EUR) LIGHT BROWN,TRIM4# |
1 | ||
| 73176-1404006 |
MA70..ARL,GEN;MA70..LHD..(C,EUR) LIGHT BROWN,TRIM4# |
1 | ||
| 73176-1404003 |
MA70..GEN,V;MA70..LHD..(C,EUR) MEDIUM GRAY,TRIM1# |
1 | ||
| 73176-1404002 |
MA70..ARL,GEN,V MAROON,TRIM3# |
1 | ||
| 73176-1404106 |
MA70..GEN;MA70..LB..5F..ARL;MA70..LHD..(C,EUR);MA70..4FC..TWT..ARL LIGHT BROWN,TRIM4# |
1 | ||
| 73176-1404003 |
MA70..ARL,GEN,V;MA70..LHD..(C,EUR) MEDIUM GRAY,TRIM1# |
1 | ||
| 73176-1404004 |
MA70..ARL,GEN,V;MA70..LHD..(C,EUR) DEEP BLUE,TRIM8# |
1 | ||
| 73177 - HANGER, FRONT SHOULDER BELT, LH (FOR FRONT SEAT) | ||||
| 73177-1404003 |
MA70..ARL,GEN,V;MA70..LHD..(C,EUR) MEDIUM GRAY,TRIM1# |
1 | ||
| 73177-1404003 |
MA70..GEN,V;MA70..LHD..(C,EUR) MEDIUM GRAY,TRIM1# |
1 | ||
| 73177-1404004 |
MA70..ARL,GEN,V;MA70..LHD..(C,EUR) DEEP BLUE,TRIM8# |
1 | ||
| 73177-1404006 |
MA70..ARL,GEN;MA70..LHD..(C,EUR) LIGHT BROWN,TRIM4# |
1 | ||
| 73177-1404002 |
MA70..ARL,GEN,V MAROON,TRIM3# |
1 | ||
| 73177-1404006 |
MA70..GEN;MA70..LHD..(C,EUR) LIGHT BROWN,TRIM4# |
1 | ||
| 73177-1404106 |
MA70..GEN;MA70..LB..5F..ARL;MA70..LHD..(C,EUR);MA70..4FC..TWT..ARL LIGHT BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90149-60055 | ||||
| 90159-60081 | ||||
| 90179-08123 | ||||
| 90468-16019 | ||||
| 91651-60818 | ||||
| 93319-15020 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 8513 | ||||

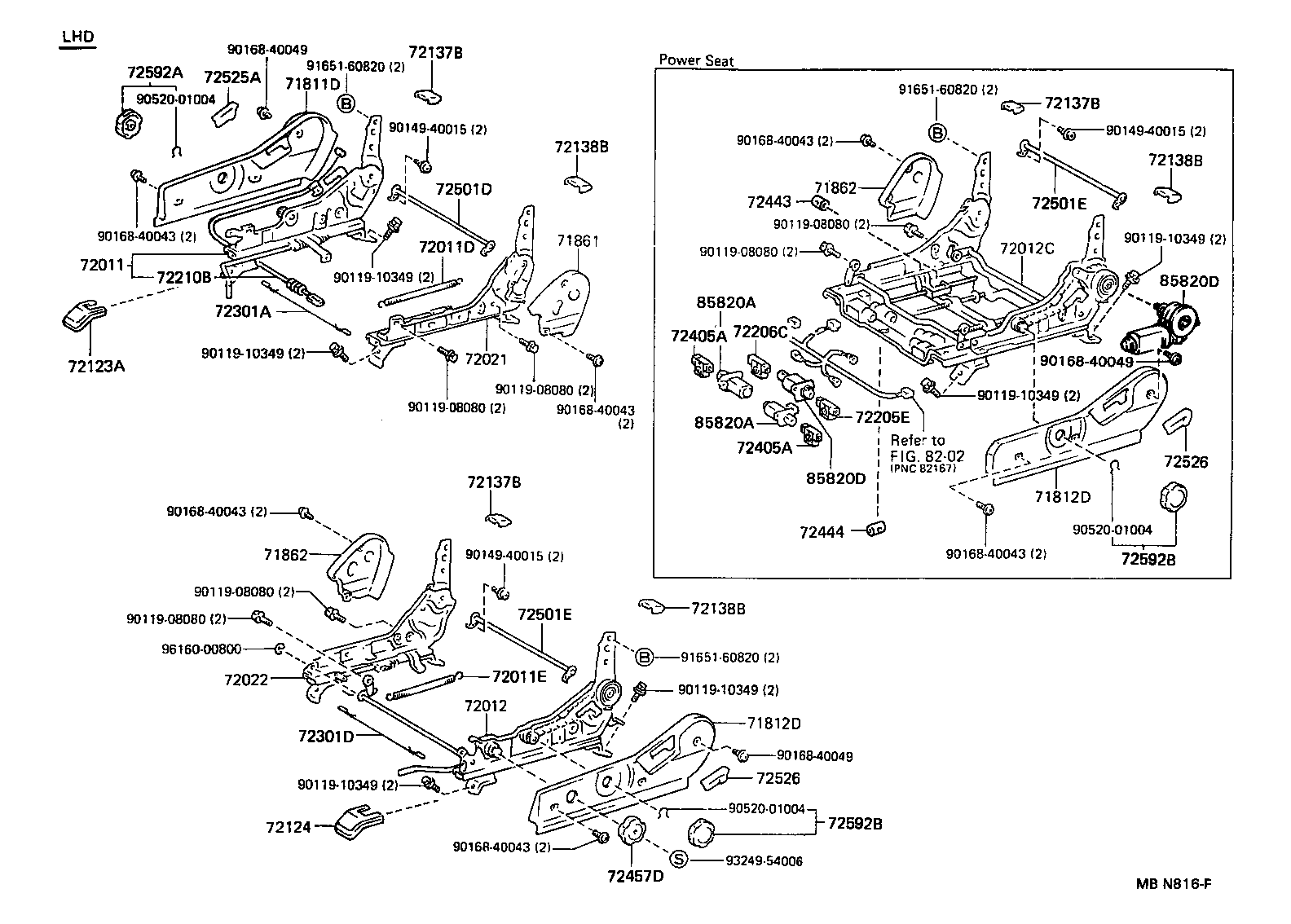

ILLUST NO. 2 OF 2(8808- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-2014006 |
MA70..LHD..(C,EUR,GEN) LIGHT BROWN,TRIM4# |
1 | ||
| 71811-2014012 |
MA70..LHD..(GEN,V) MAROON,TRIM3# |
1 | ||
| 71811-2014003 |
MA70..LHD LIGHT GRAY,TRIM1# |
1 | ||
| 71811-2014004 |
MA70..LHD DEEP BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-2009006 |
MA70..LHD..(C,EUR,GEN) LIGHT BROWN,TRIM4# |
1 | ||
| 71812-2009012 |
MA70..LHD..(GEN,V) MAROON,TRIM3# |
1 | ||
| 71812-2009003 |
MA70..LHD LIGHT GRAY,TRIM1# |
1 | ||
| 71812-2009004 |
MA70..LHD DEEP BLUE,TRIM8# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-1401016 |
MA70..ARL,C,EUR,GEN LIGHT BROWN,TRIM4# |
1 | ||
| 71861-1401002 |
MA70..ARL,GEN,V MAROON,TRIM3# |
1 | ||
| 71861-1401003 |
MA70 LIGHT GRAY,TRIM1# |
1 | ||
| 71861-1401016 |
MA70..C,EUR,GEN LIGHT BROWN,TRIM4# |
1 | ||
| 71861-1401003 |
MA70..C,EUR,GEN,V LIGHT GRAY,TRIM1# |
1 | ||
| 71861-1401004 |
MA70 DEEP BLUE,TRIM8# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-1401003 |
MA70..C,EUR,GEN,V LIGHT GRAY,TRIM1# |
1 | ||
| 71862-1401003 |
MA70 LIGHT GRAY,TRIM1# |
1 | ||
| 71862-1401016 |
MA70..ARL,C,EUR,GEN LIGHT BROWN,TRIM4# |
1 | ||
| 71862-1401004 |
MA70 DEEP BLUE,TRIM8# |
1 | ||
| 71862-1401016 |
MA70..C,EUR,GEN LIGHT BROWN,TRIM4# |
1 | ||
| 71862-1401002 |
MA70..ARL,GEN,V MAROON,TRIM3# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-14021 |
MA70..LHD |
1 | ||
| 72011D - SPRING, TENSION, RH(FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90507-18014 |
MA70 |
1 | ||
| 72011E - SPRING, TENSION, LH(FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90507-18014 |
MA70 |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-14011 |
MA70..LHD |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-14020 |
MA70..LHD |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-14010 |
MA70..LHD |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-1414003 |
MA70 MEDIUM GRAY,TRIM1# |
1 | ||
| 72123-1414006 |
MA70..C,EUR,GEN BROWN,TRIM4# |
1 | ||
| 72123-1414006 |
MA70..ARL,C,EUR,GEN BROWN,TRIM4# |
1 | ||
| 72123-1414004 |
MA70 DEEP BLUE,TRIM8# |
1 | ||
| 72123-1414003 |
MA70..C,EUR,GEN,V MEDIUM GRAY,TRIM1# |
1 | ||
| 72123-1414002 |
MA70..ARL,GEN,V MAROON,TRIM3# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-1414006 |
MA70..ARL,C,EUR,GEN BROWN,TRIM4# |
1 | ||
| 72123-1414006 |
MA70..C,EUR,GEN BROWN,TRIM4# |
1 | ||
| 72123-1414003 |
MA70 MEDIUM GRAY,TRIM1# |
1 | ||
| 72123-1414002 |
MA70..ARL,GEN,V MAROON,TRIM3# |
1 | ||
| 72123-1414003 |
MA70..C,EUR,GEN,V MEDIUM GRAY,TRIM1# |
1 | ||
| 72123-1414004 |
MA70 DEEP BLUE,TRIM8# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-1401003 |
MA70..C,EUR,GEN,V MEDIUM GRAY,TRIM1# |
2 | ||
| 72137-1401002 |
MA70..ARL,GEN,V MAROON,TRIM3# |
2 | ||
| 72137-1401003 |
MA70 MEDIUM GRAY,TRIM1# |
2 | ||
| 72137-1401016 |
MA70..C,EUR,GEN BROWN,TRIM4# |
2 | ||
| 72137-1401016 |
MA70..ARL,C,EUR,GEN BROWN,TRIM4# |
2 | ||
| 72137-1401004 |
MA70 DEEP BLUE,TRIM8# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-1401003 |
MA70..C,EUR,GEN,V MEDIUM GRAY,TRIM1# |
2 | ||
| 72137-1401002 |
MA70..ARL,GEN,V MAROON,TRIM3# |
2 | ||
| 72137-1401003 |
MA70 MEDIUM GRAY,TRIM1# |
2 | ||
| 72137-1401016 |
MA70..C,EUR,GEN BROWN,TRIM4# |
2 | ||
| 72137-1401016 |
MA70..ARL,C,EUR,GEN BROWN,TRIM4# |
2 | ||
| 72137-1401004 |
MA70 DEEP BLUE,TRIM8# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-1401003 |
MA70..C,EUR,GEN,V MEDIUM GRAY,TRIM1# |
2 | ||
| 72138-1401002 |
MA70..ARL,GEN,V MAROON,TRIM3# |
2 | ||
| 72138-1401016 |
MA70..C,EUR,GEN BROWN,TRIM4# |
2 | ||
| 72138-1401004 |
MA70 DEEP BLUE,TRIM8# |
2 | ||
| 72138-1401003 |
MA70 MEDIUM GRAY,TRIM1# |
2 | ||
| 72138-1401016 |
MA70..ARL,C,EUR,GEN BROWN,TRIM4# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-1401003 |
MA70..C,EUR,GEN,V MEDIUM GRAY,TRIM1# |
2 | ||
| 72138-1401002 |
MA70..ARL,GEN,V MAROON,TRIM3# |
2 | ||
| 72138-1401016 |
MA70..C,EUR,GEN BROWN,TRIM4# |
2 | ||
| 72138-1401004 |
MA70 DEEP BLUE,TRIM8# |
2 | ||
| 72138-1401003 |
MA70 MEDIUM GRAY,TRIM1# |
2 | ||
| 72138-1401016 |
MA70..ARL,C,EUR,GEN BROWN,TRIM4# |
2 | ||
| 72210B - CABLE ASSY, SEAT TRACK CONTROL, RH | ||||
| 72210-14110 |
MA70..LHD |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-14060 |
MA70 |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-14060 |
MA70 |
1 | ||
| 72457D - KNOB, VERTICAL SEAT ADJUSTER, LH | ||||
| 72457-1701046 |
MA70..LHD..(C,EUR,GEN) LIGHT BROWN,TRIM4# |
1 | ||
| 72457-1701013 |
MA70..LHD LIGHT GRAY,TRIM1# |
1 | ||
| 72457-1701004 |
MA70..LHD DEEP BLUE,TRIM8# |
1 | ||
| 72457-1701012 |
MA70..LHD..(GEN,V) MAROON,TRIM3# |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72501-20010 |
MA70 |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72501-20010 |
MA70 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-2006013 |
MA70 LIGHT GRAY,TRIM1# |
1 | ||
| 72525-2006013 |
MA70..C,EUR,GEN,V LIGHT GRAY,TRIM1# |
1 | ||
| 72525-2006004 |
MA70 DEEP BLUE,TRIM8# |
1 | ||
| 72525-2006036 |
MA70..ARL,C,EUR,GEN LIGHT BROWN,TRIM4# |
1 | ||
| 72525-2006012 |
MA70..ARL,GEN,V MAROON,TRIM3# |
1 | ||
| 72525-2006036 |
MA70..C,EUR,GEN LIGHT BROWN,TRIM4# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-2005013 |
MA70 LIGHT GRAY,TRIM1# |
1 | ||
| 72526-2005036 |
MA70..ARL,C,EUR,GEN LIGHT BROWN,TRIM4# |
1 | ||
| 72526-2005013 |
MA70..C,EUR,GEN,V LIGHT GRAY,TRIM1# |
1 | ||
| 72526-2005036 |
MA70..C,EUR,GEN LIGHT BROWN,TRIM4# |
1 | ||
| 72526-2005004 |
MA70 DEEP BLUE,TRIM8# |
1 | ||
| 72526-2005012 |
MA70..ARL,GEN,V MAROON,TRIM3# |
1 | ||
| 72592A - KNOB,RECLINING ADJUSTER, RH | ||||
| 72592-1401026 |
MA70..C,EUR,GEN LIGHT BROWN,TRIM4# |
1 | ||
| 72592-1401026 |
MA70..ARL,C,EUR,GEN LIGHT BROWN,TRIM4# |
1 | ||
| 72592-1401003 |
MA70 LIGHT GRAY,TRIM1# |
1 | ||
| 72592-1401003 |
MA70..C,EUR,GEN,V LIGHT GRAY,TRIM1# |
1 | ||
| 72592-14010D0 |
MA70..ARL,GEN,V MAROON,TRIM3# |
1 | ||
| 72592-1401004 |
MA70 DEEP BLUE,TRIM8# |
1 | ||
| 72592B - KNOB,RECLINING ADJUSTER, LH | ||||
| 72592-1401026 |
MA70..ARL,C,EUR,GEN LIGHT BROWN,TRIM4# |
1 | ||
| 72592-1401004 |
MA70 DEEP BLUE,TRIM8# |
1 | ||
| 72592-1401003 |
MA70..C,EUR,GEN,V LIGHT GRAY,TRIM1# |
1 | ||
| 72592-1401003 |
MA70 LIGHT GRAY,TRIM1# |
1 | ||
| 72592-1401026 |
MA70..C,EUR,GEN LIGHT BROWN,TRIM4# |
1 | ||
| 72592-14010D0 |
MA70..ARL,GEN,V MAROON,TRIM3# |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10349 | ||||
| 90149-40015 | ||||
| 90168-40043 | ||||
| 90168-40049 | ||||
| 90520-01004 | ||||
| 91651-60820 | ||||
| 93249-54006 | ||||
| 96160-00800 | ||||

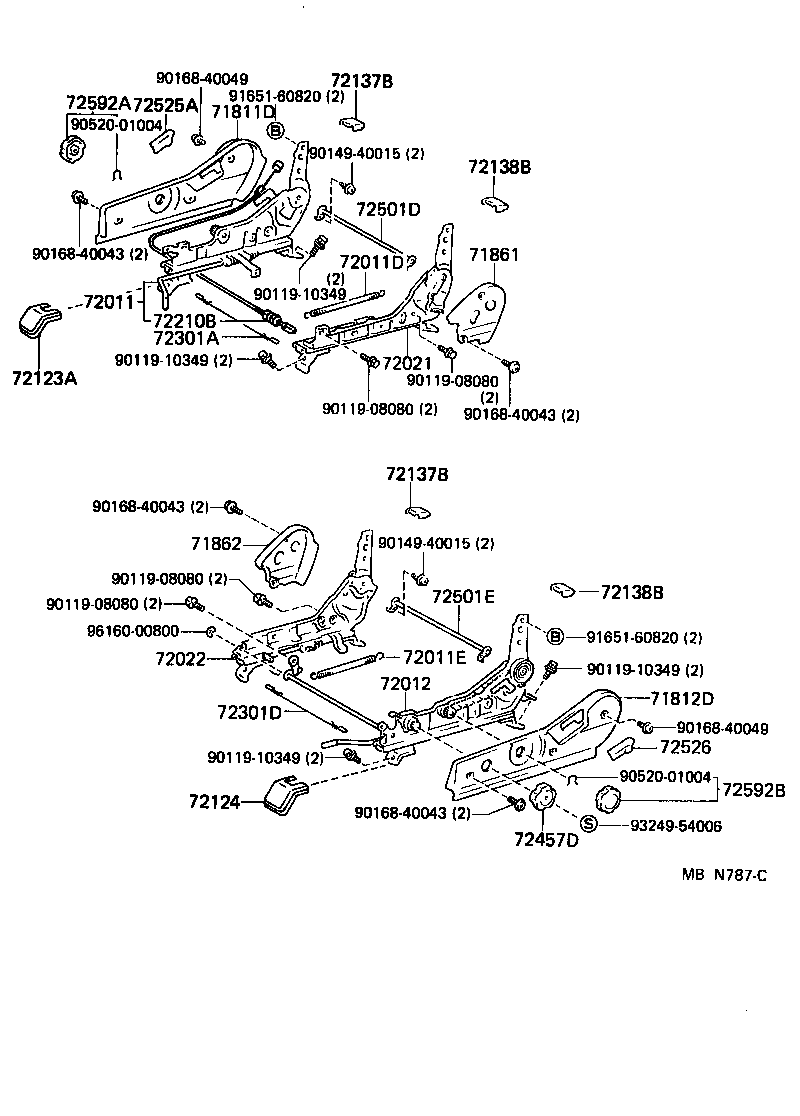

ILLUST NO. 1 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90149-60055 | ||||
| 90159-60081 | ||||
| 90179-08123 | ||||
| 90468-16019 | ||||
| 91651-60818 | ||||
| 93319-15020 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 8513 | ||||
ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10349 | ||||
| 90149-40015 | ||||
| 90168-40043 | ||||
| 90168-40049 | ||||
| 90520-01004 | ||||
| 91651-60820 | ||||
| 93249-54006 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
