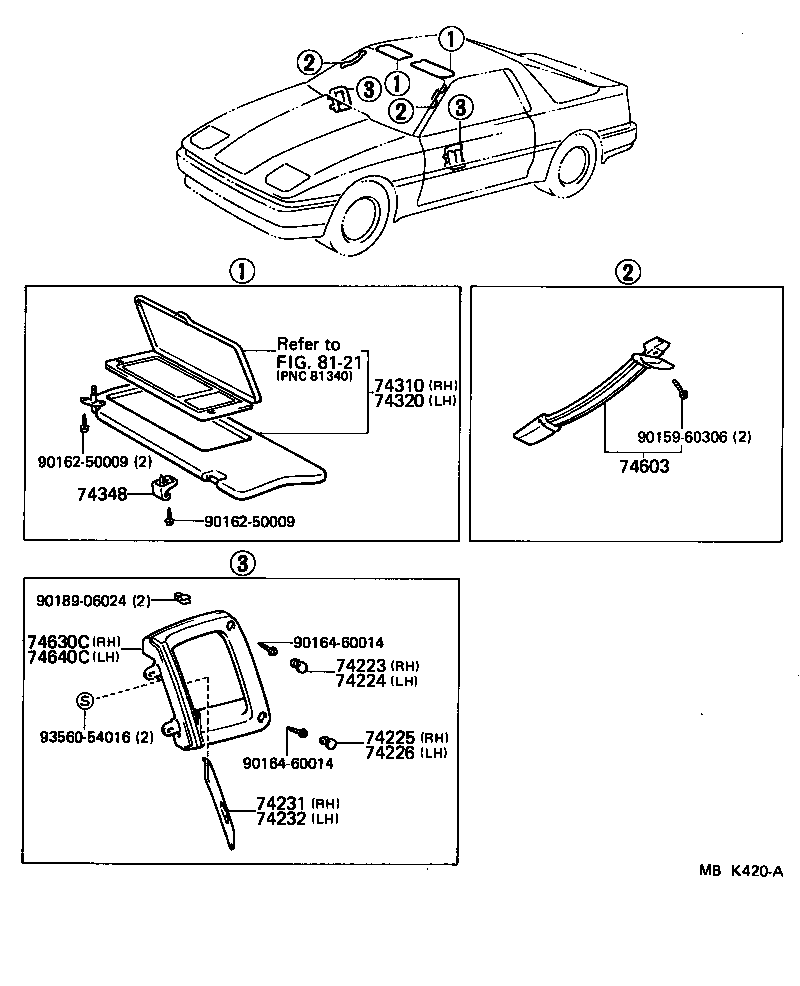

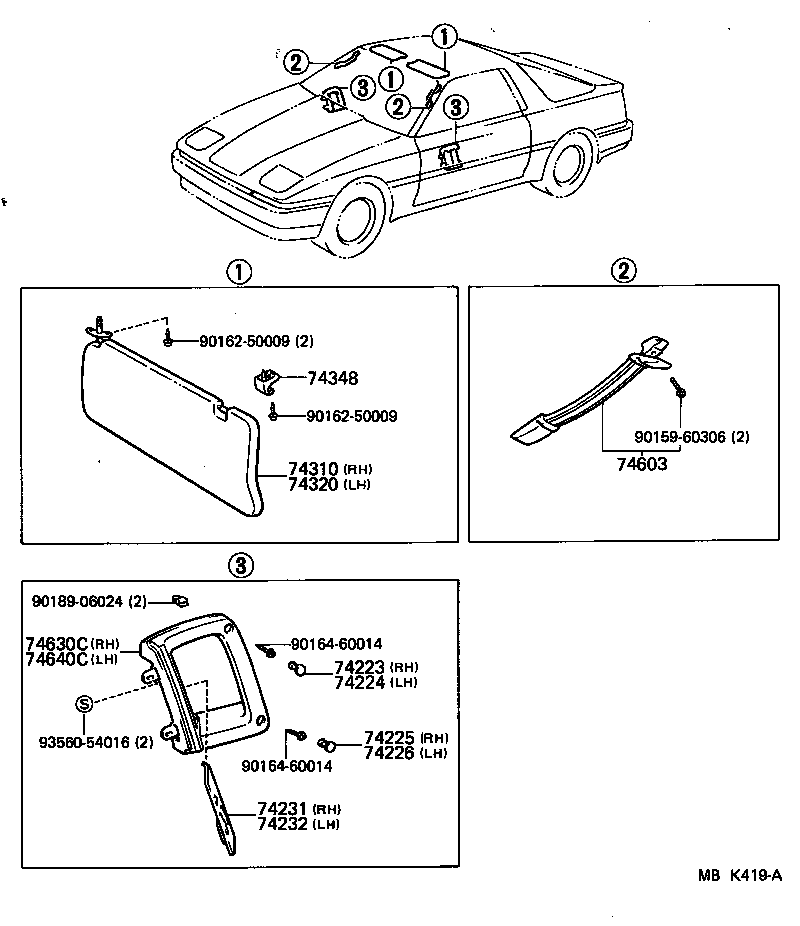

MA70L-BLMVFV (1986)
Toyota Supra
(8601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74223 - CAP, DOOR ARMREST, RH | ||||
| 74266-1404003 |
MA70 GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 74266-1404004 |
MA70 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 74266-1404005 |
MA70 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 74266-1404002 |
MA70..ARL,GCC,GEN MAROON,MAROON,TRIM3# |
1 | ||
| 74224 - CAP, DOOR ARMREST, LH | ||||
| 74266-1404005 |
MA70 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 74266-1404004 |
MA70 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 74266-1404003 |
MA70 GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 74266-1404002 |
MA70..ARL,GCC,GEN MAROON,MAROON,TRIM3# |
1 | ||
| 74225 - CAP, DOOR ARMREST, REAR RH | ||||
| 74267-1402005 |
MA70 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 74267-1402002 |
MA70..ARL,GCC,GEN MAROON,MAROON,TRIM3# |
1 | ||
| 74267-1402003 |
MA70 GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 74267-1402004 |
MA70 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 74226 - CAP, DOOR ARMREST, REAR LH | ||||
| 74267-1402004 |
MA70 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 74267-1402002 |
MA70..ARL,GCC,GEN MAROON,MAROON,TRIM3# |
1 | ||
| 74267-1402003 |
MA70 GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 74267-1402005 |
MA70 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-1410004 |
MA70..LHD BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 74231-1410003 |
MA70..LHD GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 74231-1410005 |
MA70..LHD BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 74231-1410002 |
MA70..LHD..(GCC,GEN) MAROON,MAROON,TRIM3# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-1409005 |
MA70..LHD BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 74232-1409003 |
MA70..LHD GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 74232-1409002 |
MA70..LHD..(GCC,GEN) MAROON,MAROON,TRIM3# |
1 | ||
| 74232-1409004 |
MA70..LHD BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 74310 - VISOR ASSY, RH | ||||
| 74310-1441005 |
MA70..LHD W/MIRROR,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 74310-1441002 |
MA70..LHD..(GCC,GEN) W/MIRROR,MAROON,MAROON,TRIM3# |
1 | ||
| 74310-1441003 |
MA70..LHD W/MIRROR,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 74310-1441004 |
MA70..LHD W/MIRROR,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-1449005 |
MA70..LHD BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 74320-1449003 |
MA70..LHD GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 74320-1449004 |
MA70..LHD BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 74320-1449002 |
MA70..LHD..(GCC,GEN) MAROON,MAROON,TRIM3# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-2002005 |
MA70 BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 74348-2002013 |
MA70 GRAY,MEDIUM GRAY,TRIM1# |
2 | ||
| 74348-2002014 |
MA70 BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 74348-2002012 |
MA70..ARL,GCC,GEN MAROON,MAROON,TRIM3# |
2 | ||
| 74603 - GRIP SUB-ASSY, ASSIST, FRONT | ||||
| 74610-2402005 |
MA70 BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 74610-2402004 |
MA70 BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 74610-2402002 |
MA70..ARL,GCC,GEN MAROON,MAROON,TRIM3# |
2 | ||
| 74610-2402003 |
MA70 GRAY,MEDIUM GRAY,TRIM1# |
2 | ||
| 74630C - GRIP ASSY, DOOR ASSIST, RH | ||||
| 74630-1402002 |
MA70..ARL,GCC,GEN MAROON,MAROON,TRIM3# |
1 | ||
| 74630-1402005 |
MA70 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 74630-1402004 |
MA70 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 74630-1402003 |
MA70 GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 74640C - GRIP ASSY, DOOR ASSIST, LH | ||||
| 74640-1401005 |
MA70 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 74640-1401002 |
MA70..ARL,GCC,GEN MAROON,MAROON,TRIM3# |
1 | ||
| 74640-1401003 |
MA70 GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 74640-1401004 |
MA70 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90159-60306 | ||||
| 90162-50009 | ||||
| 90164-60014 | ||||
| 90189-06024 | ||||
| 93560-54016 | ||||
(8601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60306 | ||||
| 90162-50009 | ||||
| 90164-60014 | ||||
| 90189-06024 | ||||
| 93560-54016 | ||||
| Linked diagrams | ||||
| 8121 | ||||
