MA70L-BLMVFK (1988)
Toyota Supra
Production
Aug 1988
-
Aug 1990
Engine
7MGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )5F..TWC

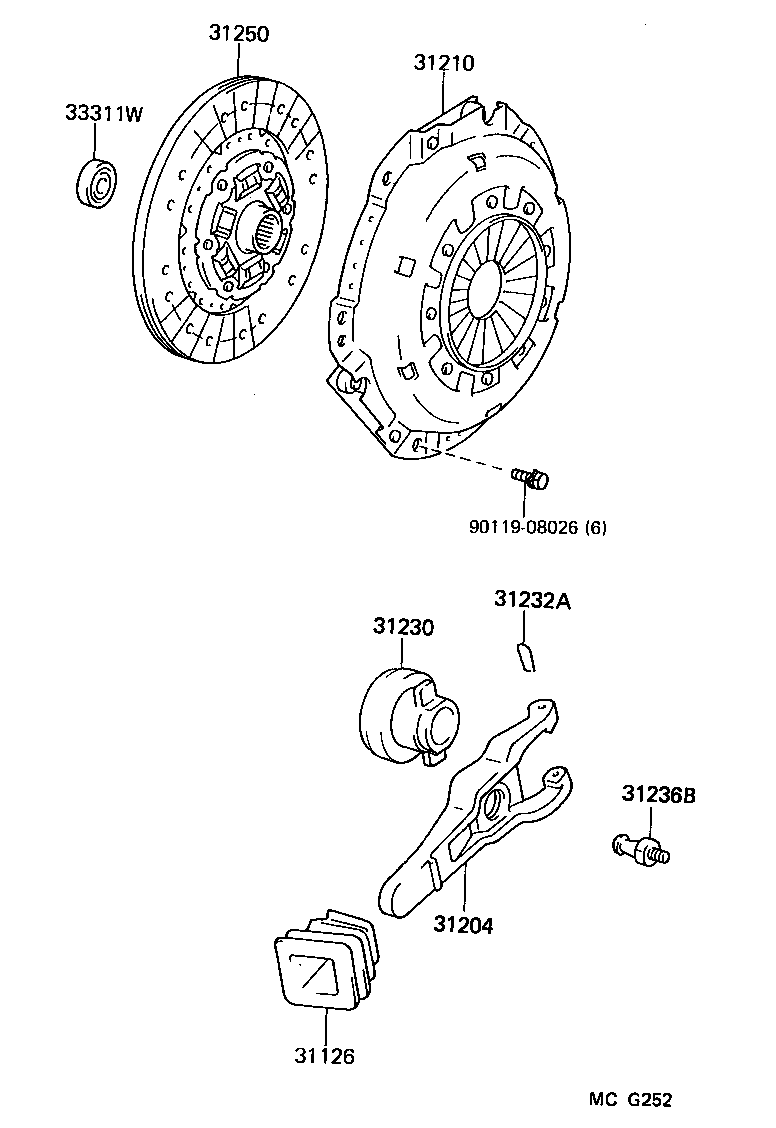

Click highlighted areas on diagram
W5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-14010 |
MA70..5F..TWC |
1 | ||
| 31204 - FORK SUB-ASSY, CLUTCH RELEASE | ||||
| 31204-14021 |
MA70..5F..TWC |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-14140 |
MA70..5F..TWC |
1 | ||
| 31230 - BEARING ASSY, CLUTCH RELEASE | ||||
| 31230-14030 |
MA70..5F..TWC |
1 | ||
| 31232A - CLIP, RELEASE BEARING HUB | ||||
| 31232-14010 |
MA70..5F..TWC |
1 | ||
| 31236B - SUPPORT, RELEASE FORK | ||||
| 31236-14010 |
MA70..5F..TWC |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-14160 |
MA70..5F..TWC |
1 | ||
| 33311W - BEARING (FOR INPUT SHAFT) | ||||
| 90363-12002 |
MA70..5F..TWC;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA |
1 | ||
| 90363-12002 |
MA70..5F |
1 | ||
| Common parts | ||||
| 90119-08026 | ||||
(8808- )5F..TWC
Click highlighted areas on diagram
W5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-14010 |
MA70..5F..TWC |
1 | ||
| 31204 - FORK SUB-ASSY, CLUTCH RELEASE | ||||
| 31204-14021 |
MA70..5F..TWC |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-14140 |
MA70..5F..TWC |
1 | ||
| 31230 - BEARING ASSY, CLUTCH RELEASE | ||||
| 31230-14030 |
MA70..5F..TWC |
1 | ||
| 31232A - CLIP, RELEASE BEARING HUB | ||||
| 31232-14010 |
MA70..5F..TWC |
1 | ||
| 31236B - SUPPORT, RELEASE FORK | ||||
| 31236-14010 |
MA70..5F..TWC |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-14160 |
MA70..5F..TWC |
1 | ||
| 33311W - BEARING (FOR INPUT SHAFT) | ||||
| 90363-12002 |
MA70..5F..TWC;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA |
1 | ||
| 90363-12002 |
MA70..5F |
1 | ||
| Common parts | ||||
| 90119-08026 | ||||
