MA70L-BLMVFC (1986)
Toyota Supra
Production
Jan 1986
-
Aug 1988
Engine
7MGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8601- )

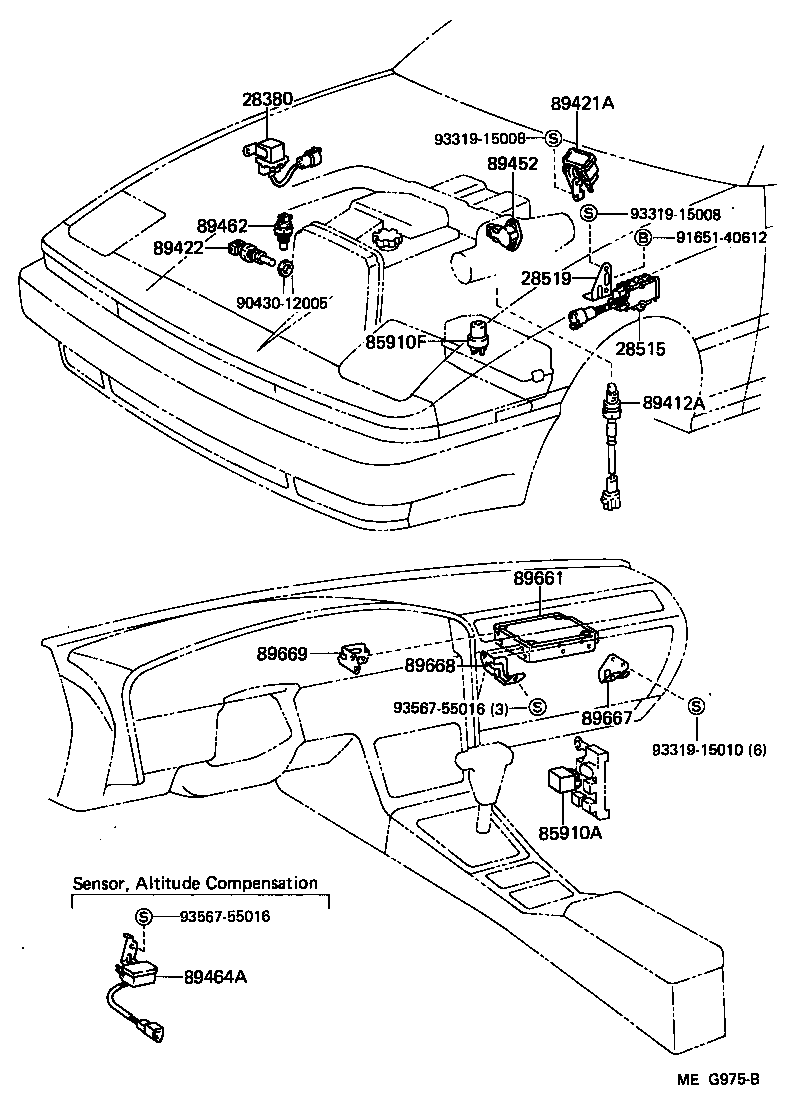

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28380 - RELAY ASSY, FUEL PUMP | ||||
| 28380-43010 |
7MG#..MA70 |
1 | ||
| 28515 - RESISTOR, SOLENOID | ||||
| 28515-43040 |
7MG#..MA70 |
1 | ||
| 28519 - BRACKET, SOLENOID RESISTOR | ||||
| 28519-70020 |
7MG#..MA70 |
1 | ||
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 85910-30050 |
MA70 |
1 | ||
| 85910F - RELAY, COMPUTER (FOR EFI) | ||||
| 90987-02004 |
MA70 |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-30020 |
MA70 |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-14050 |
MA70 |
1 | ||
| 89452-28030 |
MA70 |
1 | ||
| 89462 - SWITCH, START INJECTOR TIME | ||||
| 89462-40010 |
MA70..ARL;MA70..SDZ |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-14092 |
MA70..5F..ARL;MA70..5F..TWC..SDZ |
1 | ||
| 89661-14090 |
MA70..5F..ARL;MA70..5F..SDZ |
1 | ||
| 89661-14093 |
MA70..5F..ARL;MA70..5F..TWC..SDZ |
1 | ||
| 89661-14091 |
MA70..5F..ARL;MA70..5F..SDZ |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-14070 |
MA70..LHD |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-14020 |
MA70..LHD |
1 | ||
| 89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3 | ||||
| 89669-14020 |
MA70..LHD |
1 | ||
| Common parts | ||||
| 90430-12005 | ||||
| 91651-40612 | ||||
| 93319-15008 | ||||
| 93319-15010 | ||||
| 93567-55016 | ||||
(8601- )

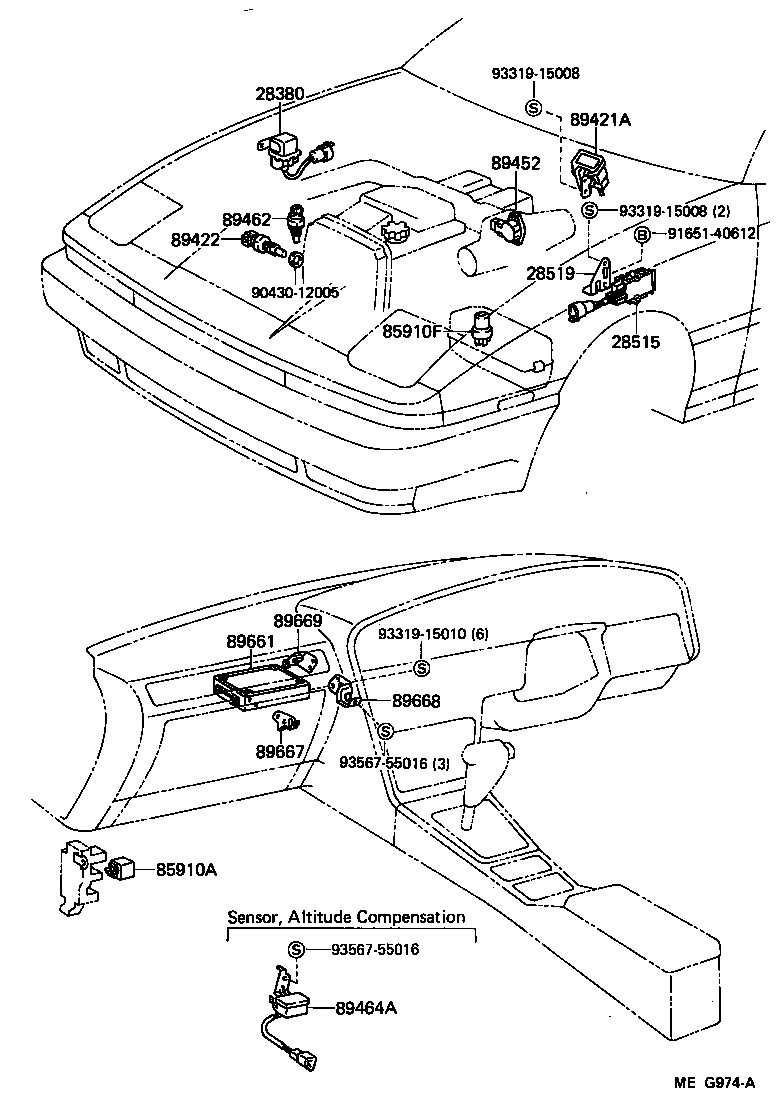

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90430-12005 | ||||
| 91651-40612 | ||||
| 93319-15008 | ||||
| 93319-15010 | ||||
| 93567-55016 | ||||
