MA70L-BLMVFC (1986)
Toyota Supra
Production
Jan 1986
-
Aug 1988
Engine
7MGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8601- )

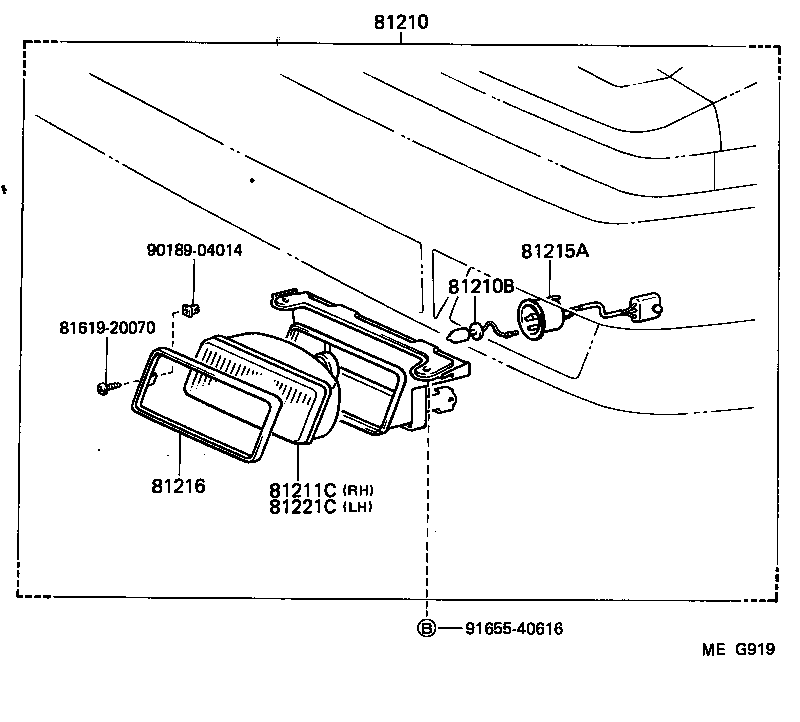

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81210 - LAMP ASSY, FOG | ||||
| 81210-14120 |
MA70..EUR RH |
1 | ||
| 81220-14120 |
MA70..EUR LH |
1 | ||
| 81210B - BULB, FOG LAMP | ||||
| 90981-13018 |
MA70 12V 55W,HALOGEN,12V 55W,HALOGEN |
2 | ||
| 81211C - LAMP UNIT, FOG LAMP, RH | ||||
| 81211-14120 |
MA70..EUR |
1 | ||
| 81215A - SOCKET & WIRE, FOG LAMP | ||||
| 81215-14120 |
MA70..EUR |
2 | ||
| 81216 - RIM, FOG LAMP, NO.1 | ||||
| 81226-14110 |
MA70 LH |
1 | ||
| 81216-14110 |
MA70 RH |
1 | ||
| 81221C - LAMP UNIT, FOG LAMP, LH | ||||
| 81221-14120 |
MA70..EUR |
1 | ||
| Common parts | ||||
| 81619-20070 | ||||
| 90189-04014 | ||||
| 91655-40616 | ||||
(8601- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81210 - LAMP ASSY, FOG | ||||
| 81210-14120 |
MA70..EUR RH |
1 | ||
| 81220-14120 |
MA70..EUR LH |
1 | ||
| 81210B - BULB, FOG LAMP | ||||
| 90981-13018 |
MA70 12V 55W,HALOGEN,12V 55W,HALOGEN |
2 | ||
| 81211C - LAMP UNIT, FOG LAMP, RH | ||||
| 81211-14120 |
MA70..EUR |
1 | ||
| 81215A - SOCKET & WIRE, FOG LAMP | ||||
| 81215-14120 |
MA70..EUR |
2 | ||
| 81216 - RIM, FOG LAMP, NO.1 | ||||
| 81226-14110 |
MA70 LH |
1 | ||
| 81216-14110 |
MA70 RH |
1 | ||
| 81221C - LAMP UNIT, FOG LAMP, LH | ||||
| 81221-14120 |
MA70..EUR |
1 | ||
| Common parts | ||||
| 81619-20070 | ||||
| 90189-04014 | ||||
| 91655-40616 | ||||
