MA70L-BLMVFC (1986)
Toyota Supra
Production
Jan 1986
-
Aug 1988
Engine
7MGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

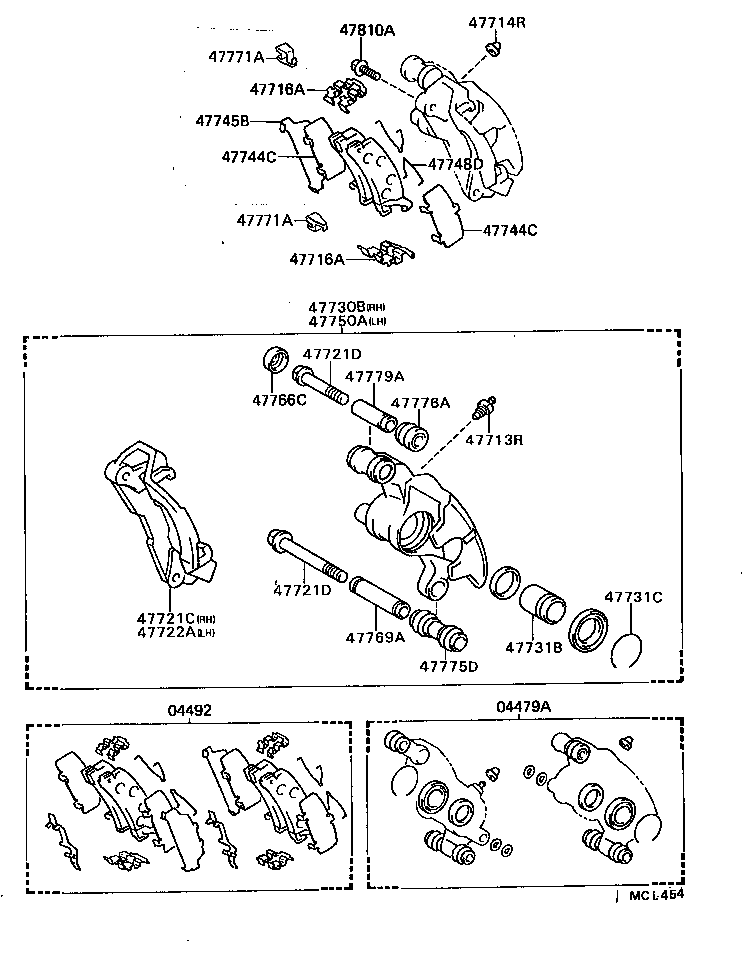

ILLUST NO. 1 OF 2(8601- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-14110 |
MA70 |
1 | ||
| 04492 - PAD KIT, DISC BRAKE, REAR | ||||
| 04492-14110 |
MA70..EUR DENMARK OR SWITZERLAND SPEC |
1 | ||
| 04492-14090 |
MA70 |
1 | ||
| 04492-14090 |
MA70..EUR,GCC |
1 | ||
| 47713R - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47547-20010 |
MA70 |
2 | ||
| 47714R - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-30010 |
MA70 |
2 | ||
| 47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) | ||||
| 47716-14140 |
MA70 |
4 | ||
| 47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) | ||||
| 47716-14140 |
MA70 |
4 | ||
| 47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47721-14130 |
MA70 |
2 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90119-08431 |
MA70 *8-1.25PX62-20 |
2 | ||
| 90105-08117 |
MA70 *8-1.25PX65-15 |
2 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90119-08431 |
MA70 *8-1.25PX62-20 |
2 | ||
| 90105-08117 |
MA70 *8-1.25PX65-15 |
2 | ||
| 47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47721-14130 |
MA70 |
1 | ||
| 47730B - CYLINDER ASSY, REAR DISC BRAKE, RH | ||||
| 47730-14190 |
MA70 |
1 | ||
| 47731B - PISTON, REAR DISC BRAKE | ||||
| 47731-14100 |
MA70 |
2 | ||
| 47731C - RING, SET(FOR REAR DISC BRAKE PISTON) | ||||
| 90522-49001 |
MA70 |
2 | ||
| 47744C - SHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE) | ||||
| 47744-14110 |
MA70 |
4 | ||
| 47744-14110 |
MA70..EUR,GCC |
4 | ||
| 47744C - SHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE) | ||||
| 47744-14110 |
MA70 |
4 | ||
| 47744-14110 |
MA70..EUR,GCC |
4 | ||
| 47745B - SHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE) | ||||
| 47745-14040 |
MA70 |
2 | ||
| 47745-14040 |
MA70..EUR,GCC |
2 | ||
| 47748D - SPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47748-14070 |
MA70 |
4 | ||
| 47750A - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47750-14210 |
MA70 |
1 | ||
| 47766C - CAP, CYLINDER SLIDE PIN | ||||
| 47766-17010 |
MA70 |
2 | ||
| 47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47769-28010 |
MA70 |
2 | ||
| 47771A - PLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE) | ||||
| 47771-22040 |
MA70 |
4 | ||
| 47771A - PLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE) | ||||
| 47771-22040 |
MA70 |
4 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47775-14010 |
MA70 |
2 | ||
| 47776A - BOOT, MAIN PIN(FOR REAR DISC BRAKE) | ||||
| 47776-14030 |
MA70 |
2 | ||
| 47779A - BUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE) | ||||
| 47779-14010 |
MA70 |
2 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90119-10402 |
MA70 |
4 | ||
ILLUST NO. 2 OF 2(8601- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-22110 |
MA70 |
1 | ||
| 04466-14030 |
MA70..EUR DENMARK OR SWITZERLAND SPEC |
1 | ||
| 04466-22110 |
MA70..EUR,GCC |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-14040 |
MA70 |
1 | ||
| 04946-14040 |
MA70..EUR,GCC |
1 | ||
| 04946-14040 |
MA70..EUR DENMARK OR SWITZERLAND SPEC |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-14080 |
MA70..EUR,GCC |
1 | ||
| 04948-14080 |
MA70..EUR DENMARK OR SWITZERLAND SPEC |
1 | ||
| 04948-14080 |
MA70 |
1 | ||
ILLUST NO. 1 OF 2(8601- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-14110 |
MA70 |
1 | ||
| 04492 - PAD KIT, DISC BRAKE, REAR | ||||
| 04492-14110 |
MA70..EUR DENMARK OR SWITZERLAND SPEC |
1 | ||
| 04492-14090 |
MA70 |
1 | ||
| 04492-14090 |
MA70..EUR,GCC |
1 | ||
| 47713R - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47547-20010 |
MA70 |
2 | ||
| 47714R - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-30010 |
MA70 |
2 | ||
| 47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) | ||||
| 47716-14140 |
MA70 |
4 | ||
| 47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) | ||||
| 47716-14140 |
MA70 |
4 | ||
| 47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47721-14130 |
MA70 |
2 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90119-08431 |
MA70 *8-1.25PX62-20 |
2 | ||
| 90105-08117 |
MA70 *8-1.25PX65-15 |
2 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90119-08431 |
MA70 *8-1.25PX62-20 |
2 | ||
| 90105-08117 |
MA70 *8-1.25PX65-15 |
2 | ||
| 47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47721-14130 |
MA70 |
1 | ||
| 47730B - CYLINDER ASSY, REAR DISC BRAKE, RH | ||||
| 47730-14190 |
MA70 |
1 | ||
| 47731B - PISTON, REAR DISC BRAKE | ||||
| 47731-14100 |
MA70 |
2 | ||
| 47731C - RING, SET(FOR REAR DISC BRAKE PISTON) | ||||
| 90522-49001 |
MA70 |
2 | ||
| 47744C - SHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE) | ||||
| 47744-14110 |
MA70 |
4 | ||
| 47744-14110 |
MA70..EUR,GCC |
4 | ||
| 47744C - SHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE) | ||||
| 47744-14110 |
MA70 |
4 | ||
| 47744-14110 |
MA70..EUR,GCC |
4 | ||
| 47745B - SHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE) | ||||
| 47745-14040 |
MA70 |
2 | ||
| 47745-14040 |
MA70..EUR,GCC |
2 | ||
| 47748D - SPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47748-14070 |
MA70 |
4 | ||
| 47750A - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47750-14210 |
MA70 |
1 | ||
| 47766C - CAP, CYLINDER SLIDE PIN | ||||
| 47766-17010 |
MA70 |
2 | ||
| 47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47769-28010 |
MA70 |
2 | ||
| 47771A - PLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE) | ||||
| 47771-22040 |
MA70 |
4 | ||
| 47771A - PLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE) | ||||
| 47771-22040 |
MA70 |
4 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47775-14010 |
MA70 |
2 | ||
| 47776A - BOOT, MAIN PIN(FOR REAR DISC BRAKE) | ||||
| 47776-14030 |
MA70 |
2 | ||
| 47779A - BUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE) | ||||
| 47779-14010 |
MA70 |
2 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90119-10402 |
MA70 |
4 | ||
ILLUST NO. 2 OF 2(8601- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-22110 |
MA70 |
1 | ||
| 04466-14030 |
MA70..EUR DENMARK OR SWITZERLAND SPEC |
1 | ||
| 04466-22110 |
MA70..EUR,GCC |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-14040 |
MA70 |
1 | ||
| 04946-14040 |
MA70..EUR,GCC |
1 | ||
| 04946-14040 |
MA70..EUR DENMARK OR SWITZERLAND SPEC |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-14080 |
MA70..EUR,GCC |
1 | ||
| 04948-14080 |
MA70..EUR DENMARK OR SWITZERLAND SPEC |
1 | ||
| 04948-14080 |
MA70 |
1 | ||
