MA70L-BLMVFC (1986)
Toyota Supra
Production
Jan 1986
-
Aug 1988
Engine
7MGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8601- )7MGE

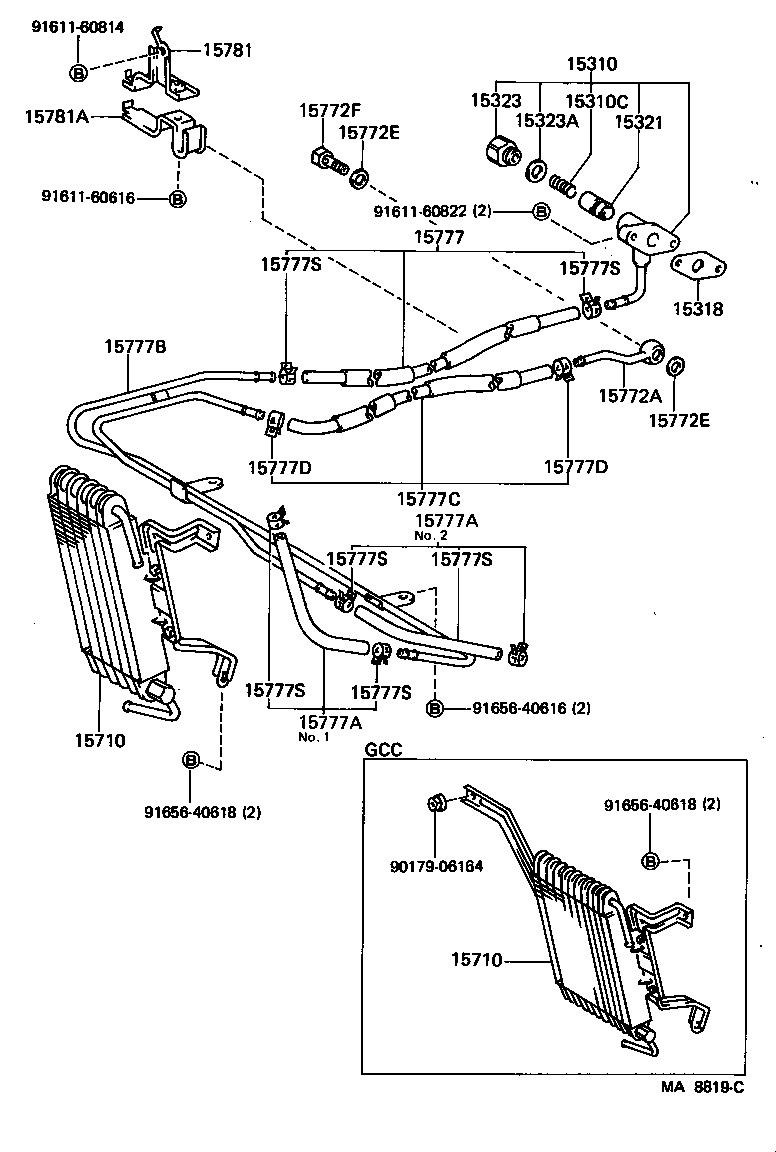

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15310 - REGULATOR ASSY, OIL PRESSURE | ||||
| 15310-45012 |
7MGE..MA70 |
1 | ||
| 15310C - SPRING, OIL PRESSURE REGULATOR | ||||
| 15132-21010 |
7MGE..MA70 |
1 | ||
| 15318 - GASKET, OIL PRESSURE REGULATOR BODY | ||||
| 15318-45011 |
7MGE..MA70 |
1 | ||
| 15321 - VALVE, OIL ADJUSTING | ||||
| 15131-22010 |
7MGE..MA70 |
1 | ||
| 15323 - BOLT, OIL PRESSURE ADJUSTING | ||||
| 15133-20010 |
7MGE..MA70 |
1 | ||
| 15323A - GASKET, OIL PRESSURE REGULATOR ADJUSTING BOLT | ||||
| 15134-20010 |
7MGE..MA70 |
1 | ||
| 15710 - COOLER ASSY, OIL | ||||
| 15710-42020 |
7MGE..MA70..ARL,EUR,GEN,SA |
1 | ||
| 15710 - COOLER ASSY, OIL | ||||
| 15710-42020 |
7MGE..MA70..ARL,EUR,GEN,SA |
1 | ||
| 15772A - UNION(FOR OIL PIPE) | ||||
| 90405-10019 |
7MG#..MA70 |
1 | ||
| 15772E - GASKET(FOR OIL PIPE) | ||||
| 90430-12018 |
7MG#..MA70 |
2 | ||
| 15772E - GASKET(FOR OIL PIPE) | ||||
| 90430-12018 |
7MG#..MA70 |
2 | ||
| 15772F - BOLT, UNION(FOR OIL PIPE) | ||||
| 90401-12009 |
7MG#..MA70 |
1 | ||
| 15777 - HOSE, OIL COOLER | ||||
| 15778-42020 |
7MGE..MA70 |
1 | ||
| 15777A - HOSE, OIL COOLER | ||||
| 15779-42010 |
7MGE..MA70 NO.2 |
1 | ||
| 15779-42010 |
7MGE..MA70 NO.1 |
1 | ||
| 15777A - HOSE, OIL COOLER | ||||
| 15779-42010 |
7MGE..MA70 NO.2 |
1 | ||
| 15779-42010 |
7MGE..MA70 NO.1 |
1 | ||
| 15777B - PIPE, OIL COOLER | ||||
| 15707-42010 |
7MGE..MA70 |
1 | ||
| 15777C - HOSE, OIL COOLER | ||||
| 15777-42020 |
7MG#..MA70 |
1 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 90467-16004 |
7MG#..MA70 |
2 | ||
| 90467-16015 |
7MG#..MA70 |
2 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 90467-16004 |
7MG#..MA70 |
2 | ||
| 90467-16015 |
7MG#..MA70 |
2 | ||
| 15777S - CLAMP OR CLIP, HOSE | ||||
| 90467-16015 |
7MG#..MA70 |
8 | ||
| 15777S - CLAMP OR CLIP, HOSE | ||||
| 90467-16015 |
7MG#..MA70 |
8 | ||
| 15777S - CLAMP OR CLIP, HOSE | ||||
| 90467-16015 |
7MG#..MA70 |
8 | ||
| 15777S - CLAMP OR CLIP, HOSE | ||||
| 90467-16015 |
7MG#..MA70 |
8 | ||
| 15777S - CLAMP OR CLIP, HOSE | ||||
| 90467-16015 |
7MG#..MA70 |
8 | ||
| 15777S - CLAMP OR CLIP, HOSE | ||||
| 90467-16015 |
7MG#..MA70 |
8 | ||
| 15781 - BRACKET, OIL COOLER, NO.1 | ||||
| 15781-42030 |
7MG#..MA70 |
1 | ||
| 15781A - CLAMP(FOR OIL COOLER BRACKET NO.1) | ||||
| 90929-01160 |
7MG#..MA70 |
1 | ||
| Common parts | ||||
| 90179-06164 | ||||
| 91611-60616 | ||||
| 91611-60814 | ||||
| 91611-60822 | ||||
| 91656-40616 | ||||
| 91656-40618 | ||||
