MA70L-BLMVFA (1986)
Toyota Supra
Production
Jan 1986
-
Aug 1988
Engine
7MGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8601- )

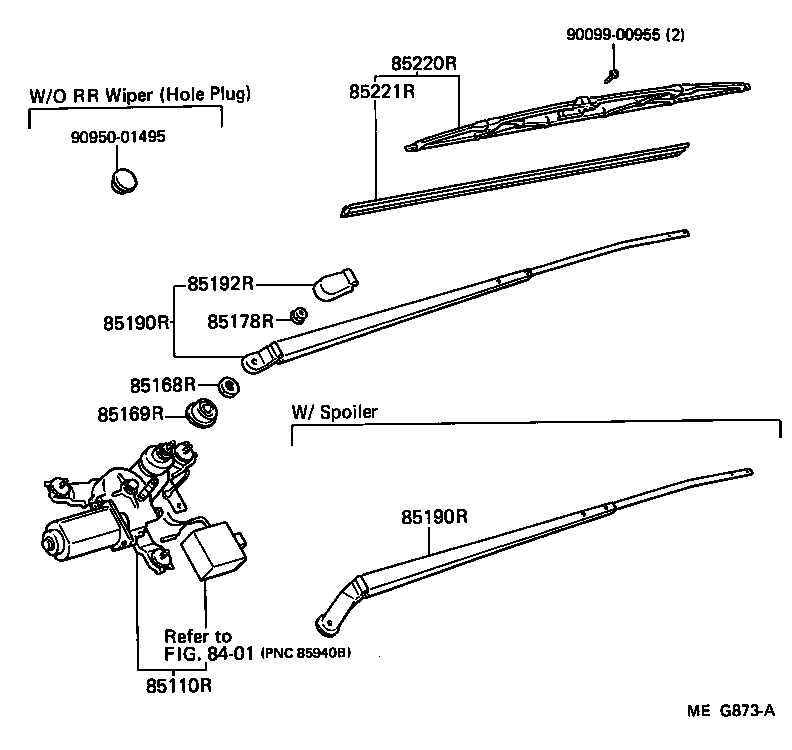

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-00955 | ||||
| 90950-01495 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(8601- )

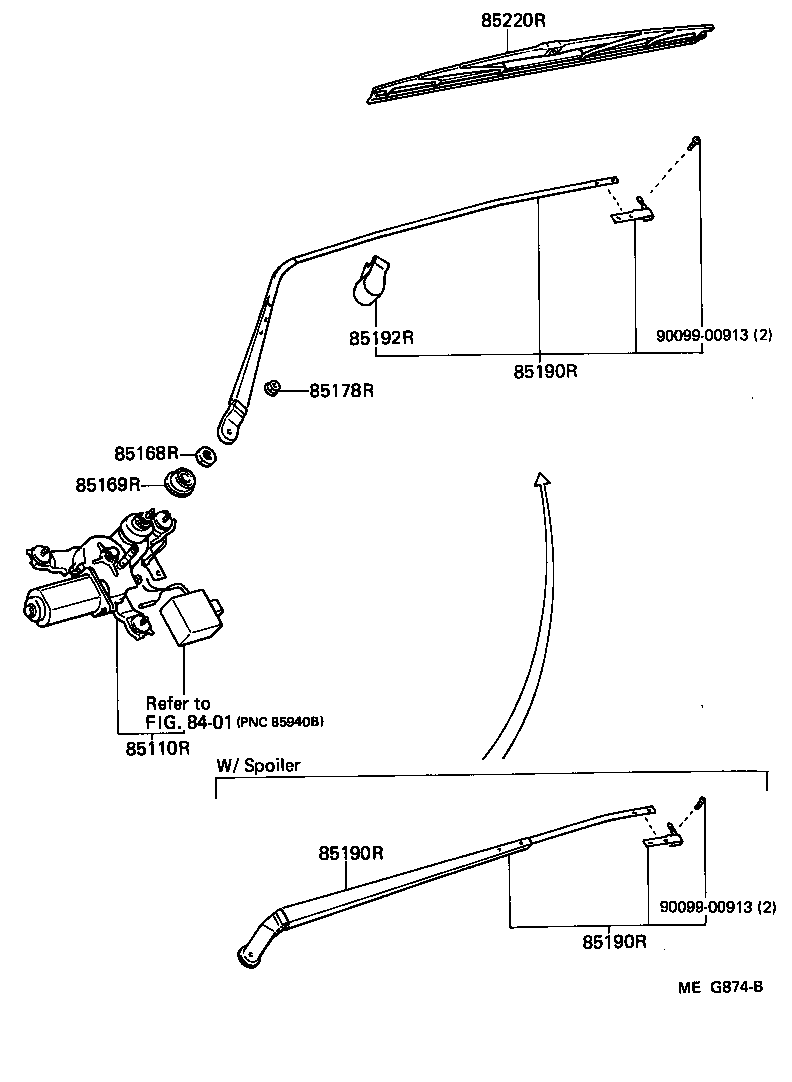

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110R - MOTOR ASSY, REAR WIPER | ||||
| 85110-14290 |
MA70 |
1 | ||
| 85168R - NUT, REAR WIPER LINK PIVOT, NO.1 | ||||
| 90099-05157 |
MA70 |
1 | ||
| 85169R - WASHER, REAR WIPER LINK PIVOT, NO.1 | ||||
| 85179-14290 |
MA70 |
1 | ||
| 85178R - NUT (FOR REAR WIPER ARM SETTING) | ||||
| 90179-06158 |
MA70..TWC |
1 | ||
| 85190R - ARM ASSY, REAR WIPER | ||||
| 85190-14680 |
MA70..TWC |
1 | ||
| 85190R - ARM ASSY, REAR WIPER | ||||
| 85190-14680 |
MA70..TWC |
1 | ||
| 85190R - ARM ASSY, REAR WIPER | ||||
| 85190-14680 |
MA70..TWC |
1 | ||
| 85192R - COVER, REAR WIPER ARM | ||||
| 85192-32010 |
MA70 |
1 | ||
| 85220R - BLADE ASSY, REAR WIPER | ||||
| 85220-14340 |
MA70 |
1 | ||
| Common parts | ||||
| 90099-00913 | ||||
| Linked diagrams | ||||
| 8401 | ||||
