MA70L-BLMVFA (1986)
Toyota Supra
Production
Jan 1986
-
Aug 1988
Engine
7MGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8601- )

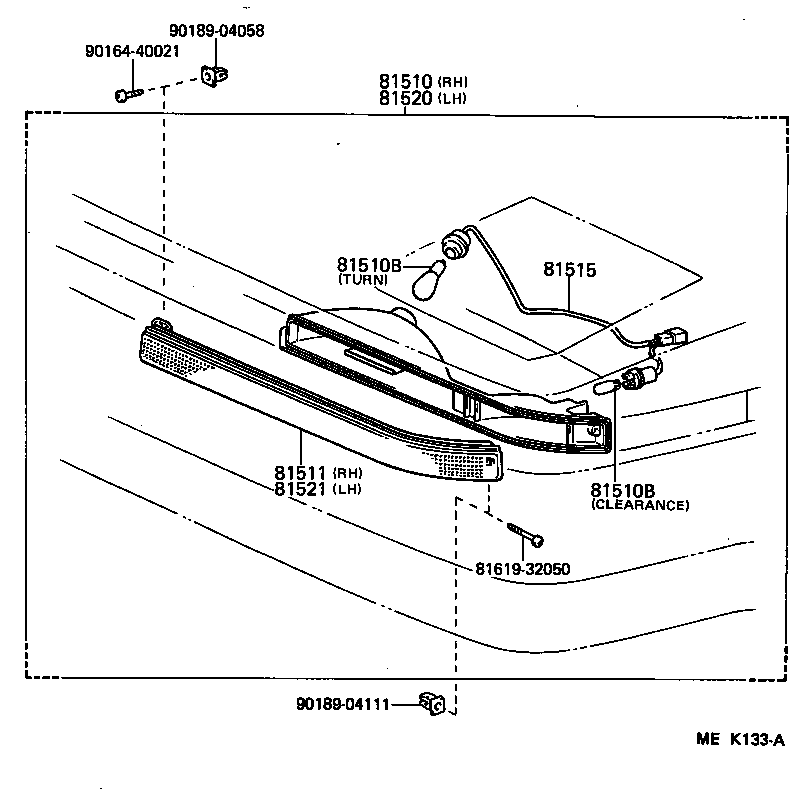

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 81619-32050 | ||||
| 90164-40021 | ||||
| 90189-04058 | ||||
| 90189-04111 | ||||

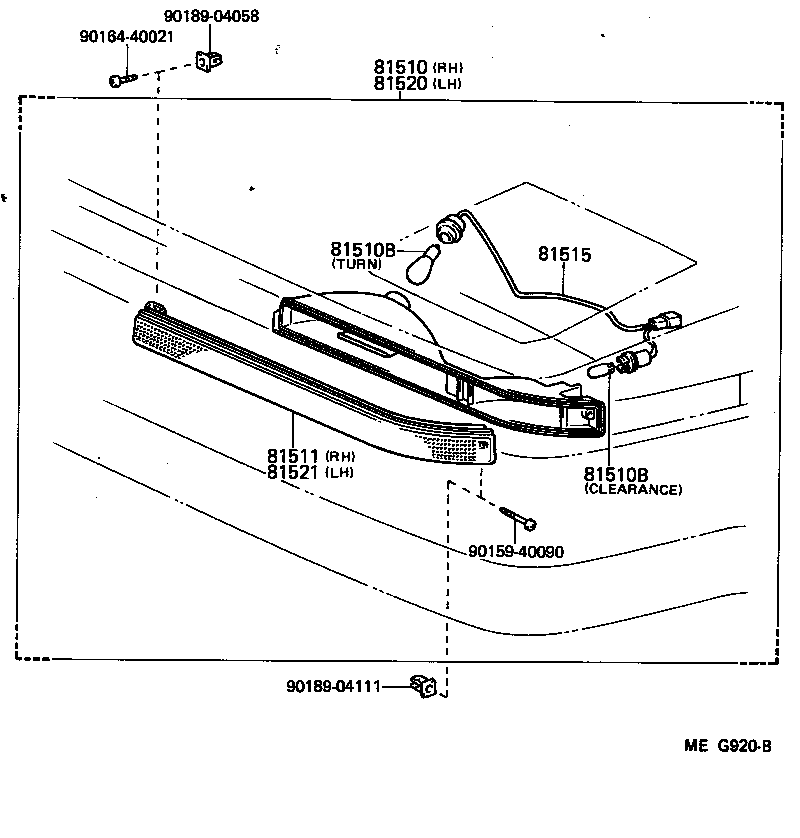

(8601- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81510 - LAMP ASSY, FRONT TURN SIGNAL, RH | ||||
| 81510-14350 |
MA70 |
1 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-11270 |
MA70 12V 27W,12V 27W(TURN) |
2 | ||
| 90981-11020 |
MA70 12V 3.8W,12V 3.8W(CLEARANCE) |
2 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-11270 |
MA70 12V 27W,12V 27W(TURN) |
2 | ||
| 90981-11020 |
MA70 12V 3.8W,12V 3.8W(CLEARANCE) |
2 | ||
| 81511 - LENS, FRONT TURN SIGNAL LAMP, RH | ||||
| 81511-14350 |
MA70 |
1 | ||
| 81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY | ||||
| 81515-14330 |
MA70 |
2 | ||
| 81520 - LAMP ASSY, FRONT TURN SIGNAL, LH | ||||
| 81520-14350 |
MA70 |
1 | ||
| 81521 - LENS, FRONT TURN SIGNAL LAMP, LH | ||||
| 81521-14350 |
MA70 |
1 | ||
| Common parts | ||||
| 90159-40090 | ||||
| 90164-40021 | ||||
| 90189-04058 | ||||
| 90189-04111 | ||||
