MA70L-BLMVFA (1986)
Toyota Supra
(8601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90149-60055 | ||||
| 90159-60081 | ||||
| 90179-08123 | ||||
| 91651-60818 | ||||
| 93319-15020 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 8511 | ||||

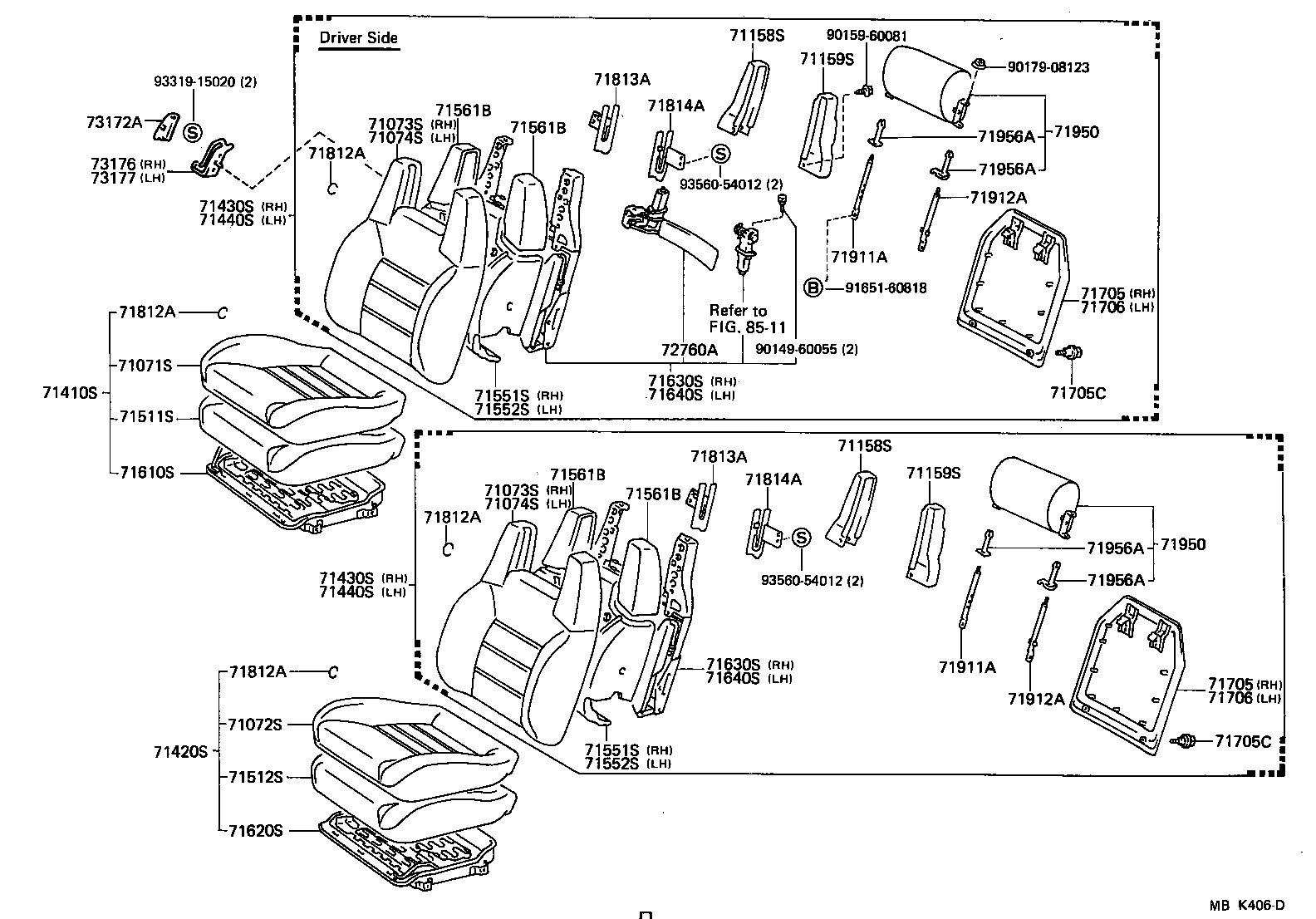

ILLUST NO. 1 OF 2(8601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1D18004 |
MA70..USA FB,W/*PSE,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71071-1D18005 |
MA70..USA FB,W/*PSE,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71071-1D18002 |
MA70 FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71071-1D18002 |
MA70..USA FB,W/*PSE,MAROON,MAROON,TRIM3# |
1 | ||
| 71071-1D18005 |
MA70 FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71071-1D24002 |
MA70 LEATHER,MAROON,MAROON,TRIM3# |
1 | ||
| 71071-1D18003 |
MA70 FB,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71071-1D18003 |
MA70..USA FB,W/*PSE,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71071-1D18102 |
MA70 FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71071-1D24005 |
MA70 LEATHER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71071-1D18105 |
MA70 FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71071-1D24003 |
MA70 LEATHER,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71071-1D18004 |
MA70 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71071-1D24004 |
MA70 LEATHER,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71071-1D18103 |
MA70 FB,GRAY,MIDIUM GRAY,TRIM1# |
1 | ||
| 71071-1D18104 |
MA70 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-1D19003 |
MA70..USA FB,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71072-1D20002 |
MA70 FB,W/*PSE,MAROON,MAROON,TRIM3# |
1 | ||
| 71072-1D19002 |
MA70..USA FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71072-1D19005 |
MA70..USA FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71072-1D19004 |
MA70..USA FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71072-1D20005 |
MA70 FB,W/*PSE,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71072-1D21003 |
MA70 LEATHER,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71072-1D20003 |
MA70 FB,W/*PSE,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71072-1D19104 |
MA70..USA FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71072-1D21005 |
MA70 LEATHER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71072-1D21002 |
MA70 LEATHER,MAROON,MAROON,TRIM3# |
1 | ||
| 71072-1D20103 |
MA70 FB,W/*PSE,GRAY,MIDIUM GRAY,TRIM1# |
1 | ||
| 71072-1D19105 |
MA70..USA FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71072-1D20004 |
MA70 FB,W/*PSE,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71072-1D20102 |
MA70 FB,W/*PSE,MAROON,MAROON,TRIM3# |
1 | ||
| 71072-1D19103 |
MA70..USA FB,GRAY,MIDIUM GRAY,TRIM1# |
1 | ||
| 71072-1D20104 |
MA70 FB,W/*PSE,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71072-1D21004 |
MA70 LEATHER,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71072-1D19102 |
MA70..USA FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71072-1D20105 |
MA70 FB,W/*PSE,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1B60003 |
MA70 FB,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71073-1B61002 |
MA70 LEATHER,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-1B60005 |
MA70 FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-1B60002 |
MA70 FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-1B61003 |
MA70 LEATHER,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71073-1B60102 |
MA70 FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-1B60105 |
MA70 FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-1B60103 |
MA70 FB,GRAY,MIDIUM GRAY,TRIM1# |
1 | ||
| 71073-1B60004 |
MA70 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71073-1B61004 |
MA70 LEATHER,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71073-1B61005 |
MA70 LEATHER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-1B60104 |
MA70 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-1B60002 |
MA70 FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-1B60003 |
MA70 FB,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71074-1481002 |
MA70 FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71074-1470002 |
MA70 LEATHER,MAROON,MAROON,TRIM3# |
1 | ||
| 71073-1B60005 |
MA70 FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71074-1470003 |
MA70 LEATHER,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71074-1481003 |
MA70 FB,GRAY,MIDIUM GRAY,TRIM1# |
1 | ||
| 71074-1481004 |
MA70 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71074-1481005 |
MA70 FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71074-1470004 |
MA70 LEATHER,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71073-1B60004 |
MA70 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71074-1470005 |
MA70 LEATHER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71010-1458002 |
MA70..USA FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71010-1459002 |
MA70 FB,W/*PSE,MAROON,MAROON,TRIM3# |
1 | ||
| 71010-1409005 |
MA70 LEATHER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71010-1409004 |
MA70 LEATHER,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71010-1458004 |
MA70..USA FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71010-1409002 |
MA70 LEATHER,MAROON,MAROON,TRIM3# |
1 | ||
| 71010-1459004 |
MA70 FB,W/*PSE,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71010-1459003 |
MA70 FB,W/*PSE,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71010-1458005 |
MA70..USA FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71010-1409105 |
MA70 LEATHER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71010-1459005 |
MA70 FB,W/*PSE,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71010-1409102 |
MA70 LEATHER,MAROON,MAROON,TRIM3# |
1 | ||
| 71010-1409003 |
MA70 LEATHER,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71010-1409104 |
MA70 LEATHER,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71010-1458103 |
MA70..USA FB,GRAY,MIDIUM GRAY,TRIM1# |
1 | ||
| 71010-1459102 |
MA70 FB,W/*PSE,MAROON,MAROON,TRIM3# |
1 | ||
| 71010-1409103 |
MA70 LEATHER,GRAY,MIDIUM GRAY,TRIM1# |
1 | ||
| 71010-1459105 |
MA70 FB,W/*PSE,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71010-1458003 |
MA70..USA FB,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71010-1459103 |
MA70 FB,W/*PSE,GRAY,MIDIUM GRAY,TRIM1# |
1 | ||
| 71010-1458102 |
MA70..USA FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71010-1459104 |
MA70 FB,W/*PSE,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71010-1458105 |
MA70..USA FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71010-1458104 |
MA70..USA FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71158S - FRAME, FRONT SEAT BACK, UPPER RH | ||||
| 71158-14070 |
MA70 RH |
1 | ||
| 71158-14060 |
MA70 LH |
1 | ||
| 71158-12060 |
MA70 |
2 | ||
| 71158-14060 |
MA70 |
2 | ||
| 71158S - FRAME, FRONT SEAT BACK, UPPER RH | ||||
| 71158-14070 |
MA70 RH |
1 | ||
| 71158-14060 |
MA70 LH |
1 | ||
| 71158-12060 |
MA70 |
2 | ||
| 71158-14060 |
MA70 |
2 | ||
| 71159S - FRAME, FRONT SEAT BACK, UPPER LH | ||||
| 71159-12040 |
MA70 |
2 | ||
| 71159-14060 |
MA70 LH |
1 | ||
| 71159-14050 |
MA70 RH |
1 | ||
| 71159-14050 |
MA70 |
2 | ||
| 71159S - FRAME, FRONT SEAT BACK, UPPER LH | ||||
| 71159-12040 |
MA70 |
2 | ||
| 71159-14060 |
MA70 LH |
1 | ||
| 71159-14050 |
MA70 RH |
1 | ||
| 71159-14050 |
MA70 |
2 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71020-1409003 |
MA70 LEATHER,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71020-1409002 |
MA70 LEATHER,MAROON,MAROON,TRIM3# |
1 | ||
| 71020-1409004 |
MA70 LEATHER,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71020-1447002 |
MA70..USA FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71020-1448002 |
MA70 FB,W/*PSE,MAROON,MAROON,TRIM3# |
1 | ||
| 71020-1447005 |
MA70..USA FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71020-1447004 |
MA70..USA FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71020-1409005 |
MA70 LEATHER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71020-1448005 |
MA70 FB,W/*PSE,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71020-1447003 |
MA70..USA FB,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71020-1448004 |
MA70 FB,W/*PSE,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71020-1448104 |
MA70 FB,W/*PSE,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71020-1476102 |
MA70 LEATHER,W/*PSE,MAROON,MAROON,TRIM3# |
1 | ||
| 71020-1409102 |
MA70..USA LEATHER,MAROON,MAROON,TRIM3# |
1 | ||
| 71020-1447103 |
MA70..USA FB,GRAY,MIDIUM GRAY,TRIM1# |
1 | ||
| 71020-1448003 |
MA70 FB,W/*PSE,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71020-1448102 |
MA70 FB,W/*PSE,MAROON,MAROON,TRIM3# |
1 | ||
| 71020-1476104 |
MA70 LEATHER,W/*PSE,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71020-1447104 |
MA70..USA FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71020-1447102 |
MA70..USA FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71020-1448105 |
MA70 FB,W/*PSE,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71020-1409104 |
MA70..USA LEATHER,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71020-1476103 |
MA70 LEATHER,W/*PSE,GRAY,MIDIUM GRAY,TRIM1# |
1 | ||
| 71020-1409105 |
MA70..USA LEATHER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71020-1409103 |
MA70..USA LEATHER,GRAY,MIDIUM GRAY,TRIM1# |
1 | ||
| 71020-1476105 |
MA70 LEATHER,W/*PSE,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71020-1448103 |
MA70 FB,W/*PSE,GRAY,MIDIUM GRAY,TRIM1# |
1 | ||
| 71020-1447105 |
MA70..USA FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-14210 |
MA70 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-14020 |
MA70 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-14210 |
MA70 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-14210 |
MA70 |
1 | ||
| 71561B - PAD, FRONT SEAT BACK, UPPER | ||||
| 71561-14190 |
MA70 RH |
2 | ||
| 71562-14070 |
MA70 DRIVER SEAT,LH |
1 | ||
| 71562-14060 |
MA70 LH |
2 | ||
| 71561-14210 |
MA70 PASSENGER SEAT,RH |
1 | ||
| 71561-14190 |
MA70 DRIVER SEAT,RH |
1 | ||
| 71562-14060 |
MA70 PASSENGER SEAT,LH |
1 | ||
| 71561B - PAD, FRONT SEAT BACK, UPPER | ||||
| 71561-14190 |
MA70 RH |
2 | ||
| 71562-14070 |
MA70 DRIVER SEAT,LH |
1 | ||
| 71562-14060 |
MA70 LH |
2 | ||
| 71561-14210 |
MA70 PASSENGER SEAT,RH |
1 | ||
| 71561-14190 |
MA70 DRIVER SEAT,RH |
1 | ||
| 71562-14060 |
MA70 PASSENGER SEAT,LH |
1 | ||
| 71561B - PAD, FRONT SEAT BACK, UPPER | ||||
| 71561-14190 |
MA70 RH |
2 | ||
| 71562-14070 |
MA70 DRIVER SEAT,LH |
1 | ||
| 71562-14060 |
MA70 LH |
2 | ||
| 71561-14210 |
MA70 PASSENGER SEAT,RH |
1 | ||
| 71561-14190 |
MA70 DRIVER SEAT,RH |
1 | ||
| 71562-14060 |
MA70 PASSENGER SEAT,LH |
1 | ||
| 71561B - PAD, FRONT SEAT BACK, UPPER | ||||
| 71561-14190 |
MA70 RH |
2 | ||
| 71562-14070 |
MA70 DRIVER SEAT,LH |
1 | ||
| 71562-14060 |
MA70 LH |
2 | ||
| 71561-14210 |
MA70 PASSENGER SEAT,RH |
1 | ||
| 71561-14190 |
MA70 DRIVER SEAT,RH |
1 | ||
| 71562-14060 |
MA70 PASSENGER SEAT,LH |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-14250 |
MA70 |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-14260 |
MA70 W/*PSE |
1 | ||
| 71620-14200 |
MA70..USA |
1 | ||

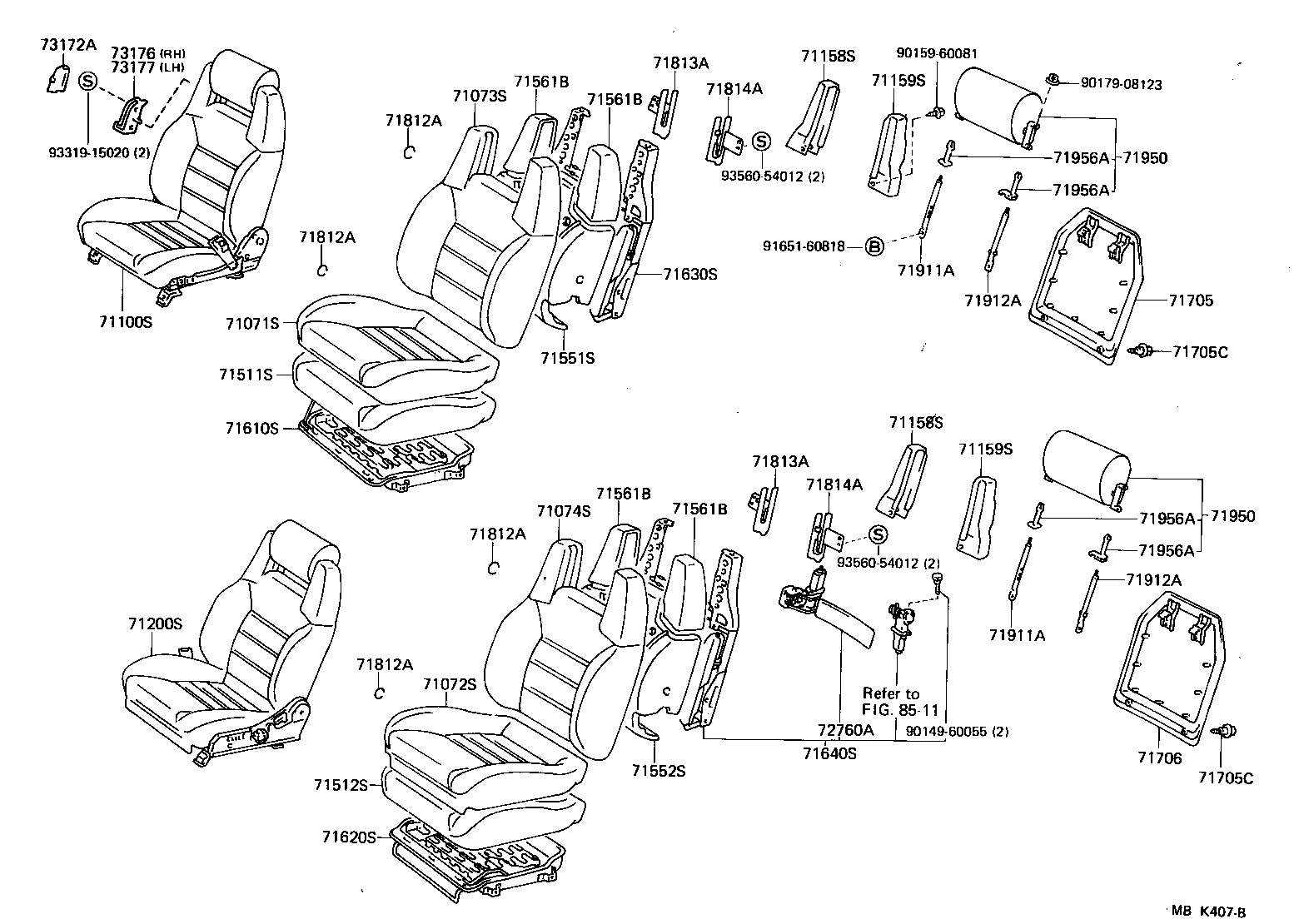

| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-14210 |
MA70 |
1 | ||
| 71630-14230 |
MA70 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-14220 |
MA70 |
1 | ||
| 71640-14210 |
MA70 |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-1403002 |
MA70 VL,MAROON,MAROON,TRIM3# |
1 | ||
| 71705-1403003 |
MA70 VL,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71705-1404004 |
MA70 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71705-1404003 |
MA70 FB,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71705-1403005 |
MA70 VL,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71705-1403004 |
MA70 VL,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71705-1404002 |
MA70 FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71705-1404005 |
MA70 FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71705C - SCREW(FOR FRONT SEAT BACK BOARD) | ||||
| 90149-5004304 |
MA70 BLUE,DEEP BLUE,TRIM8# |
4 | ||
| 90149-5004305 |
MA70 BEIGE,BEIGE,TRIM4# |
4 | ||
| 90149-5004313 |
MA70 GRAY,LIGHT GRAY,TRIM1# |
4 | ||
| 90149-5004312 |
MA70 MAROON,MAROON,TRIM3# |
4 | ||
| 71705C - SCREW(FOR FRONT SEAT BACK BOARD) | ||||
| 90149-5004304 |
MA70 BLUE,DEEP BLUE,TRIM8# |
4 | ||
| 90149-5004305 |
MA70 BEIGE,BEIGE,TRIM4# |
4 | ||
| 90149-5004313 |
MA70 GRAY,LIGHT GRAY,TRIM1# |
4 | ||
| 90149-5004312 |
MA70 MAROON,MAROON,TRIM3# |
4 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-1404002 |
MA70 FB,MAROON,MAROON,TRIM3# |
1 | ||
| 71705-1403002 |
MA70 VL,MAROON,MAROON,TRIM3# |
1 | ||
| 71705-1404005 |
MA70 FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71705-1403003 |
MA70 VL,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71705-1404003 |
MA70 FB,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71705-1403004 |
MA70 VL,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71705-1404004 |
MA70 FB,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71705-1403005 |
MA70 VL,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
MA70 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
MA70 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
MA70 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
MA70 |
1 | ||
| 71813A - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-1202005 |
MA70 BEIGE,BEIGE,TRIM4# |
2 | ||
| 71813-1202014 |
MA70 BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71813-1202013 |
MA70 GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71813-1202022 |
MA70 MAROON,MAROON,TRIM3# |
2 | ||
| 71813A - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-1202005 |
MA70 BEIGE,BEIGE,TRIM4# |
2 | ||
| 71813-1202014 |
MA70 BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71813-1202013 |
MA70 GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71813-1202022 |
MA70 MAROON,MAROON,TRIM3# |
2 | ||
| 71814A - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-1201005 |
MA70 BEIGE,BEIGE,TRIM4# |
2 | ||
| 71814-1201013 |
MA70 GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71814-1201022 |
MA70 MAROON,MAROON,TRIM3# |
2 | ||
| 71814-1201014 |
MA70 BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71814A - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-1201005 |
MA70 BEIGE,BEIGE,TRIM4# |
2 | ||
| 71814-1201013 |
MA70 GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71814-1201022 |
MA70 MAROON,MAROON,TRIM3# |
2 | ||
| 71814-1201014 |
MA70 BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71911A - STAY, FRONT SEAT HEADREST, RH | ||||
| 71911-14050 |
MA70 |
2 | ||
| 71911A - STAY, FRONT SEAT HEADREST, RH | ||||
| 71911-14050 |
MA70 |
2 | ||
| 71912A - STAY, FRONT SEAT HEADREST, LH | ||||
| 71912-14070 |
MA70 |
2 | ||
| 71912A - STAY, FRONT SEAT HEADREST, LH | ||||
| 71912-14070 |
MA70 |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1469002 |
MA70 LEATHER,MAROON,MAROON,TRIM3# |
2 | ||
| 71910-1468004 |
MA70 FB,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71910-1468003 |
MA70 FB,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71910-1468002 |
MA70 FB,MAROON,MAROON,TRIM3# |
2 | ||
| 71910-1469003 |
MA70 LEATHER,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71910-1469005 |
MA70 LEATHER,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71910-1469004 |
MA70 LEATHER,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71910-1468005 |
MA70 FB,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1469002 |
MA70 LEATHER,MAROON,MAROON,TRIM3# |
2 | ||
| 71910-1468004 |
MA70 FB,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71910-1468003 |
MA70 FB,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71910-1468002 |
MA70 FB,MAROON,MAROON,TRIM3# |
2 | ||
| 71910-1469003 |
MA70 LEATHER,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71910-1469005 |
MA70 LEATHER,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71910-1469004 |
MA70 LEATHER,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71910-1468005 |
MA70 FB,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1408014 |
MA70 W(LOCK),W/LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71930-1408023 |
MA70 W(LOCK),W/LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1408005 |
MA70 W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1401014 |
MA70 W/O(LOCK),W/O LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71931-1401005 |
MA70 W/O(LOCK),W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1401042 |
MA70 W/O(LOCK),W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1408042 |
MA70 W(LOCK),W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1401023 |
MA70 W/O(LOCK),W/O LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1408014 |
MA70 W(LOCK),W/LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71930-1408023 |
MA70 W(LOCK),W/LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1408005 |
MA70 W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1401014 |
MA70 W/O(LOCK),W/O LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71931-1401005 |
MA70 W/O(LOCK),W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1401042 |
MA70 W/O(LOCK),W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1408042 |
MA70 W(LOCK),W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1401023 |
MA70 W/O(LOCK),W/O LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1408014 |
MA70 W(LOCK),W/LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71930-1408023 |
MA70 W(LOCK),W/LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1408005 |
MA70 W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1401014 |
MA70 W/O(LOCK),W/O LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71931-1401005 |
MA70 W/O(LOCK),W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1401042 |
MA70 W/O(LOCK),W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1408042 |
MA70 W(LOCK),W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1401023 |
MA70 W/O(LOCK),W/O LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1408014 |
MA70 W(LOCK),W/LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71930-1408023 |
MA70 W(LOCK),W/LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1408005 |
MA70 W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1401014 |
MA70 W/O(LOCK),W/O LOCK,BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 71931-1401005 |
MA70 W/O(LOCK),W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1401042 |
MA70 W/O(LOCK),W/O LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71930-1408042 |
MA70 W(LOCK),W/LOCK,MAROON,MAROON,TRIM3# |
2 | ||
| 71931-1401023 |
MA70 W/O(LOCK),W/O LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 72760A - ADJUSTER ASSY, LUMBAR SUPPORT | ||||
| 72750-20070 |
MA70 |
1 | ||
| 73172A - CAP, FRONT SHOULDER BELT HANGER | ||||
| 73172-1401002 |
MA70 RH,MAROON,MAROON,TRIM3# |
1 | ||
| 73172-1401003 |
MA70 RH,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 73172-1401005 |
MA70 RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 73172-1401004 |
MA70 RH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 73173-1402003 |
MA70 LH,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 73173-1402005 |
MA70 LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 73173-1402004 |
MA70 LH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 73173-1402002 |
MA70 LH,MAROON,MAROON,TRIM3# |
1 | ||
| 73176 - HANGER, FRONT SHOULDER BELT, RH (FOR FRONT SEAT) | ||||
| 73176-1404004 |
MA70 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 73176-1404003 |
MA70 GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 73176-1404002 |
MA70 MAROON,MAROON,TRIM3# |
1 | ||
| 73176-1404005 |
MA70 BEIGE,BEIGE,TRIM4# |
1 | ||
| 73177 - HANGER, FRONT SHOULDER BELT, LH (FOR FRONT SEAT) | ||||
| 73177-1404005 |
MA70 BEIGE,BEIGE,TRIM4# |
1 | ||
| 73177-1404002 |
MA70 MAROON,MAROON,TRIM3# |
1 | ||
| 73177-1404004 |
MA70 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 73177-1404003 |
MA70 GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90149-60055 | ||||
| 90159-60081 | ||||
| 90179-08123 | ||||
| 91651-60818 | ||||
| 93319-15020 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 8511 | ||||
ILLUST NO. 2 OF 2(8601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

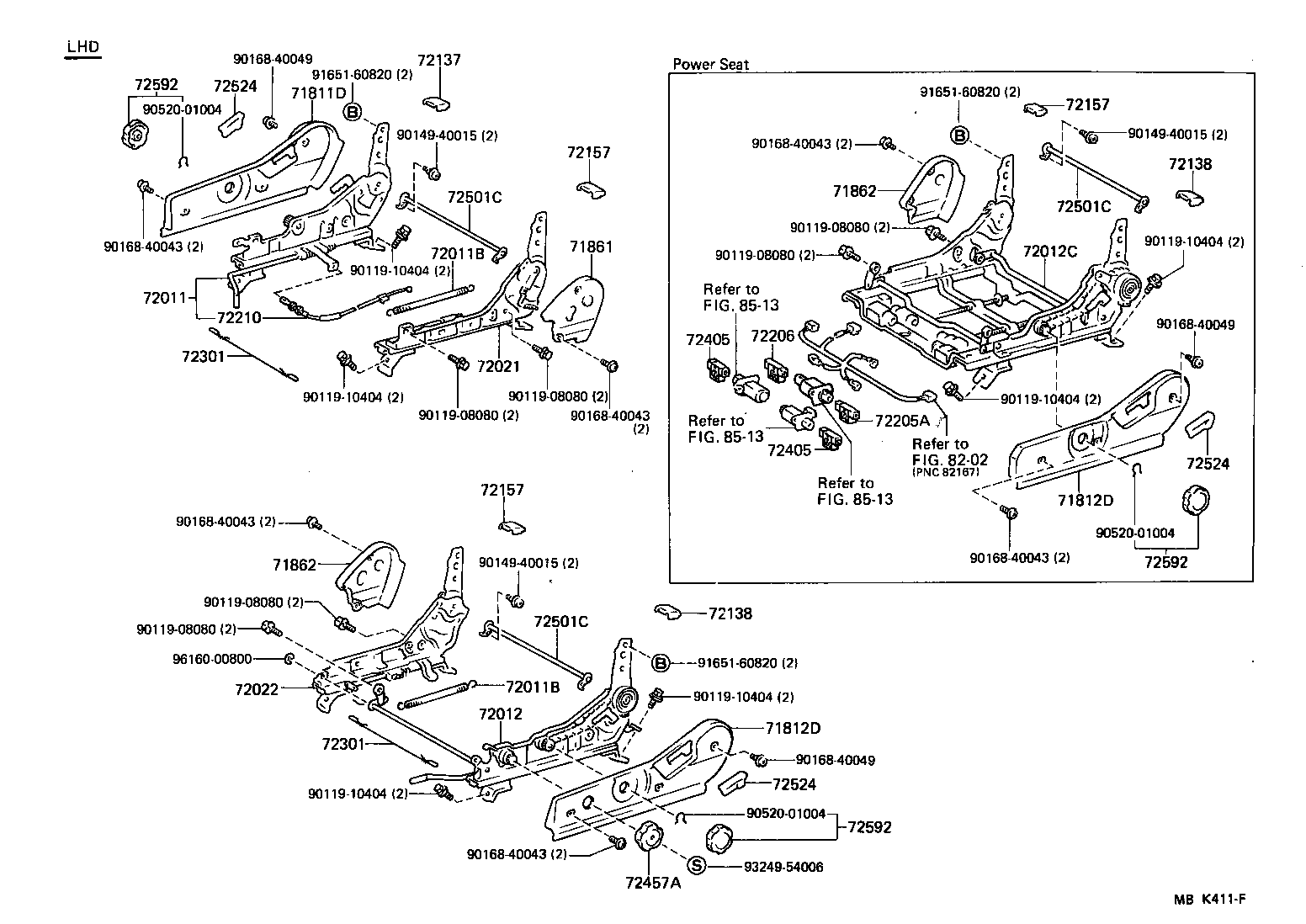

| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-2011013 |
MA70 GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71811-2014003 |
MA70 GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71811-2011012 |
MA70 MAROON,MAROON,TRIM3# |
1 | ||
| 71811-2014015 |
MA70 BEIGE,BEIGE,TRIM4# |
1 | ||
| 71811-2014012 |
MA70 MAROON,MAROON,TRIM3# |
1 | ||
| 71811-2011004 |
MA70 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71811-2014004 |
MA70 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71811-2011005 |
MA70 BEIGE,BEIGE,TRIM4# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1410002 |
MA70 W/*PSE,MAROON,MAROON,TRIM3# |
1 | ||
| 71812-2008005 |
MA70..USA BEIGE,BEIGE,TRIM4# |
1 | ||
| 71812-1410003 |
MA70 W/*PSE,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71812-2008004 |
MA70..USA BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71812-2008012 |
MA70..USA MAROON,MAROON,TRIM3# |
1 | ||
| 71812-2008013 |
MA70..USA GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71812-1410004 |
MA70 W/*PSE,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71812-2009004 |
MA70..USA BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71812-2009012 |
MA70..USA MAROON,MAROON,TRIM3# |
1 | ||
| 71812-1410005 |
MA70 W/*PSE,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71812-2009003 |
MA70..USA GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71812-2009015 |
MA70..USA BEIGE,BEIGE,TRIM4# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1410002 |
MA70 W/*PSE,MAROON,MAROON,TRIM3# |
1 | ||
| 71812-2008005 |
MA70..USA BEIGE,BEIGE,TRIM4# |
1 | ||
| 71812-1410003 |
MA70 W/*PSE,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71812-2008004 |
MA70..USA BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71812-2008012 |
MA70..USA MAROON,MAROON,TRIM3# |
1 | ||
| 71812-2008013 |
MA70..USA GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71812-1410004 |
MA70 W/*PSE,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71812-2009004 |
MA70..USA BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71812-2009012 |
MA70..USA MAROON,MAROON,TRIM3# |
1 | ||
| 71812-1410005 |
MA70 W/*PSE,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71812-2009003 |
MA70..USA GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71812-2009015 |
MA70..USA BEIGE,BEIGE,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-1401005 |
MA70 BEIGE,BEIGE,TRIM4# |
1 | ||
| 71861-1401004 |
MA70 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71861-1401003 |
MA70 GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71861-1401002 |
MA70 MAROON,MAROON,TRIM3# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-1401003 |
MA70..USA GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71862-1401002 |
MA70..USA MAROON,MAROON,TRIM3# |
1 | ||
| 71862-1401004 |
MA70..USA BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71862-1402004 |
MA70 W/*PSE,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71862-1402005 |
MA70 W/*PSE,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71862-1402002 |
MA70 W/*PSE,MAROON,MAROON,TRIM3# |
1 | ||
| 71862-1401005 |
MA70..USA BEIGE,BEIGE,TRIM4# |
1 | ||
| 71862-1402003 |
MA70 W/*PSE,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-1401003 |
MA70..USA GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 71862-1401002 |
MA70..USA MAROON,MAROON,TRIM3# |
1 | ||
| 71862-1401004 |
MA70..USA BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71862-1402004 |
MA70 W/*PSE,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 71862-1402005 |
MA70 W/*PSE,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71862-1402002 |
MA70 W/*PSE,MAROON,MAROON,TRIM3# |
1 | ||
| 71862-1401005 |
MA70..USA BEIGE,BEIGE,TRIM4# |
1 | ||
| 71862-1402003 |
MA70 W/*PSE,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-14020 |
MA70 |
1 | ||
| 72011B - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90507-18014 |
MA70 |
2 | ||
| 72011B - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90507-18014 |
MA70 |
2 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-14010 |
MA70..USA |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72012-14040 |
MA70 W/*PSE |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-14020 |
MA70 |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-14010 |
MA70 |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-1401005 |
MA70 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72137-1401003 |
MA70 GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 72137-1401004 |
MA70 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72137-1401002 |
MA70 MAROON,MAROON,TRIM3# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-1401002 |
MA70 MAROON,MAROON,TRIM3# |
1 | ||
| 72138-1401005 |
MA70 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72138-1401003 |
MA70 GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 72138-1401004 |
MA70 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-1401002 |
MA70 MAROON,MAROON,TRIM3# |
1 | ||
| 72138-1401005 |
MA70 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72138-1401003 |
MA70 GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 72138-1401004 |
MA70 BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72137-1401005 |
MA70 LH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72138-1401002 |
MA70 RH,MAROON,MAROON,TRIM3# |
1 | ||
| 72137-1401003 |
MA70 LH,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 72137-1401002 |
MA70 LH,MAROON,MAROON,TRIM3# |
1 | ||
| 72138-1401005 |
MA70 RH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72137-1401004 |
MA70 LH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72138-1401003 |
MA70 RH,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 72138-1401004 |
MA70 RH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72137-1401005 |
MA70 LH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72138-1401002 |
MA70 RH,MAROON,MAROON,TRIM3# |
1 | ||
| 72137-1401003 |
MA70 LH,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 72137-1401002 |
MA70 LH,MAROON,MAROON,TRIM3# |
1 | ||
| 72138-1401005 |
MA70 RH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72137-1401004 |
MA70 LH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72138-1401003 |
MA70 RH,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 72138-1401004 |
MA70 RH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72137-1401005 |
MA70 LH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72138-1401002 |
MA70 RH,MAROON,MAROON,TRIM3# |
1 | ||
| 72137-1401003 |
MA70 LH,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 72137-1401002 |
MA70 LH,MAROON,MAROON,TRIM3# |
1 | ||
| 72138-1401005 |
MA70 RH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72137-1401004 |
MA70 LH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72138-1401003 |
MA70 RH,GRAY,MEDIUM GRAY,TRIM1# |
1 | ||
| 72138-1401004 |
MA70 RH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72205A - HOUSING SUB-ASSY, POWER SEAT, NO.1 | ||||
| 72205-22010 |
MA70 W/*PSE |
1 | ||
| 72206 - HOUSING SUB-ASSY, POWER SEAT, NO.2 | ||||
| 72206-22010 |
MA70 W/*PSE |
1 | ||
| 72210 - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-14110 |
MA70 |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-14060 |
MA70 |
2 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-14060 |
MA70 |
2 | ||
| 72405 - HOUSING SUB-ASSY, FRONT SEAT VERTICAL | ||||
| 72405-22010 |
MA70 W/*PSE |
2 | ||
| 72405 - HOUSING SUB-ASSY, FRONT SEAT VERTICAL | ||||
| 72405-22010 |
MA70 W/*PSE |
2 | ||
| 72457A - KNOB, SEAT ADJUSTER | ||||
| 72457-1701012 |
MA70..USA MAROON,MAROON,TRIM3# |
1 | ||
| 72457-1701005 |
MA70..USA BEIGE,BEIGE,TRIM4# |
1 | ||
| 72457-1701004 |
MA70..USA BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72457-1701013 |
MA70..USA GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-20010 |
MA70 |
2 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-20010 |
MA70 |
2 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-20010 |
MA70 |
2 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-2006012 |
MA70 RH,MAROON,MAROON,TRIM3# |
1 | ||
| 72525-2006005 |
MA70 RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72526-2005012 |
MA70 LH,MAROON,MAROON,TRIM3# |
1 | ||
| 72525-2006004 |
MA70 RH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72525-2006013 |
MA70 RH,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 72526-2005005 |
MA70 LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72526-2005004 |
MA70 LH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72526-2005013 |
MA70 LH,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-2006012 |
MA70 RH,MAROON,MAROON,TRIM3# |
1 | ||
| 72525-2006005 |
MA70 RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72526-2005012 |
MA70 LH,MAROON,MAROON,TRIM3# |
1 | ||
| 72525-2006004 |
MA70 RH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72525-2006013 |
MA70 RH,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 72526-2005005 |
MA70 LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72526-2005004 |
MA70 LH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72526-2005013 |
MA70 LH,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-2006012 |
MA70 RH,MAROON,MAROON,TRIM3# |
1 | ||
| 72525-2006005 |
MA70 RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72526-2005012 |
MA70 LH,MAROON,MAROON,TRIM3# |
1 | ||
| 72525-2006004 |
MA70 RH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72525-2006013 |
MA70 RH,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 72526-2005005 |
MA70 LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72526-2005004 |
MA70 LH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72526-2005013 |
MA70 LH,GRAY,LIGHT GRAY,TRIM1# |
1 | ||
| 72592 - KNOB, RECLINING ADJUSTER | ||||
| 72592-1401003 |
MA70 GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 72592-1401005 |
MA70 BEIGE,BEIGE,TRIM4# |
2 | ||
| 72592-1401002 |
MA70 MAROON,MAROON,TRIM3# |
2 | ||
| 72592-1401004 |
MA70 BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 72592 - KNOB, RECLINING ADJUSTER | ||||
| 72592-1401003 |
MA70 GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 72592-1401005 |
MA70 BEIGE,BEIGE,TRIM4# |
2 | ||
| 72592-1401002 |
MA70 MAROON,MAROON,TRIM3# |
2 | ||
| 72592-1401004 |
MA70 BLUE,DEEP BLUE,TRIM8# |
2 | ||
| 72592 - KNOB, RECLINING ADJUSTER | ||||
| 72592-1401003 |
MA70 GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 72592-1401005 |
MA70 BEIGE,BEIGE,TRIM4# |
2 | ||
| 72592-1401002 |
MA70 MAROON,MAROON,TRIM3# |
2 | ||
| 72592-1401004 |
MA70 BLUE,DEEP BLUE,TRIM8# |
2 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10404 | ||||
| 90149-40015 | ||||
| 90168-40043 | ||||
| 90168-40049 | ||||
| 90520-01004 | ||||
| 91651-60820 | ||||
| 93249-54006 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8513 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
