MA70L-BLMVFA (1986)
Toyota Supra
Production
Jan 1986
-
Aug 1988
Engine
7MGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8601- )

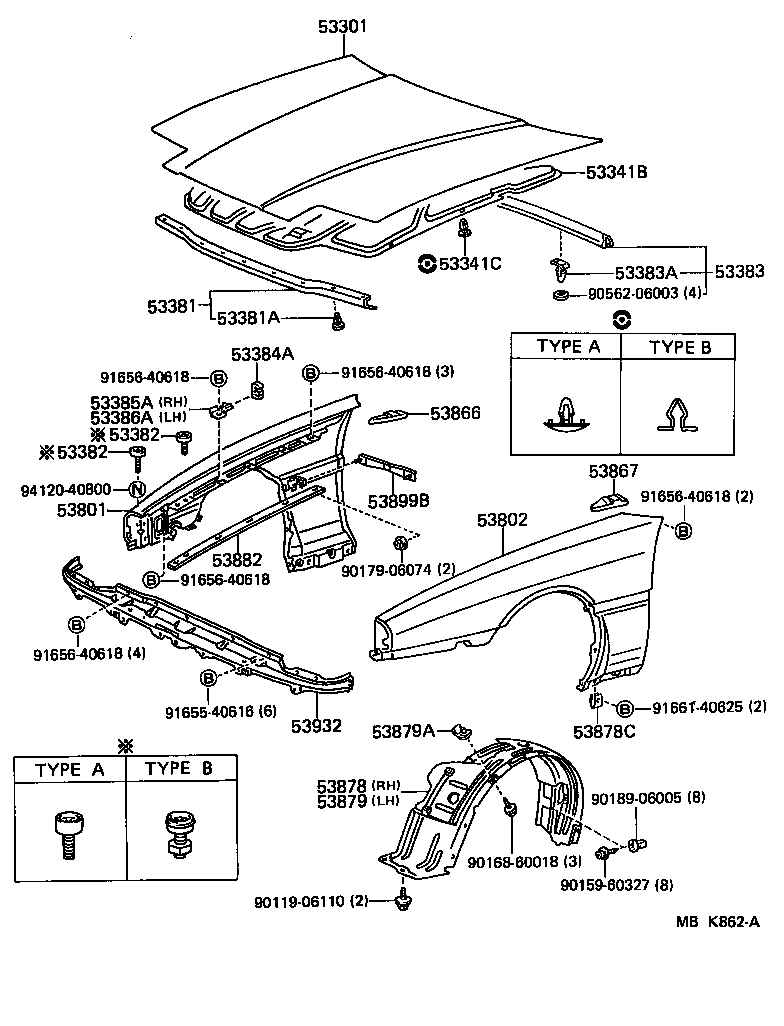

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06110 | ||||
| 90159-60327 | ||||
| 90168-60018 | ||||
| 90179-06074 | ||||
| 90189-06005 | ||||
| 90562-06003 | ||||
| 91655-40616 | ||||
| 91656-40618 | ||||
| 91661-40625 | ||||
| 94120-40800 | ||||
(8601- )

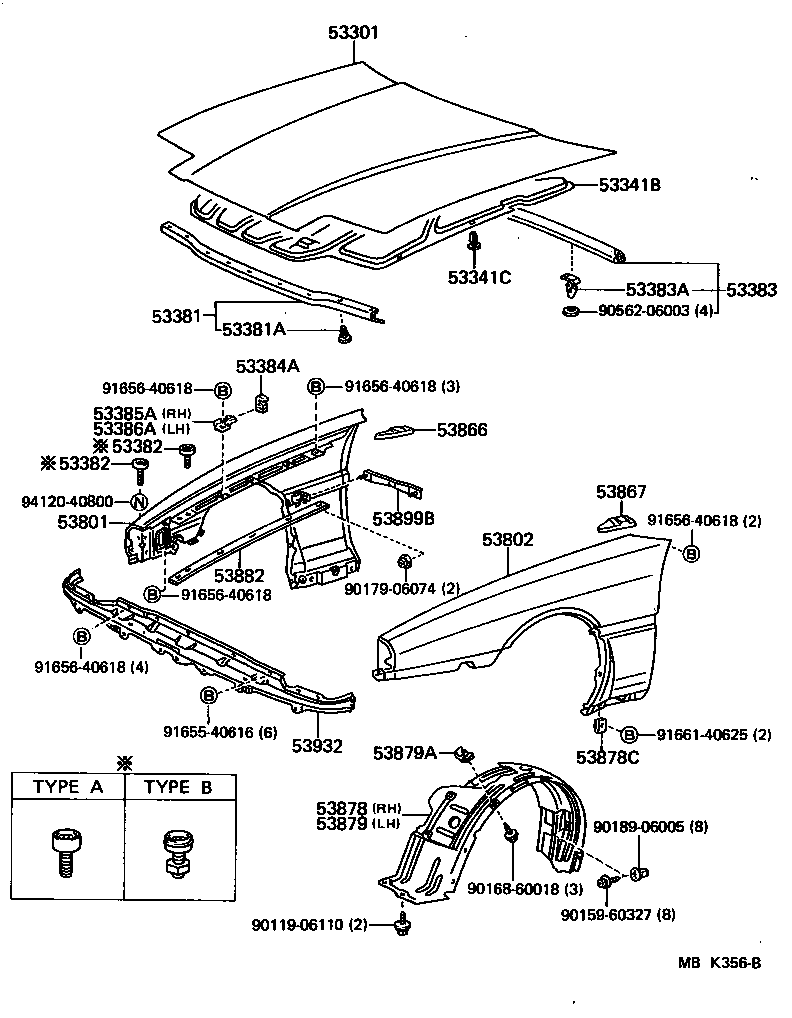

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-14320 |
MA70 |
1 | ||
| 53301-14321 |
MA70 |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-14090 |
MA70..TWC |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-08081 |
MA70..TWC |
15 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-14121 |
MA70 |
1 | ||
| 53381-14120 |
MA70 |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
MA70 OD=13 |
7 | ||
| 90467-11031 |
MA70 OD=15 |
2 | ||
| 53382 - BUMPER, HOOD, FRONT | ||||
| 53382-14010 |
MA70 TYPE B |
2 | ||
| 53382-90A00 |
MA70 TYPE A |
2 | ||
| 53382 - BUMPER, HOOD, FRONT | ||||
| 53382-14010 |
MA70 TYPE B |
2 | ||
| 53382-90A00 |
MA70 TYPE A |
2 | ||
| 53383 - SEAL, HOOD TO COWL TOP | ||||
| 53383-14100 |
MA70 |
1 | ||
| 53383A - CLIP(FOR HOOD TO COWL TOP SEAL) | ||||
| 90467-08044 |
MA70 INSIDE |
6 | ||
| 90467-08050 |
MA70 OUTSIDE |
2 | ||
| 53384A - BUMPER, FENDER TO HOOD | ||||
| 53384-14040 |
MA70 |
4 | ||
| 53385A - RETAINER, HOOD BUMPER, RH | ||||
| 53385-14010 |
MA70 |
2 | ||
| 53386A - RETAINER, HOOD BUMPER, LH | ||||
| 53386-14010 |
MA70 |
2 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-14840 |
MA70 |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-14820 |
MA70 |
1 | ||
| 53866 - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-14010 |
MA70 |
1 | ||
| 53867 - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-14010 |
MA70 |
1 | ||
| 53878 - LINER, FRONT FENDER, RH | ||||
| 53875-14180 |
MA70 |
1 | ||
| 53878C - SPACER, FRONT FENDER | ||||
| 53878-14020 |
MA70 |
4 | ||
| 53879 - LINER, FRONT FENDER, LH | ||||
| 53876-14180 |
MA70 |
1 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-14020 |
MA70 |
8 | ||
| 53882 - PACKING, FRONT FENDER MAIN | ||||
| 53882-14110 |
MA70 |
2 | ||
| 53899B - SUPPORT, FRONT FENDER PANEL | ||||
| 53899-14010 |
MA70 |
2 | ||
| 53932 - PANEL SUB-ASSY, FRONT END | ||||
| 53903-14040 |
MA70 |
1 | ||
| Common parts | ||||
| 90119-06110 | ||||
| 90159-60327 | ||||
| 90168-60018 | ||||
| 90179-06074 | ||||
| 90189-06005 | ||||
| 90562-06003 | ||||
| 91655-40616 | ||||
| 91656-40618 | ||||
| 91661-40625 | ||||
| 94120-40800 | ||||
