MA70L-BLMVFA (1986)
Toyota Supra
Production
Jan 1986
-
Aug 1988
Engine
7MGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8601- )5F..TWC

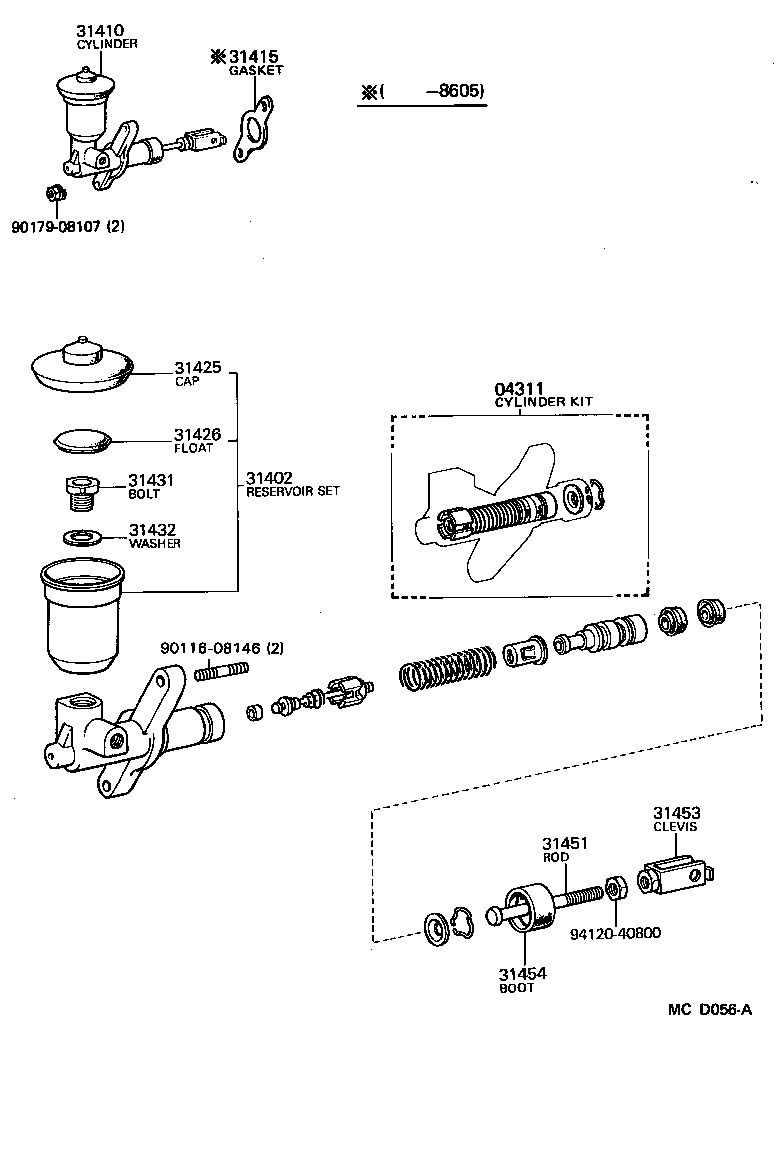

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04311 - CYLINDER KIT, CLUTCH MASTER | ||||
| 04311-14012 |
MA70..5F..TWC |
1 | ||
| 04311-14011 |
MA70..5F |
1 | ||
| 04311-14011 |
MA70..5F..TWC |
1 | ||
| 04311-14041 |
MA70..5F..TWC |
1 | ||
| 31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER | ||||
| 31402-14010 |
MA70..5F |
1 | ||
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31410-14200 |
MA70..5F |
1 | ||
| 31410-14202 |
MA70..5F..TWC |
1 | ||
| 31410-14192 |
MA70..5F..TWC |
1 | ||
| 31410-14200 |
MA70..5F..TWC |
1 | ||
| 31410-14201 |
MA70..5F..TWC |
1 | ||
| 31415 - GASKET, CLUTCH MASTER CYLINDER | ||||
| 31415-14020 |
MA70..5F..TWC |
1 | ||
| 31425 - CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-20040 |
MA70..5F |
1 | ||
| 31426 - FLOAT, CLUTCH MASTER CYLINDER RESERVOIR | ||||
| 31426-30011 |
MA70..5F |
1 | ||
| 31431 - BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET | ||||
| 47231-30010 |
MA70..5F |
1 | ||
| 31432 - WASHER, CLUTCH RESERVOIR SET BOLT | ||||
| 47232-30010 |
MA70..5F |
1 | ||
| 31451 - ROD, CLUTCH MASTER CYLINDER PUSH | ||||
| 31451-30120 |
MA70..5F |
1 | ||
| 31451-30120 |
MA70..5F..TWC |
1 | ||
| 31451-22050 |
MA70..5F |
1 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31404-14010 |
MA70..5F..TWC |
1 | ||
| 31453-10020 |
MA70..5F..TWC |
1 | ||
| 31453-10010 |
MA70..5F |
1 | ||
| 31454 - BOOT, CLUTCH MASTER CYLINDER | ||||
| 31454-14020 |
MA70..5F |
1 | ||
| Common parts | ||||
| 90116-08146 | ||||
| 90179-08107 | ||||
| 94120-40800 | ||||
(8808-9008)5F..TWC

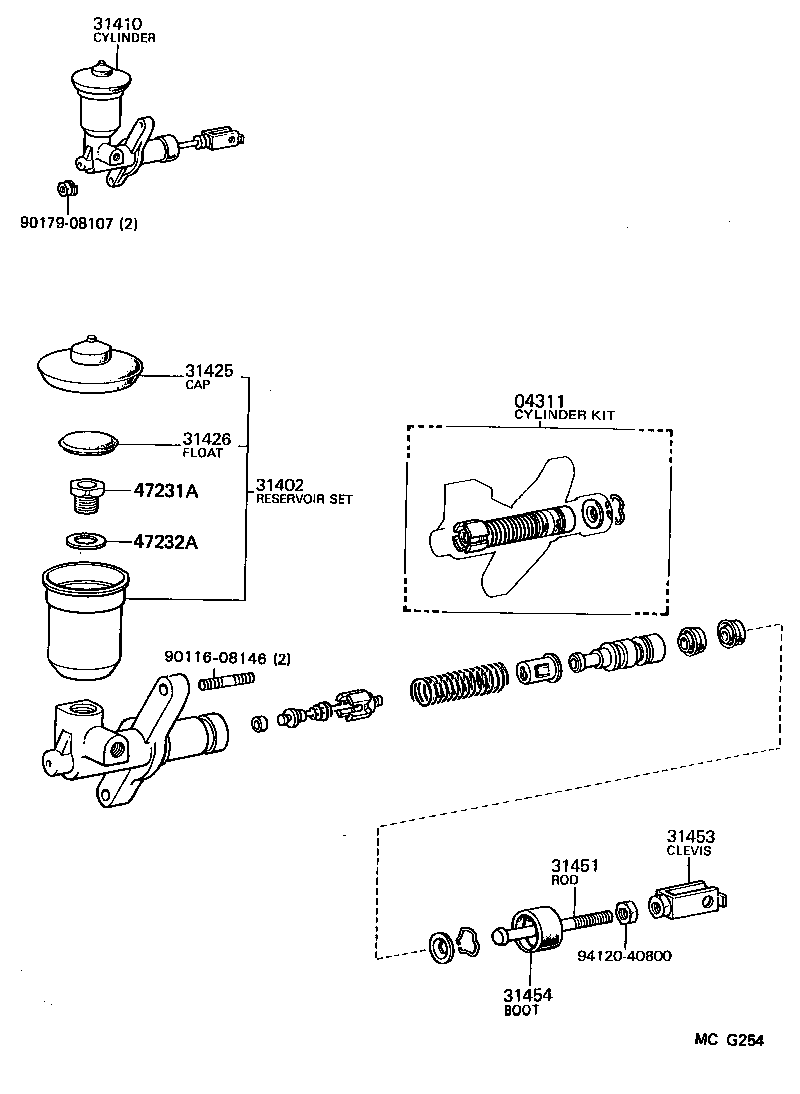

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90116-08146 | ||||
| 90179-08107 | ||||
| 94120-40800 | ||||
(8601- )5F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04311 - CYLINDER KIT, CLUTCH MASTER | ||||
| 04311-14012 |
MA70..5F..TWC |
1 | ||
| 04311-14011 |
MA70..5F |
1 | ||
| 04311-14011 |
MA70..5F..TWC |
1 | ||
| 04311-14041 |
MA70..5F..TWC |
1 | ||
| 31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER | ||||
| 31402-14010 |
MA70..5F |
1 | ||
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31410-14200 |
MA70..5F |
1 | ||
| 31410-14202 |
MA70..5F..TWC |
1 | ||
| 31410-14192 |
MA70..5F..TWC |
1 | ||
| 31410-14200 |
MA70..5F..TWC |
1 | ||
| 31410-14201 |
MA70..5F..TWC |
1 | ||
| 31415 - GASKET, CLUTCH MASTER CYLINDER | ||||
| 31415-14020 |
MA70..5F..TWC |
1 | ||
| 31425 - CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-20040 |
MA70..5F |
1 | ||
| 31426 - FLOAT, CLUTCH MASTER CYLINDER RESERVOIR | ||||
| 31426-30011 |
MA70..5F |
1 | ||
| 31431 - BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET | ||||
| 47231-30010 |
MA70..5F |
1 | ||
| 31432 - WASHER, CLUTCH RESERVOIR SET BOLT | ||||
| 47232-30010 |
MA70..5F |
1 | ||
| 31451 - ROD, CLUTCH MASTER CYLINDER PUSH | ||||
| 31451-30120 |
MA70..5F |
1 | ||
| 31451-30120 |
MA70..5F..TWC |
1 | ||
| 31451-22050 |
MA70..5F |
1 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31404-14010 |
MA70..5F..TWC |
1 | ||
| 31453-10020 |
MA70..5F..TWC |
1 | ||
| 31453-10010 |
MA70..5F |
1 | ||
| 31454 - BOOT, CLUTCH MASTER CYLINDER | ||||
| 31454-14020 |
MA70..5F |
1 | ||
| Common parts | ||||
| 90116-08146 | ||||
| 90179-08107 | ||||
| 94120-40800 | ||||
(8808-9008)5F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90116-08146 | ||||
| 90179-08107 | ||||
| 94120-40800 | ||||
