MA70L-BLMVF (1988)
Toyota Supra
Production
Aug 1988
-
May 1993
Engine
7MGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86150 - SPEAKER ASSY, W/BOX, NO.1 | ||||
| 86150-14080 |
MA70 RH |
1 | ||
| 86150-14090 |
MA70 LH |
1 | ||
| 86150-14081 |
MA70 RH |
1 | ||
| 86150-14091 |
MA70 LH |
1 | ||
| 86150 - SPEAKER ASSY, W/BOX, NO.1 | ||||
| 86150-14080 |
MA70 RH |
1 | ||
| 86150-14090 |
MA70 LH |
1 | ||
| 86150-14081 |
MA70 RH |
1 | ||
| 86150-14091 |
MA70 LH |
1 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-14310 |
MA70 RH |
1 | ||
| 86160-14320 |
MA70 LH |
1 | ||
| 86150-14070 |
MA70 LH |
1 | ||
| 86150-14060 |
MA70 RH |
1 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-14310 |
MA70 RH |
1 | ||
| 86160-14320 |
MA70 LH |
1 | ||
| 86150-14070 |
MA70 LH |
1 | ||
| 86150-14060 |
MA70 RH |
1 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-14291 |
MA70..ARL,C RH |
1 | ||
| 86160-14301 |
MA70..ARL,C LH |
1 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-14291 |
MA70..ARL,C RH |
1 | ||
| 86160-14301 |
MA70..ARL,C LH |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90189-06018 | ||||
| 91656-40616 | ||||

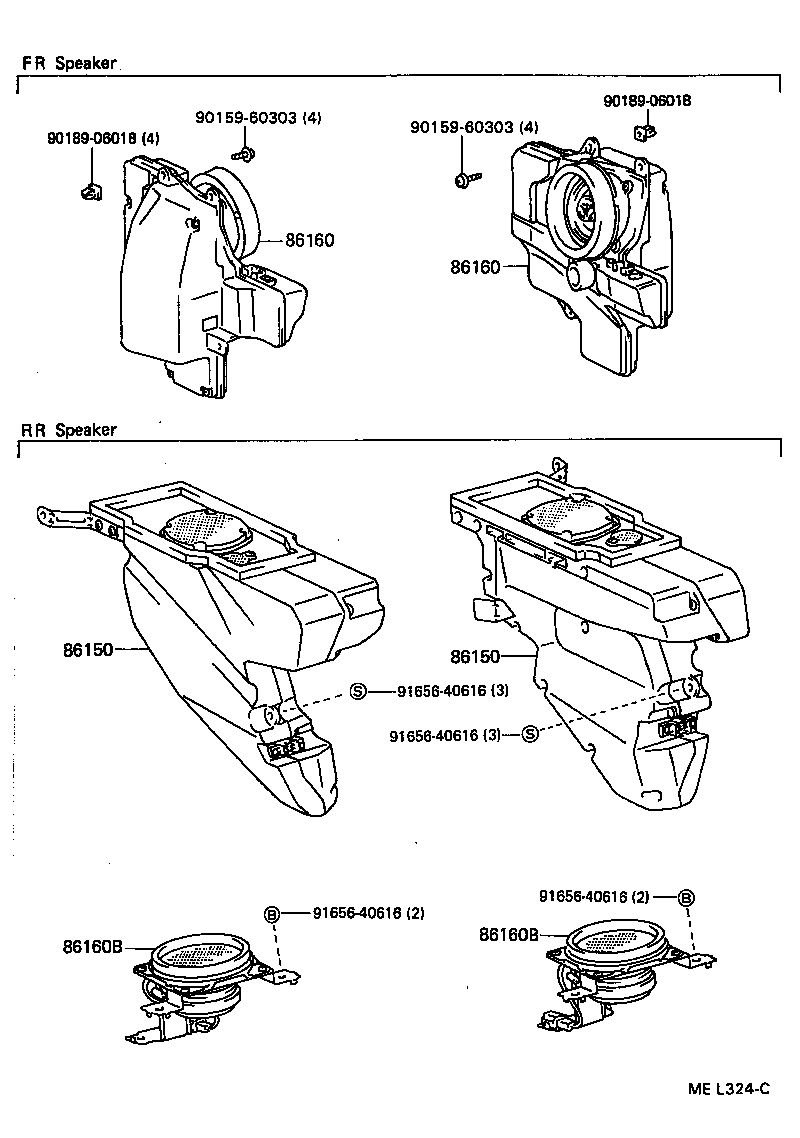

ILLUST NO. 1 OF 2(8808- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60303 | ||||
| 90189-06018 | ||||
| 91656-40616 | ||||

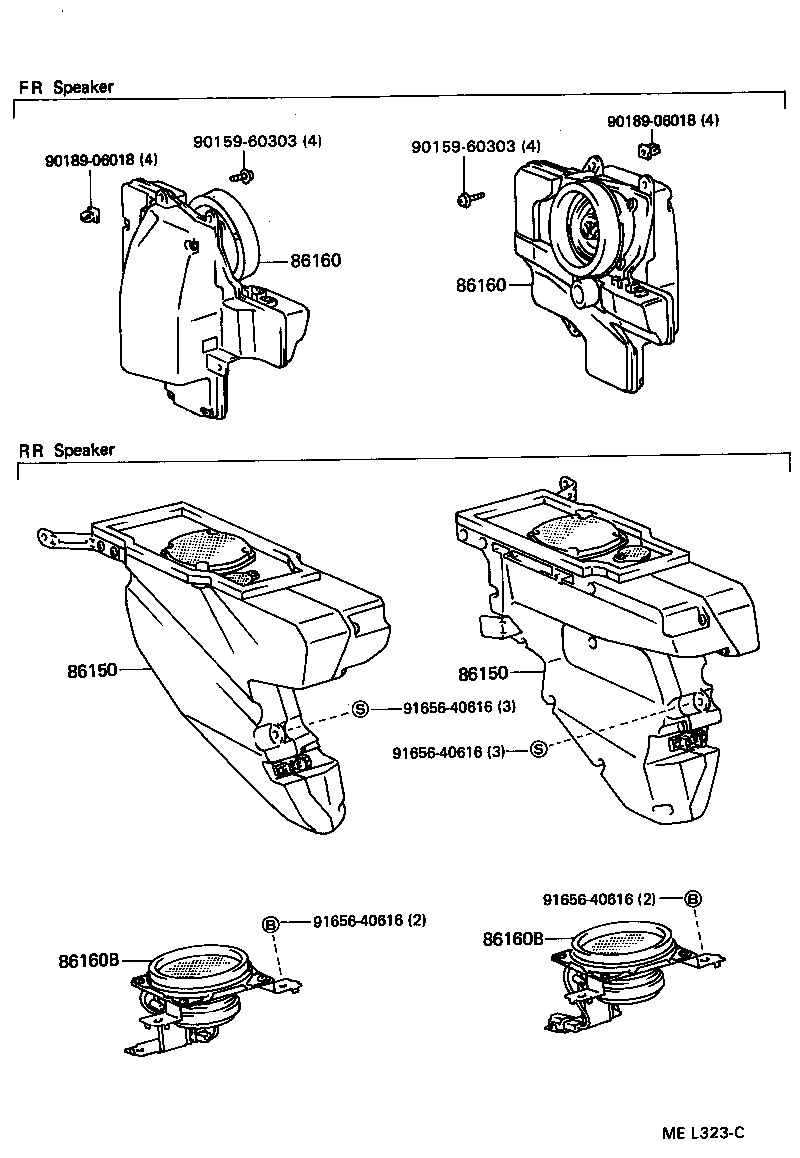

ILLUST NO. 2 OF 2(9108- )
Click highlighted areas on diagram

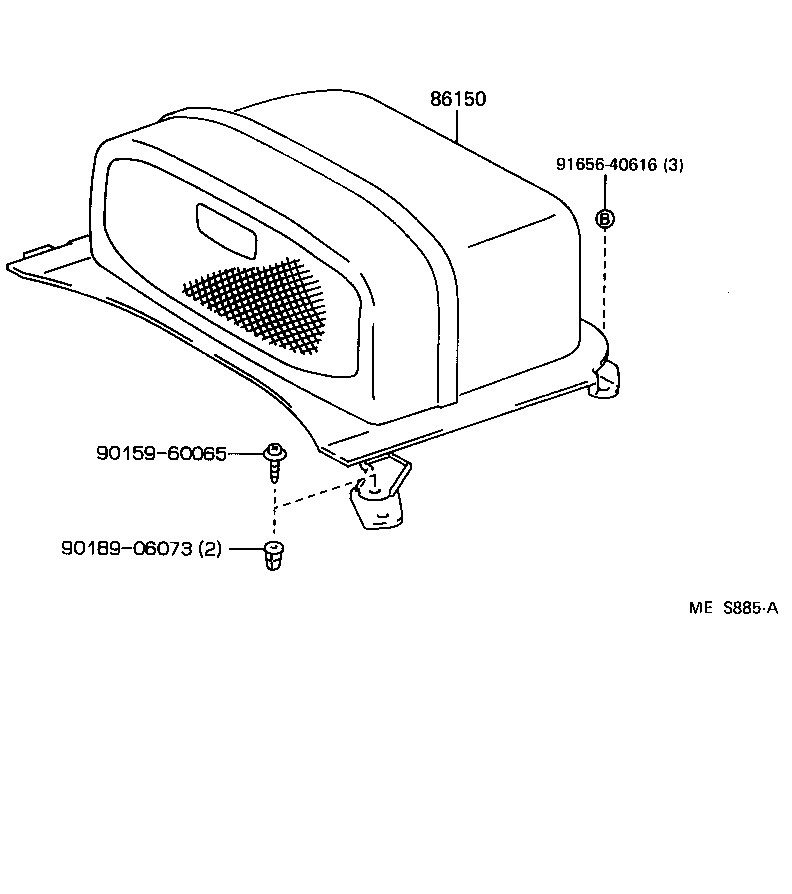

W(SUPER LIVE SOUND SYSTEM)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60065 | ||||
| 90189-06073 | ||||
| 91656-40616 | ||||
