MA70L-BLMVF (1988)

Toyota Supra

Production Aug 1988 - May 1993
Engine 7MGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

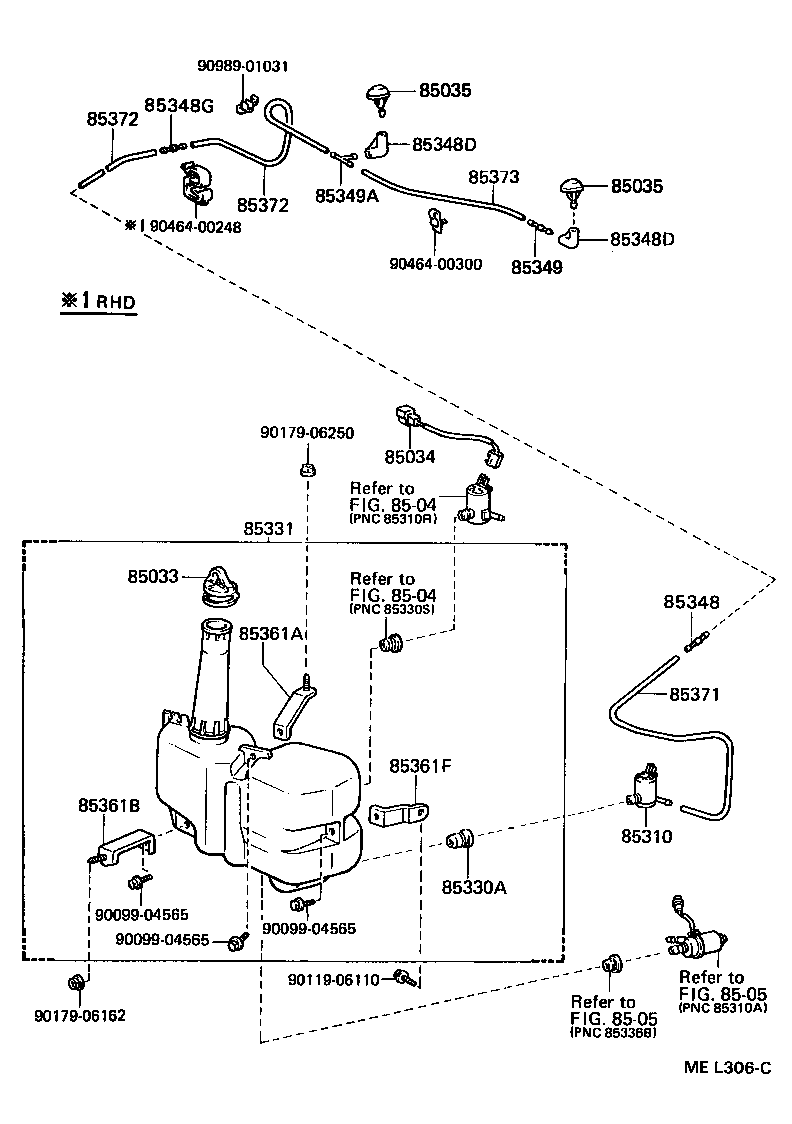

Click highlighted areas on diagram

diagram 85033 85034 85035 85035 8504 8504 8505 8505 85310 85330A 85331 85348 85348D 85348D 85348G 85349 85349A 85361A 85361B 85361F 85371 85372 85372 85373 9009904565 9009904565 9009904565 9011906110 9017906162 9017906250 9046400248 9046400300 9098901031
Part # Description Qty Price
85033 - CAP ASSY, WINDSHIELD WASHER
85332-14770

MA70..ARL,GEN,V

 1
85332-32161

MA70

 1
85332-14751

MA70..C

 1
85034 - WIRE, WASHER
85034-14680

MA70..ARL,GEN,V

 1
85035 - NOZZLE SUB-ASSY, WASHER
85035-14360

MA70..LHD..(GEN,V)

 2
85035-14380

MA70..LHD..(C,EUR)

 2
85035 - NOZZLE SUB-ASSY, WASHER
85035-14360

MA70..LHD..(GEN,V)

 2
85035-14380

MA70..LHD..(C,EUR)

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-22080

MA70..ARL,GEN,V

 1
85310-16050

MA70..C,EUR

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

MA70

 1
85331 - JAR SUB-ASSY, WINDSHIELD WASHER
85331-14680

MA70

 1
85331-14730

MA70..C,EUR

W(HEADLAMP CLEANER)

 1
85331-14701

MA70..C

 1
85331-14431

MA70..C

W(HEADLAMP CLEANER)

 1
85331-14680

MA70..C,EUR

 1
85331-14700

MA70..ARL,GEN,V

 1
85331-14770

MA70..ARL,GEN,V

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

MA70

 1
85334-22480

MA70..C

 1
85349-89122

MA70..ARL,GEN,V

 1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-14481

MA70

 2
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-14481

MA70

 2
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85349-14010

MA70..C

 1
85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

MA70..ARL,GEN,V

 1
85349-89122

MA70

 1
85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2
85348-14510

MA70

 1
85348-14510

MA70..ARL,GEN,V

 1
85348-14390

MA70..C

 1
85361A - BRACKET, WINDSHIELD WASHER, NO.1
85361-14600

MA70

 1
85361-14340

MA70

 1
85361-14340

MA70..C,EUR

W(HEADLAMP CLEANER)

 1
85361B - BRACKET, WINDSHIELD WASHER, NO.2
85362-14600

MA70

 1
85361F - BRACKET, WINDSHIELD WASHER, NO.3
85363-14600

MA70

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33075

MA70..C

L=1100

 1
90446-07001

MA70..C,EUR

W(HEADLAMP CLEANER)

 1
90446-07001

MA70

 1
90446-07001

MA70..ARL,GEN,V

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33079

MA70..ARL,GEN,V

L=1400

 1
90099-33079

MA70

L=1400

 1
90099-33080

MA70..C

L=1450

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33079

MA70..ARL,GEN,V

L=1400

 1
90099-33079

MA70

L=1400

 1
90099-33080

MA70..C

L=1450

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

MA70

L=1450

 1
Common parts
90099-04565
90119-06110
90179-06162
90179-06250
90464-00248
90464-00300
90989-01031
Linked diagrams
8504
8505

(8808- )

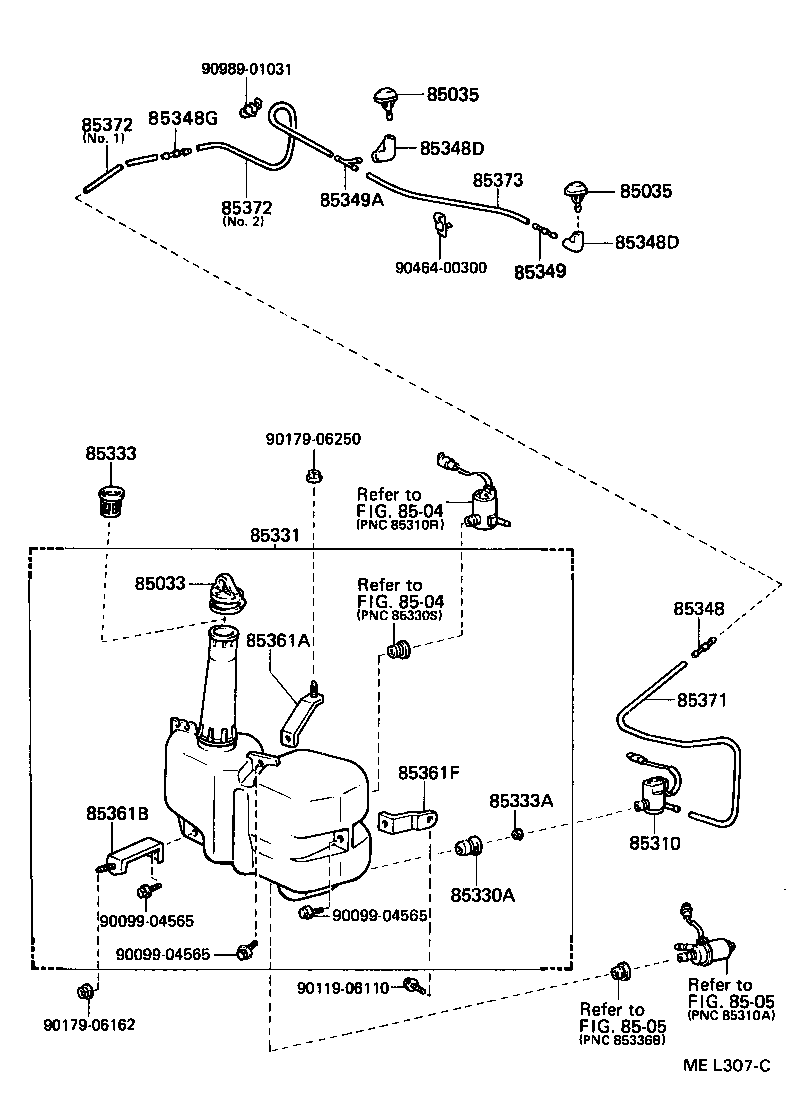

Click highlighted areas on diagram

diagram 85033 85035 85035 8504 8504 8505 8505 85310 85330A 85331 85333 85333A 85348 85348D 85348D 85348G 85349 85349A 85361A 85361B 85361F 85371 85372 85372 85373 9009904565 9009904565 9009904565 9011906110 9017906162 9017906250 9046400300 9098901031
Part # Description Qty Price
Common parts
90099-04565
90119-06110
90179-06162
90179-06250
90464-00300
90989-01031
Linked diagrams
8504
8505
