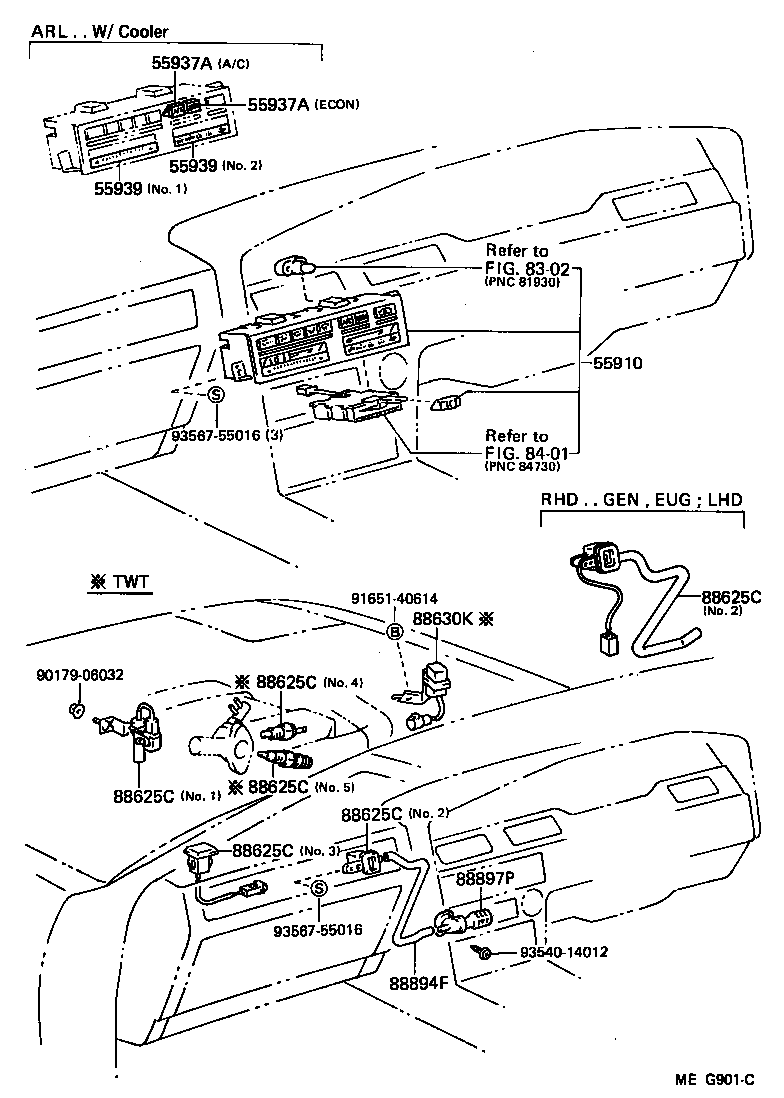

MA70L-BLMVF (1986)
Toyota Supra
(8601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55900-14380 |
MA70..LHD..GEN W/COOLER |
1 | ||
| 55900-14390 |
MA70..LHD W/*AAC |
1 | ||
| 55900-14391 |
MA70..LHD W/MANUAL AIR CONDITIONER |
1 | ||
| 55900-14401 |
MA70..LHD W/AUTO AIR CONDITIONER |
1 | ||
| 55900-14381 |
MA70..LHD..GEN W/COOLER |
1 | ||
| 55900-14400 |
MA70..LHD |
1 | ||
| 55900-14402 |
MA70..LHD |
1 | ||
| 55900-14392 |
MA70..LHD W/*AAC |
1 | ||
| 55900-14382 |
MA70..LHD..GEN W/COOLER |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-20140 |
MA70..ARL,EUR,GCC,GEN NO.3 |
1 | ||
| 88790-14100 |
MA70..LHD NO.2 |
1 | ||
| 88790-24070 |
MA70..ARL,EUR,GCC,GEN NO.1 |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-20140 |
MA70..ARL,EUR,GCC,GEN NO.3 |
1 | ||
| 88790-14100 |
MA70..LHD NO.2 |
1 | ||
| 88790-24070 |
MA70..ARL,EUR,GCC,GEN NO.1 |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-20140 |
MA70..ARL,EUR,GCC,GEN NO.3 |
1 | ||
| 88790-14100 |
MA70..LHD NO.2 |
1 | ||
| 88790-24070 |
MA70..ARL,EUR,GCC,GEN NO.1 |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-20140 |
MA70..ARL,EUR,GCC,GEN NO.3 |
1 | ||
| 88790-14100 |
MA70..LHD NO.2 |
1 | ||
| 88790-24070 |
MA70..ARL,EUR,GCC,GEN NO.1 |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-20140 |
MA70..ARL,EUR,GCC,GEN NO.3 |
1 | ||
| 88790-14100 |
MA70..LHD NO.2 |
1 | ||
| 88790-24070 |
MA70..ARL,EUR,GCC,GEN NO.1 |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-20140 |
MA70..ARL,EUR,GCC,GEN NO.3 |
1 | ||
| 88790-14100 |
MA70..LHD NO.2 |
1 | ||
| 88790-24070 |
MA70..ARL,EUR,GCC,GEN NO.1 |
1 | ||
| 88897P - ASPIRATOR | ||||
| 88897-14010 |
MA70..ARL,EUR,GCC,GEN |
1 | ||
| Common parts | ||||
| 90179-06032 | ||||
| 91651-40614 | ||||
| 93540-14012 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||

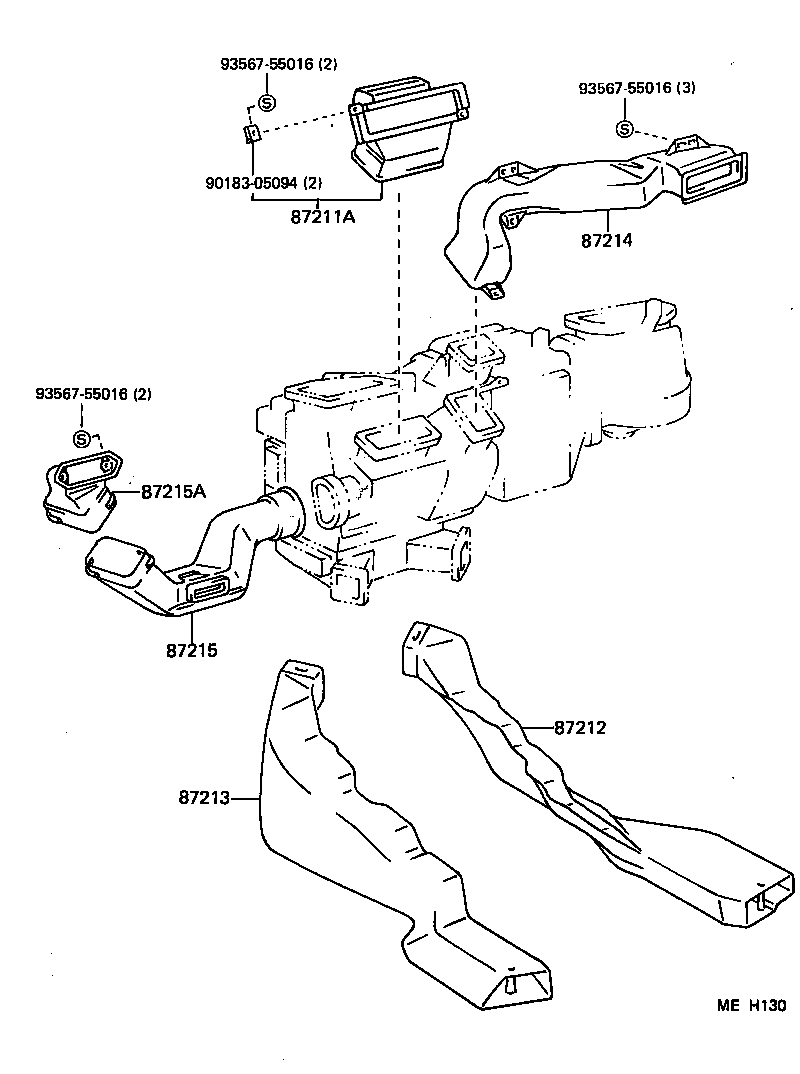

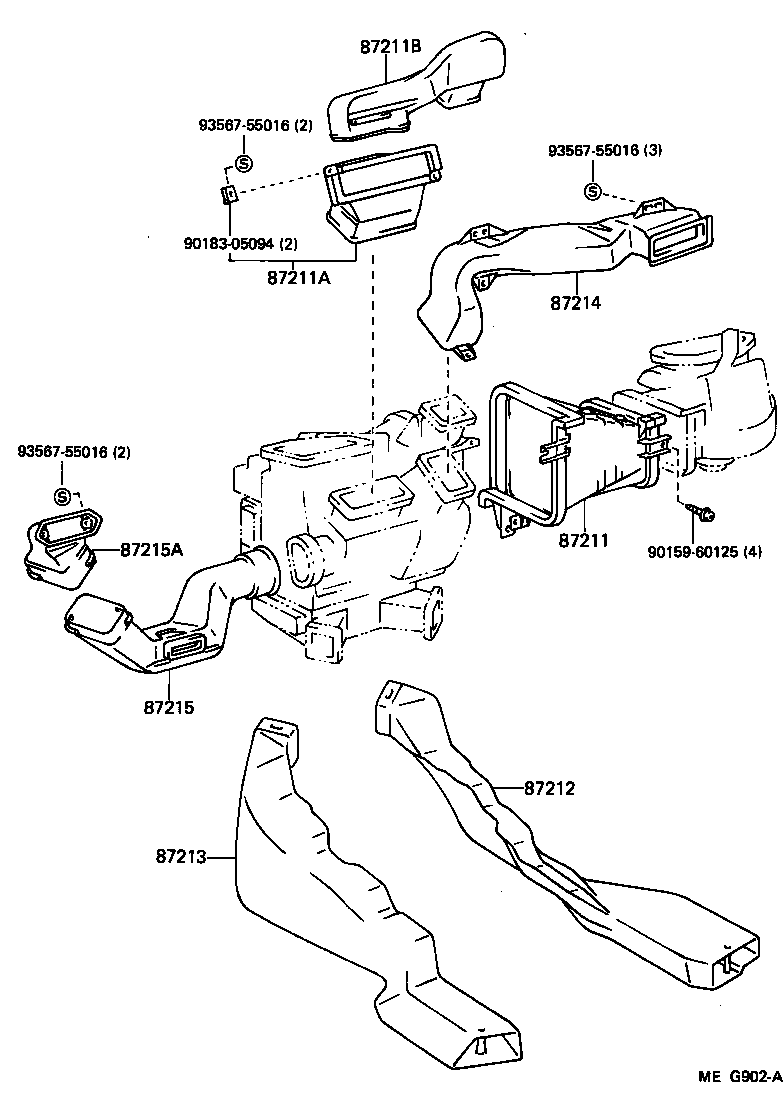

(8601- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87211 - DUCT, AIR, NO.1 | ||||
| 87201-14160 |
MA70..LHD |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 55845-14190 |
MA70..LHD |
1 | ||
| 87211B - DUCT, AIR, NO.3 | ||||
| 55847-14090 |
MA70..LHD |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-14050 |
MA70 |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-14020 |
MA70 |
1 | ||
| 87214 - DUCT, AIR, SIDE NO.1 RH | ||||
| 55846-14120 |
MA70..LHD |
1 | ||
| 87215 - DUCT, AIR, SIDE NO.1 LH | ||||
| 55844-14160 |
MA70..LHD |
1 | ||
| 87215A - DUCT, AIR, SIDE NO.2 LH | ||||
| 55843-14140 |
MA70..LHD |
1 | ||
| Common parts | ||||
| 90159-60125 | ||||
| 90183-05094 | ||||
| 93567-55016 | ||||

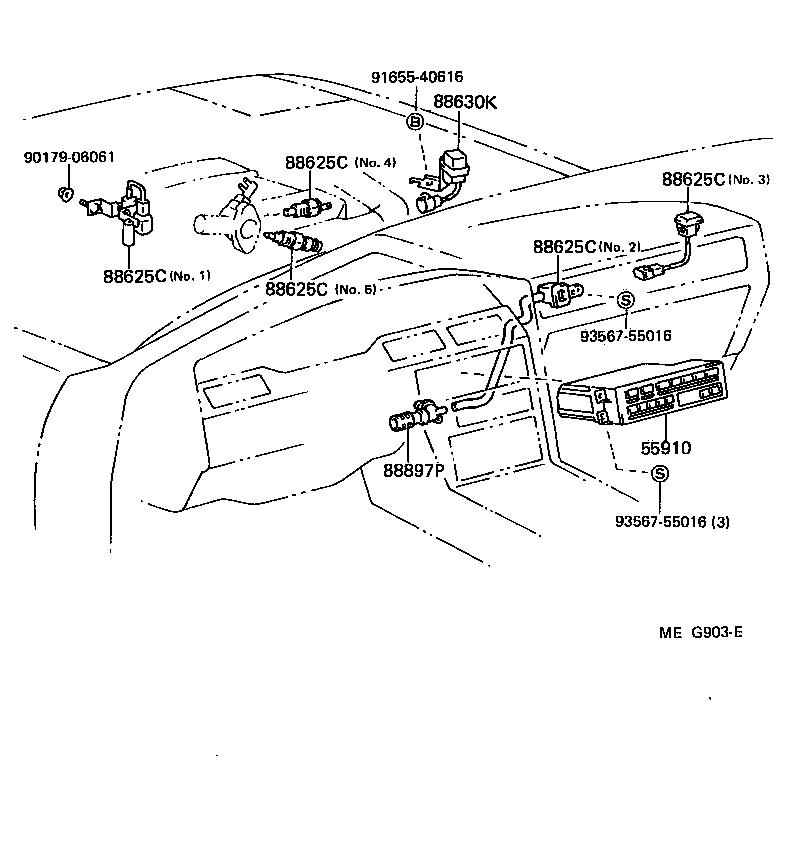

ILLUST NO. 1 OF 2(8601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-06061 | ||||
| 91655-40616 | ||||
| 93567-55016 | ||||
ILLUST NO. 2 OF 2(8601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90183-05094 | ||||
| 93567-55016 | ||||
