MA70L-BLMVF (1986)
Toyota Supra
Production
Jan 1986
-
Aug 1988
Engine
7MGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8601- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-24020 |
MA70 |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-14020 |
MA70..LHD |
1 | ||
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-14010 |
MA70..LHD AIR INLET DAMPER |
1 | ||
| 87106-14030 |
MA70..LHD AIR MIX DAMPER |
1 | ||
| 87106-14020 |
MA70..LHD MODE DAMPER |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-14130 |
MA70..LHD W/*AAC |
1 | ||
| 87130-14120 |
MA70..LHD |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-14090 |
MA70 |
1 | ||
| 87138-24030 |
MA70..ARL,EUR,GCC,GEN W/*AAC |
1 | ||
| Common parts | ||||
| 90179-06054 | ||||

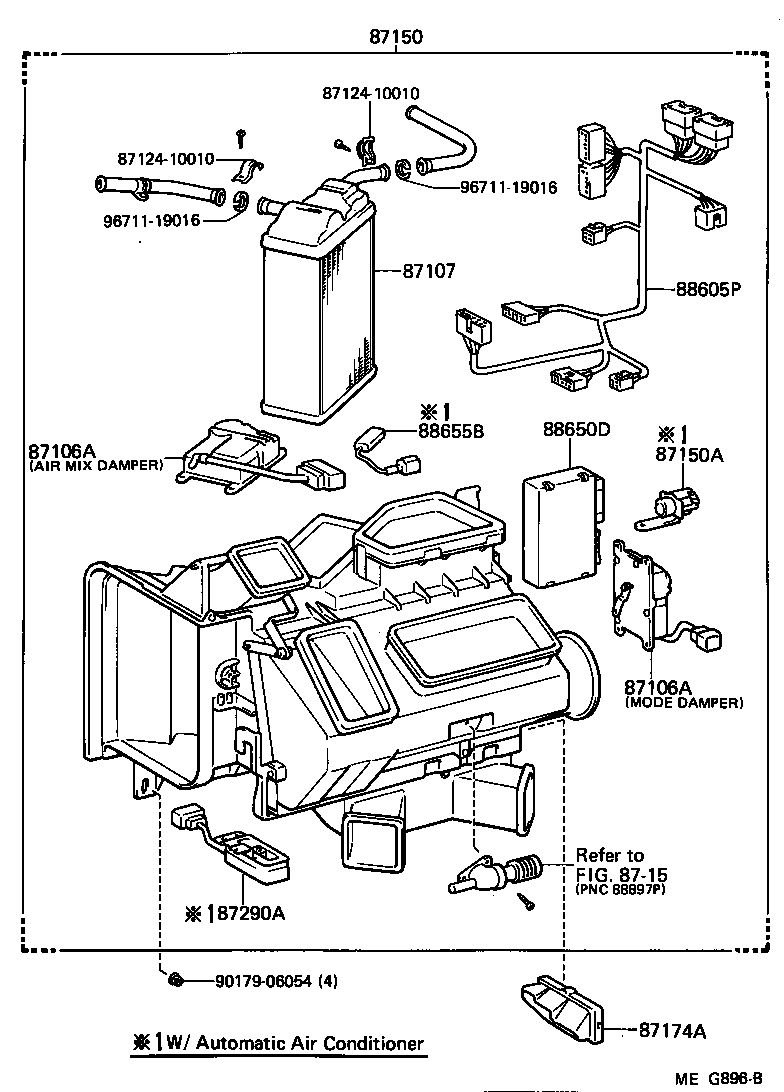

(8601- )EUR,GCC,GEN,SA
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-14010 |
MA70..LHD AIR INLET DAMPER |
1 | ||
| 87106-14030 |
MA70..LHD AIR MIX DAMPER |
1 | ||
| 87106-14020 |
MA70..LHD MODE DAMPER |
1 | ||
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-14010 |
MA70..LHD AIR INLET DAMPER |
1 | ||
| 87106-14030 |
MA70..LHD AIR MIX DAMPER |
1 | ||
| 87106-14020 |
MA70..LHD MODE DAMPER |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-14170 |
MA70..LHD |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-14270 |
MA70..LHD |
1 | ||
| 87150-14280 |
MA70..LHD W/*AAC |
1 | ||
| 87150A - RELAY, HEATER RADIATOR | ||||
| 88630-24050 |
MA70..EUR,GCC,GEN |
1 | ||
| 87174A - GUIDE, AIR HEATER | ||||
| 87174-14050 |
MA70..LHD |
1 | ||
| 87290A - SWITCH ASSY, HEATER | ||||
| 87290-14010 |
MA70..LHD |
1 | ||
| 88605P - HARNESS SUB-ASSY, AIR CONDITIONER WIRING | ||||
| 88605-14800 |
MA70..EUR,GCC,GEN W/*AAC |
1 | ||
| 88605-14790 |
MA70 |
1 | ||
| 88650D - AMPLIFIER ASSY | ||||
| 88650-14230 |
MA70 |
1 | ||
| 88655B - SWITCH, WATER TEMPERATURE | ||||
| 88625-10070 |
MA70..EUR,GCC,GEN |
1 | ||
| Common parts | ||||
| 87124-10010 | ||||
| 90179-06054 | ||||
| 96711-19016 | ||||
| Linked diagrams | ||||
| 8715 | ||||
ILLUST NO. 2 OF 2(8601- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-06054 | ||||
ILLUST NO. 1 OF 2(8601- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 87124-10010 | ||||
| 90179-06054 | ||||
| 93567-55016 | ||||
| 96711-19016 | ||||
| Linked diagrams | ||||
| 8715 | ||||
