MA70L-BLMVF (1986)
Toyota Supra
(8601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-14100 | ||||
| 82711-14110 | ||||
| 82711-14560 | ||||
| 82711-20240 | ||||
| 82711-22220 | ||||
| 82711-22350 | ||||
| 82711-22490 | ||||
| 82711-22620 | ||||
| 82711-22670 | ||||
| 82711-24070 | ||||
| 82711-24200 | ||||
| 82711-24210 | ||||
| 82711-24220 | ||||
| 82711-24230 | ||||
| 82711-24240 | ||||
| 82711-24290 | ||||
| 82711-24310 | ||||
| 82711-24330 | ||||
| 82711-24340 | ||||
| 82711-24370 | ||||
| 82711-30070 | ||||
| 82711-30130 | ||||
| 82711-30670 | ||||
| 82711-32360 | ||||
(8601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-14110 | ||||
| 82711-1A210 | ||||
| 82711-1B020 | ||||
| 82711-22620 | ||||
| 82711-24400 | ||||
| 82711-24410 | ||||
| 82711-2A090 | ||||
| 82711-95015 | ||||
| 90461-06303 | ||||
| 90461-08183 | ||||
| 90461-08312 | ||||
| 90463-10012 | ||||
| 90464-00137 | ||||
| 90467-09043 | ||||
| 90949-01217 | ||||
(8601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

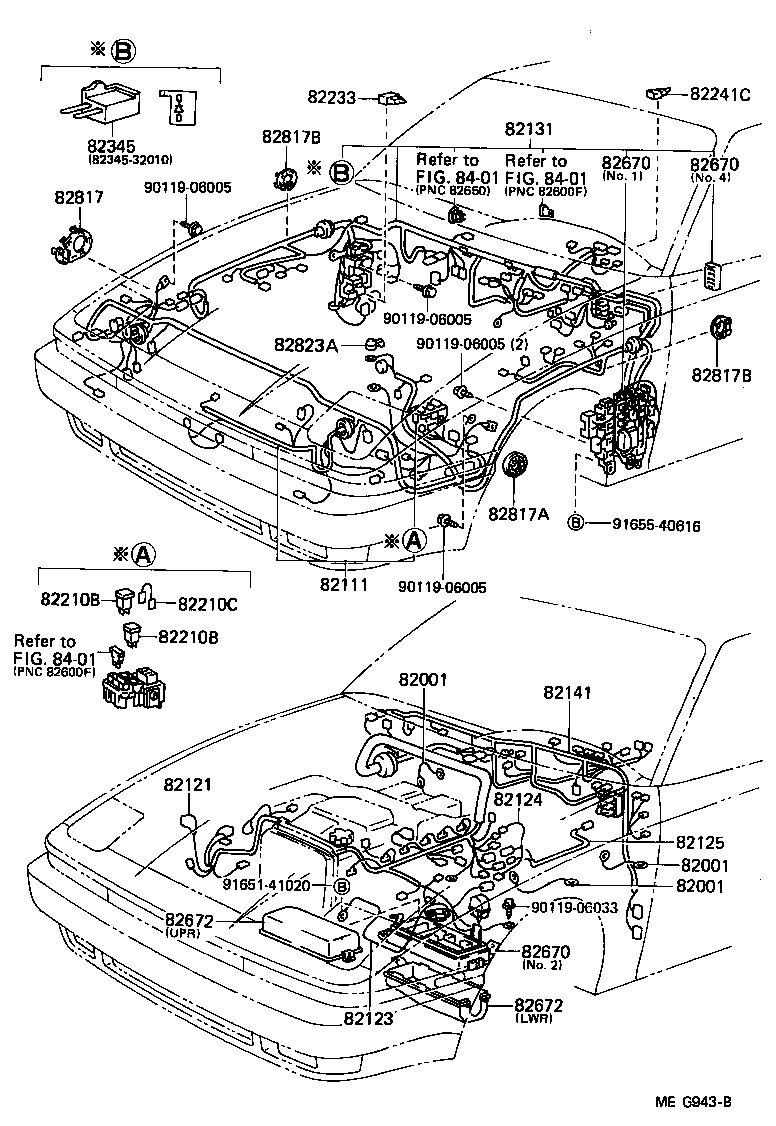

| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07200 |
MA70 L=350,ENGINE--COWL PANEL |
1 | ||
| 90980-07148 |
MA70..LHD..EUG;MA70..LHD..(GCC,GEN);MA70..RHD..(EUR,GEN,SA) L=260,EXTENSION HOUSING--FLOOR |
1 | ||
| 90980-07176 |
MA70 L=300,CLUTCH HOUSING--FLOOR |
1 | ||
| 90980-07308 |
MA70 L=350,ENGINE--COWL PANEL |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07200 |
MA70 L=350,ENGINE--COWL PANEL |
1 | ||
| 90980-07148 |
MA70..LHD..EUG;MA70..LHD..(GCC,GEN);MA70..RHD..(EUR,GEN,SA) L=260,EXTENSION HOUSING--FLOOR |
1 | ||
| 90980-07176 |
MA70 L=300,CLUTCH HOUSING--FLOOR |
1 | ||
| 90980-07308 |
MA70 L=350,ENGINE--COWL PANEL |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07200 |
MA70 L=350,ENGINE--COWL PANEL |
1 | ||
| 90980-07148 |
MA70..LHD..EUG;MA70..LHD..(GCC,GEN);MA70..RHD..(EUR,GEN,SA) L=260,EXTENSION HOUSING--FLOOR |
1 | ||
| 90980-07176 |
MA70 L=300,CLUTCH HOUSING--FLOOR |
1 | ||
| 90980-07308 |
MA70 L=350,ENGINE--COWL PANEL |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-14591 |
MA70..LHD..(GCC,GEN) |
1 | ||
| 82111-14590 |
MA70..LHD..(GCC,GEN) |
1 | ||
| 82111-14592 |
MA70..LHD..(GCC,GEN) |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-14311 |
MA70..LHD |
1 | ||
| 82121-14312 |
MA70..LHD..TWC |
1 | ||
| 82121-14310 |
MA70..LHD |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-24030 |
MA70 |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-24030 |
MA70..5F..TWC |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-1B060 |
MA70..LHD..GEN |
1 | ||
| 82131-1B061 |
MA70..LHD..GEN |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-14460 |
MA70..LHD..(GCC,GEN) |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
MA70 NO.1 |
1 | ||
| 82345-32010 |
MA70 NO.4 |
2 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-14100 |
MA70..LHD..(GCC,GEN) NO.1 |
1 | ||
| 82671-24010 |
MA70 NO.2 |
1 | ||
| 82671-14020 |
MA70 NO.4 |
1 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-14100 |
MA70..LHD..(GCC,GEN) NO.1 |
1 | ||
| 82671-24010 |
MA70 NO.2 |
1 | ||
| 82671-14020 |
MA70 NO.4 |
1 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-14100 |
MA70..LHD..(GCC,GEN) NO.1 |
1 | ||
| 82671-24010 |
MA70 NO.2 |
1 | ||
| 82671-14020 |
MA70 NO.4 |
1 | ||
| 82672 - COVER, JUNKTION BLOCK | ||||
| 82672-14030 |
MA70..LHD..(GCC,GEN) UPR |
1 | ||
| 82672-14010 |
MA70..LHD..(GCC,GEN) UPR |
1 | ||
| 82672-24010 |
MA70 LWR |
1 | ||
| 82672 - COVER, JUNKTION BLOCK | ||||
| 82672-14030 |
MA70..LHD..(GCC,GEN) UPR |
1 | ||
| 82672-14010 |
MA70..LHD..(GCC,GEN) UPR |
1 | ||
| 82672-24010 |
MA70 LWR |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-24140 |
MA70..TWC |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-24100 |
MA70 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-24110 |
MA70 |
1 | ||
| 82823A - CAP, TERMINAL, NO.2 | ||||
| 82823-20040 |
MA70 |
1 | ||
| 82823-22050 |
MA70..TWC |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06033 | ||||
| 90119-06067 | ||||
| 91651-41020 | ||||
| 91655-40616 | ||||
| 91655-40620 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(8601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

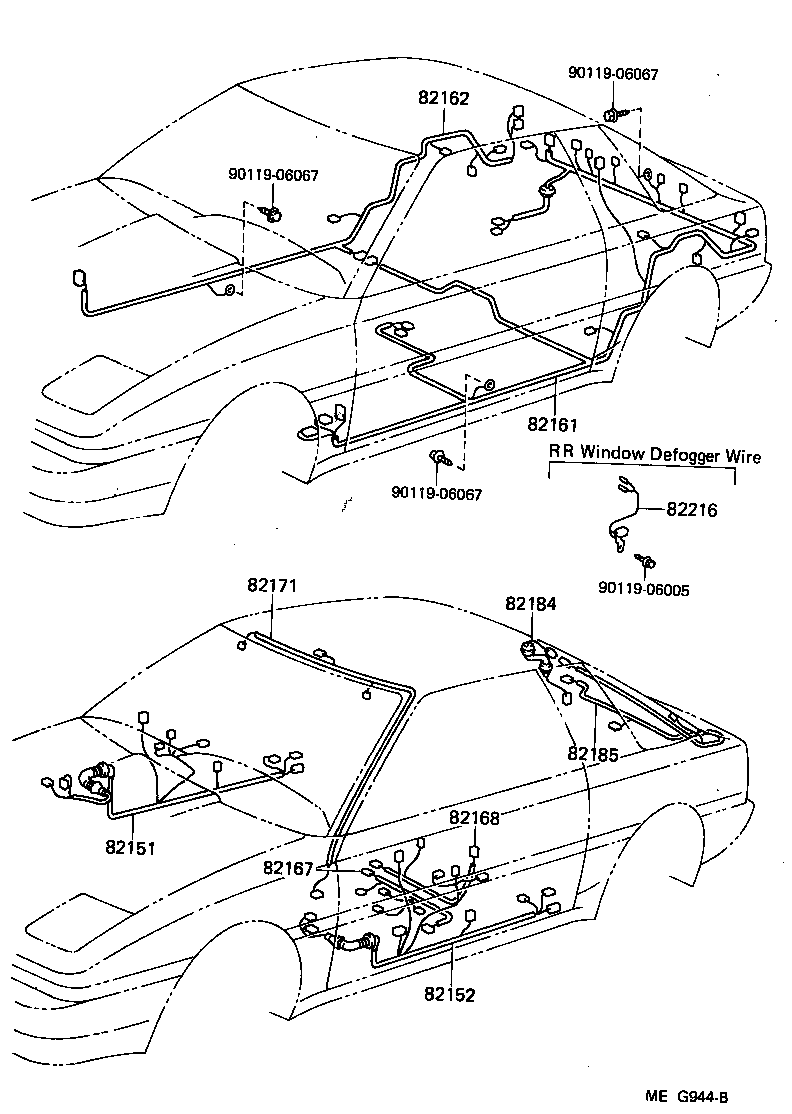

| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-14380 |
MA70..LHD |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-14330 |
MA70..LHD |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-14740 |
MA70..LHD..(GCC,GEN) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-14030 |
MA70..LHD |
1 | ||
| 82168 - WIRE, SEAT, NO.2 | ||||
| 82167-24030 |
MA70 |
1 | ||
| 82167-24030 |
MA70..LHD..(GCC,GEN) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-14230 |
MA70..LHD..LB |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-14070 |
MA70..LHD |
1 | ||
| 82184-14080 |
MA70..LHD W/*RW |
1 | ||
| 82184-14080 |
MA70..LHD |
1 | ||
| 82184-14080 |
MA70 W/*RW |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-14141 |
MA70..LHD |
1 | ||
| 82185-14140 |
MA70..LHD |
1 | ||
| 82216 - WIRE, REAR WINDOW DEFOGGER | ||||
| 82216-14190 |
MA70..SDZ;MA70..ARL,GCC,GEN,SA |
1 | ||
| 82216-14191 |
MA70..SDZ;MA70..ARL,GCC,GEN,SA |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06067 | ||||
(8601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210B - FUSIBLE LINK | ||||
| 90982-08189 |
MA70 40A,TERM.:FEMALE,GRN,40A |
1 | ||
| 90982-08190 |
MA70 60A,TERM.:FEMALE,YEL,60A |
1 | ||
| 90982-08188 |
MA70 30A,TERM.:FEMALE,PNK,30A |
1 | ||
| 82210B - FUSIBLE LINK | ||||
| 90982-08189 |
MA70 40A,TERM.:FEMALE,GRN,40A |
1 | ||
| 90982-08190 |
MA70 60A,TERM.:FEMALE,YEL,60A |
1 | ||
| 90982-08188 |
MA70 30A,TERM.:FEMALE,PNK,30A |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08250 |
MA70 WIRE TYPE,1.25B,1.25 BLACK |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
MA70 NO.1 |
1 | ||
| 82345-32010 |
MA70 NO.4 |
2 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
MA70 NO.1 |
1 | ||
| 82345-32010 |
MA70 NO.4 |
2 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
MA70 NO.1 |
1 | ||
| 82345-32010 |
MA70 NO.4 |
2 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
MA70 NO.1 |
1 | ||
| 82345-32010 |
MA70 NO.4 |
2 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
MA70 NO.1 |
1 | ||
| 82345-32010 |
MA70 NO.4 |
2 | ||
| Common parts | ||||
| 82345-12050 | ||||
| 82345-20040 | ||||
| 82345-20050 | ||||
| 82345-32010 | ||||
| 82345-32020 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(8601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

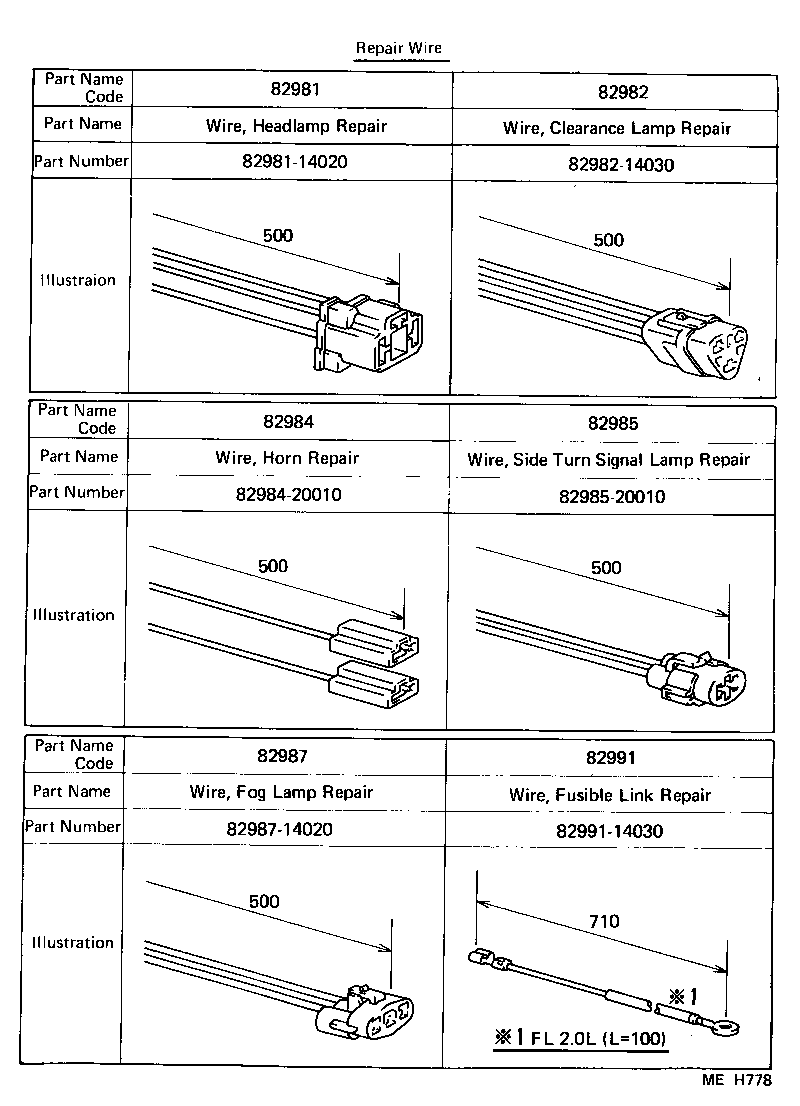

| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-14010 |
MA70..ARL,GCC,GEN,SA |
1 | ||
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-14010 |
MA70..ARL,GCC,GEN,SA |
1 | ||
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-14010 |
MA70..ARL,GCC,GEN,SA |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-12030 |
MA70..ARL,GCC,GEN,SA |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-12030 |
MA70..ARL,GCC,GEN,SA |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-20010 |
MA70 |
1 | ||
| Common parts | ||||
| 82981-14010 | ||||
| 82981-14020 | ||||
| 82981-14030 | ||||
| 82982-12030 | ||||
| 82982-14030 | ||||
| 82984-20010 | ||||
(8601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82985 - WIRE, SIDE TURN SIGNAL LAMP REPAIR | ||||
| 82985-20010 |
MA70 |
1 | ||
| 82987 - WIRE, FOG LAMP REPAIR | ||||
| 82987-14010 |
MA70..ARL,GCC,GEN,SA |
1 | ||
| 82987 - WIRE, FOG LAMP REPAIR | ||||
| 82987-14010 |
MA70..ARL,GCC,GEN,SA |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-14030 |
MA70 |
1 | ||
| Common parts | ||||
| 82985-20010 | ||||
| 82987-14010 | ||||
| 82987-14020 | ||||
| 82991-14030 | ||||
ILLUST NO. 4 OF 5(8601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-14100 | ||||
| 82711-14110 | ||||
| 82711-14560 | ||||
| 82711-20240 | ||||
| 82711-22220 | ||||
| 82711-22350 | ||||
| 82711-22490 | ||||
| 82711-22620 | ||||
| 82711-22670 | ||||
| 82711-24070 | ||||
| 82711-24200 | ||||
| 82711-24210 | ||||
| 82711-24220 | ||||
| 82711-24230 | ||||
| 82711-24240 | ||||
| 82711-24290 | ||||
| 82711-24310 | ||||
| 82711-24330 | ||||
| 82711-24340 | ||||
| 82711-24370 | ||||
| 82711-30070 | ||||
| 82711-30130 | ||||
| 82711-30670 | ||||
| 82711-32360 | ||||
ILLUST NO. 5 OF 5(8601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-14110 | ||||
| 82711-1A210 | ||||
| 82711-1B020 | ||||
| 82711-22620 | ||||
| 82711-24400 | ||||
| 82711-24410 | ||||
| 82711-2A090 | ||||
| 82711-95015 | ||||
| 90461-06303 | ||||
| 90461-08183 | ||||
| 90461-08312 | ||||
| 90463-10012 | ||||
| 90464-00137 | ||||
| 90467-09043 | ||||
| 90949-01217 | ||||
ILLUST NO. 1 OF 5(8601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82345-32010 | ||||
| 90119-06005 | ||||
| 90119-06033 | ||||
| 91651-41020 | ||||
| 91655-40616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 5(8601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06067 | ||||
ILLUST NO. 3 OF 5(8601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82981-14020 | ||||
| 82982-14030 | ||||
| 82984-20010 | ||||
| 82985-20010 | ||||
| 82987-14020 | ||||
| 82991-14030 | ||||
