MA70L-BLMVF (1986)

Toyota Supra

Production Jan 1986 - Aug 1988
Engine 7MGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8601- )

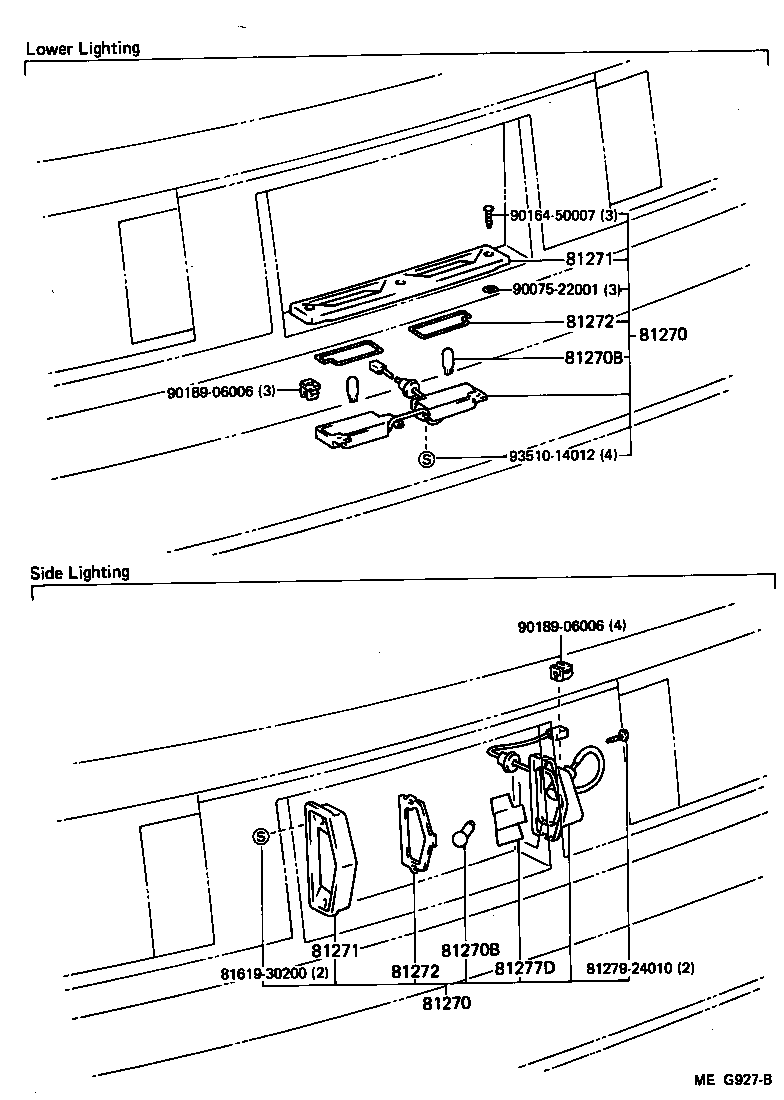

Click highlighted areas on diagram

diagram 81270 81270 81270B 81270B 81271 81271 81272 81272 81277D 8127924010 8161930200 9007522001 9016450007 9018906006 9018906006 9351014012
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-14240

MA70..SDZ;MA70..ARL,GCC,GEN

SIDE LIGHTING

 2
81270-14230

MA70..EUR,GEN,SA

LOWER LIGHTING

 1
81270 - LAMP ASSY, LICENSE PLATE
81270-14240

MA70..SDZ;MA70..ARL,GCC,GEN

SIDE LIGHTING

 2
81270-14230

MA70..EUR,GEN,SA

LOWER LIGHTING

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

MA70..EUR,GEN,SA

12V 5W,12V 5W

 2
90981-12012

MA70..SDZ;MA70..ARL,GCC,GEN

12V 7.5W,12V 7.5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

MA70..EUR,GEN,SA

12V 5W,12V 5W

 2
90981-12012

MA70..SDZ;MA70..ARL,GCC,GEN

12V 7.5W,12V 7.5W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-14220

MA70..SDZ;MA70..ARL,GCC,GEN

SIDE LIGHTING

 2
81271-14230

MA70..EUR,GEN,SA

LOWER LIGHTING

 1
81271 - LENS, LICENSE PLATE LAMP
81271-14220

MA70..SDZ;MA70..ARL,GCC,GEN

SIDE LIGHTING

 2
81271-14230

MA70..EUR,GEN,SA

LOWER LIGHTING

 1
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-20210

MA70..SDZ;MA70..ARL,GCC,GEN

SIDE LIGHTING

 2
81272-14230

MA70..EUR,GEN,SA

LOWER LIGHTING

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-20210

MA70..SDZ;MA70..ARL,GCC,GEN

SIDE LIGHTING

 2
81272-14230

MA70..EUR,GEN,SA

LOWER LIGHTING

 2
81277D - REFLECTOR, LICENSE PLATE LAMP
81277-20210

MA70..SDZ;MA70..ARL,GCC,GEN

 2
Common parts
81279-24010
81619-30200
90075-22001
90164-50007
90189-06006
93510-14012

(8601- )

Click highlighted areas on diagram

diagram 81270 81270B 81271 81272 81277D 8127924010 8161930200 9018906006
Part # Description Qty Price
Common parts
81279-24010
81619-30200
90189-06006
